Lindy

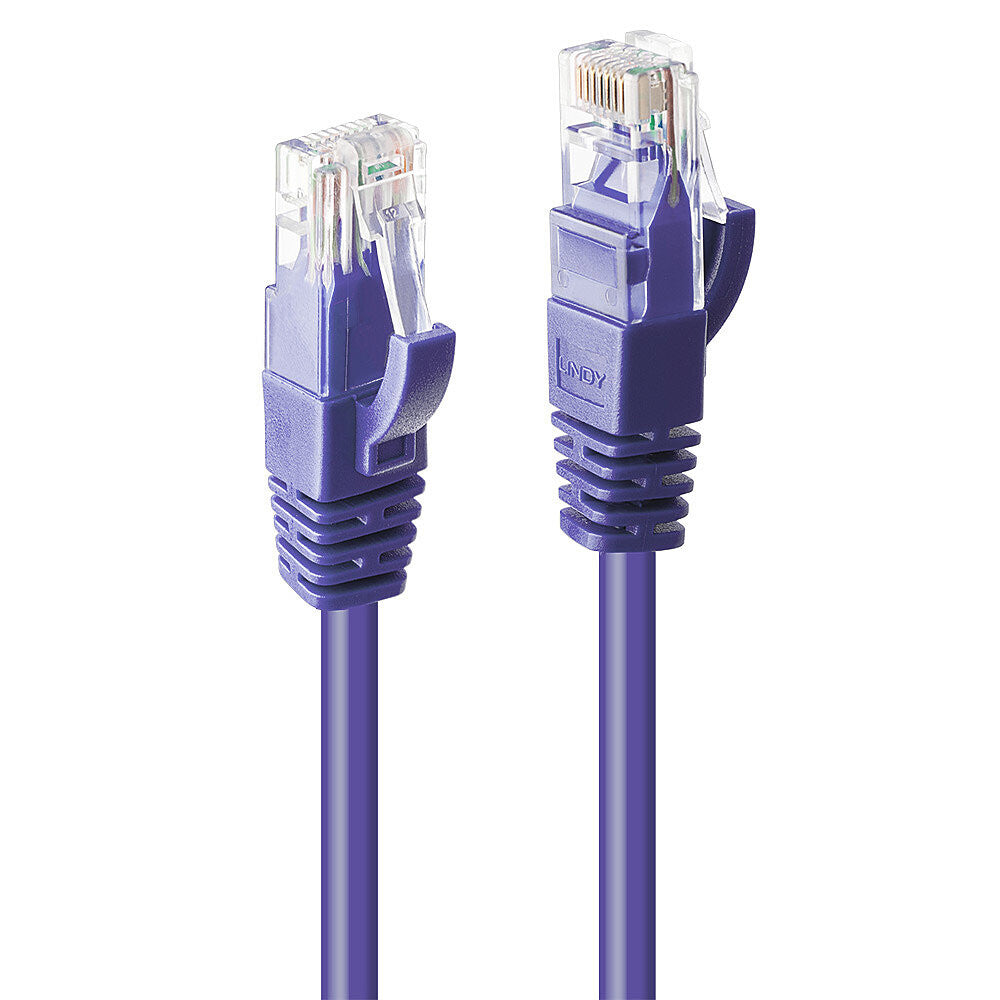

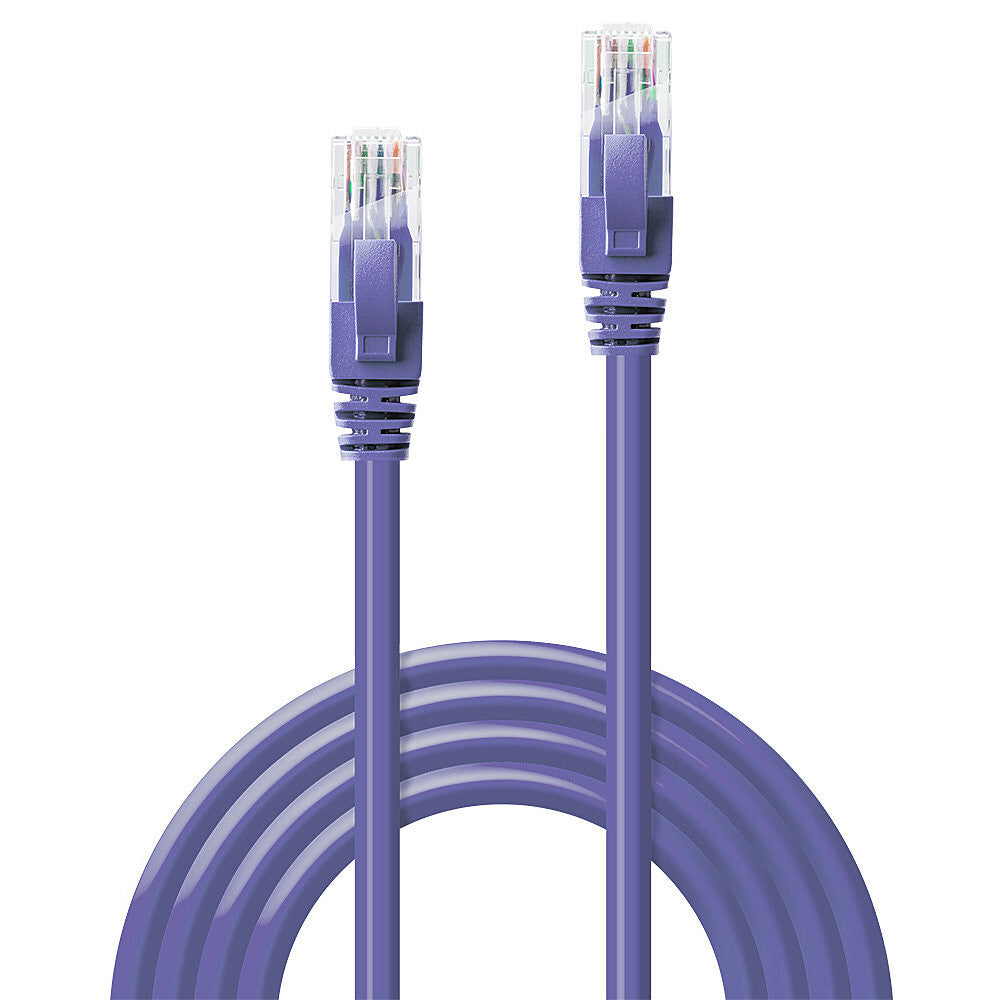

Lindy 5m Cat.6 U/UTP Network Cable, Purple

Lindy 5m Cat.6 U/UTP Network Cable, Purple

48125

£8.52 GBP£7.10 GBP
£0.00 GBP £8.52 GBP£7.10 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

55 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Twisted Pair Patch Cable with RJ45 connectors
  • Cat.6 U/UTP, PVC
  • Integrated snagless connector for latch protection
  • Gold plated pins for better conductivity and elimination of signal loss
5m Cat.6 U/UTP Network Cable, Purple

Cat.6 U/UTP PVC network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.

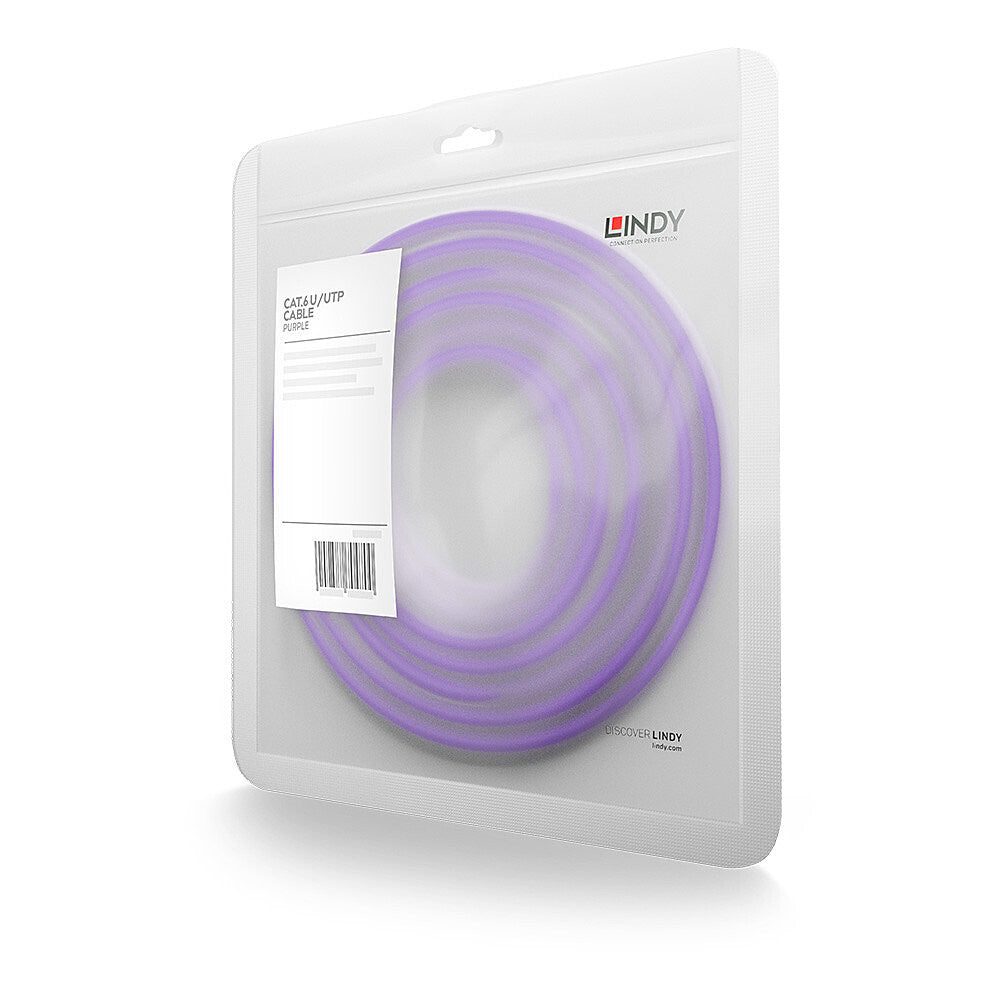

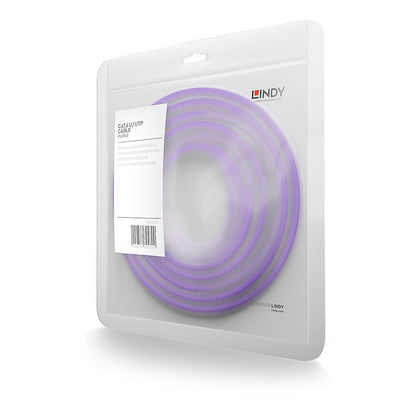

Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Blue, Red, Green, Yellow, Black, White, Orange, Purple, Grey.

Features
Certification RoHS, REACH, UL, California Proposition 65
Plug and Play Yes
Bend radius (min) 6.9 cm
Frequency 250 MHz
AWG wire size 24
Cabling technology 10/100/1000Base-T(X)
Conductor material Copper
Jacket material Polyvinyl chloride (PVC)
Connector contacts plating Gold
Connector 1 gender Male
Connector 2 gender Male
Connector 2 RJ-45
Connector 1 RJ-45
Product colour Purple
Cable shielding U/UTP (UTP)
Cable standard Cat6
Cable length 5 m
Operational conditions
Storage temperature (T-T) -20 - 75 °C
Operating temperature (T-T) -10 - 60 °C
Weight & dimensions
Connector 1 dimensions (WxDxH) 11.6 x 22.8 x 8.3 mm
Connector 2 dimensions (WxDxH) 11.6 x 22.8 x 8.3 mm
Outer diameter 5.8 mm
Packaging data
Package type Polybag
Quantity per pack 1 pc(s)
Logistics data
Harmonized System (HS) code 84733080
