Lindy

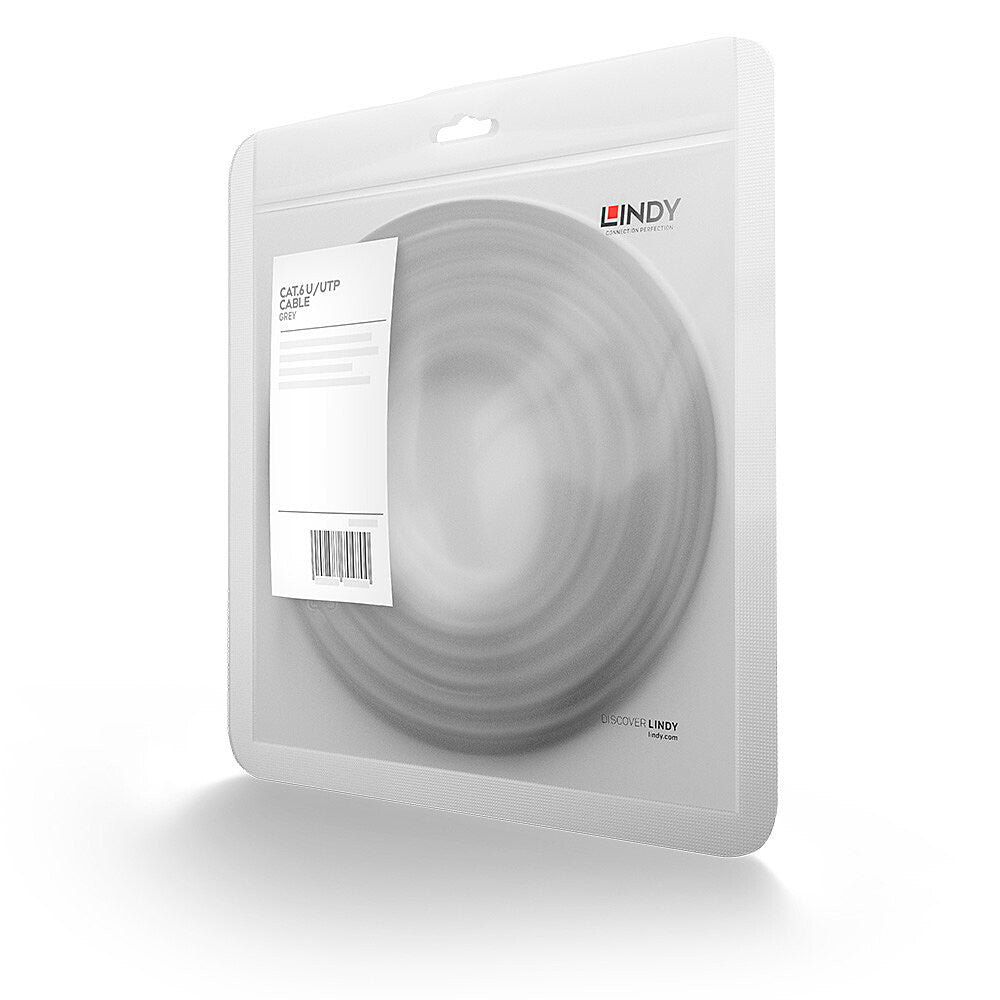

Lindy 5m Cat.6 U/UTP Network Cable, Grey

Lindy 5m Cat.6 U/UTP Network Cable, Grey

Regular price £7.62 GBP
Regular price Sale price £7.62 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:48005

17 in stock

  • Twisted Pair Patch Cable with RJ45 connectors
  • Cat.6 U/UTP, PVCandnbsp; andnbsp;
  • Integrated snagless connector for latch protection
  • Gold plated pins for better conductivity and elimination of signal loss
  • 10 year warranty
5m Cat.6 U/UTP Network Cable, Grey

Cat.6 U/UTP PVC network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.

Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

Features
Certification RoHS, REACH, UL, California Proposition 65
Nominal attenuation 32.8dB/100m @250MHz
Snagless cable boot Yes
Bend radius (min) 6.9 cm
Frequency 250 MHz
Data transfer rate 1000 Mbit/s
AWG wire size 24
Ethernet interface type Gigabit Ethernet
Cabling technology 10/100/1000Base-T(X)
Connector housing material Polycarbonate (PC)
Conductor material Copper
Cable shape Round
Jacket material Polyvinyl chloride (PVC)
Connector shield material Copper alloy
Connector contacts plating Gold
Connector 1 gender Male
Connector 2 gender Male
Connector 2 RJ-45
Connector 1 RJ-45
Product colour Grey
Cable shielding U/UTP (UTP)
Cable standard Cat6
Cable length 5 m
Operational conditions
Storage temperature (T-T) -20 - 75 °C
Operating temperature (T-T) -10 - 60 °C
Weight & dimensions
Connector 1 dimensions (WxDxH) 11.6 x 22.8 x 8.3 mm
Connector 2 dimensions (WxDxH) 11.6 x 22.8 x 8.3 mm
Outer diameter 5.8 mm
Packaging data
Package type Polybag
Quantity per pack 1 pc(s)
Logistics data
Harmonized System (HS) code 84733080
