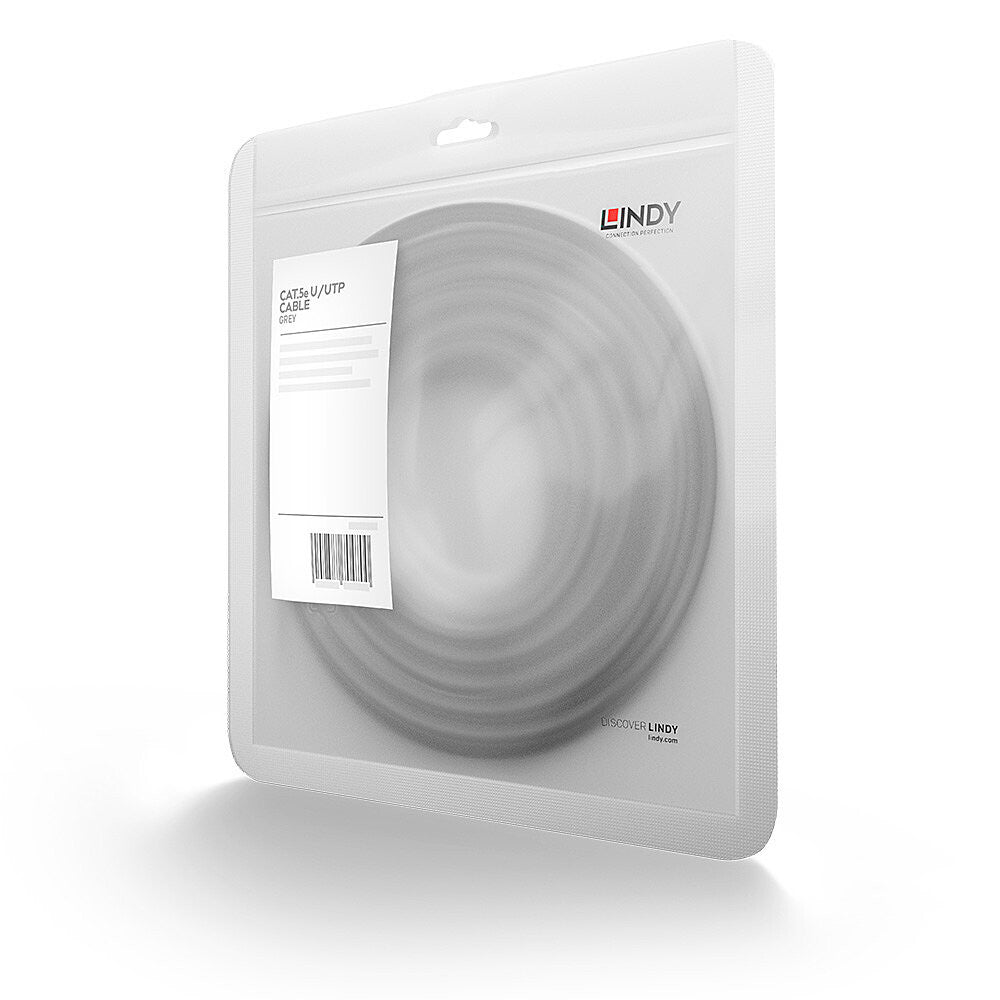

Lindy 5m Cat.5e U/UTP Network Cable, Grey

Lindy 5m Cat.5e U/UTP Network Cable, Grey

Regular price £3.44 GBP
Regular price Sale price £3.44 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:48365

Low stock: 6 left

  • Twisted Pair Patch Cable with RJ45 connectors
  • Cat.5e U/UTP, PVC
  • Integrated snagless connector for latch protection
  • Gold plated pins for better conductivity and elimination of signal loss
5m Cat.5e U/UTP Network Cable, Grey

Cat.5e U/UTP PVC network cable with support for bandwidth up to 100MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.5e cable, designed for operating frequencies up to 100MHz. The unshielded version (U/UTP) is designed in its electrophysical parameters (NExT, FExT etc.) in such a way that it can be used for Gigabit Ethernet despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m, 70m, 80m, 90m, 100m.

Features
Certification RoHS, REACH, UL, California Proposition 65
Bend radius (min) 5.7 cm
Frequency 100 MHz
AWG wire size 26
Cabling technology 10/100/1000Base-T(X)
Conductor material Copper
Jacket material Polyvinyl chloride (PVC)
Connector contacts plating Gold
Connector 1 gender Male
Connector 2 gender Male
Connector 2 RJ-45
Connector 1 RJ-45
Product colour Grey
Cable shielding U/UTP (UTP)
Cable standard Cat5e
Cable length 5 m
Operational conditions
Storage temperature (T-T) -20 - 75 °C
Operating temperature (T-T) -10 - 60 °C
Weight & dimensions
Connector 1 dimensions (WxDxH) 11.6 x 22.8 x 8.3 mm
Connector 2 dimensions (WxDxH) 11.6 x 22.8 x 8.3 mm
Outer diameter 4.8 mm
Packaging data
Package type Polybag
Logistics data
Harmonized System (HS) code 84733080
