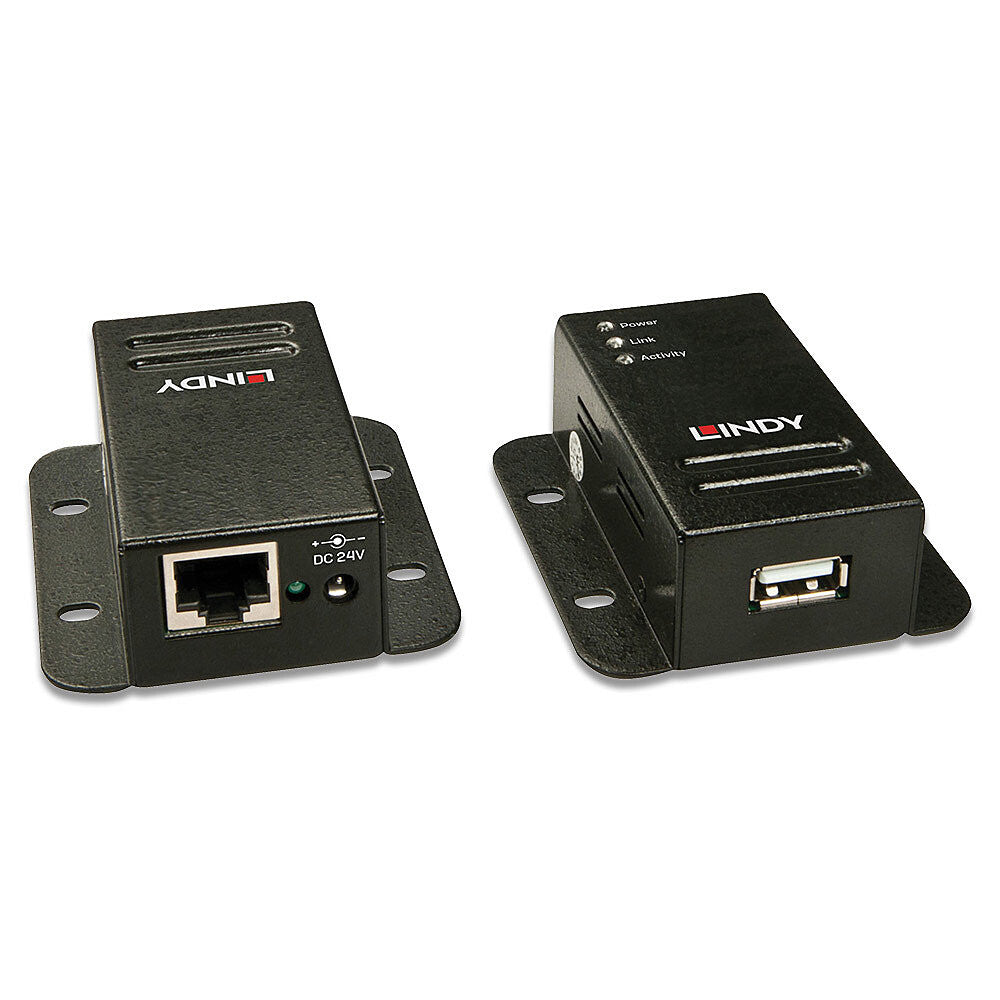

Lindy 50m USB 2.0 Cat.6 Extender

Lindy 50m USB 2.0 Cat.6 Extender

42680

£91.69 GBP£76.41 GBP
£0.00 GBP £91.69 GBP£76.41 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

61 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Extend a USB 2.0 port up to 50m using low cost Cat. 5e/6 network cable (not included)
  • Power over Cable requires a single power supply to be connected to the transmitter only
  • Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
  • Plug and Play installation
  • 2 year warranty
50m USB 2.0 Cat.6 Extender

The Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and the host computer by up to 50m.

A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.

The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required.

With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.

Performance
Type Network transmitter & receiver
Maximum transfer distance 50 m
Data transfer rate 480 Mbit/s
Cable types supported Cat5, Cat5e, Cat6
Chipset NS1021
Plug and Play Yes
Ports & interfaces
RJ-45 ports quantity (transmitter) 1
RJ-45 ports quantity (receiver) 1
USB 2.0 ports quantity 2
DC-in jack Yes
Design
Product colour Black
Housing material Metal
LED indicators Yes
Certification CE, UKCA, FCC, RoHS, REACH
Power
Input current 0.25 A
Output voltage 24 V
Output current 0.5 A
Power over Ethernet (PoE) Yes
Power note 3.5/1.35mm DC
Included power plug types AU, EU, UK, US
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -20 - 80 °C
Operating relative humidity (H-H) 0 - 90%
Storage relative humidity (H-H) 0 - 90%
Weight & dimensions
Weight 300 g
Transmitter width 6 cm
Transmitter depth 6.7 cm
Transmitter height 2.3 cm
Receiver width 6 cm
Receiver depth 6.7 cm
Receiver height 2.3 cm
Packaging content
Manual Yes
Cables included USB Type-A to USB Type-B
Packaging data
Package type Box
Package width 185 mm
Package depth 140 mm
Package height 55 mm
Package weight 400 g
Logistics data
Harmonized System (HS) code 85176990
