Extend 2 USB 2.0 ports up to 50m using low cost Cat.6 network cable (not included)
Bi-directional PoC (Power over Cable) requires a power supply connection from only one side of the installation
Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
Plug and Play installation
2 year warranty

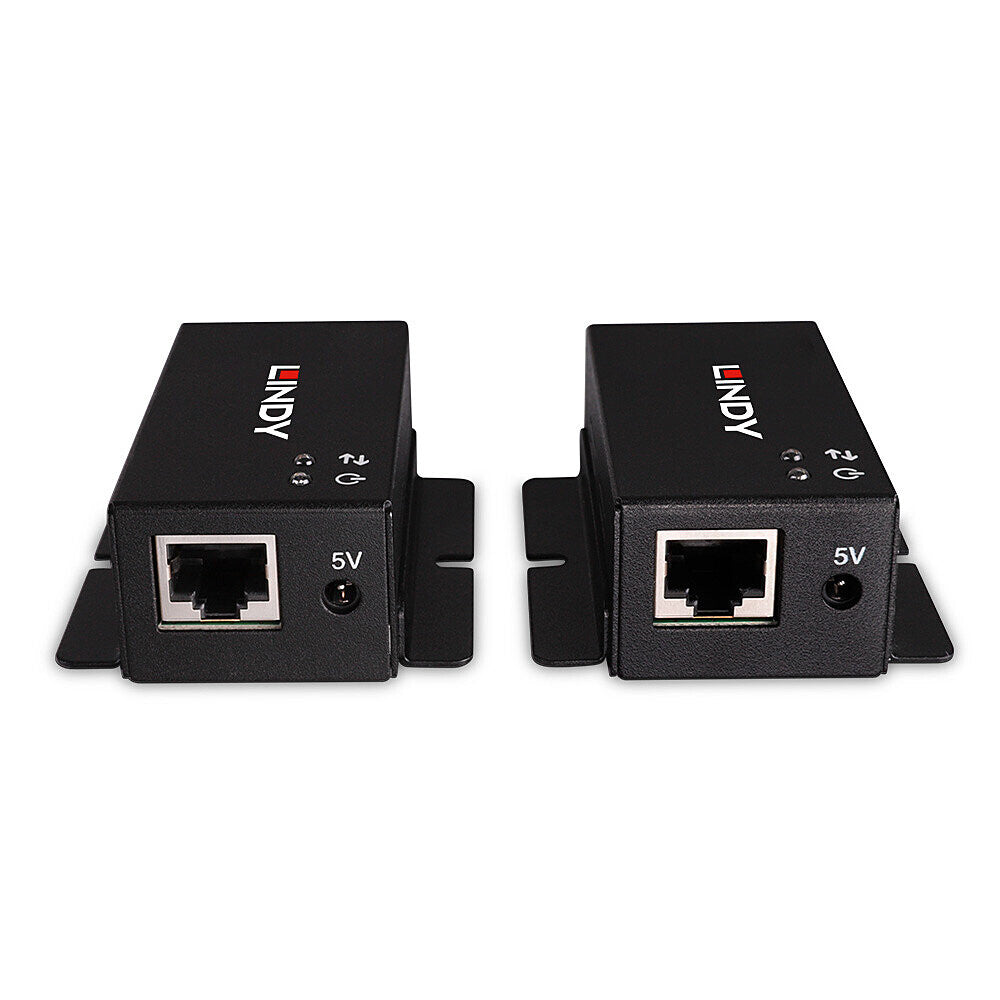

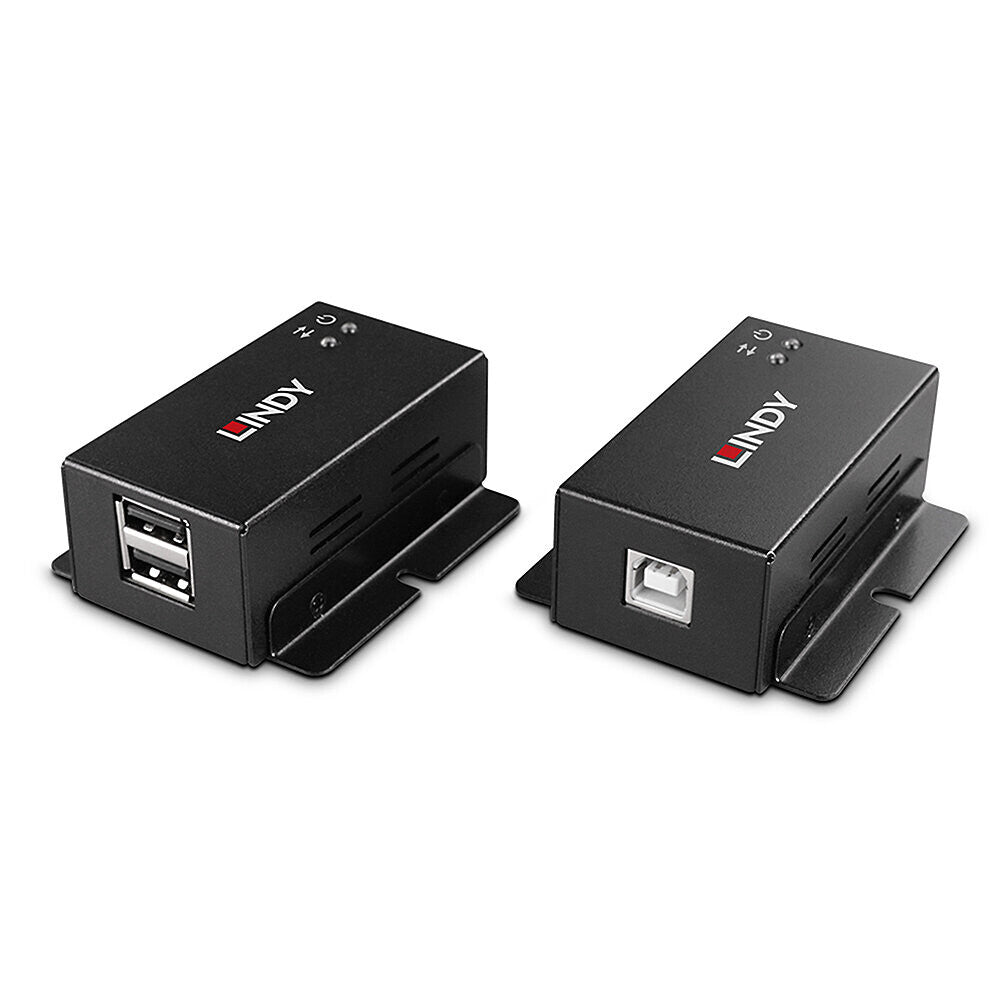

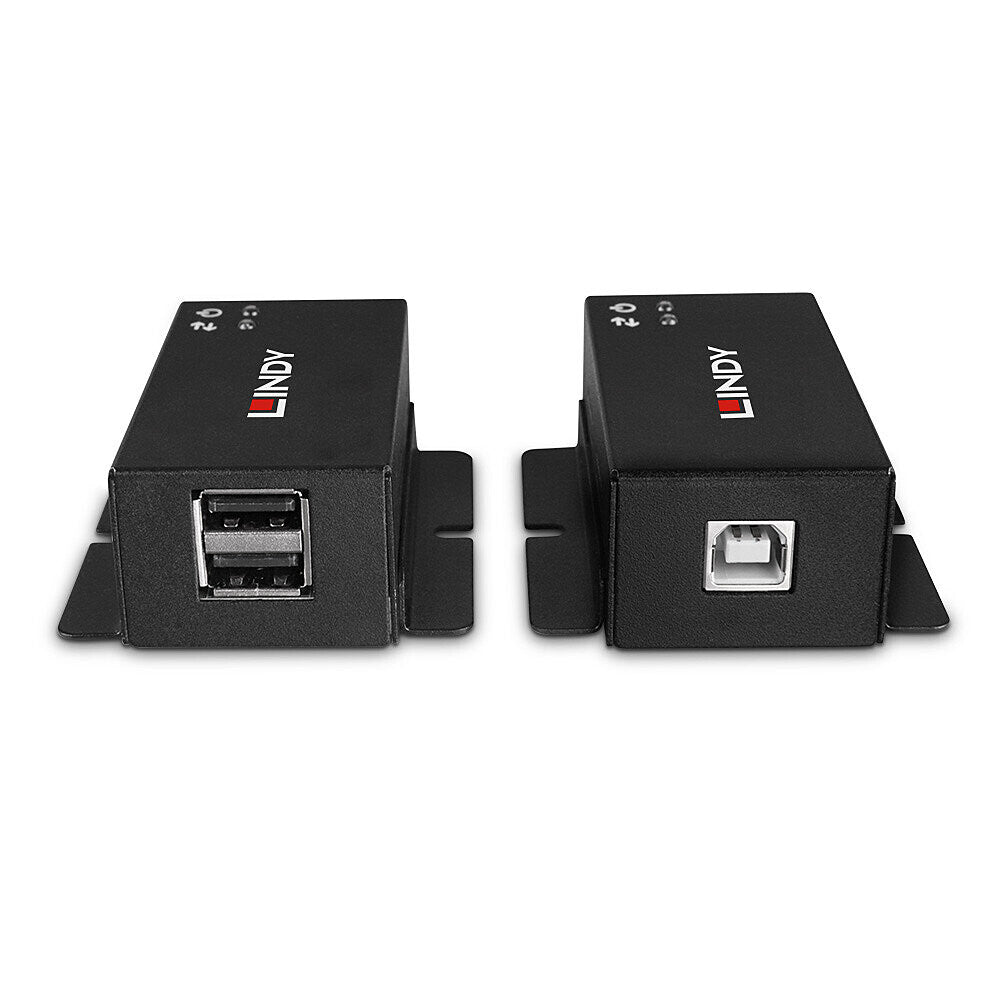

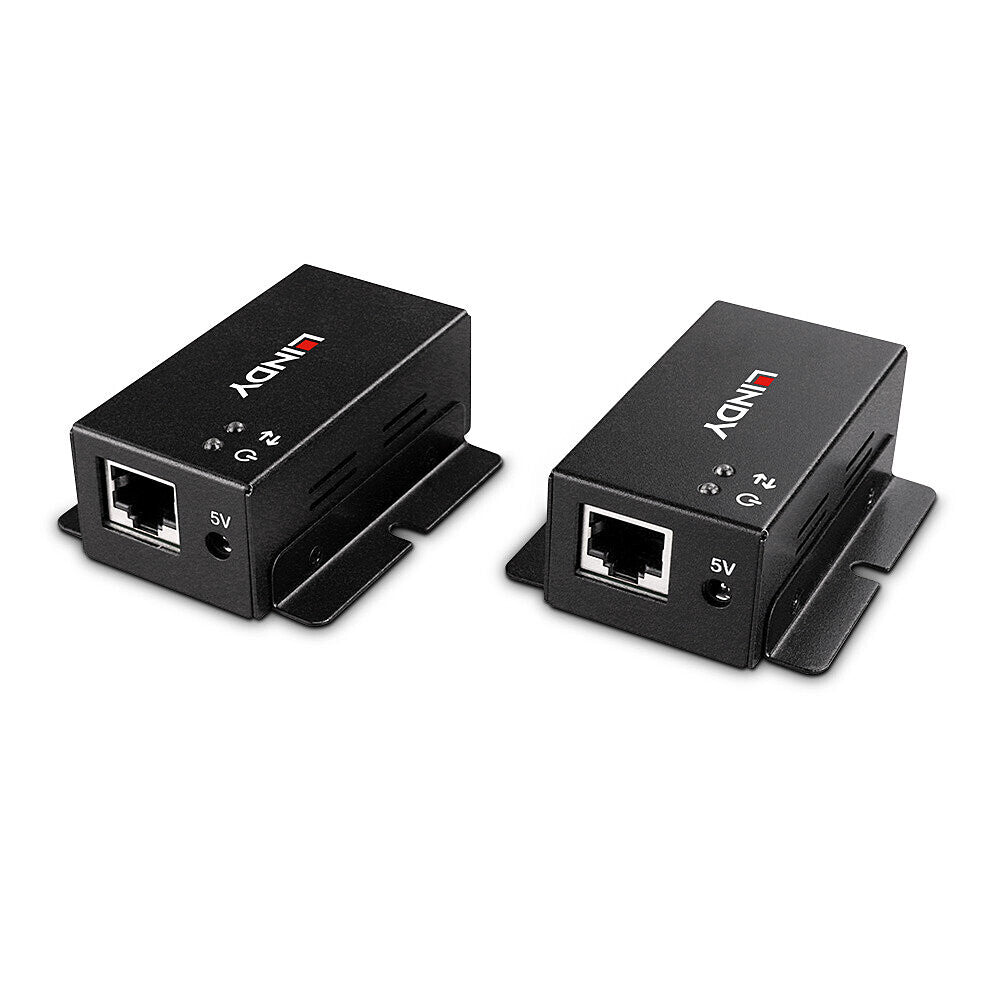

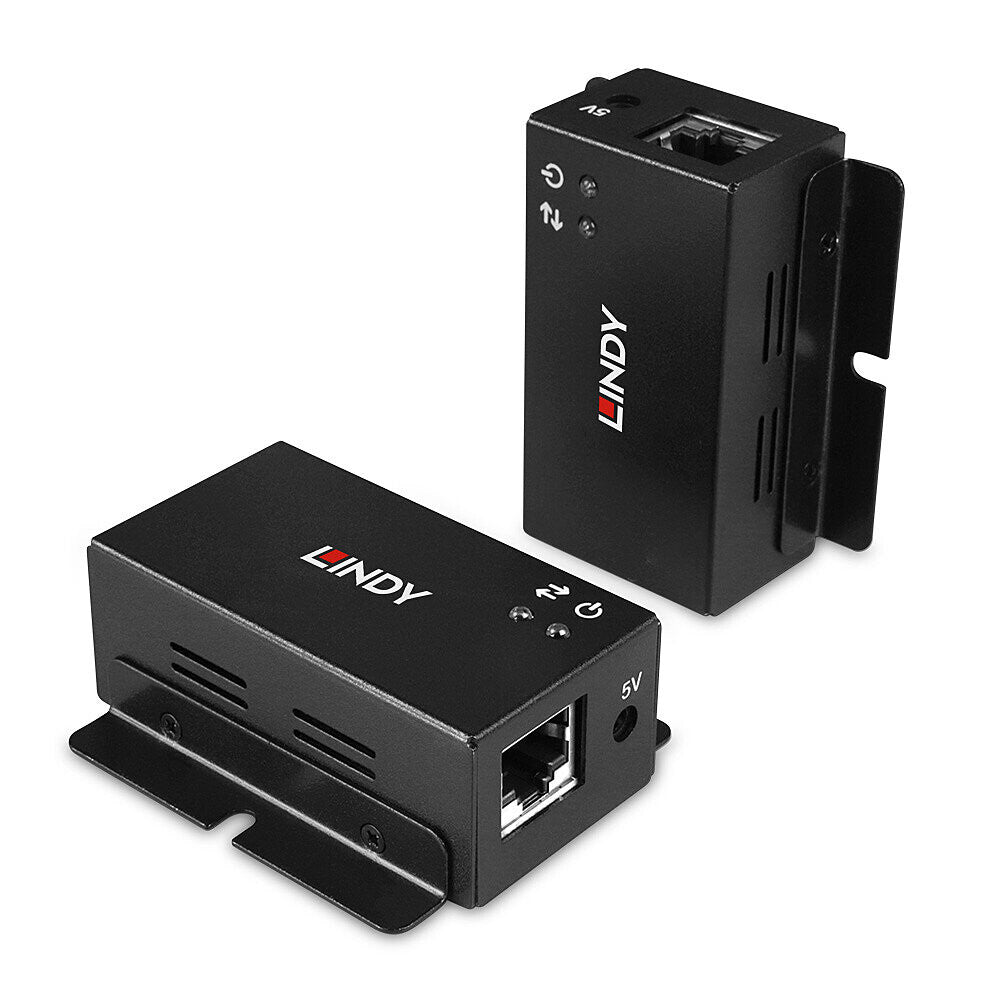

50m 2 Port USB 2.0 Cat. 6 Extender
This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between two USB peripheral devices and the host computer by up to 50m. A standard, low cost Cat.6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features bidirectional Power over Cable (PoC) functionality, which provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
Performance
Type
Network transmitter & receiver
Maximum transfer distance
50 m
Data transfer rate
480 Mbit/s
Cable types supported
Cat5e, Cat6
Chipset
NS1021
Plug and Play
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
RJ-45 ports quantity (transmitter)
1
RJ-45 ports quantity (receiver)
1
USB 2.0 ports quantity
3
RJ-45 output ports
1
RJ-45 input ports
1
DC-in jack
Yes
Design
Product colour
Black
Quantity per pack
1 pc(s)
Power
Input current
2 A
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 125 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 90%
Weight & dimensions
Transmitter width
6.02 cm
Transmitter depth
6.7 cm
Transmitter height
2.37 cm
Transmitter weight
195 g
Receiver width
6.02 cm
Receiver depth
6.7 cm
Receiver height
2.6 cm
Receiver weight
195 g
Technical details
Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS
