Full volume support of volume and independent audio switching
Seamless Switching of Audio And Video Signals
4x1 4K60 HDMI Seamless Multiview Switch
This HDMI® 4x1 Multi-View Switch is a high-performance video switch designed for 4K displays, enabling signals from up to four different Ultra HD sources to be seamlessly integrated for simultaneous display on a single monitor. With four distinct viewing modes (Quad-View, Full Screen, Picture in Picture, and Dual Video), this Multi-View switch accommodates the monitoring of multiple video sources in various configurations supporting Ultra HD 4K resolutions on both input and output.
In mission-critical environments, the switch ensures optimal performance through seamless switching, eliminating frame loss during transitions between connected source devices or different picture modes. It offers a cost-effective switch for different applications such as;

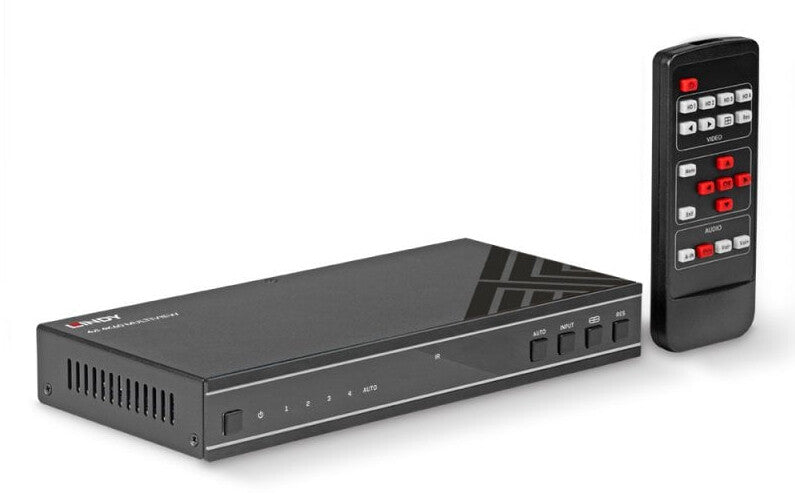

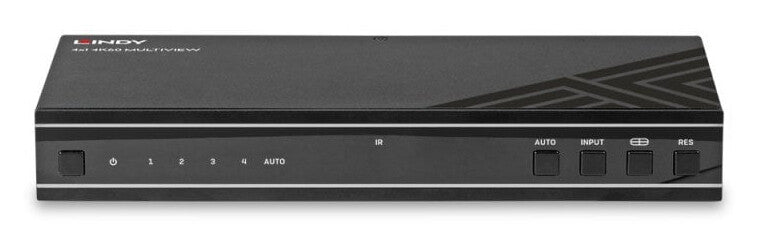

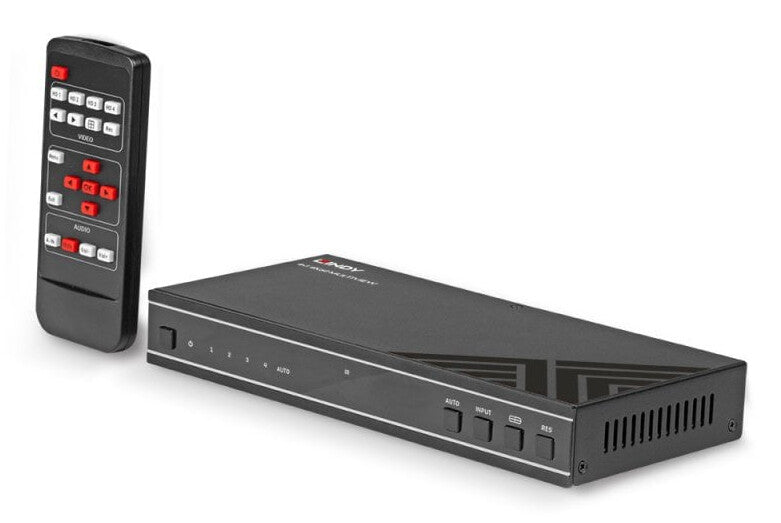

Digital Presentations CCTV Surveillance & Control Video Conference & Meeting rooms; The switch allows independent switching between audio and video channels, offering flexibility in operation. This can be achieved by using the provided remote control or the front panel buttons, as well as RS-232 Control. Seamlessly transition between connected source devices, maintaining continuous use of a single audio source or monitoring a single video source while effortlessly switching to the other.

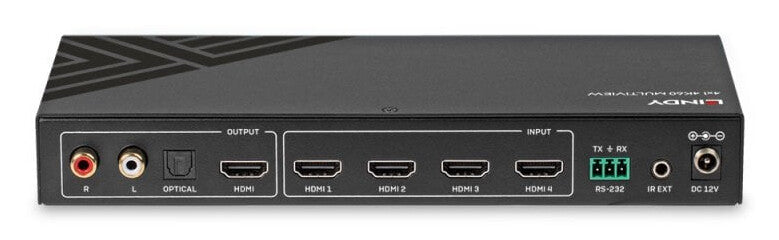

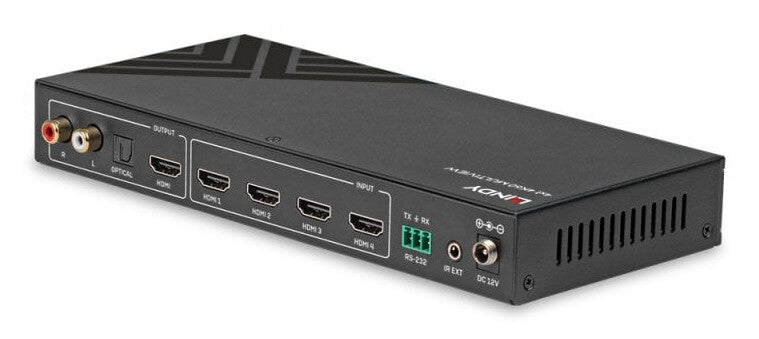

Ports & interfaces
Audio (L/R) out
1
Number of HDMI outputs
1
HDMI in
4
HDMI ports quantity
5
Video port type
HDMI
Features
Plug and Play
Yes
HDCP
Yes
Bandwidth
18 Gbit/s
Maximum resolution
3840 x 2160 pixels
HDCP version
2.2
Maximum refresh rate
60 Hz
Supported graphics resolutions
3840 x 2160
Product colour
Black
Material
Metal
Power
AC adapter input voltage
2.5 V
AC input voltage
12 V
Weight & dimensions
Weight
610 g
Height
30 mm
Depth
111 mm
Width
219 mm
Packaging data
Package weight
1.08 kg
Package height
78 mm
Package depth
179 mm
Package width
280 mm
Packaging content
Packaging content
1 x 4K60 HDMI 4x1 Multiview Seamless UHD Video Switcher1 x IR Remote Control1 x 3pin-3.81mm Phoenix connector (male)1 x 38KHz IR Wideband Receiver cable (1.5 Meters)2 x Mounting Ears4 x Machine Screws (KM3*4) 4 x Rubber Feet1 x 12v/2.5A Locking Power Adapter1 x User Manual
Remote control included
Yes
Manual
Yes
Cables included
HDMI
Screws included
Yes
Quantity per pack
1 pc(s)
Operational conditions
Storage relative humidity (H-H)
20 - 90%
Operating relative humidity (H-H)
20 - 90%
Storage temperature (T-T)
-4 - 140 °C
Operating temperature (T-T)
0 - 40 °C
Technical details
Warranty period
2 year(s)
Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS
