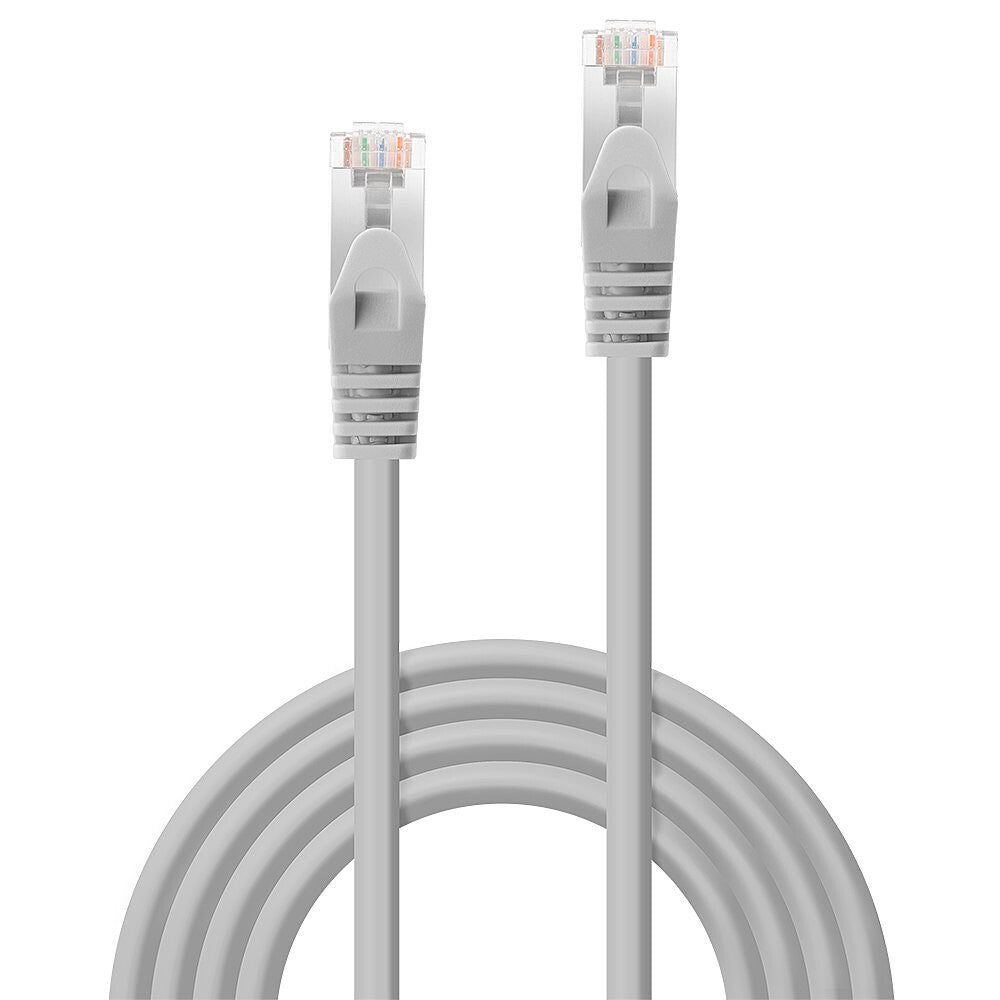

Lindy 48345 networking cable Grey 5 m Cat5e F/UTP (FTP)
Lindy 48345 networking cable Grey 5 m Cat5e F/UTP (FTP)
Couldn't load pickup availability
SKU:48345
26 in stock
- Twisted Pair Patch Cable with RJ45 connectors
- Cat.5e F/UTP, PVC

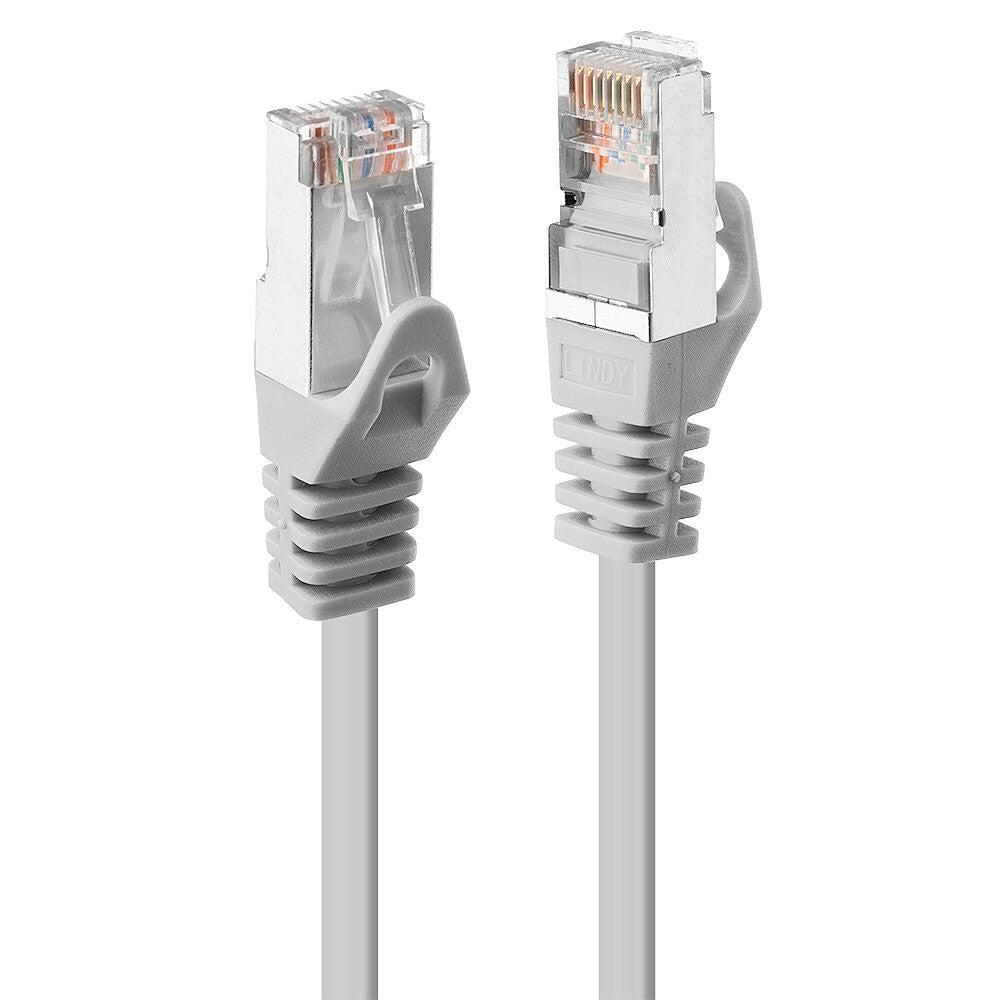

- Integrated snagless connector for latch protection
- Gold plated pins for better conductivity and elimination of signal loss
Cat.5e F/UTP PVC network cable with support for bandwidth up to 100MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.

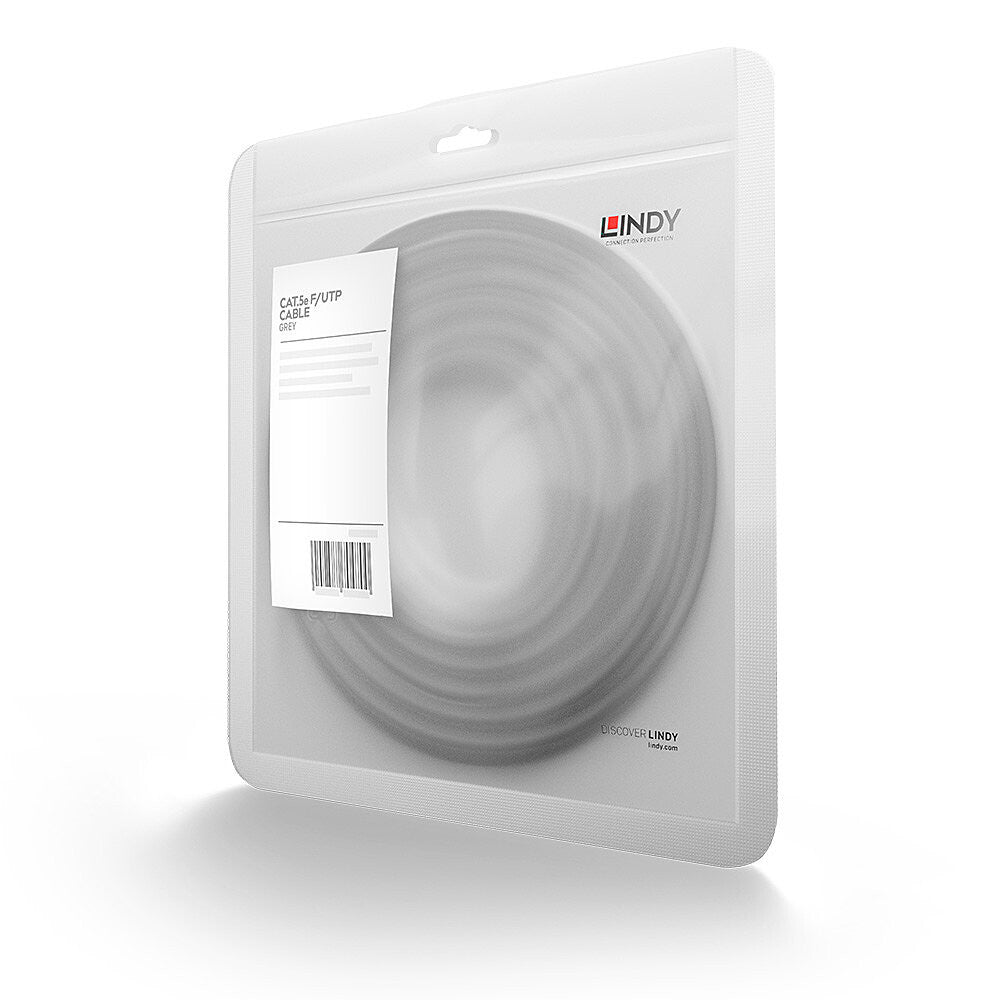

Cat.5e cable, designed for operating frequencies up to 100MHz. With its overall shielding (F/UTP) in the form of a foil, this type of cable has been used reliably for decades in many installations in the prosumer sector as well as in the professional segment, since it can easily be used for Gigabit Ethernet. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
| Features | |
|---|---|
| Cable length | 5 m |
| Cable standard | Cat5e |
| Cable shielding | F/UTP (FTP) |
| Product colour | Grey |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector contacts plating | Nickel/Gold |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Copper |
| Cabling technology | 10/100/1000Base-T(X) |
| AWG wire size | 26 |
| Frequency | 100 MHz |
| Bend radius (min) | 6 cm |
| Certification | RoHS, REACH, UL, California Proposition 65 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Weight & dimensions | |
|---|---|
| Outer diameter | 5 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Connector 1 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Packaging data | |
|---|---|
| Package type | Polybag |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
