Lindy 48342 networking cable Grey 1 m Cat5e F/UTP (FTP)

Lindy 48342 networking cable Grey 1 m Cat5e F/UTP (FTP)

48342

£1.62 GBP£1.35 GBP
£0.00 GBP £1.62 GBP£1.35 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

45 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Twisted Pair Patch Cable with RJ45 connectors
  • Cat.5e F/UTP, PVC
  • Integrated snagless connector for latch protection
  • Gold plated pins for better conductivity and elimination of signal loss

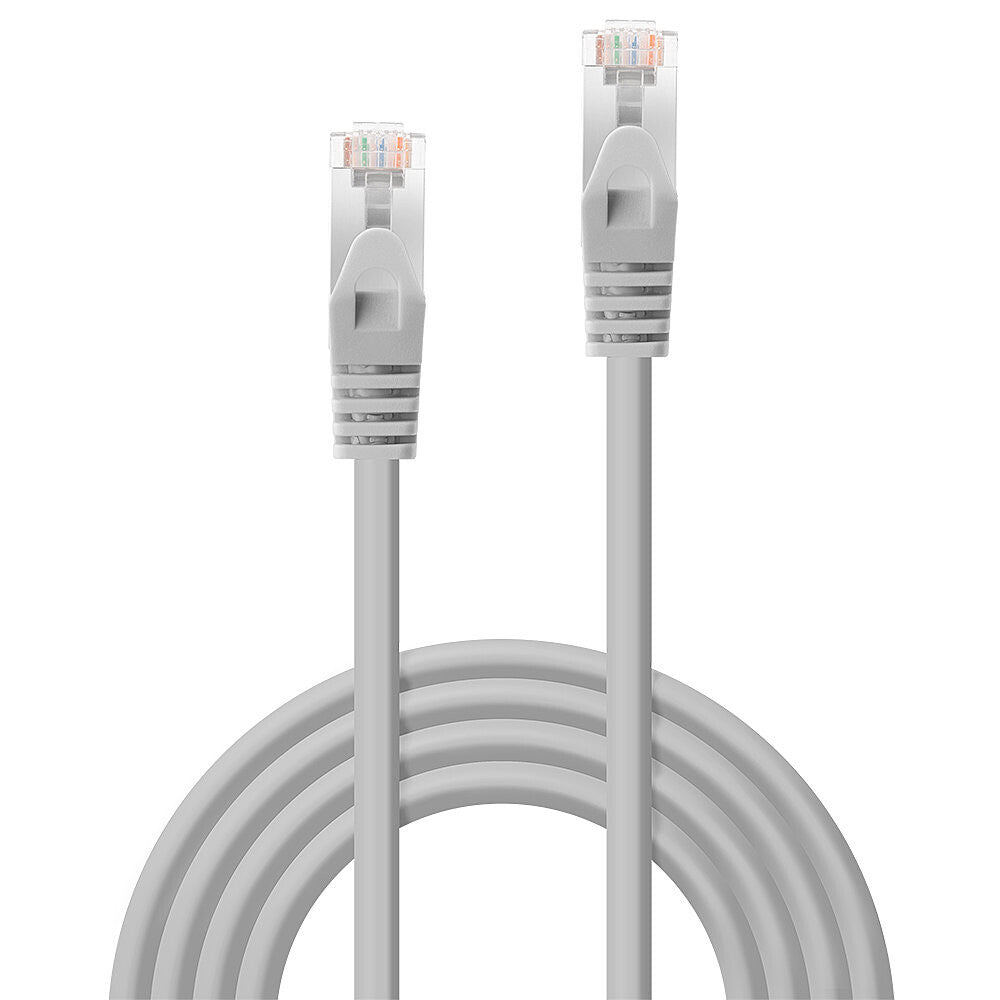

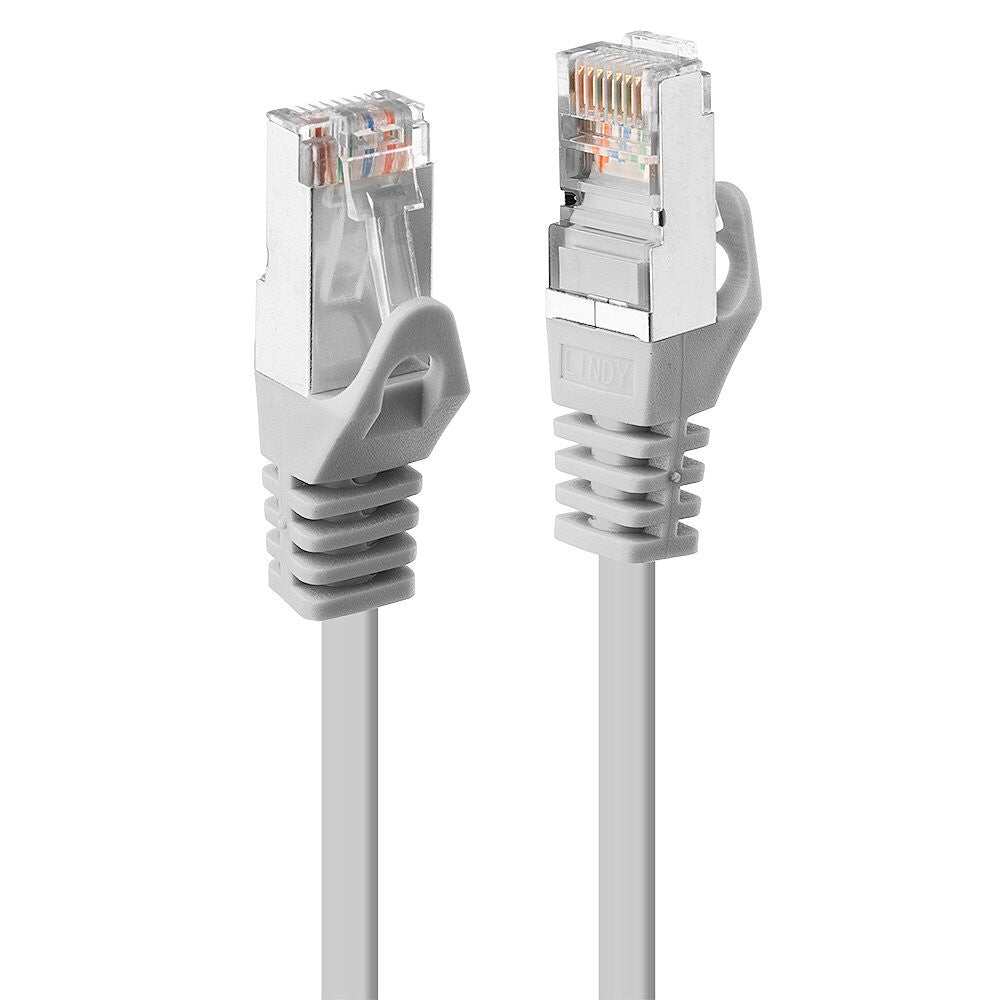

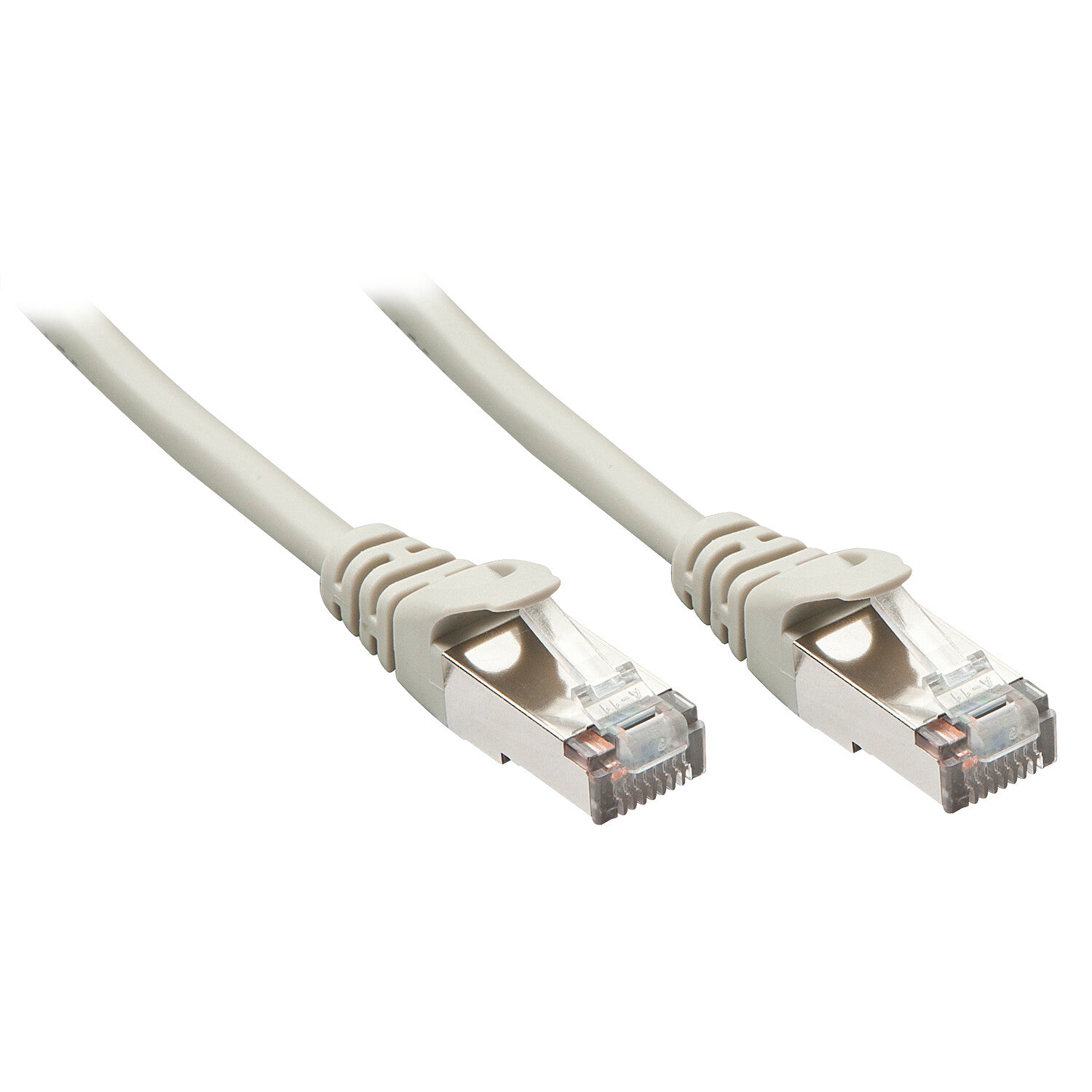

1m Cat.5e F/UTP Network Cable, Grey

Cat.5e F/UTP PVC network cable with support for bandwidth up to 100MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.

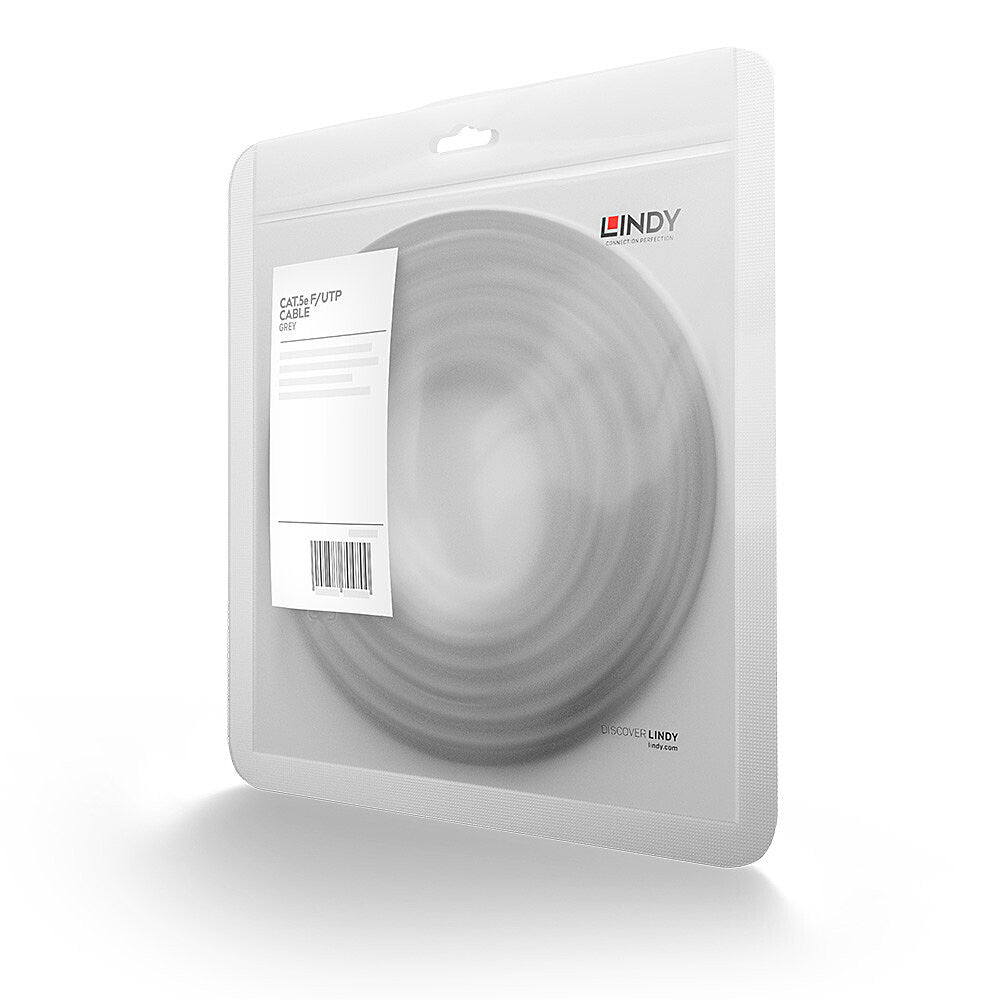

Cat.5e cable, designed for operating frequencies up to 100MHz. With its overall shielding (F/UTP) in the form of a foil, this type of cable has been used reliably for decades in many installations in the prosumer sector as well as in the professional segment, since it can easily be used for Gigabit Ethernet. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.

Features
Cable length 1 m
Cable standard Cat5e
Cable shielding F/UTP (FTP)
Product colour Grey
Connector 1 RJ-45
Connector 2 RJ-45
Connector 2 gender Male
Connector 1 gender Male
Connector contacts plating Nickel/Gold
Connector shielding Yes
Connector shield material Aluminium
Jacket material Polyvinyl chloride (PVC)
Conductor material Copper
Cable class D
Cabling technology 10/100/1000Base-T(X)
AWG wire size 26
Frequency 100 MHz
Bend radius (min) 6 cm
Certification RoHS, REACH, UL, California Proposition 65
Operational conditions
Operating temperature (T-T) -10 - 60 °C
Storage temperature (T-T) -20 - 75 °C
Weight & dimensions
Outer diameter 5 mm
Connector 2 dimensions (WxDxH) 11.6 x 22.8 x 8.3 mm
Connector 1 dimensions (WxDxH) 11.6 x 22.8 x 8.3 mm
Packaging data
Package type Polybag
Logistics data
Harmonized System (HS) code 84733080
