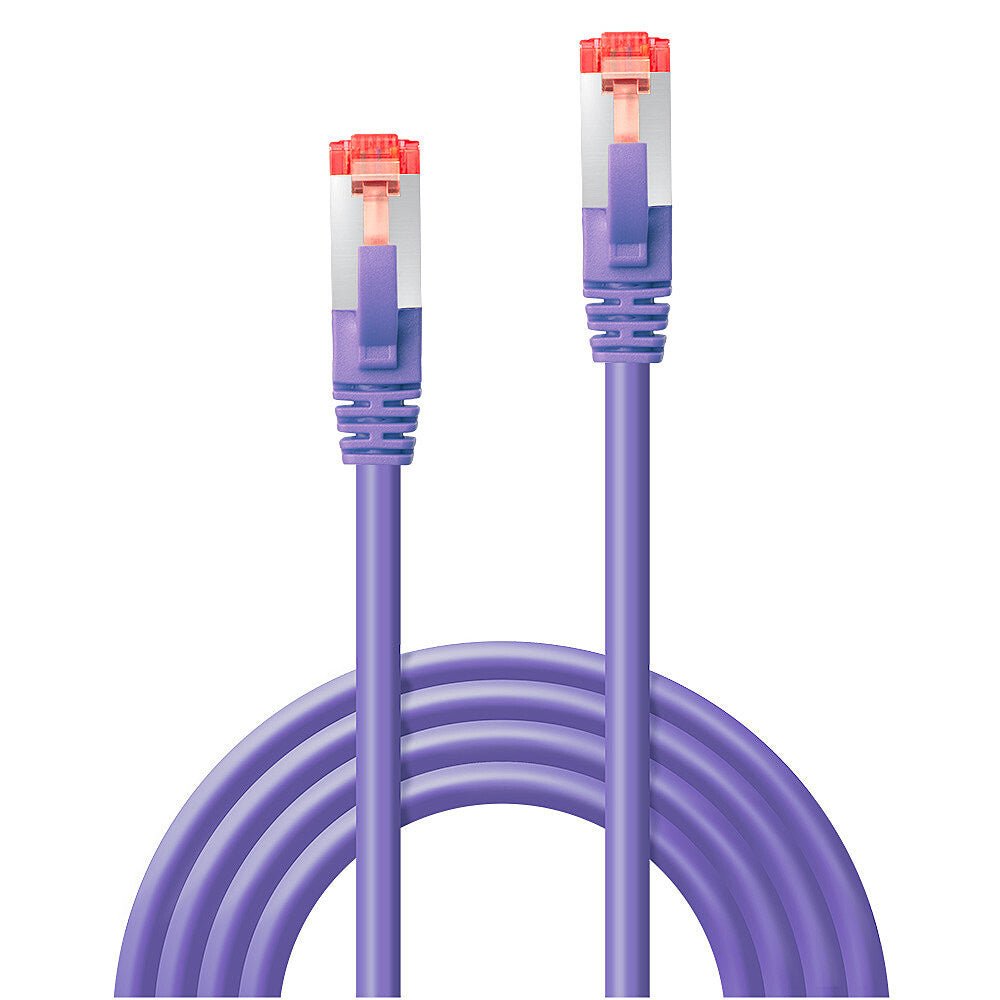

Lindy 47822 networking cable Purple 1 m Cat6 S/FTP (S-STP)

Lindy 47822 networking cable Purple 1 m Cat6 S/FTP (S-STP)

Regular price £2.52 GBP
Regular price Sale price £2.52 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:47822

Low stock: 2 left

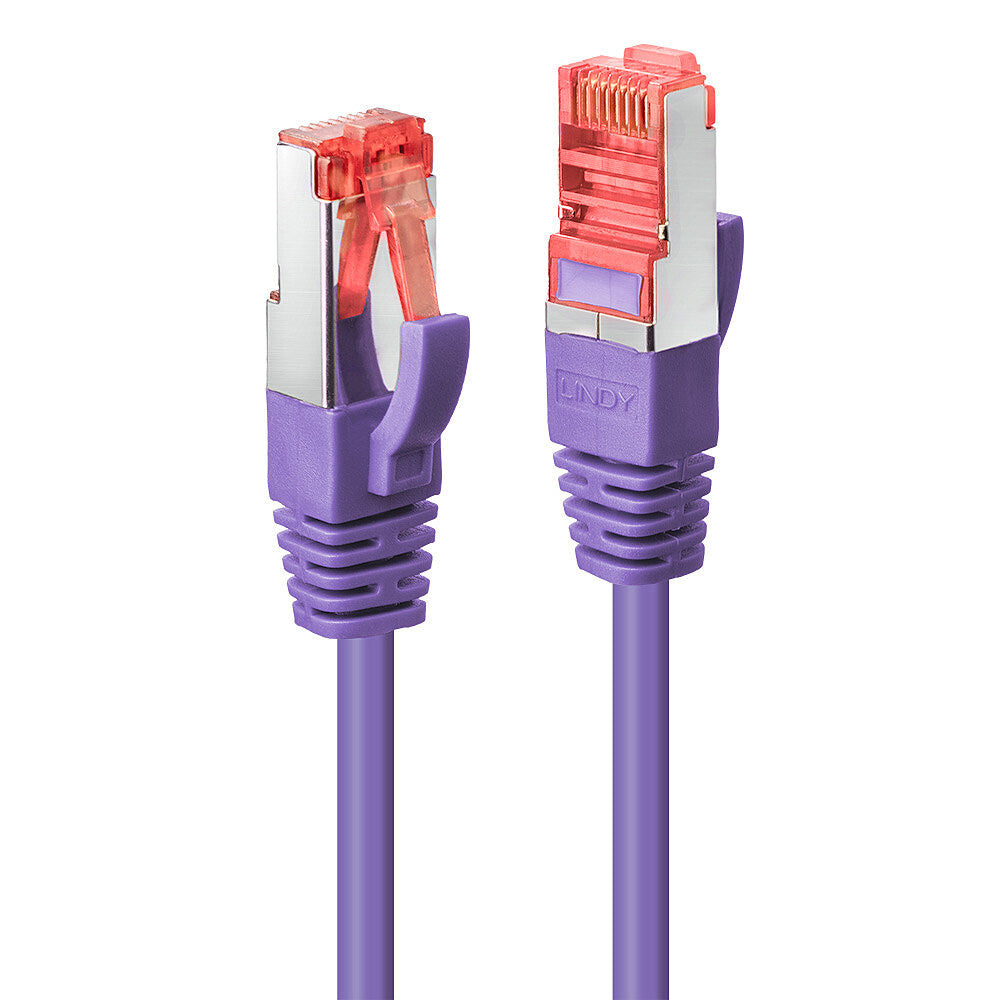

  • Twisted Pair Patch Cable with RJ45 connectors
  • Cat.6 S/FTP PIMF
  • Integrated snagless connector for latch protection
  • Gold plated pins for better conductivity and elimination of signal loss
1m Cat.6 S/FTP Network Cable, Purple

Cat.6 S/FTP network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz in shielded version with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6 cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Blue, Red, Green, Yellow, Black, White, Orange, Purple, Grey.

Features
Certification RoHS, REACH, UL, California Proposition 65
Snagless cable boot Yes
Bend radius (min) 7.4 cm
Frequency 250 MHz
AWG wire size 27
Cabling technology 10/100/1000Base-T(X)
Cable class E
Conductor material Copper
Jacket material Polyvinyl chloride (PVC)
Connector shield material Aluminium
Connector shielding Yes
Connector contacts plating Nickel/Gold
Connector 1 gender Male
Connector 2 gender Male
Connector 2 RJ-45
Connector 1 RJ-45
Product colour Purple
Cable shielding S/FTP (S-STP)
Cable standard Cat6
Cable length 1 m
Operational conditions
Storage temperature (T-T) -20 - 75 °C
Operating temperature (T-T) -10 - 60 °C
Weight & dimensions
Connector 1 dimensions (WxDxH) 11.6 x 22.8 x 8.3 mm
Connector 2 dimensions (WxDxH) 11.6 x 22.8 x 8.3 mm
Outer diameter 6.2 mm
Packaging data
Package type Polybag
Logistics data
Harmonized System (HS) code 84733080
Other features
Category 6
