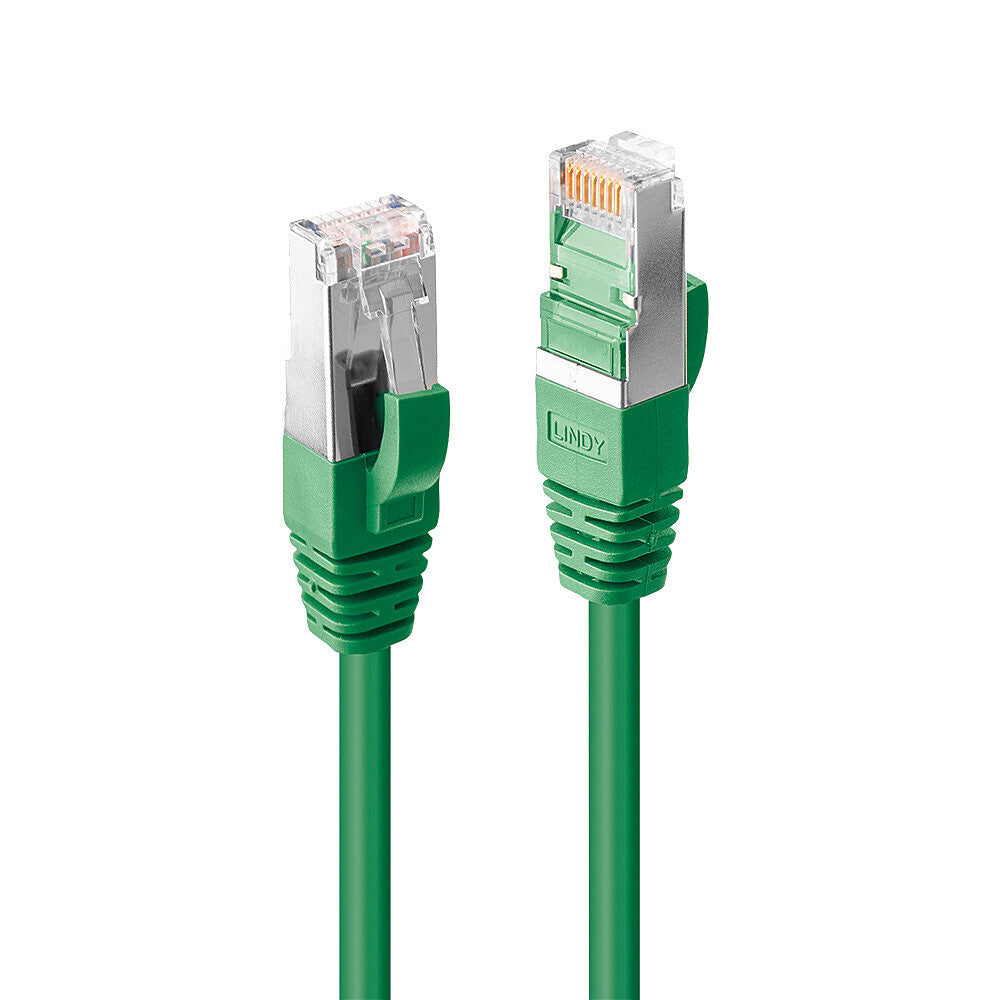

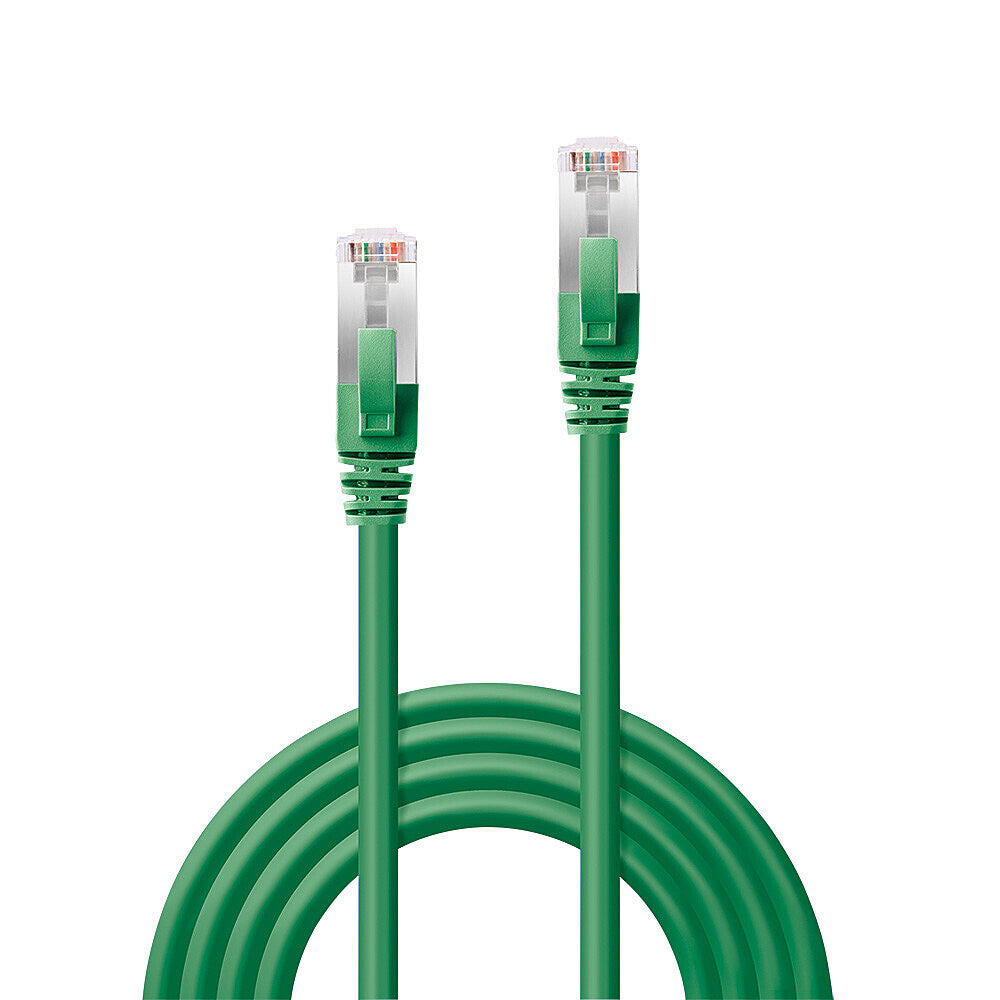

Lindy 47683 networking cable Green 10 m Cat6a S/FTP (S-STP)
Lindy 47683 networking cable Green 10 m Cat6a S/FTP (S-STP)
Couldn't load pickup availability
SKU:47683
Low stock: 1 left
- Twisted Pair Patch Cable with RJ45 connectors
- Cat.6A S/FTP PIMF, LSZH
- Integrated snagless connector for latch protection
- Gold plated pins for better conductivity and elimination of signal loss
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions
Features | |
---|---|
Frequency | 500 MHz |
AWG wire size | 27 |
Cabling technology | 10GBase-T |
Connector housing material | Polycarbonate (PC) |
Conductor material | Copper |
Cable shape | Round |
Jacket material | Low smoke zero halogen (LSZH) |
Connector shield material | Aluminium |
Connector shielding | Yes |
Connector contacts plating | Gold |
Connector 1 gender | Male |
Connector 2 gender | Male |
Connector 1 form factor | Straight |
Connector 2 form factor | Straight |
Connector 2 | RJ-45 |
Connector 1 | RJ-45 |
Product colour | Green |
Cable shielding | S/FTP (S-STP) |
Cable standard | Cat6a |
Cable length | 10 m |
Operational conditions | |
---|---|
Storage temperature (T-T) | -20 - 75 °C |
Operating temperature (T-T) | -10 - 60 °C |
Weight & dimensions | |
---|---|
Outer diameter | 6 mm |
Height | 8.3 mm |
Depth | 21.5 mm |
Width | 11.6 mm |
Packaging data | |
---|---|
Package type | Polybag |
Technical details | |
---|---|
Sustainability compliance | Yes |
Doesn't contain | Halogen |
Compliance certificates | REACH, RoHS |
