Lindy

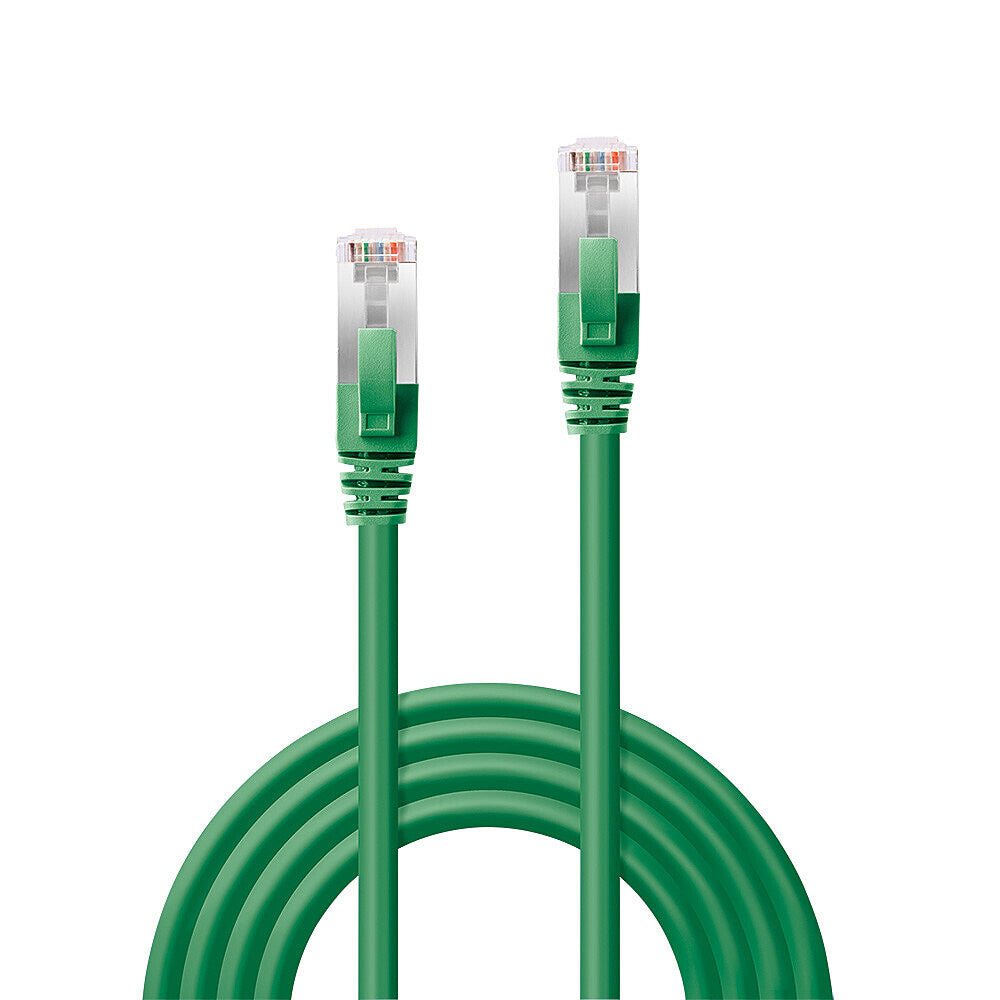

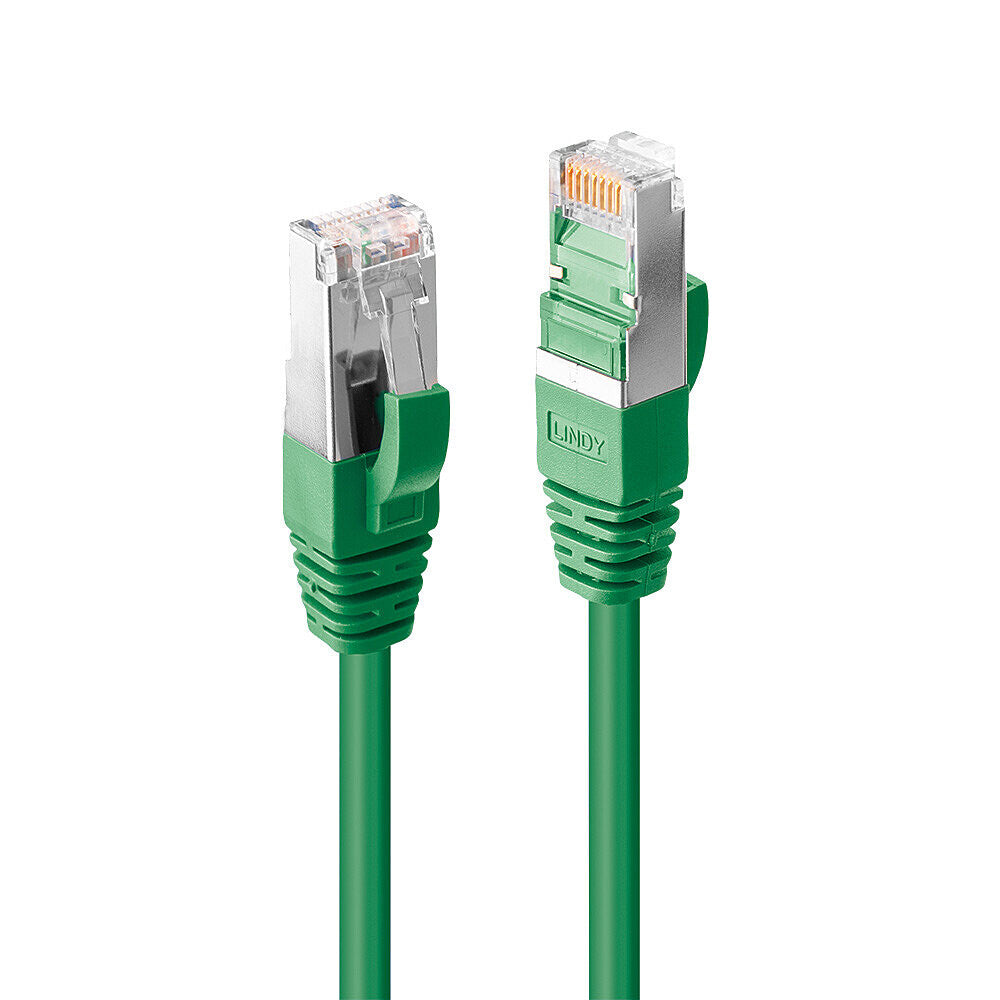

Lindy 47677 networking cable Green 1 m Cat6a S/FTP (S-STP)

Lindy 47677 networking cable Green 1 m Cat6a S/FTP (S-STP)

Regular price £2.87 GBP
Regular price Sale price £2.87 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:47677

Low stock: 10 left

  • Twisted Pair Patch Cable with RJ45 connectors
  • Cat.6A S/FTP PIMF, LSZH
  • Integrated snagless connector for latch protection
  • Gold plated pins for better conductivity and elimination of signal loss
1m Cat.6A S/FTP LSZH Cable, Green

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White, Yellow, Green

Features
Certification RoHS, REACH
Bend radius (min) 7.2 cm
Frequency 500 MHz
AWG wire size 27
Cabling technology 10GBase-T
Connector housing material Polycarbonate (PC)
Conductor material Copper
Cable shape Round
Jacket material Low smoke zero halogen (LSZH)
Connector shield material Aluminium
Connector shielding Yes
Connector contacts plating Nickel/Gold
Connector 1 gender Male
Connector 2 gender Male
Connector 1 form factor Straight
Connector 2 form factor Straight
Connector 2 RJ-45
Connector 1 RJ-45
Product colour Green
Cable shielding S/FTP (S-STP)
Cable standard Cat6a
Cable length 1 m
Operational conditions
Storage temperature (T-T) -20 - 75 °C
Operating temperature (T-T) -10 - 60 °C
Weight & dimensions
Connector 1 dimensions (WxDxH) 11.6 x 21.5 x 8.3 mm
Connector 2 dimensions (WxDxH) 11.6 x 21.5 x 8.3 mm
Outer diameter 6 mm
Height 8.3 mm
Depth 21.5 mm
Width 11.6 mm
Packaging data
Package type Polybag
Technical details
Sustainability compliance Yes
Doesn't contain Halogen
Compliance certificates REACH, RoHS
