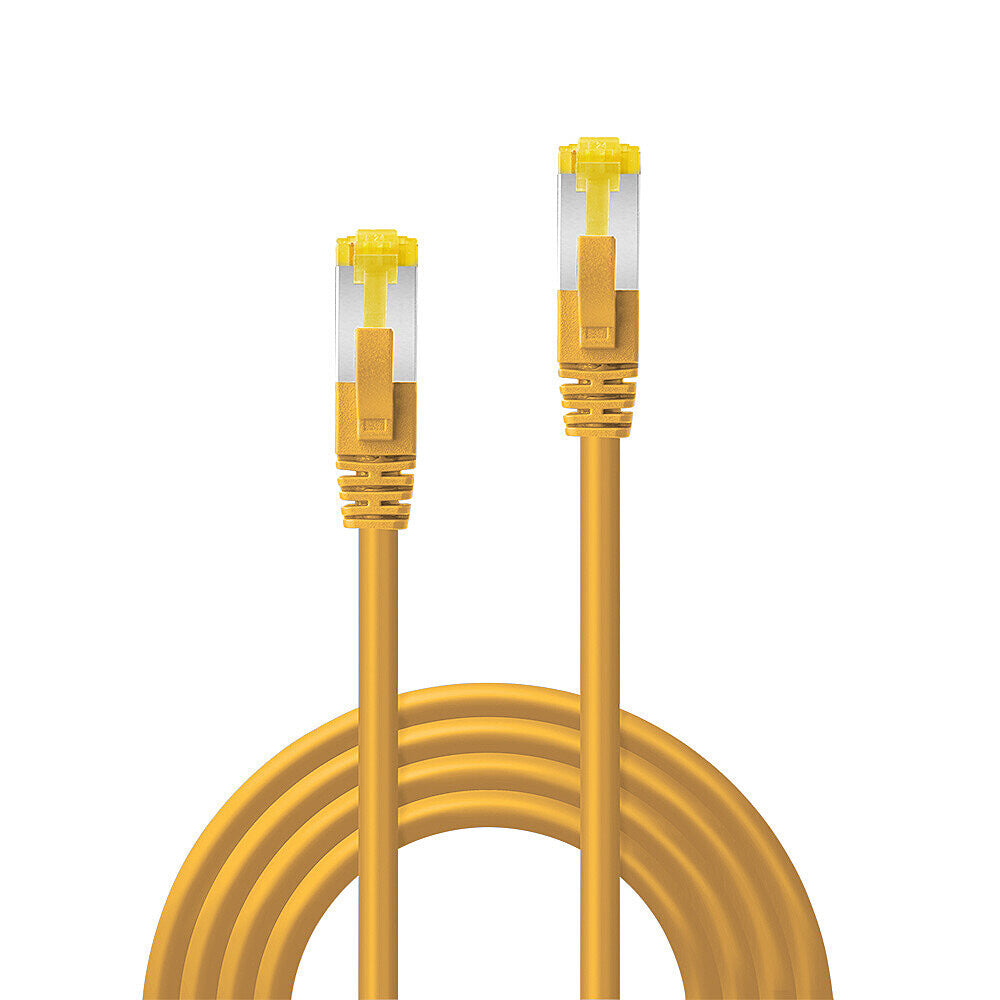

Lindy 47660 networking cable Yellow 0.3 m Cat7 S/FTP (S-STP)
Lindy 47660 networking cable Yellow 0.3 m Cat7 S/FTP (S-STP)
Couldn't load pickup availability
SKU:47660
Low stock: 1 left
- Twisted Pair Patch Cable with RJ45 connectors
- Connector: Cat.6A / Cable: Cat.7 S/FTP (600Mhz)
- Integrated snagless connector for latch protection
- Gold plated pins for better conductivity and elimination of signal loss
- 10 year warranty
Twisted Pair Patch Cable with RJ45 connectors
Connector: Cat.6A / Cable: Cat.7 S/FTP (600Mhz)
Integrated snagless connector for latch protection
Gold plated pins for better conductivity and elimination of signal loss
10 year warranty
Cat.7 S/FTP LSZH network cable with Cat.6A connectors supports bandwidth up to 600MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
The Cat.7 cable material for operating frequencies up to 600MHz with taotal braided shielding and foil single-wire shielding (S/FTP) was developed for use in data centres, server rooms, rack mounting of network and control cabinets etc. for networks up to 10GBaseT. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
This product uses Cat.7 cable material. The Cat.7 standard originally defined the GG45 connectors, which were intended as a further development of RJ45, but were not able to establish themselves on the market. In the meantime, the RJ45 connector developed to easily meet the requirements of Cat.7, but has never been defined for Cat.7. Therefore the imprint on the cable reads as follows: Cat.6A S/FTP patch cords with 600MHz raw cable .
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White.
| Features | |
|---|---|
| Certification | RoHS, REACH, UL, California Proposition 65 |
| Plug and Play | Yes |
| Snagless cable boot | Yes |
| Bend radius (min) | 7.8 cm |
| Frequency | 600 MHz |
| AWG wire size | 26 |
| Cabling technology | 10GBase-T |
| Connector housing material | Polycarbonate (PC) |
| Conductor material | Copper |
| Cable shape | Round |
| Jacket material | Low smoke zero halogen (LSZH) |
| Connector shield material | Aluminium |
| Connector shielding | Yes |
| Connector contacts plating | Nickel/Gold |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector 2 | RJ-45 |
| Connector 1 | RJ-45 |
| Product colour | Yellow |
| Cable shielding | S/FTP (S-STP) |
| Cable standard | Cat7 |
| Cable length | 0.3 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 75 °C |
| Operating temperature (T-T) | -10 - 60 °C |
| Weight & dimensions | |
|---|---|
| Connector 1 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Outer diameter | 6.5 mm |
| Height | 8.3 mm |
| Depth | 22.8 mm |
| Width | 11.6 mm |
| Packaging data | |
|---|---|
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Compliance certificates | REACH, RoHS |
| Warranty period | 10 year(s) |
| Other features | |
|---|---|
| Quantity per box | 1 pc(s) |
