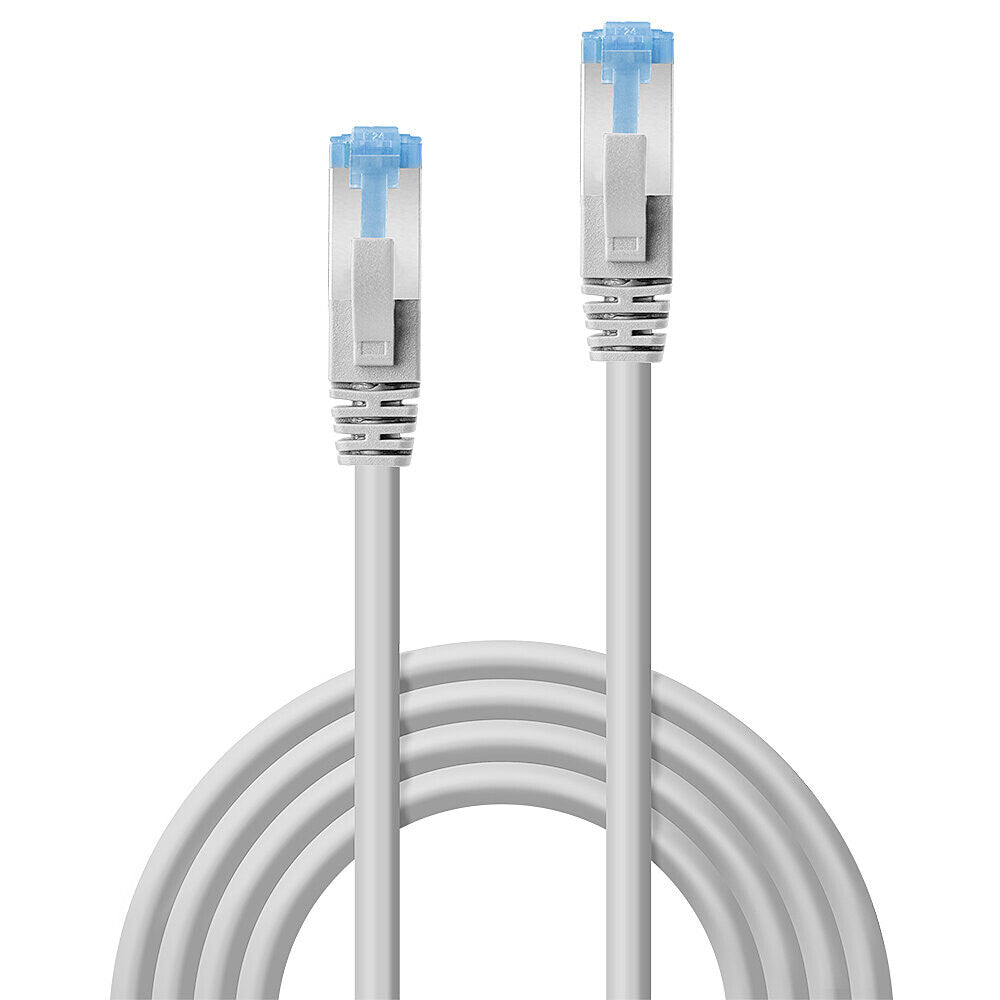

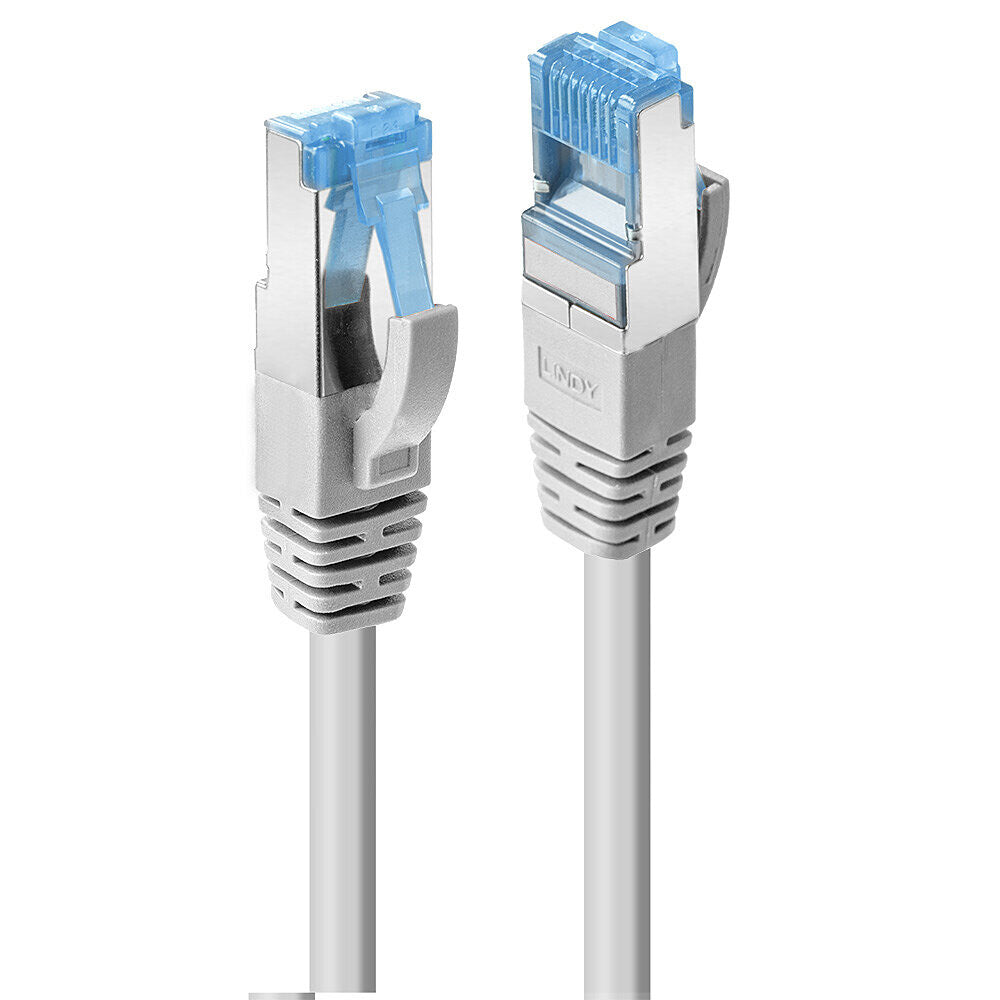

Lindy 47631 networking cable Grey 0.5 m Cat6a S/FTP (S-STP) Round

Lindy 47631 networking cable Grey 0.5 m Cat6a S/FTP (S-STP) Round

Regular price £2.11 GBP
Regular price Sale price £2.11 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:47631

Low stock: 10 left

  • Twisted Pair Patch Cable with RJ45 connectors
  • Cat.6A S/FTP PIMF, TPE
  • Integrated snagless connector for latch protection
  • Gold plated pins for better conductivity and elimination of signal loss
0.5m Cat.6A S/FTP TPE Network Cable, Grey

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T. The TPE Jacket is a non-toxic alternative to PVC allowing it to be used in a variety of environments, as well as being more flexible than its counterpart with a flex rating of 10 million it has high impact and tear resistance making it a very durable jacket material.

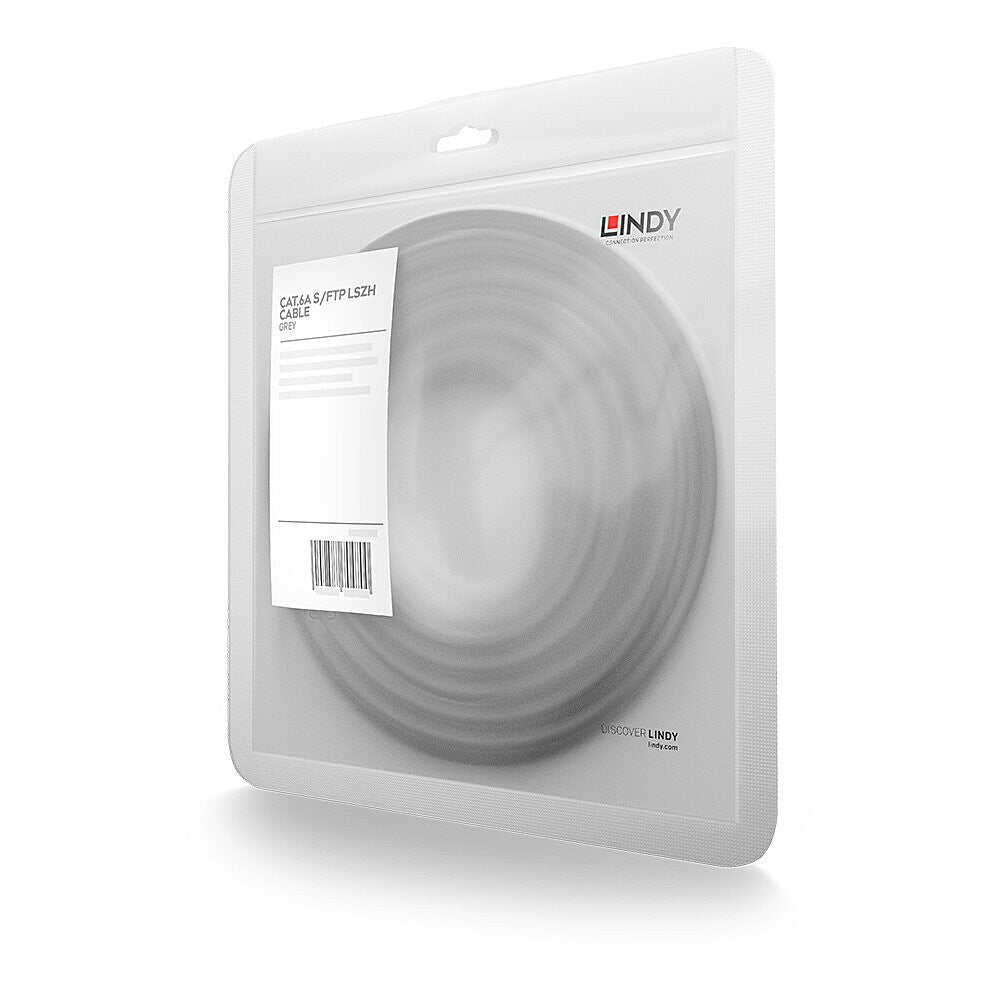

Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The TPE used as a sheath material provides increased flexibility and easy handling of cables.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.

Features
Cable length 0.5 m
Cable standard Cat6a
Cable shielding S/FTP (S-STP)
Product colour Grey
Connector 1 RJ-45
Connector 2 RJ-45
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Male
Connector 1 gender Male
Connector contacts plating Nickel/Gold
Connector shielding Yes
Connector shield material Aluminium
Jacket material Thermoplastic elastomer (TPE)
Cable shape Round
Conductor material Copper
Connector housing material Polycarbonate (PC)
Cabling technology 10GBase-T
AWG wire size 28
Frequency 500 MHz
Bend radius (min) 7.4 cm
Snagless cable boot Yes
Plug and Play Yes
Certification RoHS, REACH, California Proposition 65
Operational conditions
Operating temperature (T-T) -10 - 60 °C
Storage temperature (T-T) -20 - 75 °C
Weight & dimensions
Width 11.6 mm
Depth 22.8 mm
Height 8.3 mm
Outer diameter 6.2 mm
Connector 2 dimensions (WxDxH) 11.6 x 22.8 x 8.3 mm
Connector 1 dimensions (WxDxH) 11.6 x 22.8 x 8.3 mm
Packaging data
Quantity per pack 1 pc(s)
Package type Polybag
Technical details
Compliance certificates REACH, RoHS
Warranty period 10 year(s)
Sustainability compliance Yes
