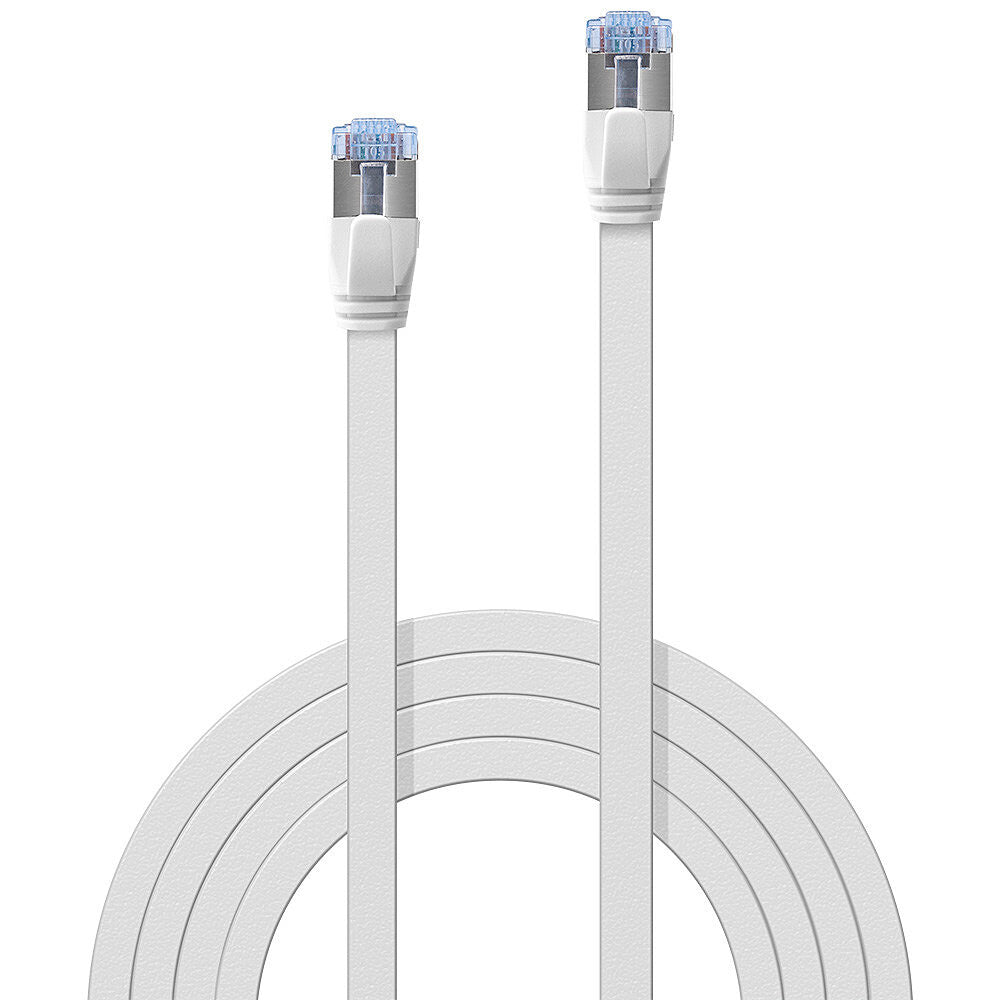

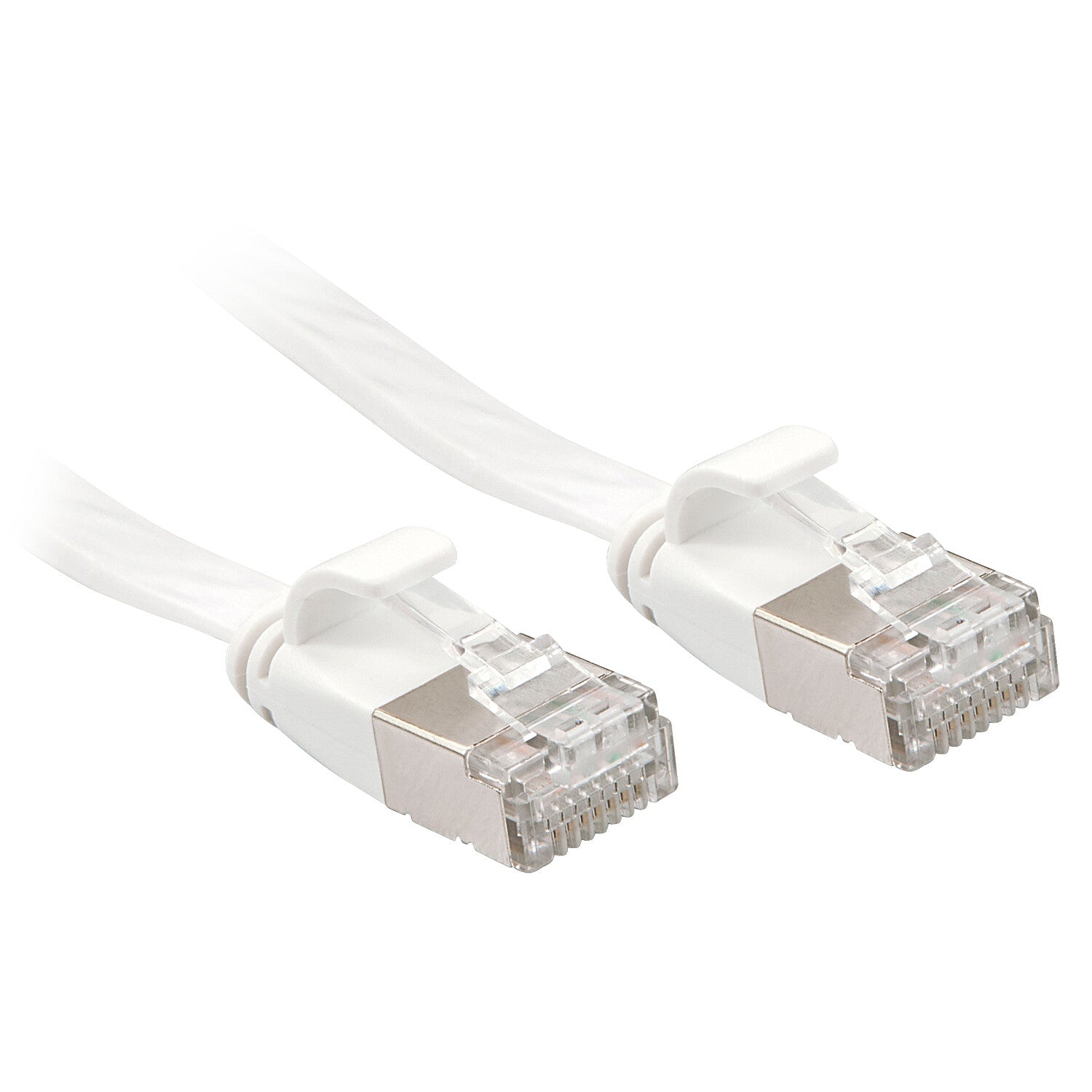

Lindy 47542 networking cable White 2 m Cat6a U/FTP (STP)
Lindy 47542 networking cable White 2 m Cat6a U/FTP (STP)
Couldn't load pickup availability
SKU:47542
Low stock: 2 left
- Twisted Pair Patch Cable with RJ45 connectors
- Cat.6A U/FTP, Flat
- Integrated snagless connector for latch protection
- Gold plated pins for better conductivity and elimination of signal loss
Cat.6A U/FTP flat network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T.
Cat 6A cable, for operating frequencies up to 500MHz, shielded with foil shielded with single pair shielding (U/FTP). Designed as flat ribbon cable for use in environments with restricted or limited installation space. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The very fleixible and thin ribbon cable construction allows the cables to be installed in restricted or limited spaces.
Available lengths: 0.3m, 1m, 2m, 3m, 5m, 10m.
Available colours: Black, White.
| Features | |
|---|---|
| Certification | RoHS, REACH, California Proposition 65 |
| Bend radius (min) | 6 cm |
| Frequency | 500 MHz |
| AWG wire size | 32 |
| Cabling technology | 10/100/1000Base-T(X) |
| Conductor material | Copper |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector shield material | Aluminium |
| Connector shielding | Yes |
| Connector contacts plating | Nickel/Gold |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 2 | RJ-45 |
| Connector 1 | RJ-45 |
| Product colour | White |
| Cable shielding | U/FTP (STP) |
| Cable standard | Cat6a |
| Cable length | 2 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -10 - 40 °C |
| Operating temperature (T-T) | -10 - 60 °C |
| Weight & dimensions | |
|---|---|
| Connector 1 dimensions (WxDxH) | 11 x 28 x 6 mm |
| Connector 2 dimensions (WxDxH) | 11 x 28 x 6 mm |
| Packaging data | |
|---|---|
| Package type | Polybag |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
