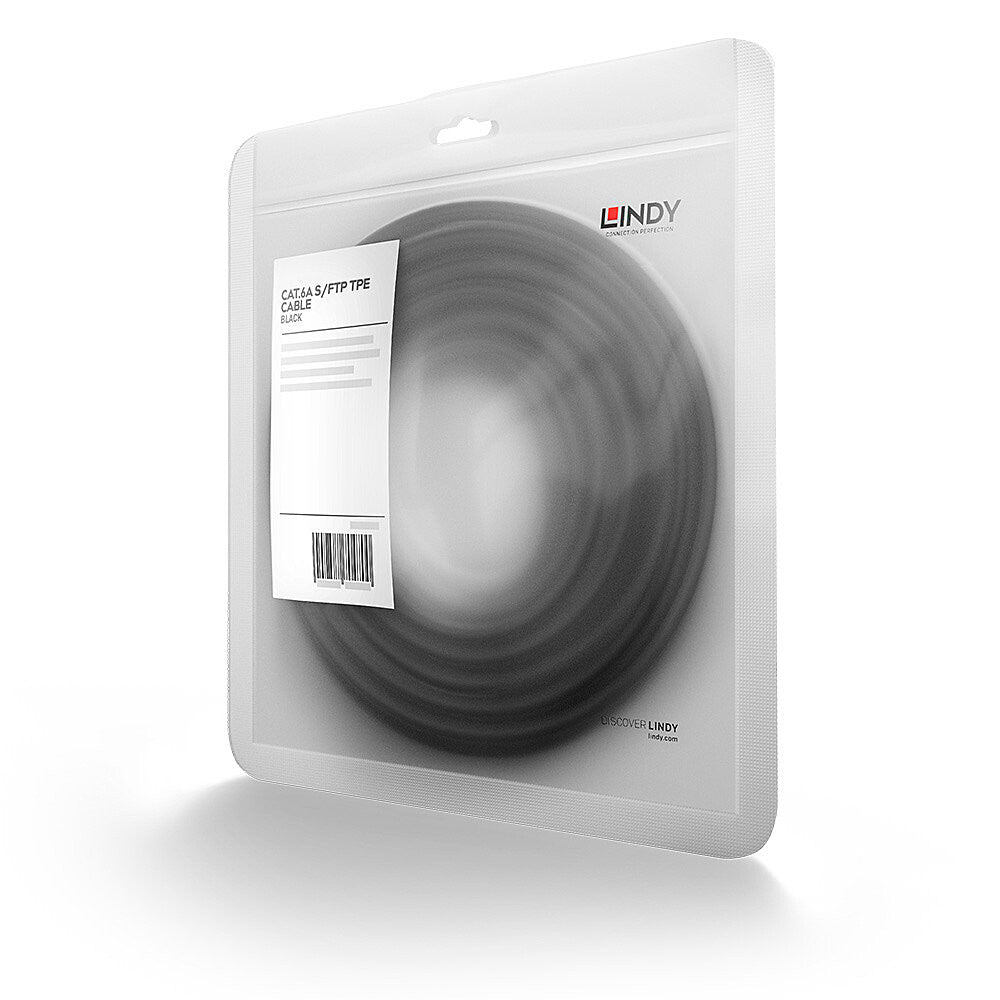

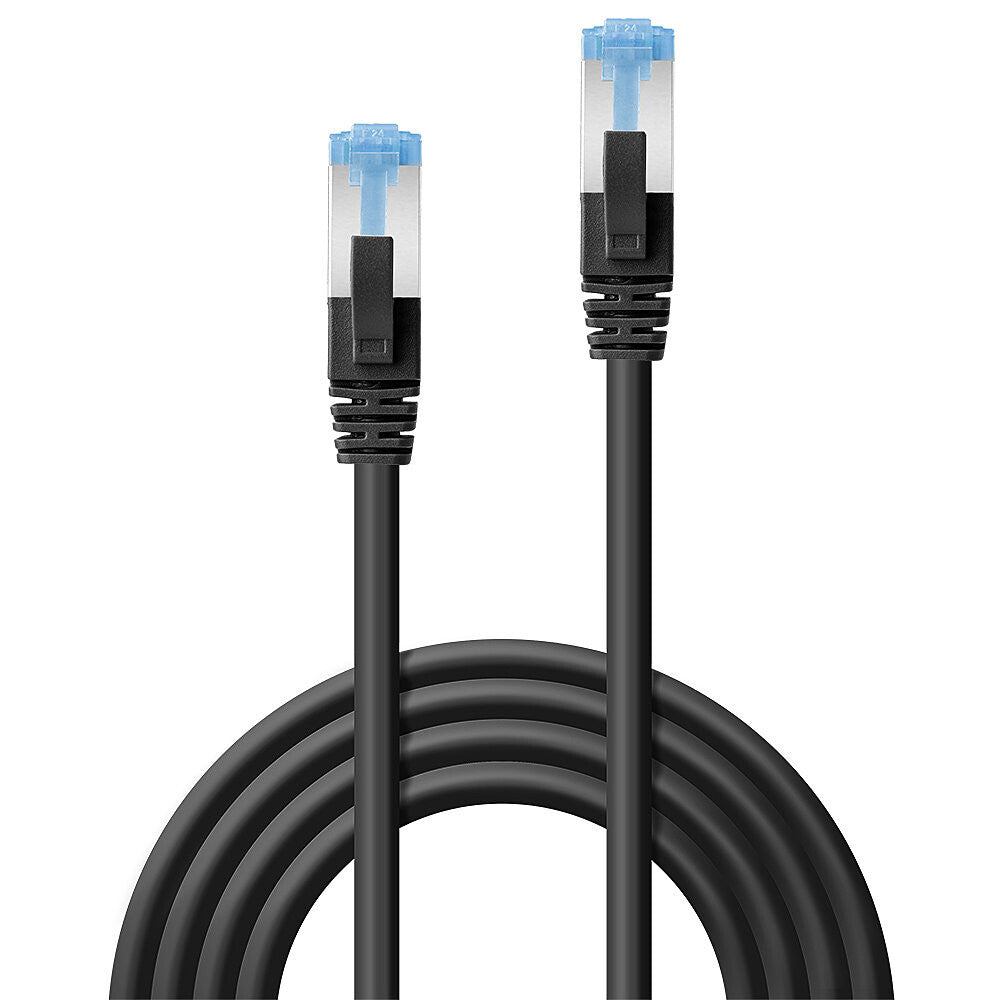

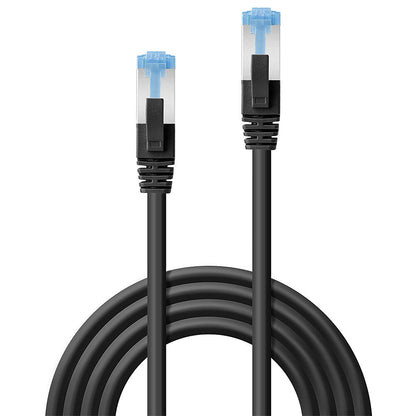

Lindy 47416 networking cable Black 5 m Cat6a S/FTP (S-STP)
Lindy 47416 networking cable Black 5 m Cat6a S/FTP (S-STP)
SKU:47416
27 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Twisted Pair Patch Cable with RJ45 connectors
- Cat.6A S/FTP PIMF, TPE
- Integrated snagless connector for latch protection
- Gold plated pins for better conductivity and elimination of signal loss
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T. The TPE Jacket is a non-toxic alternative to PVC allowing it to be used in a variety of environments, as well as being more flexible than its counterpart with a flex rating of 10 million it has high impact and tear resistance making it a very durable jacket material.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

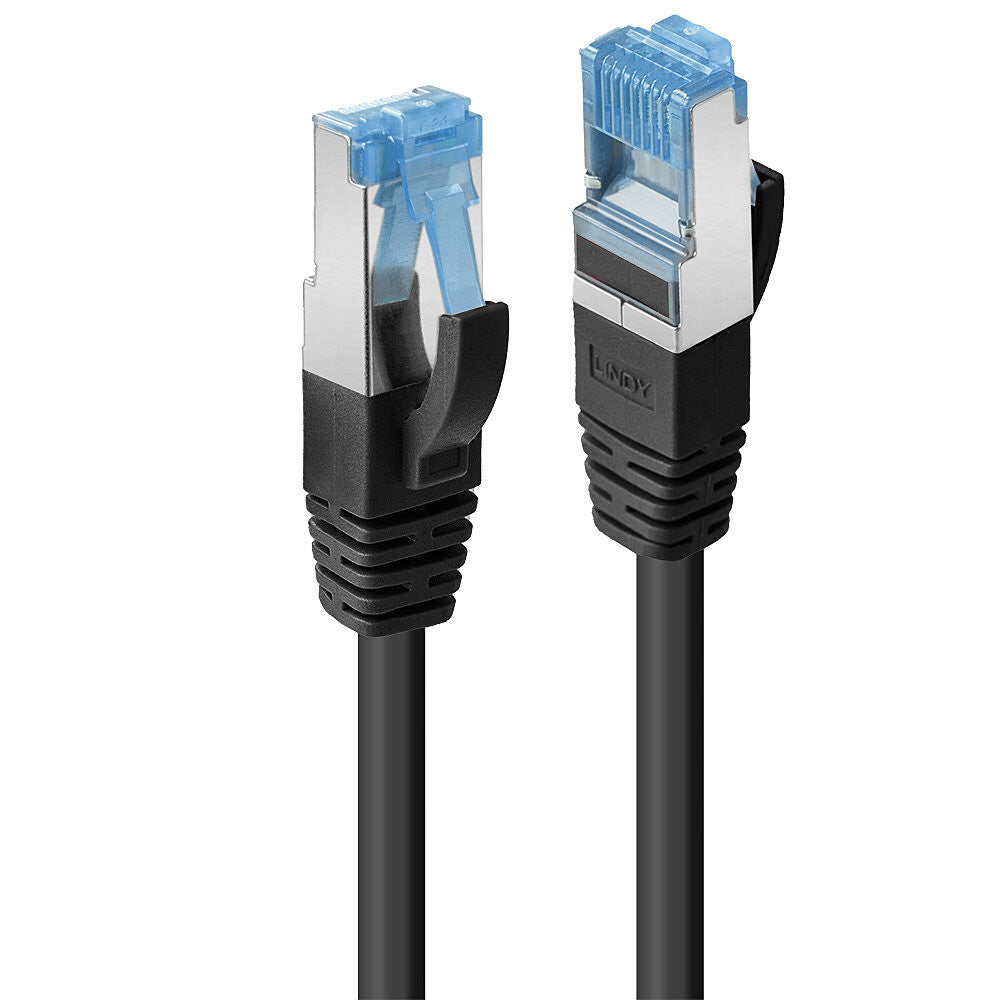

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The TPE used as a sheath material provides increased flexibility and easy handling of cables.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
| Features | |
|---|---|
| Cable length | 5 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Product colour | Black |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector contacts plating | Nickel/Gold |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Jacket material | Thermoplastic elastomer (TPE) |
| Conductor material | Copper |
| Cable class | Ea |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| AWG wire size | 27 |
| Frequency | 500 MHz |
| Bend radius (min) | 7.4 cm |
| Certification | RoHS, REACH, UL, California Proposition 65 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Weight & dimensions | |
|---|---|
| Outer diameter | 6.2 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Connector 1 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Packaging data | |
|---|---|
| Package type | Polybag |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Other features | |
|---|---|
| Cable diameter | 6 mm |
