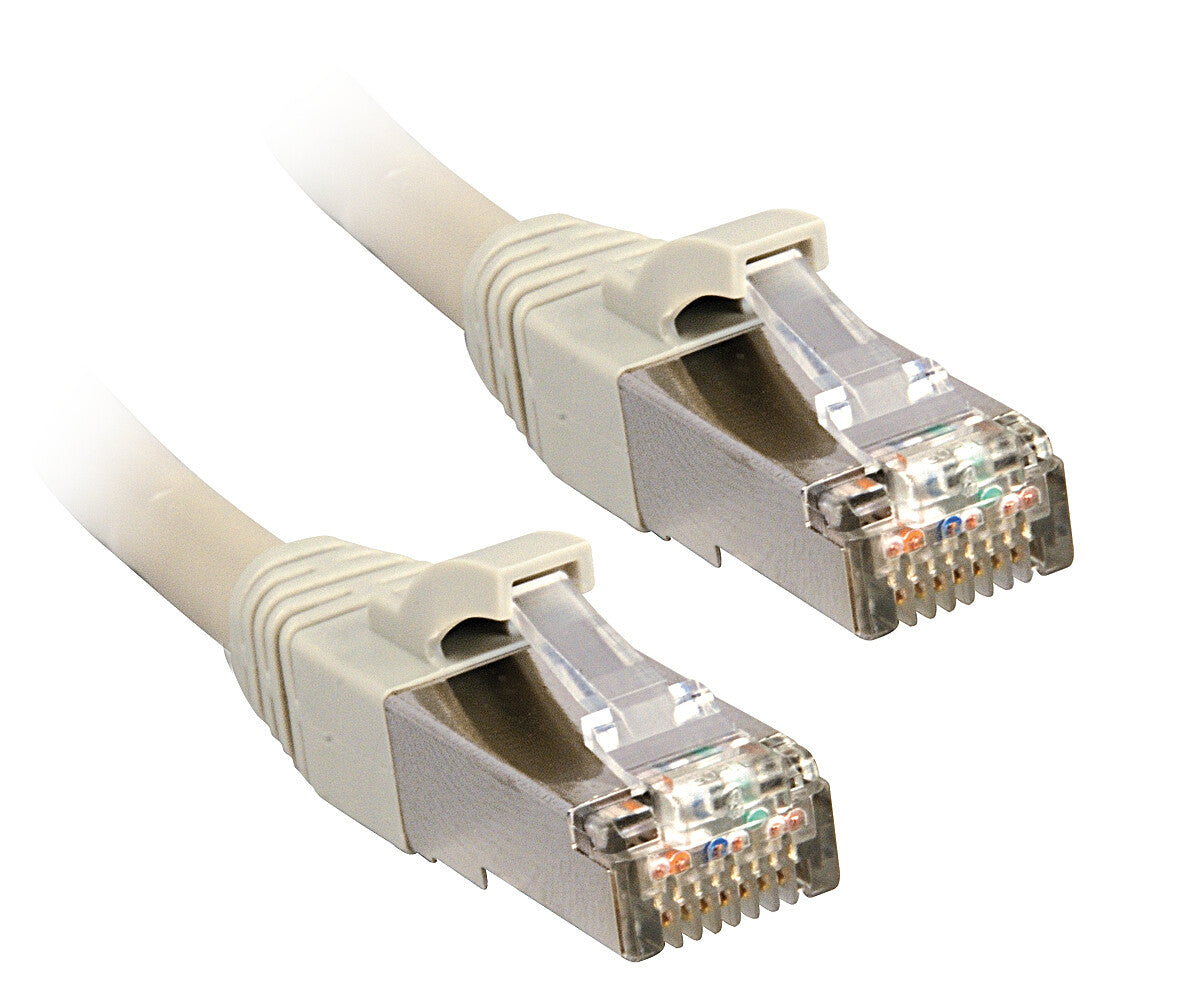

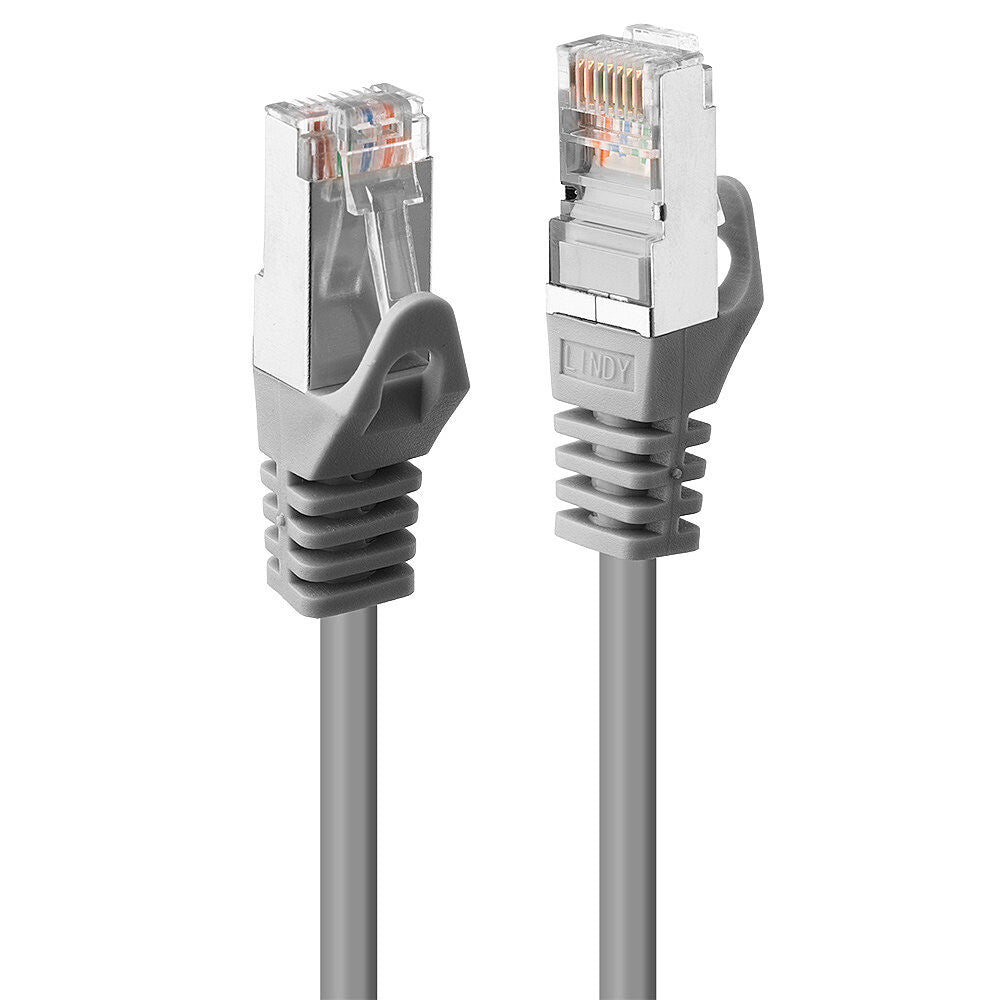

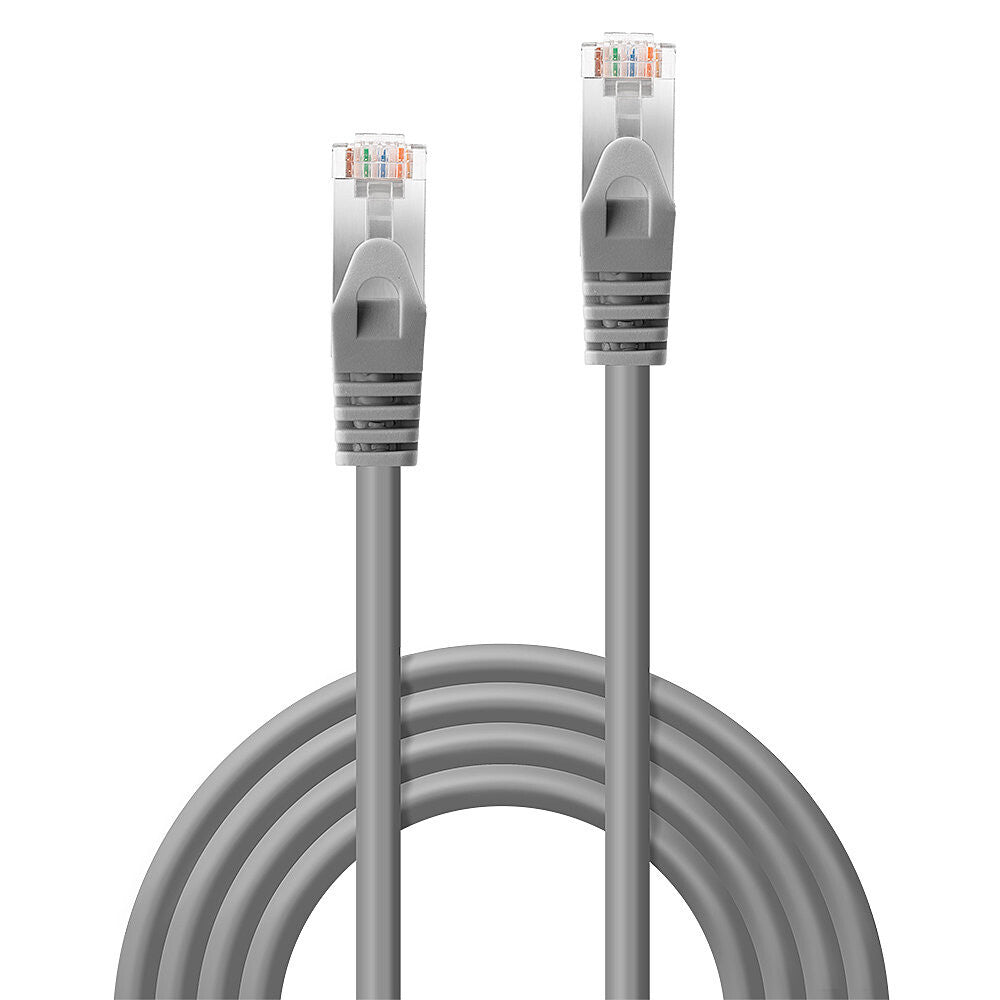

Lindy 47246 networking cable Grey 5 m Cat6 F/UTP (FTP)
Lindy 47246 networking cable Grey 5 m Cat6 F/UTP (FTP)
Couldn't load pickup availability
SKU:47246
57 in stock
- Twisted Pair Patch Cable with RJ45 connectors
- Cat.6 F/UTP, CCA
- Integrated snagless connector for latch protection
- Gold plated pins for better conductivity and elimination of signal loss
Cat.6 F/UTP CCA network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.

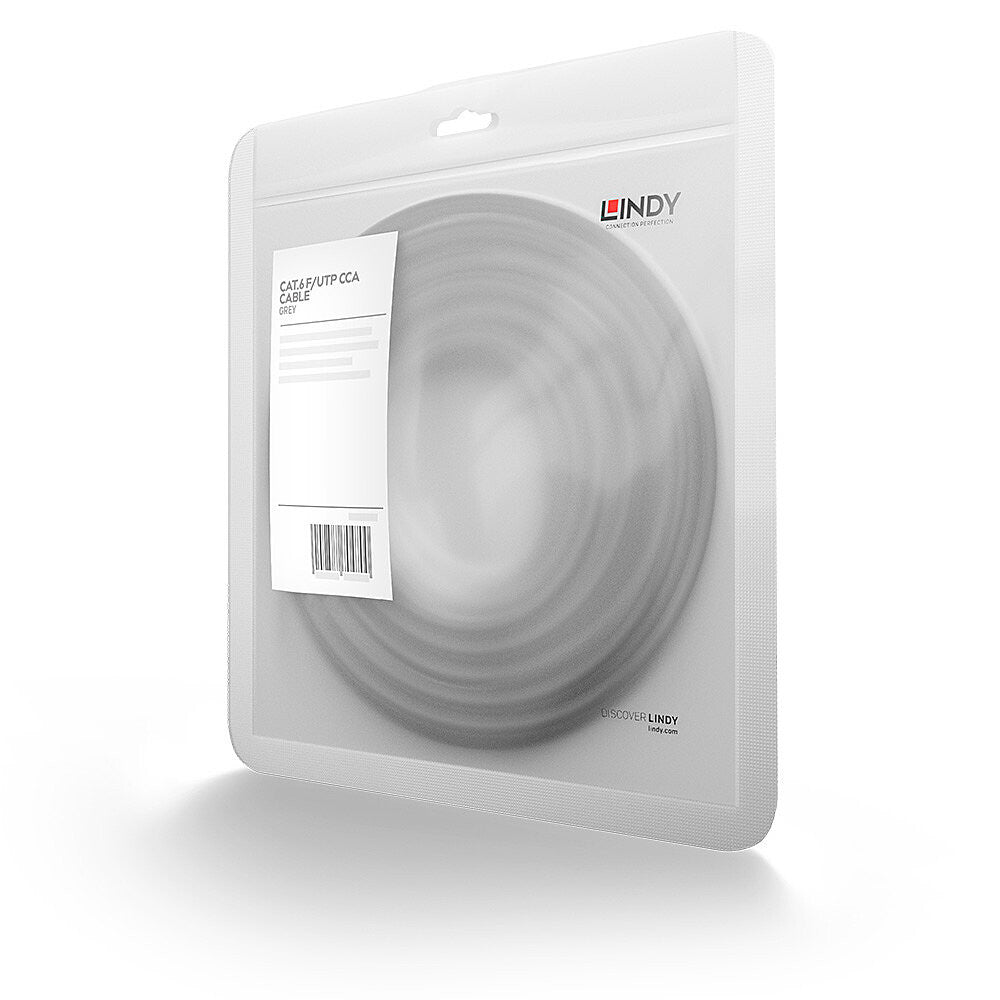

Cat.6 cable for operating frequencies up to 250Mhz in a shielded version with foil shielding (F/UTP). Cat.6 cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The high frequencies used in network technology cause a high current load in the outer layers of the conductors due to the skin effect , while the conductor cores are only subjected to very low electrical loads. This allows the use of copper clad aluminium (CCA) conductor material, making this cable more cost-effective than pure copper cables.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m.
| Features | |
|---|---|
| Certification | RoHS, REACH, California Proposition 65 |
| Bend radius (min) | 7.2 cm |
| Frequency | 250 MHz |
| AWG wire size | 26 |
| Cabling technology | 10/100/1000Base-T(X) |
| Conductor material | Copper-Clad Aluminium (CCA) |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector shield material | Aluminium |
| Connector shielding | Yes |
| Connector contacts plating | Nickel/Gold |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 2 | RJ-45 |
| Connector 1 | RJ-45 |
| Product colour | Grey |
| Cable shielding | F/UTP (FTP) |
| Cable standard | Cat6 |
| Cable length | 5 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 75 °C |
| Operating temperature (T-T) | -10 - 60 °C |
| Weight & dimensions | |
|---|---|
| Connector 1 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Outer diameter | 6 mm |
| Packaging data | |
|---|---|
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
