Lindy

Lindy 45432 networking cable Black 1 m Cat6 U/UTP (UTP)

Lindy 45432 networking cable Black 1 m Cat6 U/UTP (UTP)

Regular price £5.04 GBP
Regular price Sale price £5.04 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:45432

Low stock: 2 left

  • Twisted Pair Patch Cable with RJ45 connectors and Test Report (100% Test)
  • Cat.6 U/UTP, LSZH

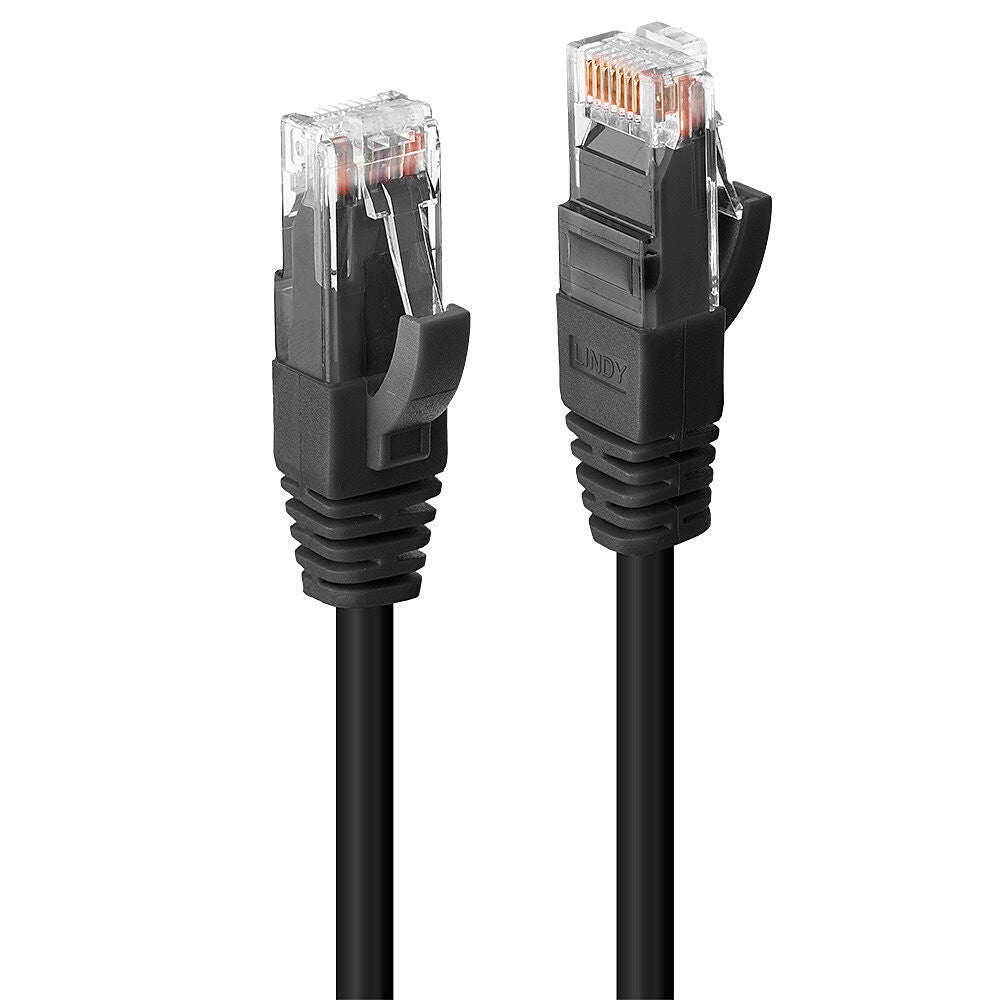

  • Integrated snagless connector for latch protection
  • Gold plated pins for better conductivity and elimination of signal loss

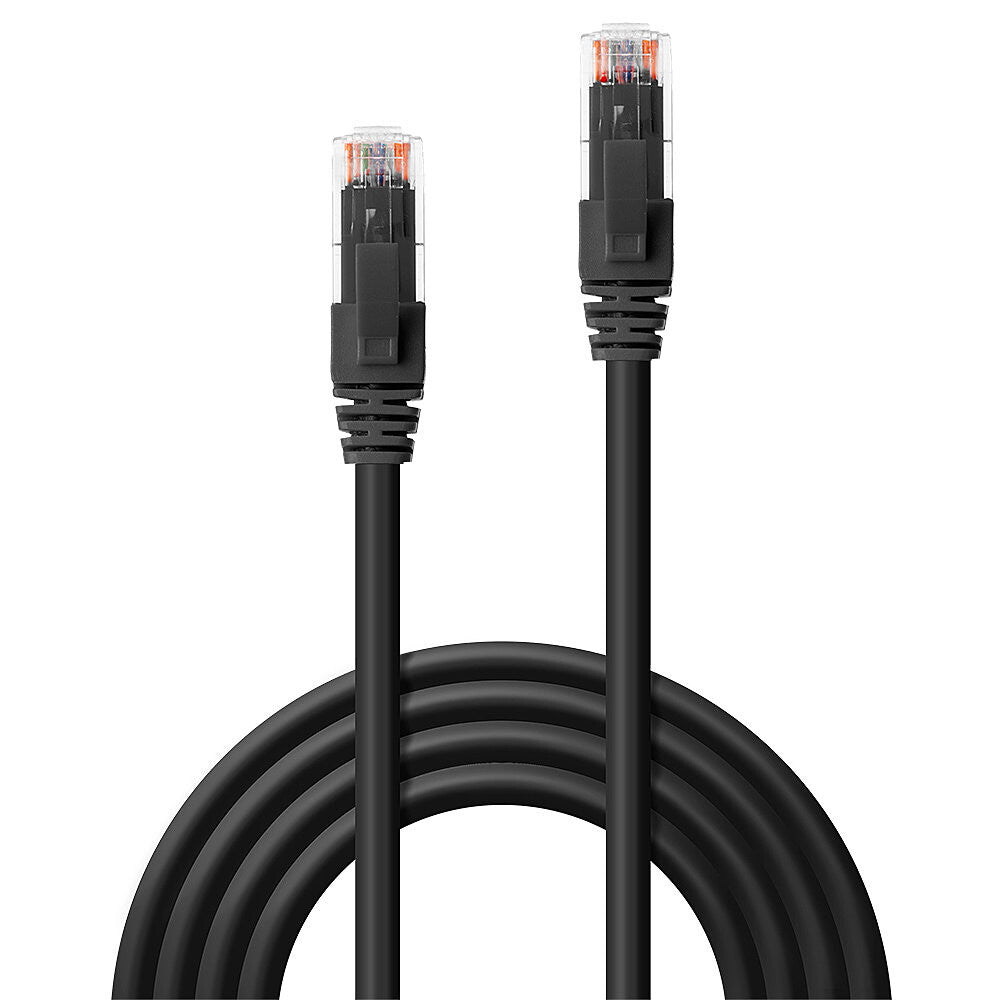

1m Cat.6 U/UTP LSZH Network Cable, Black

Cat.6 U/UTP LSZH network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Grey, Blue, Red, Black.

Features
Certification RoHS, REACH & UL
Bend radius (min) 1.8 cm
Frequency 250 MHz
AWG wire size 26
Cabling technology 10/100/1000Base-T(X)
Cable class E
Conductor material Copper
Jacket material Low smoke zero halogen (LSZH)
Connector shield material Aluminium/Polyester
Connector shielding Yes
Connector contacts plating Gold
Connector 1 gender Male
Connector 2 gender Male
Connector 2 RJ-45
Connector 1 RJ-45
Product colour Black
Cable shielding U/UTP (UTP)
Cable standard Cat6
Cable length 1 m
Operational conditions
Storage temperature (T-T) -25 - 60 °C
Operating temperature (T-T) -25 - 60 °C
Weight & dimensions
Connector 1 dimensions (WxDxH) 11.6 x 21.5 x 8.3 mm
Connector 2 dimensions (WxDxH) 11.6 x 21.5 x 8.3 mm
Outer diameter 6 mm
Packaging data

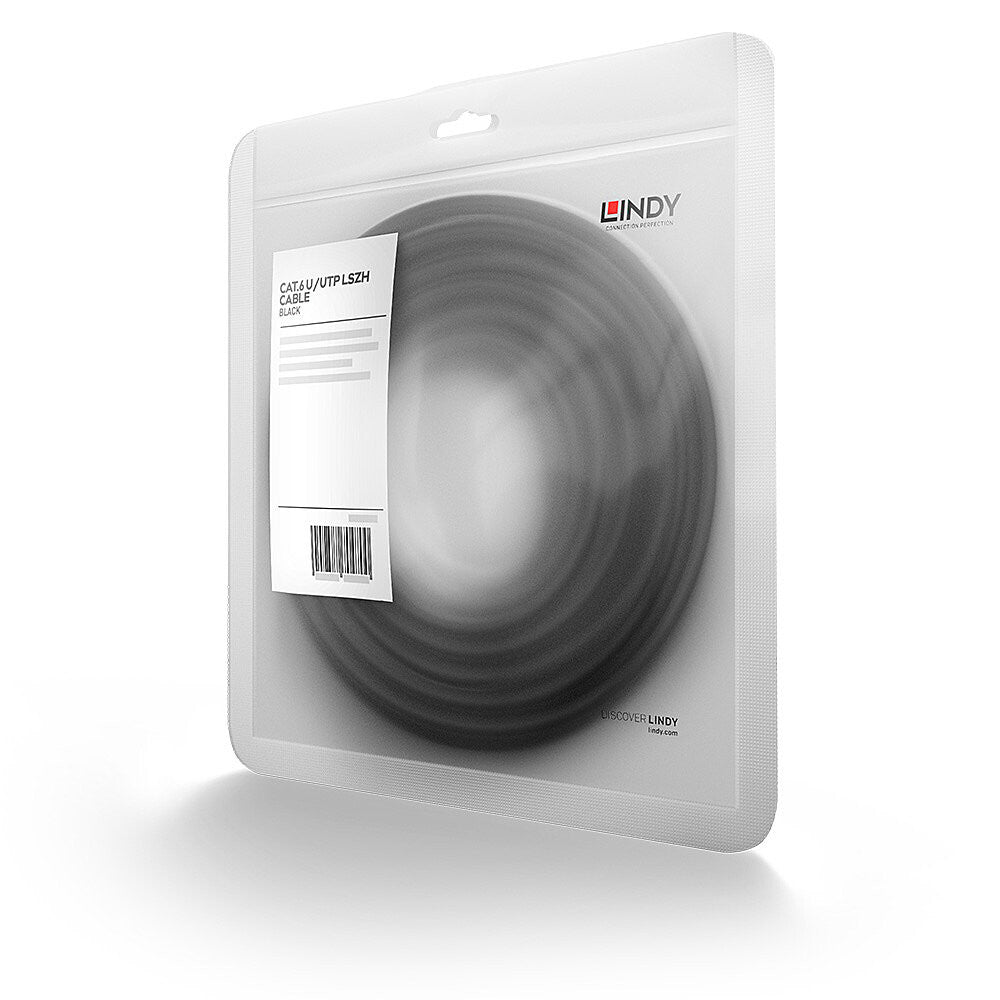

Package type Polybag
Technical details
Doesn't contain Halogen
Logistics data
Harmonized System (HS) code 84733080
