Lindy 3m Cat.6 U/UTP Network Cable, Black

Lindy 3m Cat.6 U/UTP Network Cable, Black

Regular price £4.61 GBP
Regular price Sale price £4.61 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:48079

81 in stock

  • Twisted Pair Patch Cable with RJ45 connectors
  • Cat.6 U/UTP, PVC
  • Integrated snagless connector for latch protection
  • Gold plated pins for better conductivity and elimination of signal loss

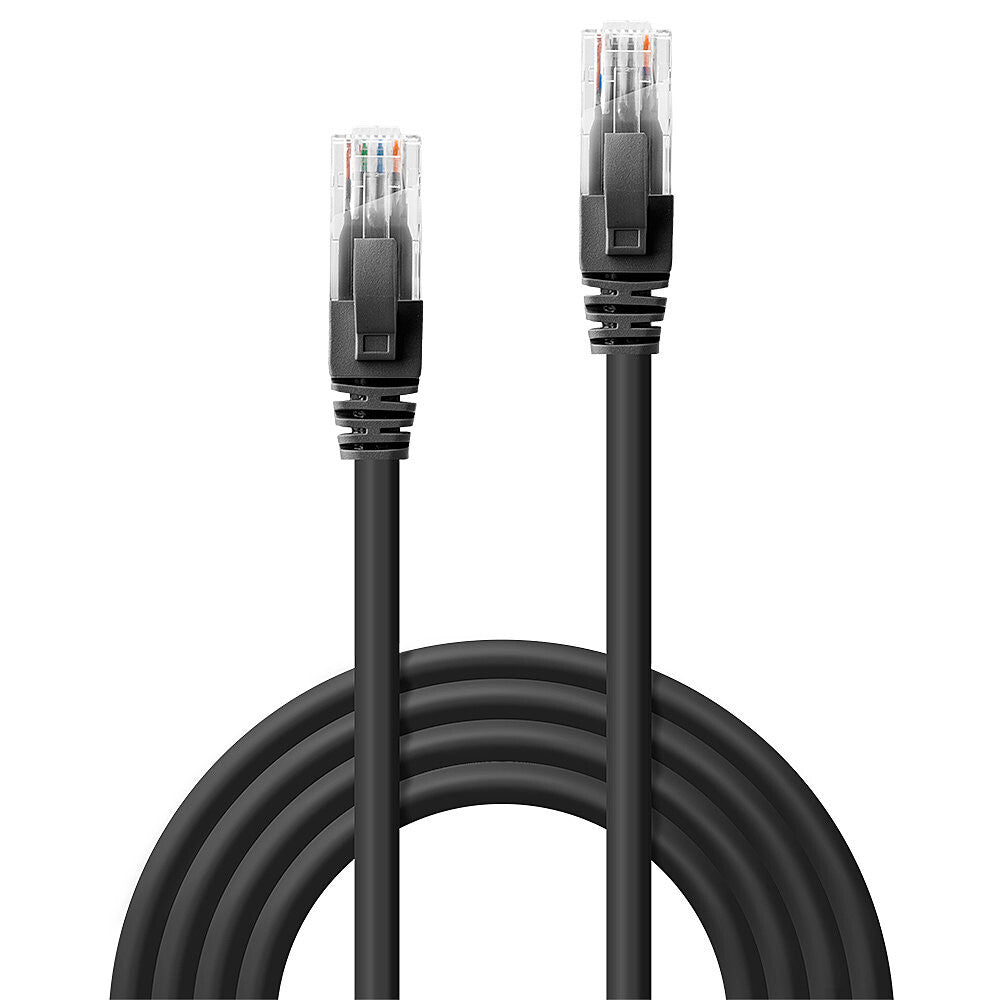

3m Cat.6 U/UTP Network Cable, Black

Cat.6 U/UTP PVC network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.

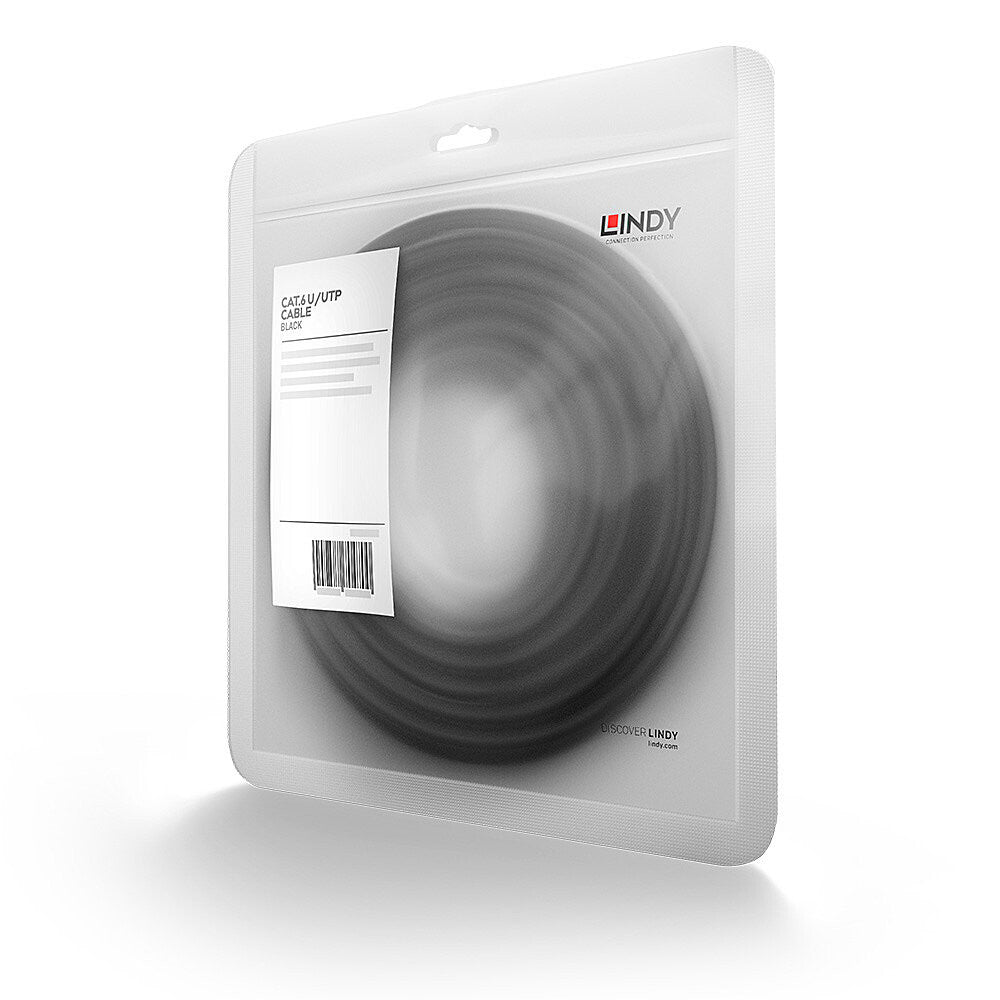

Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

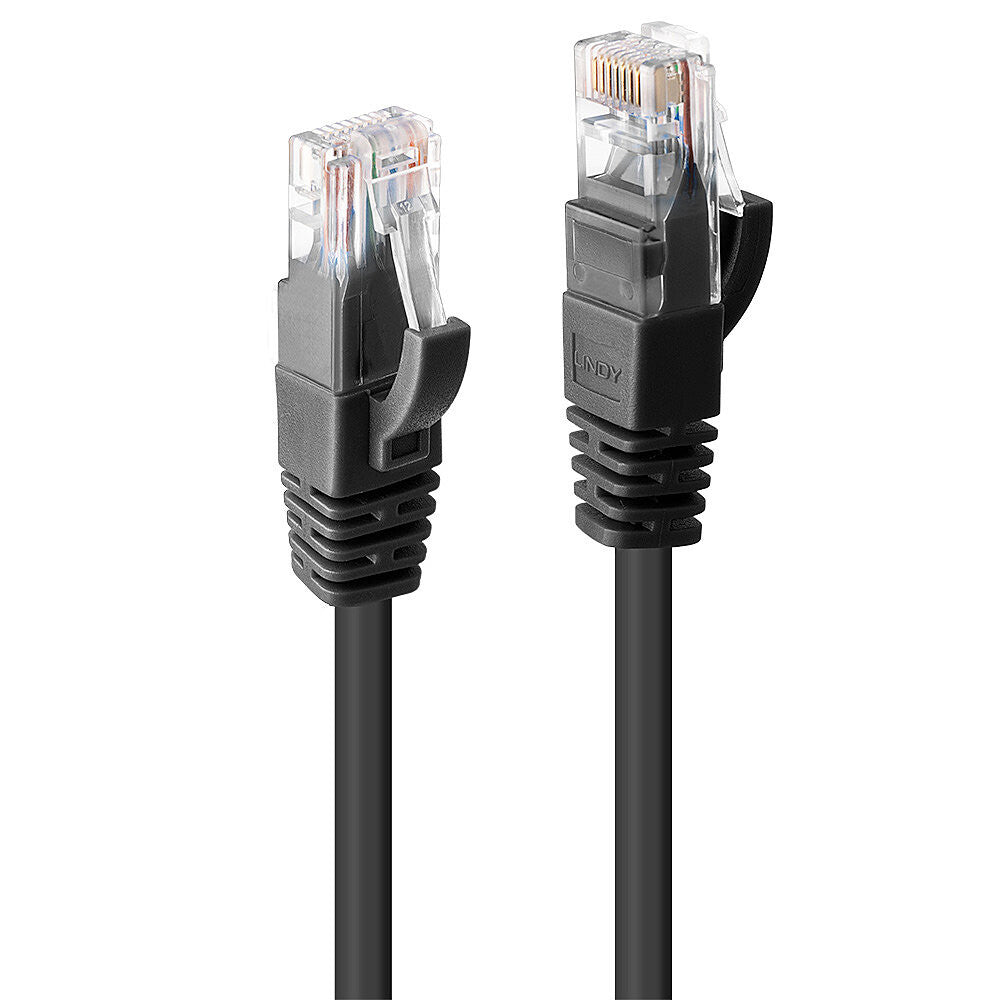

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Blue, Red, Green, Yellow, Black, White, Orange, Purple, Grey.

Features
Cable length 3 m
Cable standard Cat6
Cable shielding U/UTP (UTP)
Product colour Black
Connector 1 RJ-45
Connector 2 RJ-45
Connector 2 gender Male
Connector 1 gender Male
Connector contacts plating Gold
Connector shielding Yes
Connector shield material Aluminium
Jacket material Polyvinyl chloride (PVC)
Cable shape Round
Conductor material Copper
Connector housing material Polycarbonate (PC)
Cabling technology 10/100/1000Base-T(X)
Ethernet interface type Gigabit Ethernet
AWG wire size 24
Data transfer rate 1000 Mbit/s
Frequency 250 MHz
Bend radius (min) 6.9 cm
Snagless cable boot Yes
Nominal attenuation 32.8dB/100m @250MHz
Certification RoHS, REACH, UL, California Proposition 65
Operational conditions
Operating temperature (T-T) -10 - 60 °C
Storage temperature (T-T) -20 - 75 °C
Weight & dimensions
Outer diameter 5.8 mm
Connector 2 dimensions (WxDxH) 11.6 x 22.8 x 8.3 mm
Connector 1 dimensions (WxDxH) 11.6 x 22.8 x 8.3 mm
Packaging data
Quantity per pack 1 pc(s)
Package type Polybag
Logistics data
Harmonized System (HS) code 84733080
