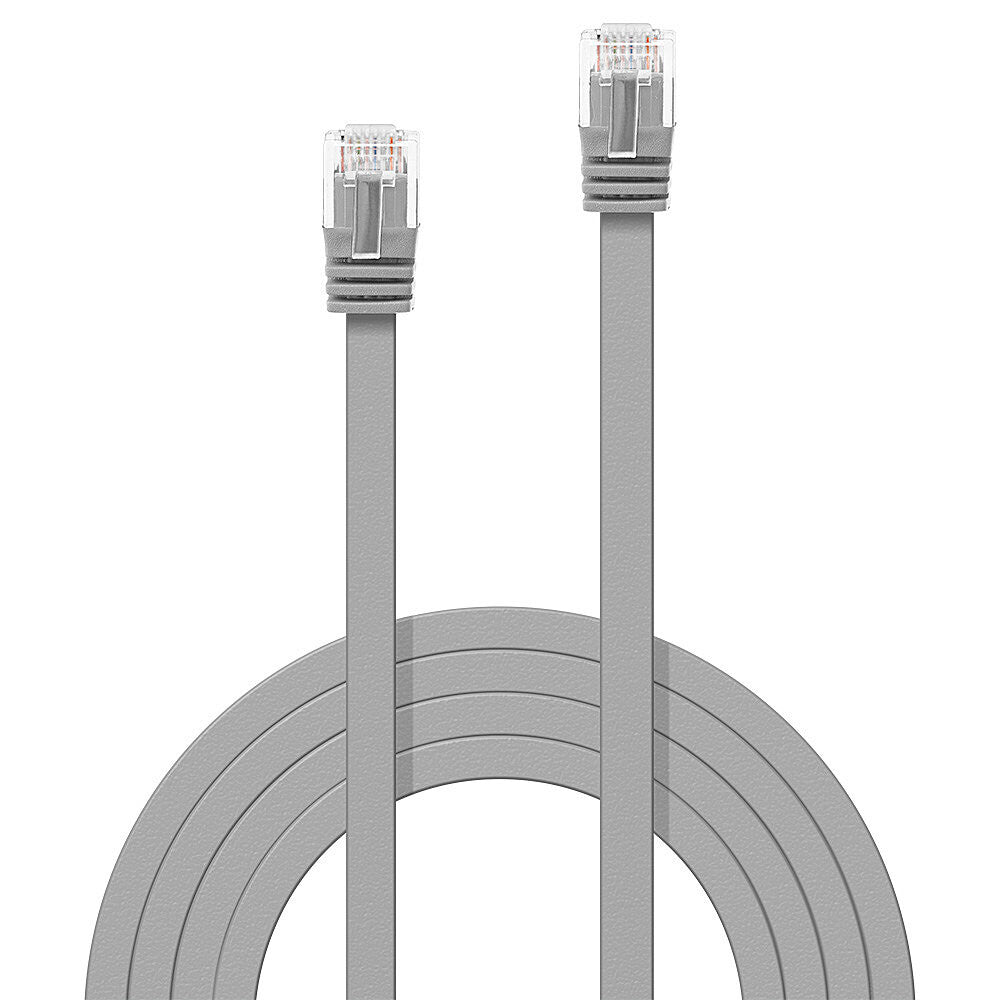

Lindy 2m Cat.6 U/UTP Flat Network Cable

Lindy 2m Cat.6 U/UTP Flat Network Cable

Regular price £2.32 GBP
Regular price Sale price £2.32 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:47492

396 in stock

  • Twisted Pair Patch Cable with RJ45 connectors
  • Cat.6 U/UTP, Flat

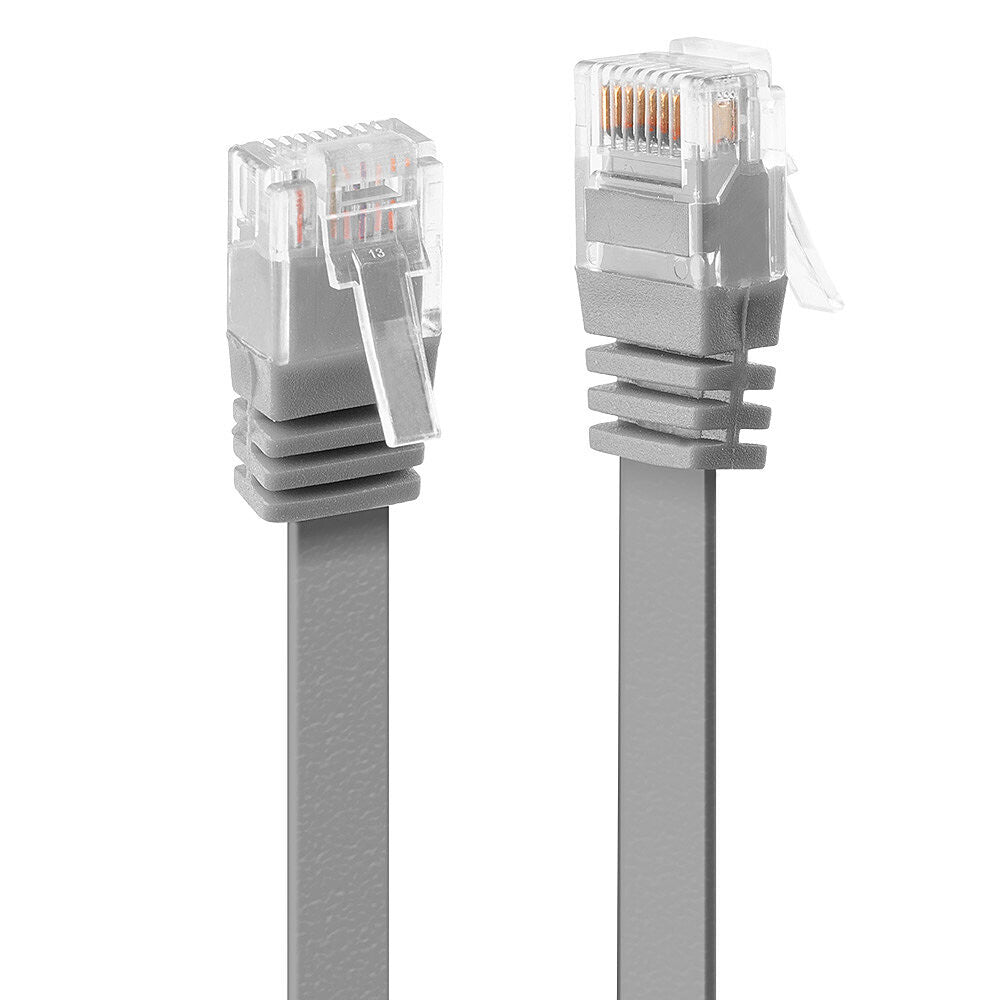

  • Integrated snagless connector for latch protection
  • Gold plated pins for better conductivity and elimination of signal loss
2m Cat.6 U/UTP Flat Network Cable, Grey

Cat.6 U/UTP flat network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameter (NExT, FExT, etc.) despite the lack of shielding. Designed as flat ribbon cable for use in environments with restricted or limited installation space. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The very fleixible and thin ribbon cable construction allows the cables to be installed in restricted or limited spaces.
Available lengths: 0.3m, 1m, 2m, 3m, 5m, 10m.
Available colours: Black, Grey, White, Red.

Features
Certification RoHS, REACH, UL, California Proposition 65
Bend radius (min) 6 cm
Frequency 250 MHz
AWG wire size 32
Networking standards IEEE 802.3, IEEE 802.3u
Cabling technology 10/100Base-T(X)
Conductor material Copper
Jacket material Polyvinyl chloride (PVC)
Connector contacts plating Gold
Connector 1 gender Male
Connector 2 gender Male
Connector 2 RJ-45
Connector 1 RJ-45
Product colour Grey
Cable shielding U/UTP (UTP)
Cable standard Cat6
Cable length 2 m
Operational conditions
Storage temperature (T-T) -10 - 40 °C
Operating temperature (T-T) -10 - 60 °C
Weight & dimensions
Connector 1 dimensions (WxDxH) 11.6 x 22.7 x 6.5 mm
Connector 2 dimensions (WxDxH) 11.6 x 22.7 x 6.5 mm
Packaging data

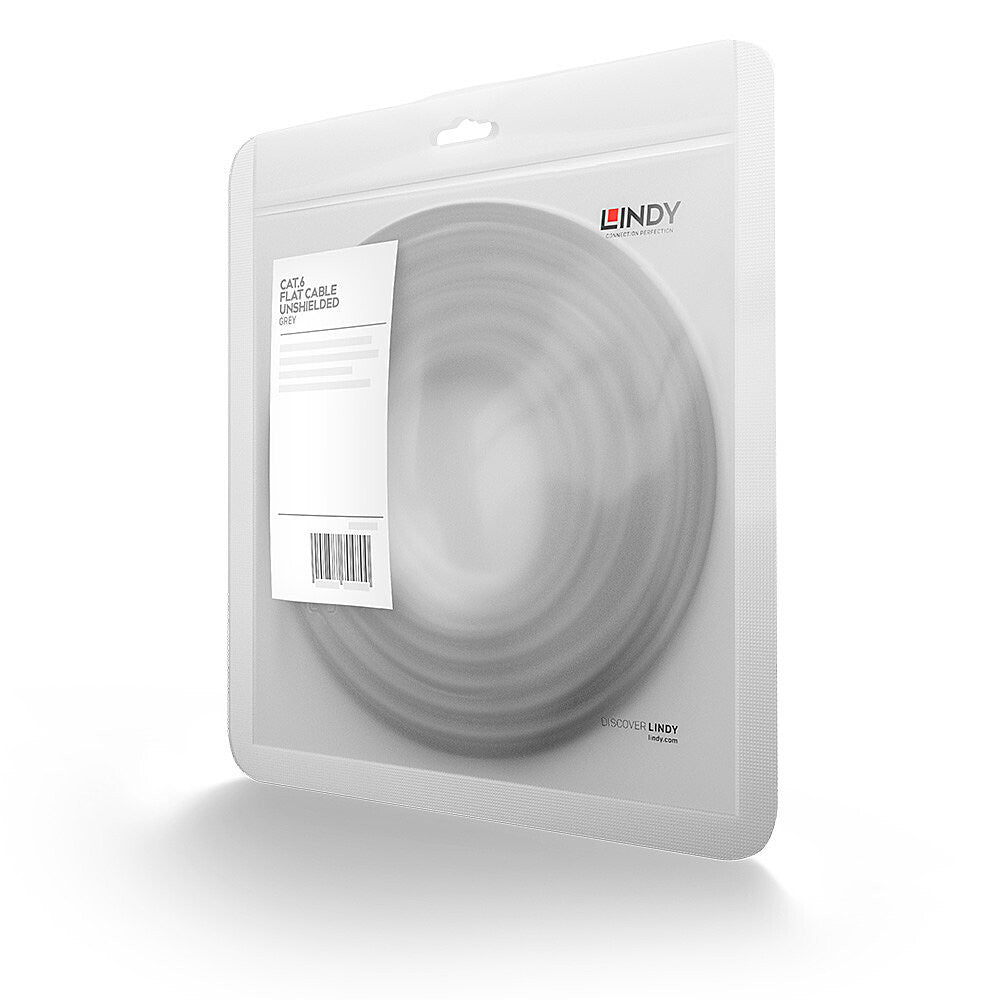

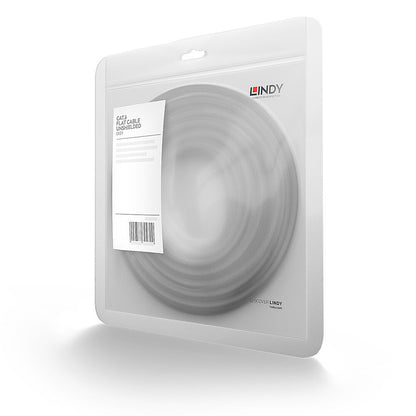

Package type Polybag
Quantity per pack 1 pc(s)
Logistics data
Harmonized System (HS) code 84733080
