Support SC Multimode fiber optic 50/125 or 62.5/125 cables
Extend fiber distance up to 550m
Support Full/Half duplex mode and auto-negotiation

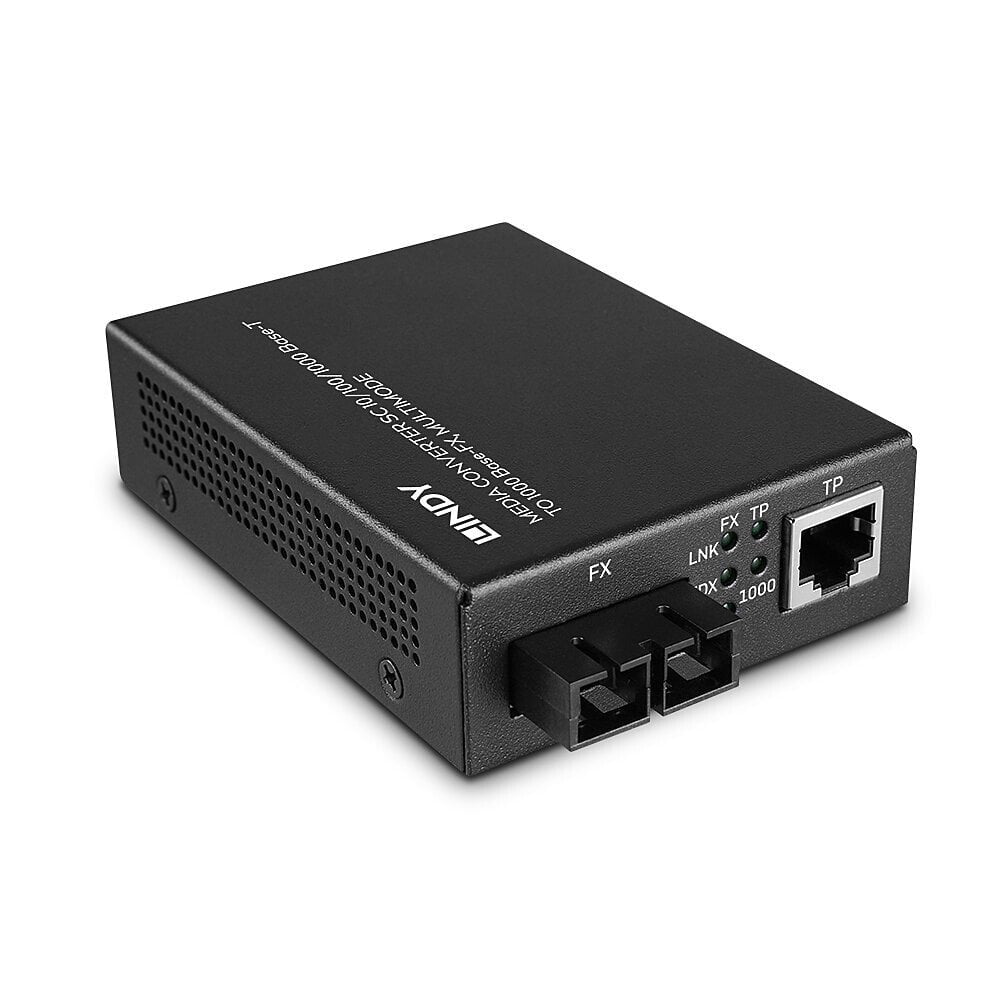

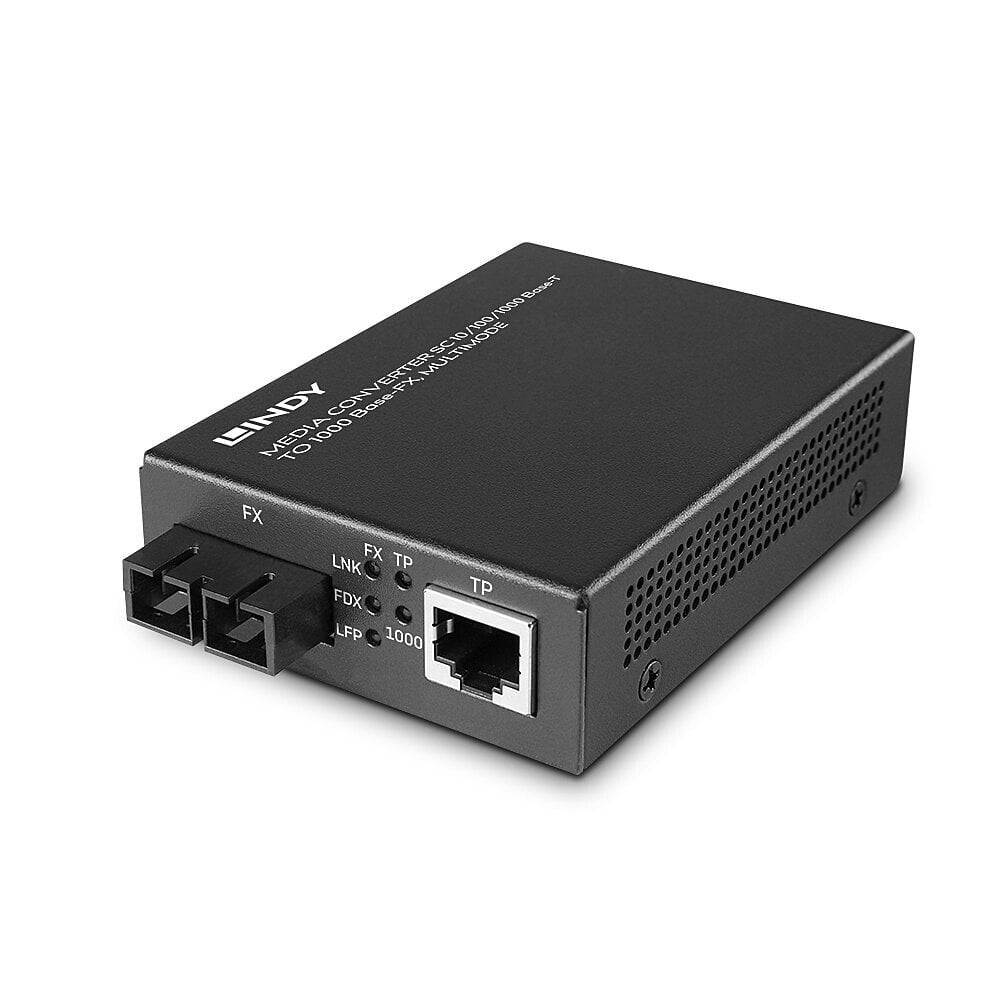

Media Converter SC 10/100/1000 Base-T to 1000 Base-FX, Multimode
This Lindy Media Converter extends the connection between two network devices at distances up to 550m using multimode fibre optic cables. The installation is plug-and-play and the user only has to connect to the RJ45 port with a Cat.5e or above Ethernet cable and the fibre port with a SC Multimode 50/125 or 62.5/125 Duplex fibre optic cable. No configuration needed, easily integrated into any existing Ethernet network and supports Full/Half duplex mode and auto-negotiation on both ports.

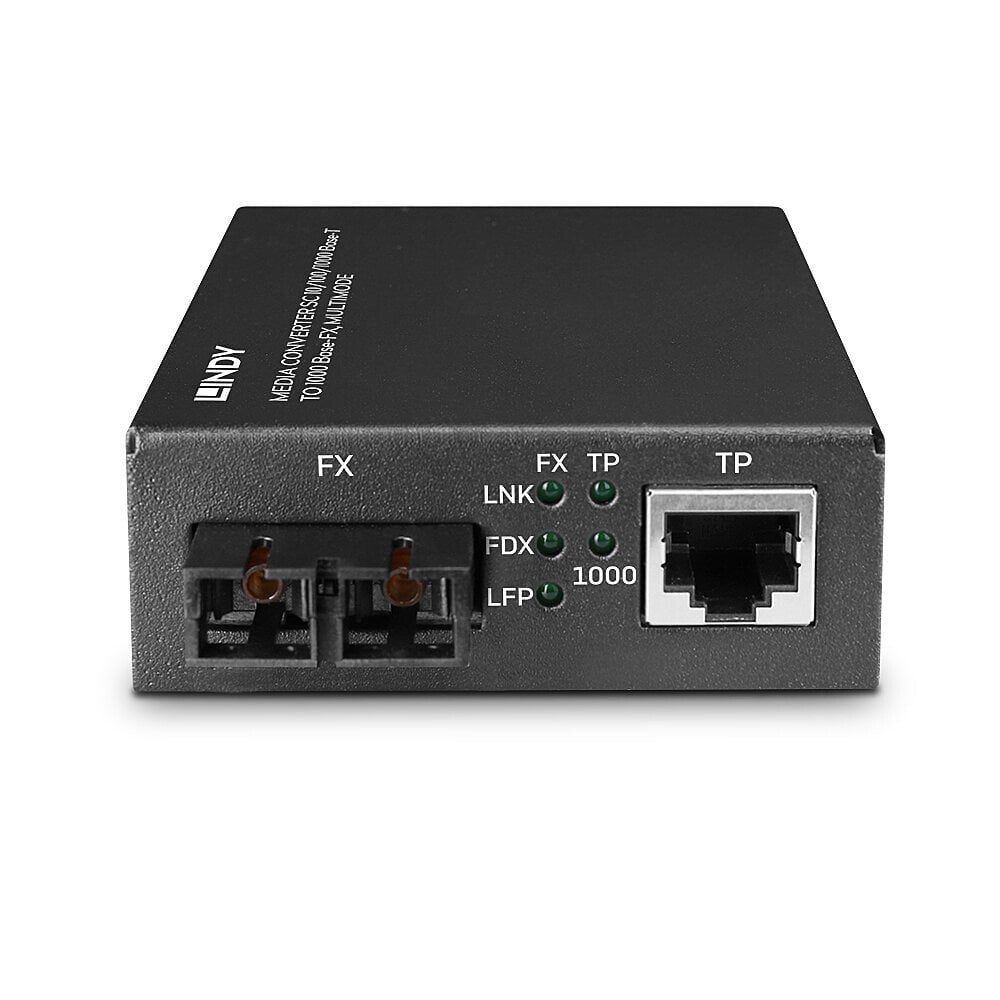

The Media Converter can operate with 100 or 1000Mbps network speed, it also provides status LEDs to indicate data link, speed, Full/Half Duplex and link failure. Supports IEEE 802.3 standard and Jumbo frames up to 9K.
Network
Duplex system
Full, Half
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.3
Ports & interfaces
Fiber optic connector
SC
Fiber ports quantity
2
Ethernet LAN (RJ-45) ports
1
Connectivity technology
Wired
Performance
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Fiber mode structure
Multi-mode
Wavelength
850 nm
Maximum transfer distance
550 m
Design
Certification
CE, UKCA, FCC, RoHS, REACH & California Proposition 65
