Lindy

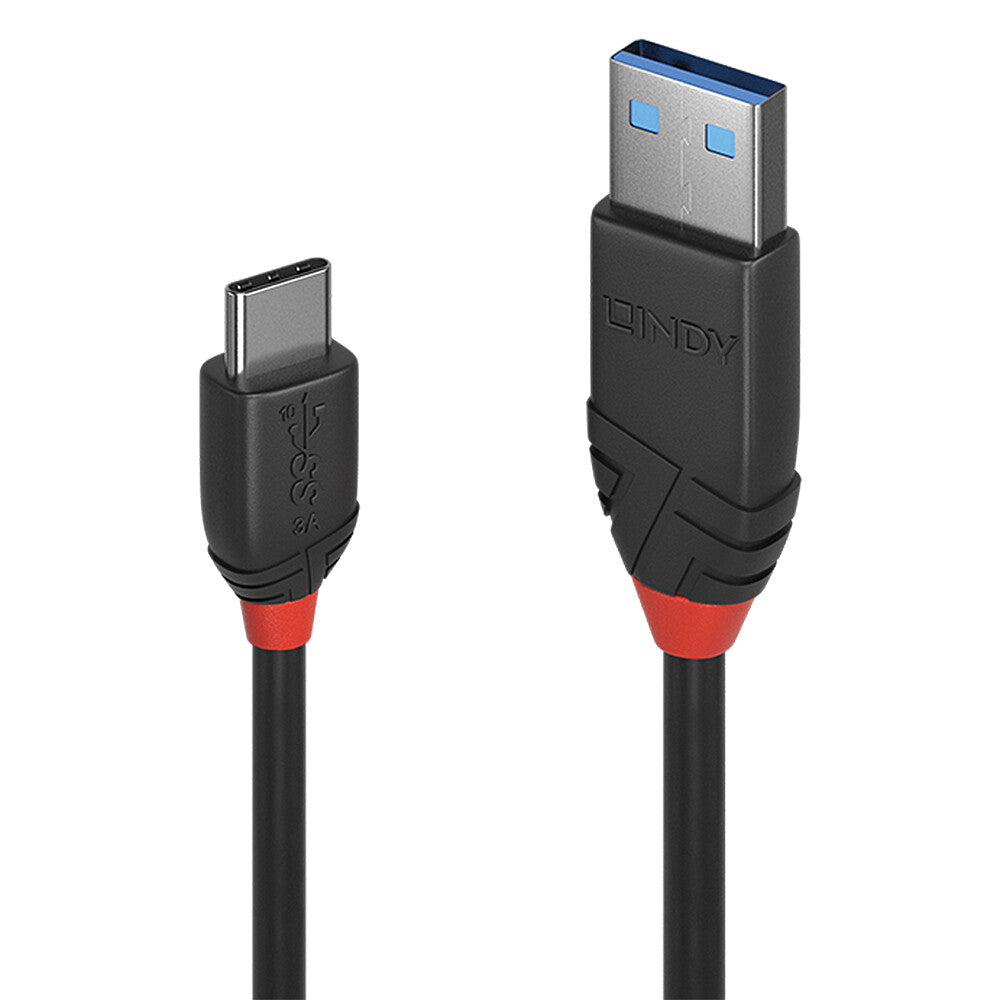

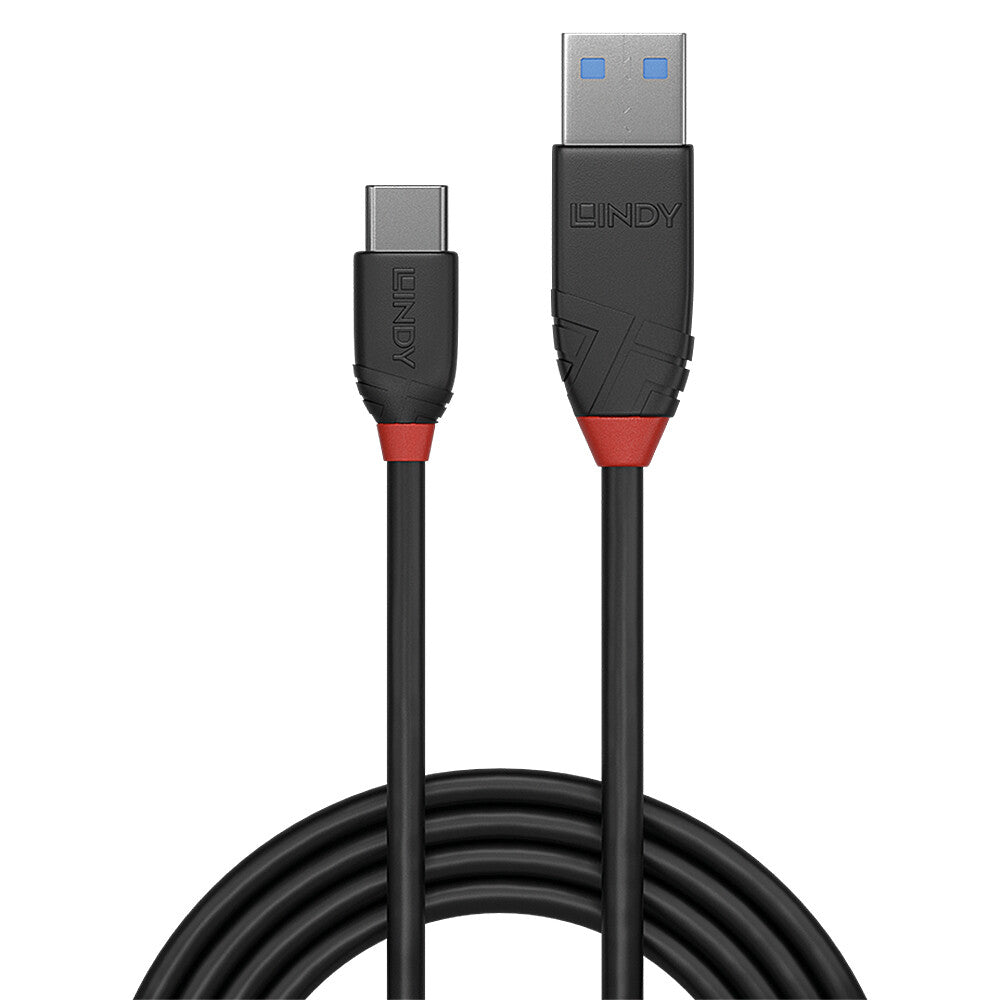

Lindy 1m USB 3.2 Type A to C Cable, 10Gbps, Black Line
Lindy 1m USB 3.2 Type A to C Cable, 10Gbps, Black Line
SKU:36916
88 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Entry level USB 3.2 Gen 2 Type A to C cable for home and small office applications
- SuperSpeed USB 10Gbps - supports data transfer speeds up to 10Gbps (USB 3.1, USB 3.1 Gen 2)
- Robust PVC housing, nickel connectors, gold plated contacts
- Triple shielded cable, corrosion resistant tinned copper conductors
- 10 year warranty
The Black Line USB 3.2 Type A to C cables from Lindy's Cable Lines concept are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
Black Line USB 3.2 Type A to C cables feature triple shielded construction with tinned copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.
USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Black Line USB 3.2 Type A to C cables are available in the following lengths: 0.5m, 1m and 1.5m.
Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
| Features | |
|---|---|
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Cable length | 1 m |
| Connector 1 | USB A |
| Connector 2 | USB C |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 26/30/30 |
| Connector material | Nickel |
| Contact material | Phosphor bronze |
| Connector contacts plating | Gold |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Connector shield material | Aluminium |
| Connector shielding | Yes |
| Conductor material | Tinned copper |
| Connector housing material | Polyvinyl chloride (PVC) |
| Maximum data transfer rate | 10 Gbit/s |
| Cable type | Round cable |
| Product colour | Black |
| Plug and Play | Yes |
| Nominal attenuation | 0.5Mhz €“ 15Ghz 40db |
| Certification | RoHS, REACH, UL |
| Weight & dimensions | |
|---|---|
| Bend radius (min) | 4.5 cm |
| Cable diameter | 4.5 mm |
| Connector 1 dimensions (WxDxH) | 15.5 x 35.1 x 7.8 mm |
| Connector 2 dimensions (WxDxH) | 11 x 25.5 x 7.3 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
