Lindy 1m DisplayPort 1.4 Cable, Anthra Line

Lindy 1m DisplayPort 1.4 Cable, Anthra Line

£7.63 GBP
£7.63 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

36481

75 in stock

  • Professional choice DisplayPort 1.4 cable for commercial and high performance AV and IT installations
  • Supports UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit including 4K 4096x2160@144Hz 4:2:2 10bit
  • Robust ABS housing 24K gold plated connectors and contacts
  • Triple shielded cable, corrosion resistant tinned copper 28AWG conductors
  • DisplayPort 1.4, 32.4Gbps; 10 year warranty

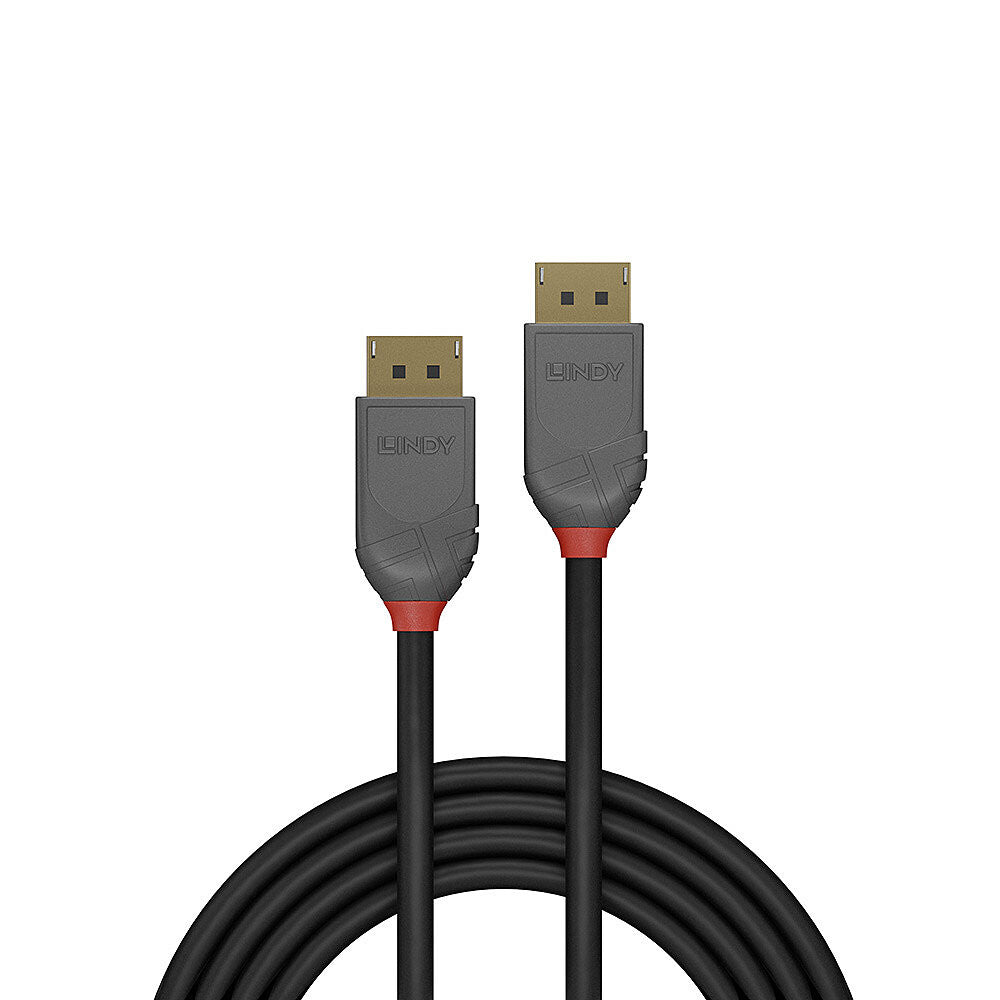

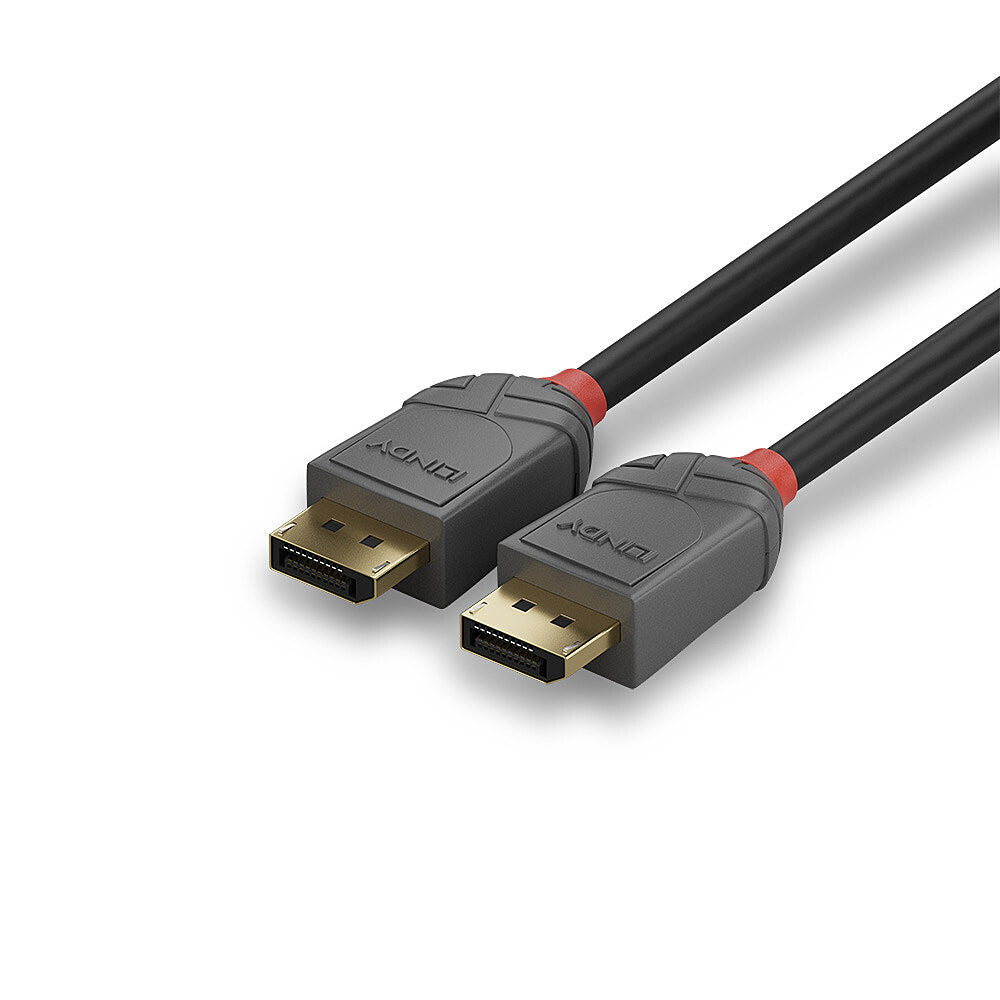

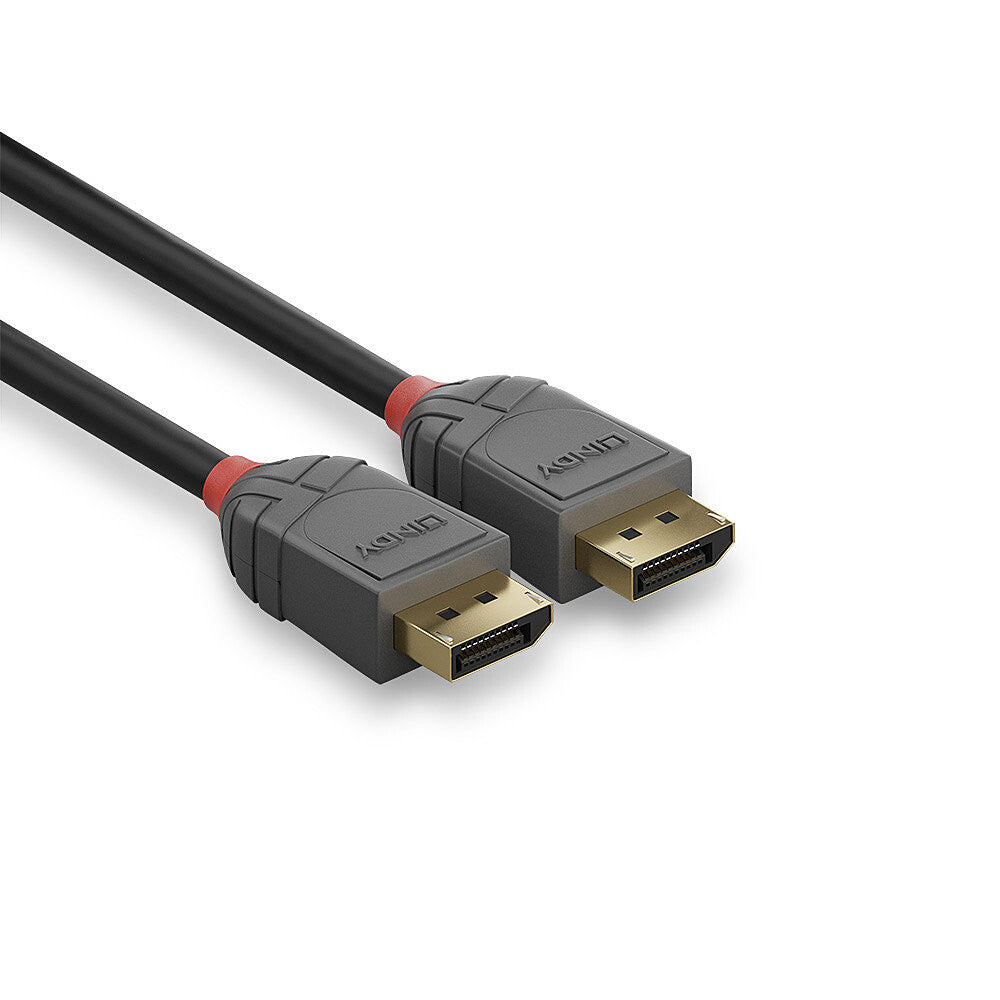

1m DisplayPort 1.4 Cable, Anthra Line

From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit, including 4K 4096x2160@144Hz 4:2:2 10bit and HDCP are supported. DisplayPort 1.4 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.

Anthra Line DisplayPort cables are available in lengths from 0.5m to 5m.

Features
Certification RoHS, REACH, UL
Nominal attenuation 100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB
Colour sampling 4:2:2
Cable type Round cable
Bend radius (min) 5.84 cm
Plug and Play Yes
Contact material Phosphor bronze
Connector material Gold
Data transfer rate 32.4 Gbit/s
AWG wire size 28
Connector housing material Acrylonitrile butadiene styrene (ABS)
Jacket material Polyvinyl chloride (PVC)
Cable shielding Copper
Cable material Tinned copper
Product colour Black, Grey
Maximum refresh rate 60 Hz
Supported graphics resolutions 4096 x 2160, 7680 x 4320
Maximum resolution 7680 x 4320 pixels
DisplayPort version 1.4
Connector contacts plating Gold
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Male
Connector 1 gender Male
Connector 2 DisplayPort
Connector 1 DisplayPort
Cable length 1 m
Operational conditions
Storage temperature (T-T) -25 - 85 °C
Operating temperature (T-T) -20 - 80 °C
Packaging data
Package type Polybag
Quantity per pack 1 pc(s)
Connector 2 dimensions (WxDxH) 21 x 38.9 x 13.6 mm
Connector 1 dimensions (WxDxH) 21 x 38.9 x 13.6 mm
Cable diameter 7.3 mm
Logistics data
Harmonized System (HS) code 84733080
