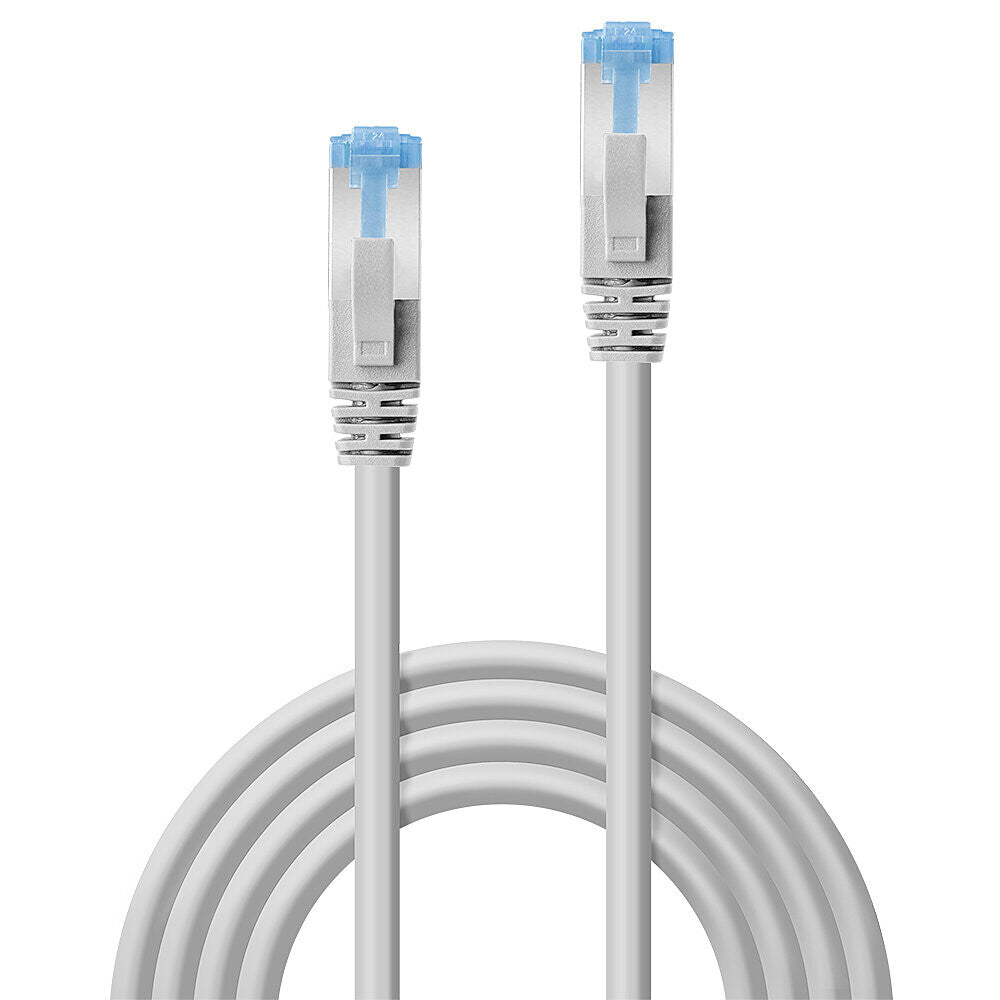

Lindy 1m Cat.6A S/FTP LSZH Network Cable, Grey

Lindy 1m Cat.6A S/FTP LSZH Network Cable, Grey

Regular price £2.45 GBP
Regular price Sale price £2.45 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:47132

21 in stock

  • Twisted Pair Patch Cable with RJ45 connectors
  • Cat.6A S/FTP PIMF, LSZHandnbsp;andnbsp;

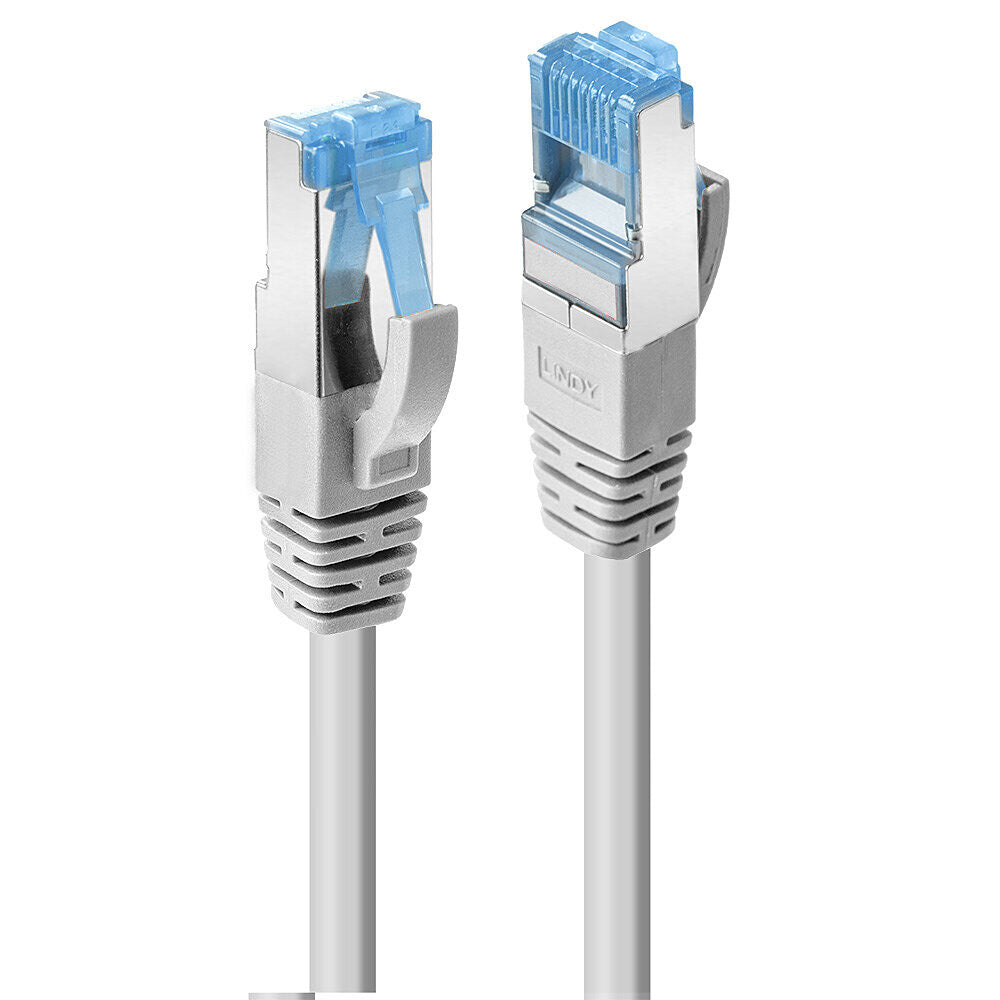

  • Integrated snagless connector for latch protection
  • Gold plated pins for better conductivity and elimination of signal loss
  • 10 year warranty
1m Cat.6A S/FTP LSZH Network Cable, Grey

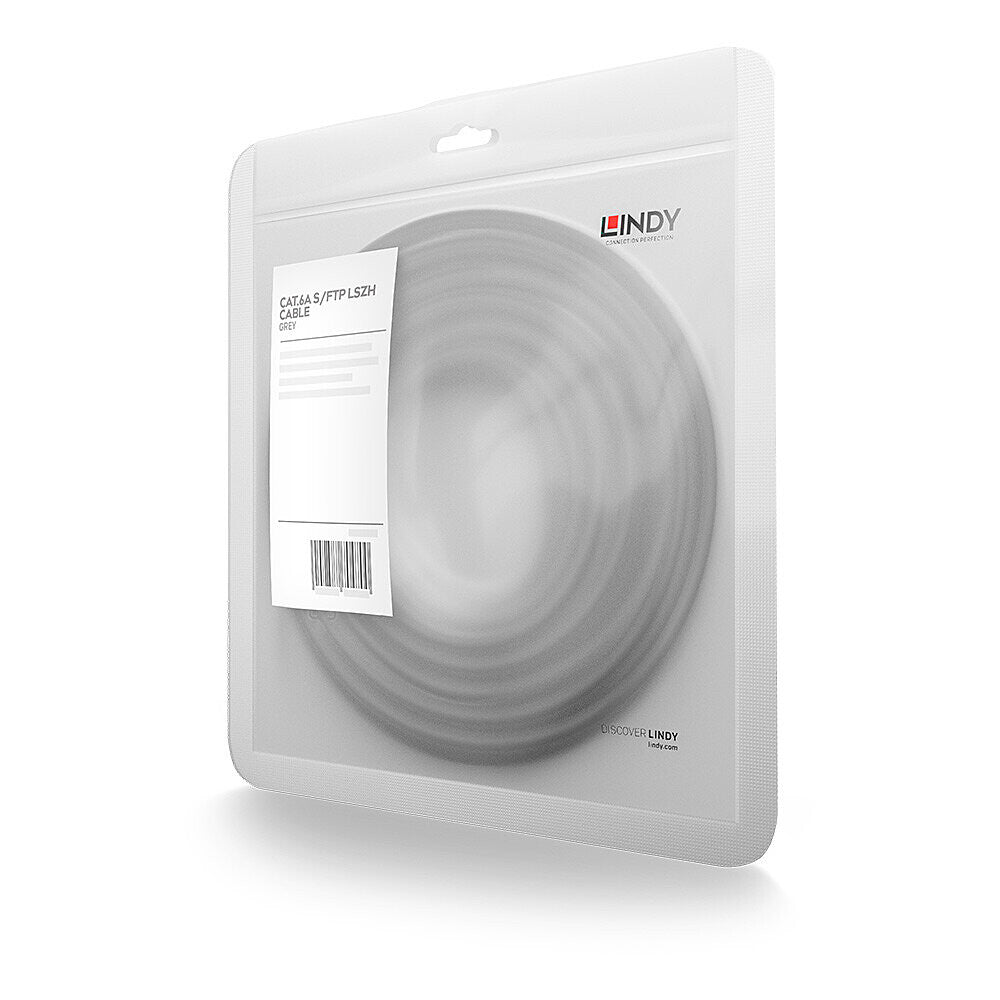

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T. Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.

Features
Certification RoHS, REACH, UL, California Proposition 65
Nominal attenuation 49.3dB/100m @ 500MHz
Plug and Play Yes
Bend radius (min) 7.2 cm
Frequency 500 MHz
Data transfer rate 1000 Mbit/s
AWG wire size 27
Cabling technology 10/100/1000Base-T(X)
Cable class Ea
Conductor material Copper
Cable shape Round
Jacket material Low smoke zero halogen (LSZH)
Connector shield material Aluminium
Connector shielding Yes
Connector contacts plating Gold
Connector 1 gender Male
Connector 2 gender Male
Connector 2 RJ-45
Connector 1 RJ-45
Product colour Grey
Cable shielding S/FTP (S-STP)
Cable standard Cat6a
Cable length 1 m
Operational conditions
Storage temperature (T-T) -20 - 75 °C
Operating temperature (T-T) -10 - 60 °C
Weight & dimensions
Outer diameter 6 mm
Packaging data
Package type Polybag
Quantity per pack 1 pc(s)
Logistics data
Harmonized System (HS) code 84733080
