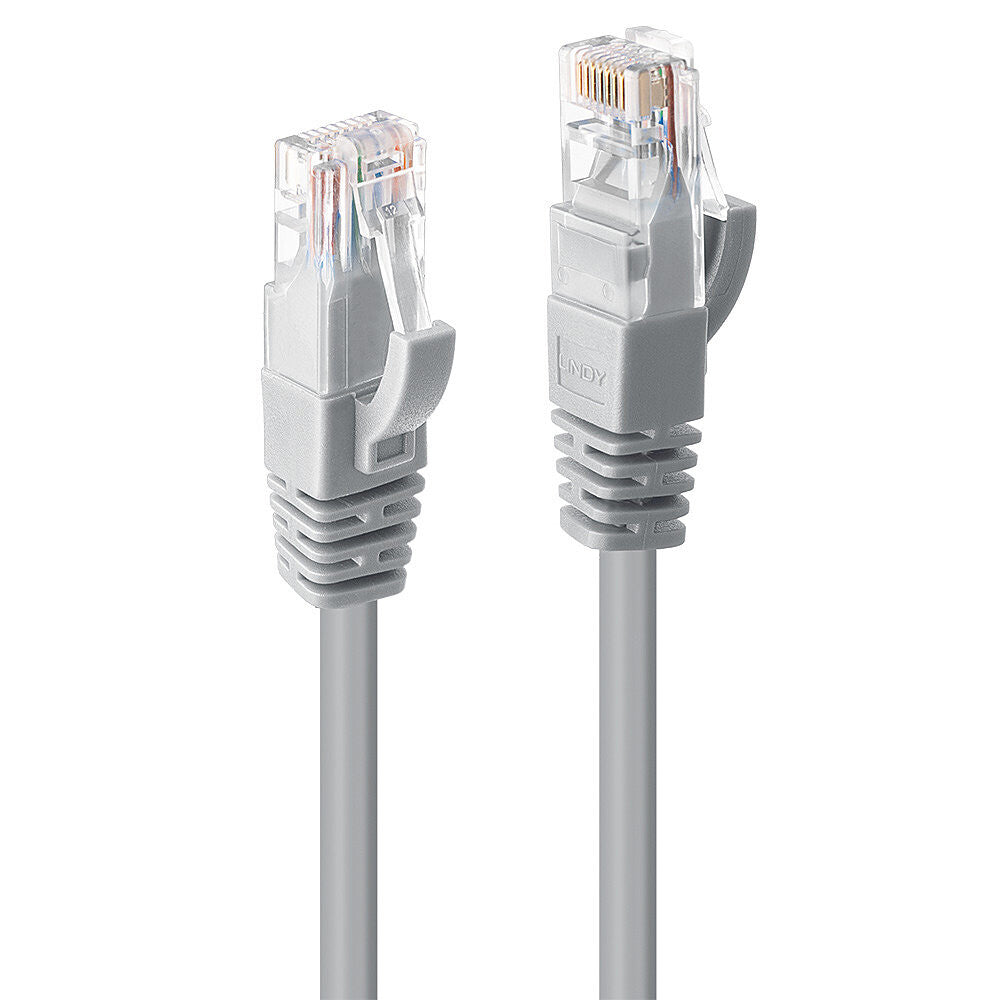

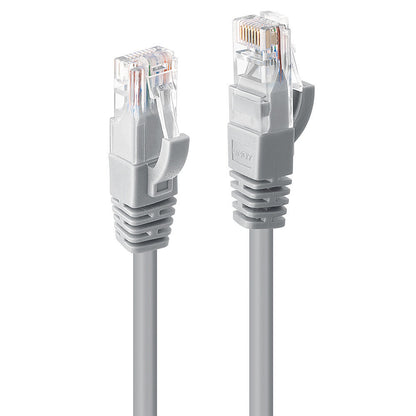

Lindy 1m Cat.6 U/UTP Network Cable, Grey
Lindy 1m Cat.6 U/UTP Network Cable, Grey
SKU:48002
73 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Twisted Pair Patch Cable with RJ45 connectors
- Cat.6 U/UTP, PVC
- Integrated snagless connector for latch protection
- Gold plated pins for better conductivity and elimination of signal loss
Cat.6 U/UTP PVC network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.

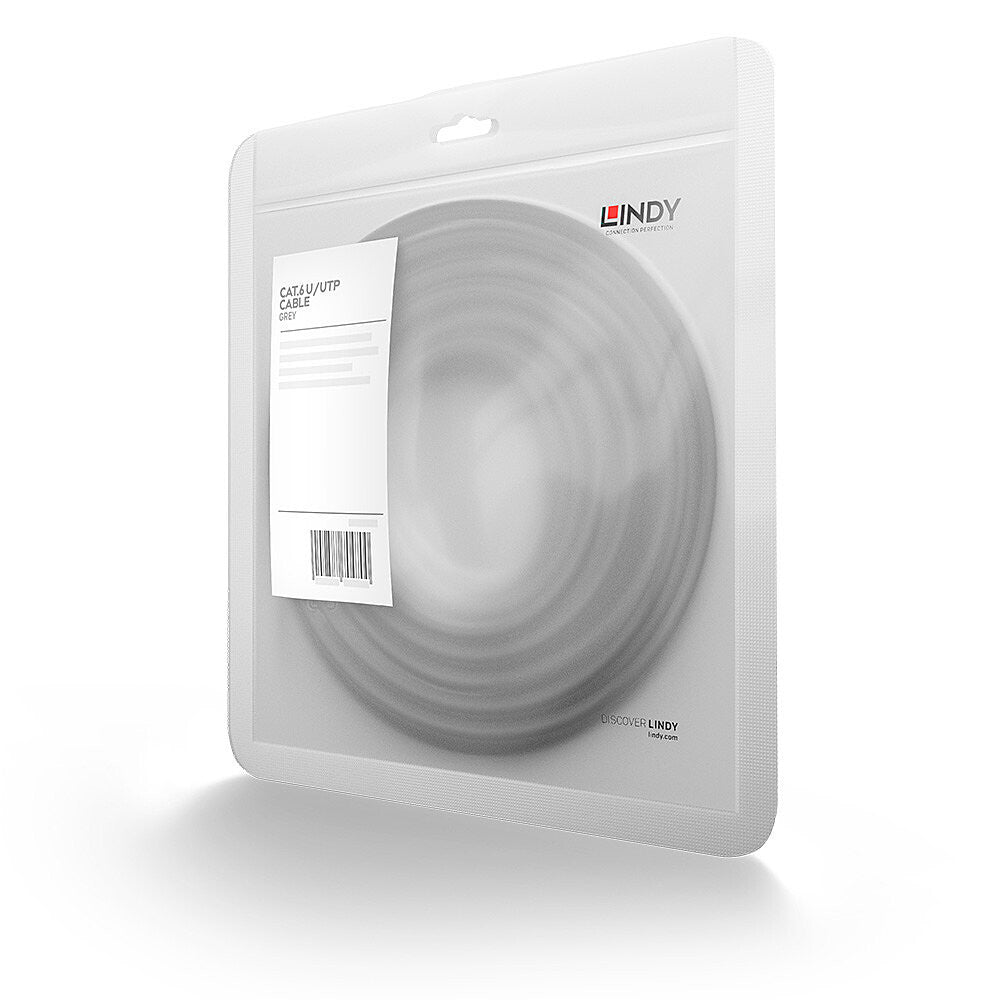

Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Blue, Red, Green, Yellow, Black, White, Orange, Purple, Grey.
| Features | |
|---|---|
| Certification | RoHS, REACH, UL, California Proposition 65 |
| Snagless cable boot | Yes |
| Bend radius (min) | 6.9 cm |
| Frequency | 250 MHz |
| AWG wire size | 24 |
| Cabling technology | 10/100/1000Base-T(X) |
| Conductor material | Copper |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector contacts plating | Gold |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 2 | RJ-45 |
| Connector 1 | RJ-45 |
| Product colour | Grey |
| Cable shielding | U/UTP (UTP) |
| Cable standard | Cat6 |
| Cable length | 1 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 75 °C |
| Operating temperature (T-T) | -10 - 60 °C |
| Weight & dimensions | |
|---|---|
| Connector 1 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Outer diameter | 5.8 mm |
| Packaging data | |
|---|---|
| Package type | Polybag |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Other features | |
|---|---|
| Category | 6 |
