Lindy 15m USB 3.0 Active Extension
Lindy 15m USB 3.0 Active Extension
SKU:43099
Low stock: 4 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 15 metre USB 3.0 Active Extension Repeater Lead
- Supports transfer rates up to 5Gbps
- For even greater distances simply connect 2 cables in series
- Plug and Play
- 2 year warranty

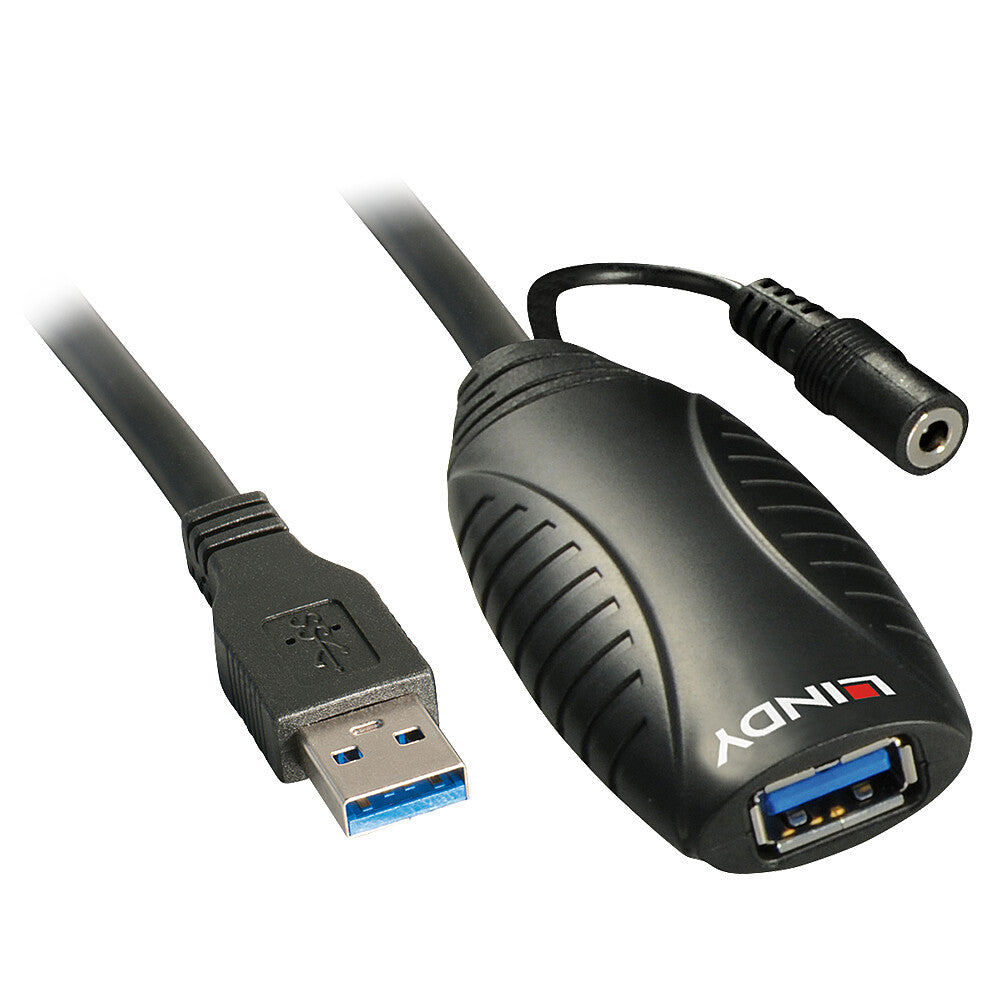

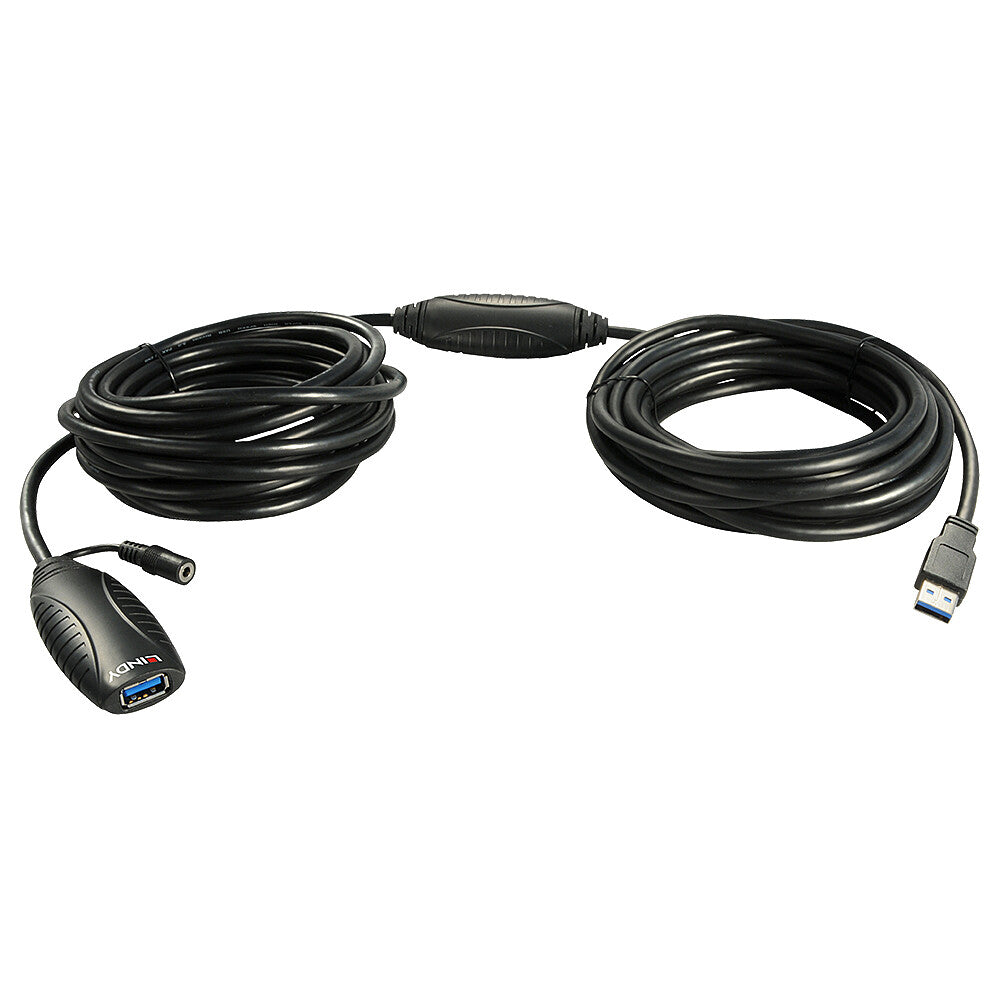

The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 15m whilst continuing to support data transfer rates of up to 5Gbps.
With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together to achieve a distance of 30m.
The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.
The USB active extension cable also features a DC socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements.Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
| Features | |
|---|---|
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Cable length | 15 m |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 28/28/22 |
| Connector material | Nickel |
| Contact material | Copper |
| Connector contacts plating | Nickel |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Connector shield material | Aluminium |
| Connector shielding | Yes |
| Conductor material | Copper |
| Connector housing material | Plastic |
| Maximum data transfer rate | 5 Gbit/s |
| Cable type | Round cable |
| Product colour | Black |
| Plug and Play | Yes |
| Transmission medium | Twisted pair |
| Nominal attenuation | 100 MHz, -1.5 dB1.25 GHz, -5.0 dB2.5 GHz, -7.5 dB7.5 GHz, -25 dB |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Power | |
|---|---|
| Power note | 3.5/1.35mm DC |
| Weight & dimensions | |
|---|---|
| Bend radius (min) | 6 cm |
| Cable diameter | 7 mm |
| Connector 1 dimensions (WxDxH) | 16 x 49 x 9 mm |
| Connector 2 dimensions (WxDxH) | 35 x 85 x 15 mm |
| Connector 3 dimensions (WxDxH) | 35 x 100 x 15 mm |
| Weight | 1.33 kg |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 300 mm |
| Package depth | 80 mm |
| Package height | 300 mm |
| Package weight | 1.39 kg |
| Package type | Polybag |
| Packaging content | |
|---|---|
| Manual | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
