HDBaseT Matrix Extender that extends and distributes HDMI, IR and RS-232 signals to 4 displays at distances of up to 150m
Supports resolutions up to 4K60Hz with HDR
Features loop-through HDMI outputs for local monitoring
Supports power over Cable (PoC), EDID management, downscaler and Audio de-embedding functions
2 year warranty

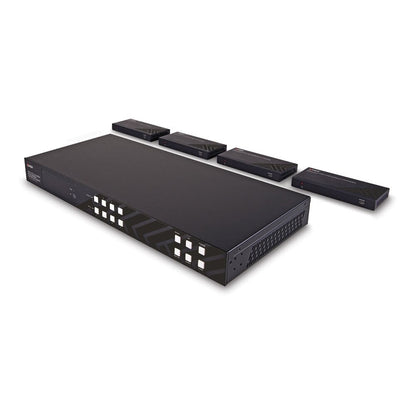

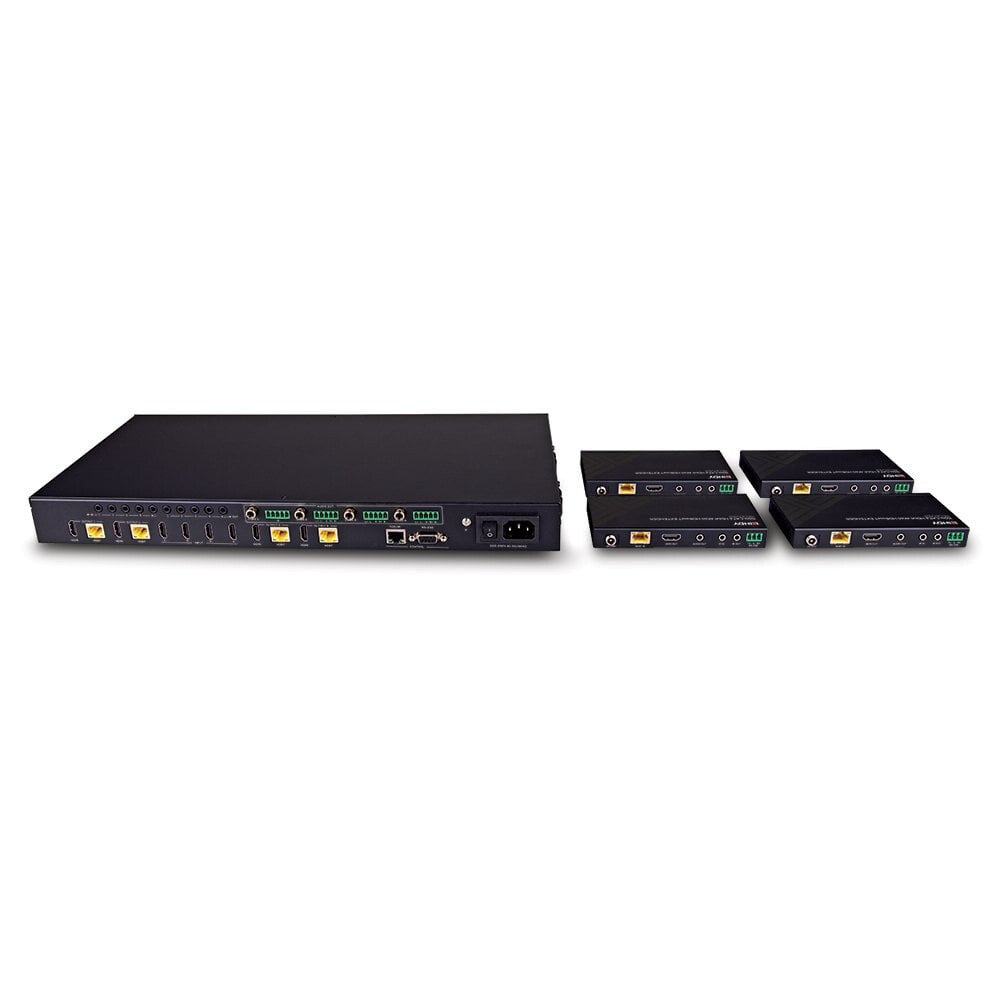

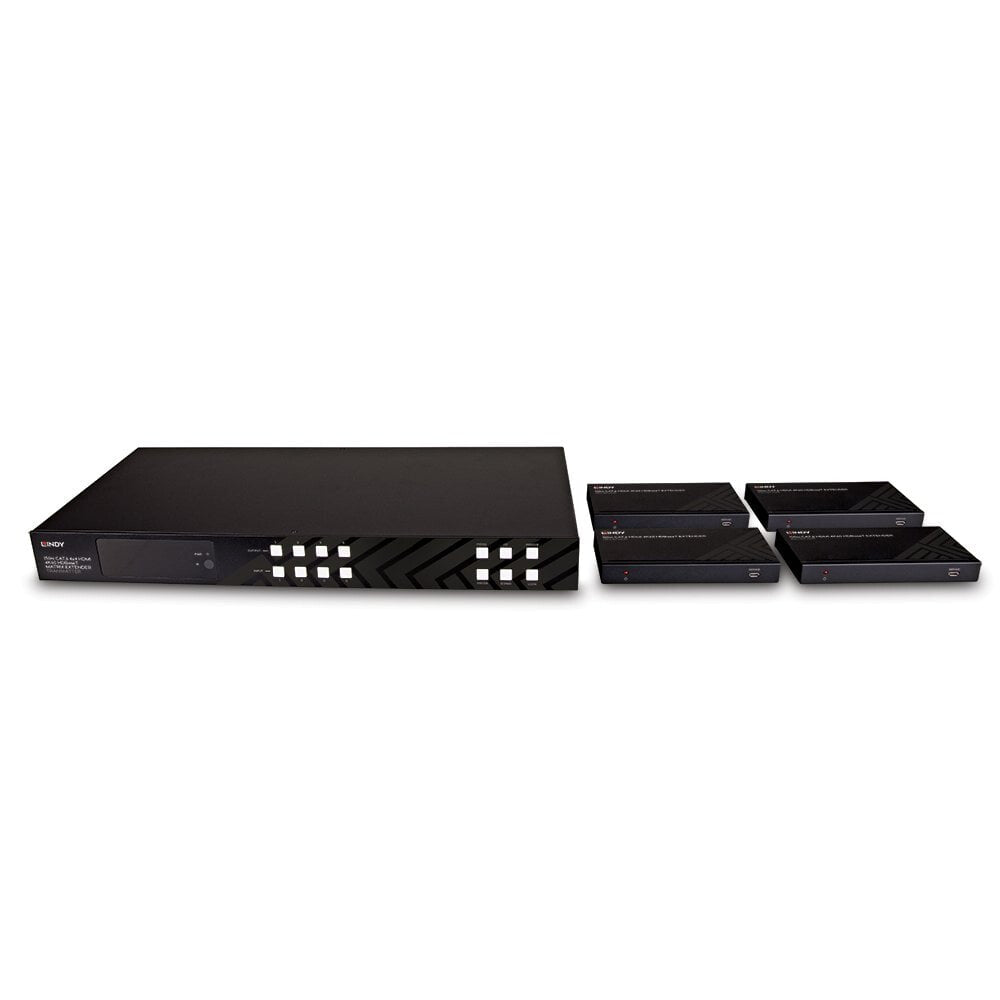

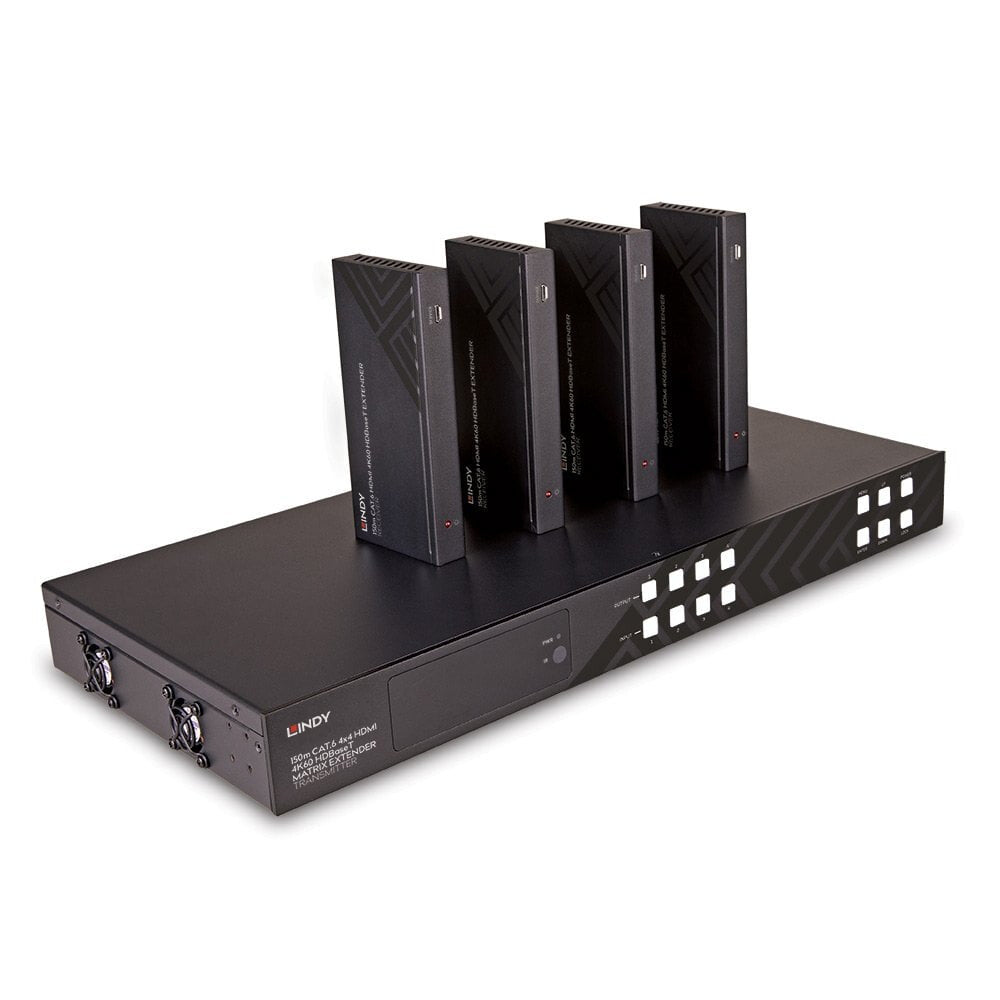

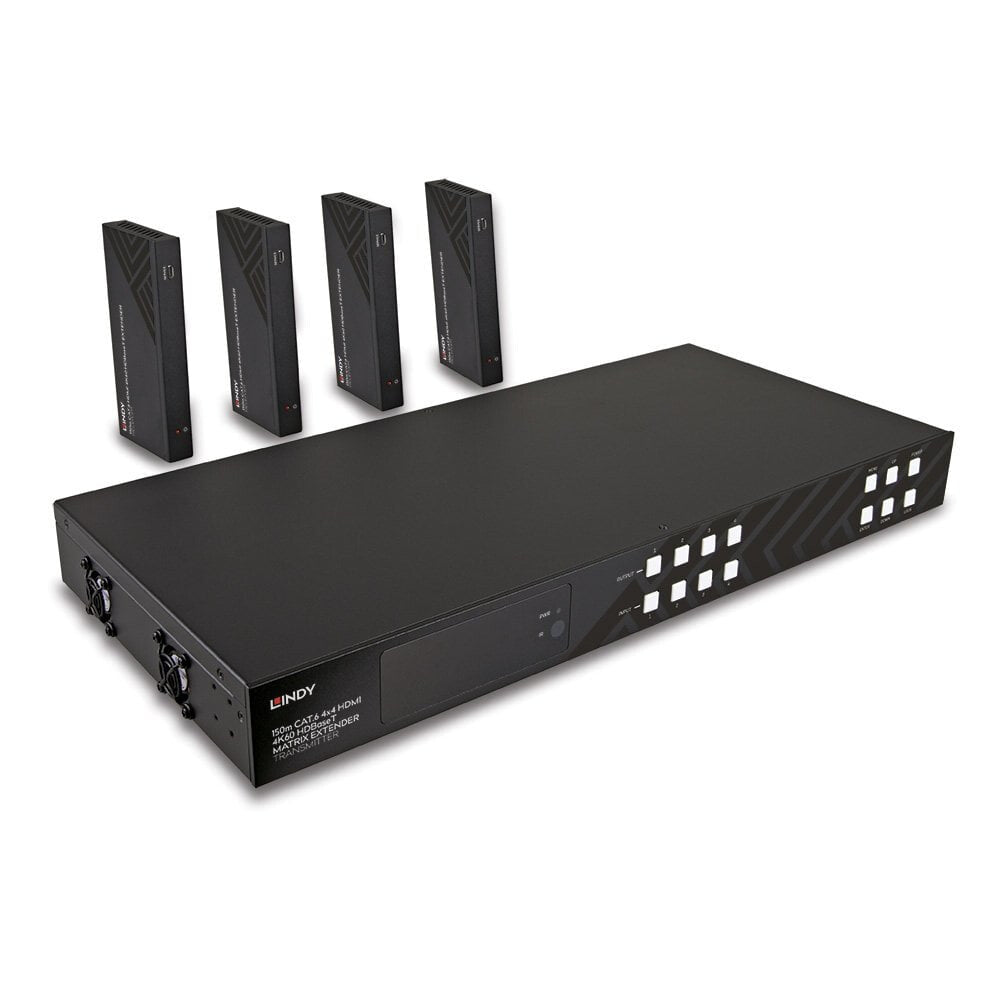

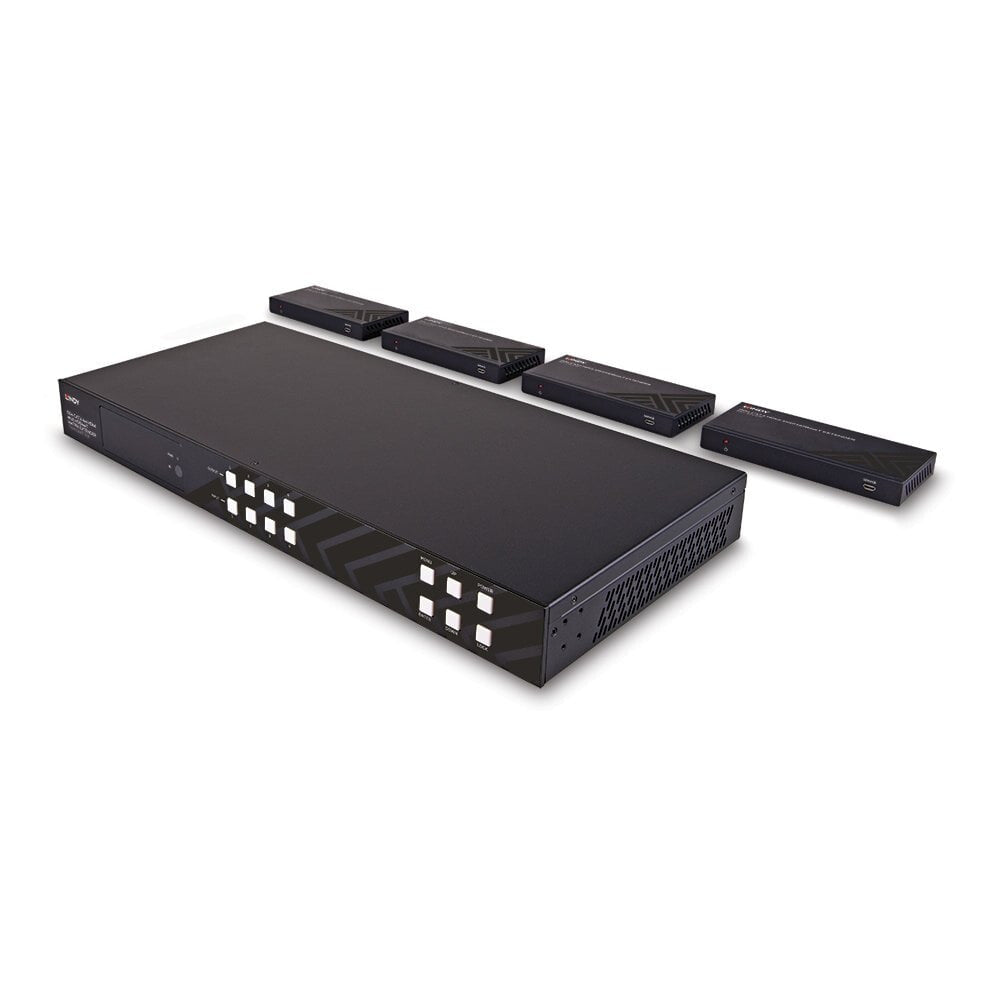

150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender
The Lindy 150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender is an high-end and complete solution to switch and extend 4 HDMI signals to 4 HDBaseT receivers using Cat.6 or above cables up to 150m.
Supporting resolutions up to 4K60Hz including HDR and 1080p, the Matrix Extender is designed for use in Pro AV and digital signage applications for a variety of settings such as education, retail, immersive displays at events and conference rooms.
It supports several signals and features such as analog and coax de-embedded audio, IR matrix function and RS-232 control or pass-through signals. An advanced EDID management allow the user to select different EDID modes while the integrated HDMI loop-out ports enables simultaneous viewing so that a local display can be connected for monitoring each HDBaseT output, or to create additional viewing zones.
PoC (Power over Cable) functionality allows power to be supplied alongside data through Cat.6 network cable between the transmitter and any HDBaseT receiver, meaning only the transmitter unit needs to be powered on.
This unit can be managed by pushing the buttons on the front panel via OSD menu with a OLED screen, IR remote control (included), RS-232 or TCP/IP commands and web GUI.
Features
Type
AV transmitter & receiver
Maximum resolution
3840 x 2160 pixels
Cable types supported
Cat6
Maximum transfer distance
150 m
High Dynamic Range (HDR) supported
Yes
EDID management
Yes
HDCP pass-through
Yes
Infrared (IR) frequency range
20 - 60 kHz
On/off switch
Yes
Audio formats supported
LPCM
HDCP version
2.2
Signal-to-Noise Ratio (SNR)
90 dB
Supported video modes
1080p
Material
Metal
HDCP
Yes
Bandwidth
18 Gbit/s
Product colour
Black
Certification
California Proposition 65
Ports & interfaces
Connectivity technology
Wired
RJ-45 output ports
4
HDBaseT port
Yes
HDMI version
2.0
Number of HDMI outputs
5
HDMI in
4
RS-232 input ports
2
Digital audio coaxial out
4
Audio RCA outputs
4
Audio (L/R) out
4
3.5 mm (1/8-inch) out
Yes
3.5 mm (1/8-inch) in
Yes
Power
Power source type
AC
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power requirements
60 W
Operational conditions
Operating relative humidity (H-H)
20 - 90%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
440 mm
Depth
200 mm
Height
45 mm
Weight
5.31 kg
Receiver dimensions (WxDxH)
140 x 65 x 18 mm
Packaging data
Package width
510 mm
Package depth
401 mm
Package height
98 mm
Package weight
6.33 kg
Package type
Box
Packaging content
Manual
Yes
Packaging content
4x4 HDBaseT Extender Matrix - Transmitter4 x HDBaseT Receivers5 x IR Emitter Cable, 1.5m5 x IR Receiver Cable, 1.5m10 x Mounting Ears & Screws4 x 3-Pin Terminal Block4 x 5-Pin Terminal BlockRS-232 Male to Female cable, 1.5m4 x mains cables (EU, UK, US & AUS), 1.5mLindy Manual
Technical details
Warranty period
2 year(s)
Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
