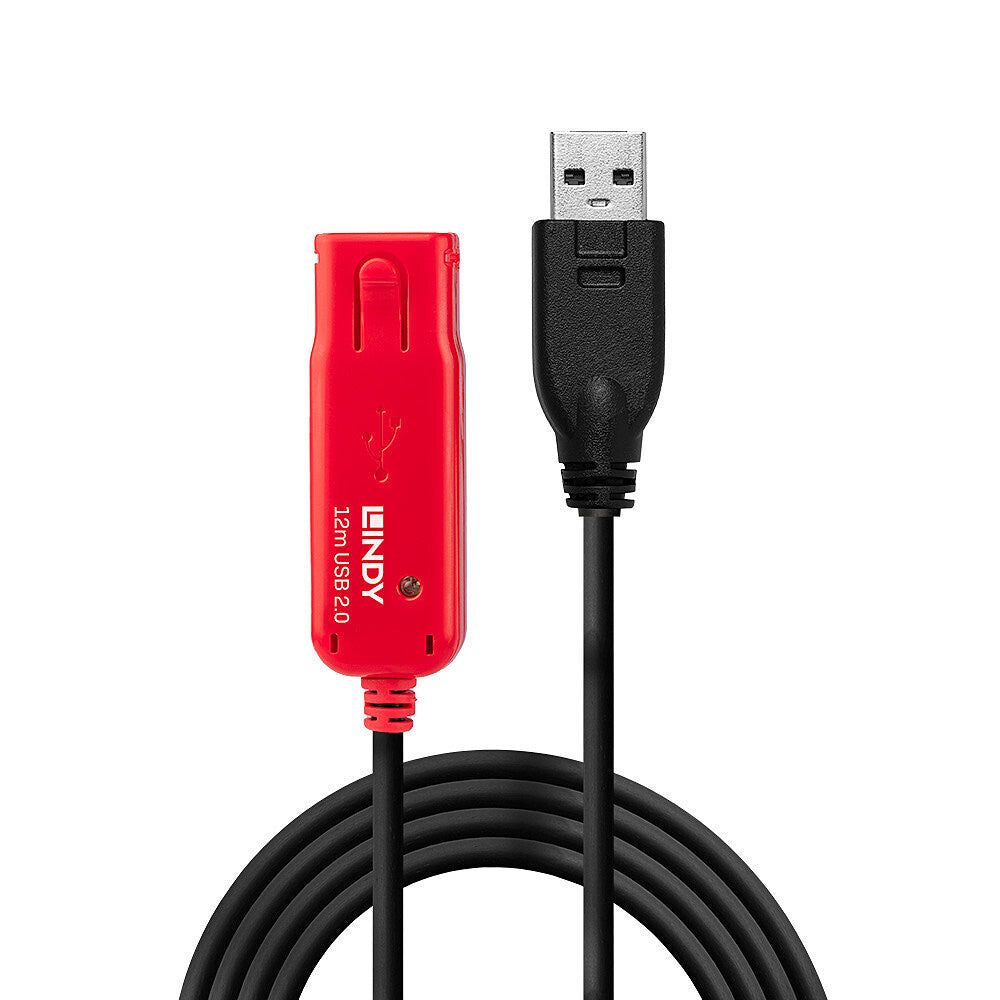

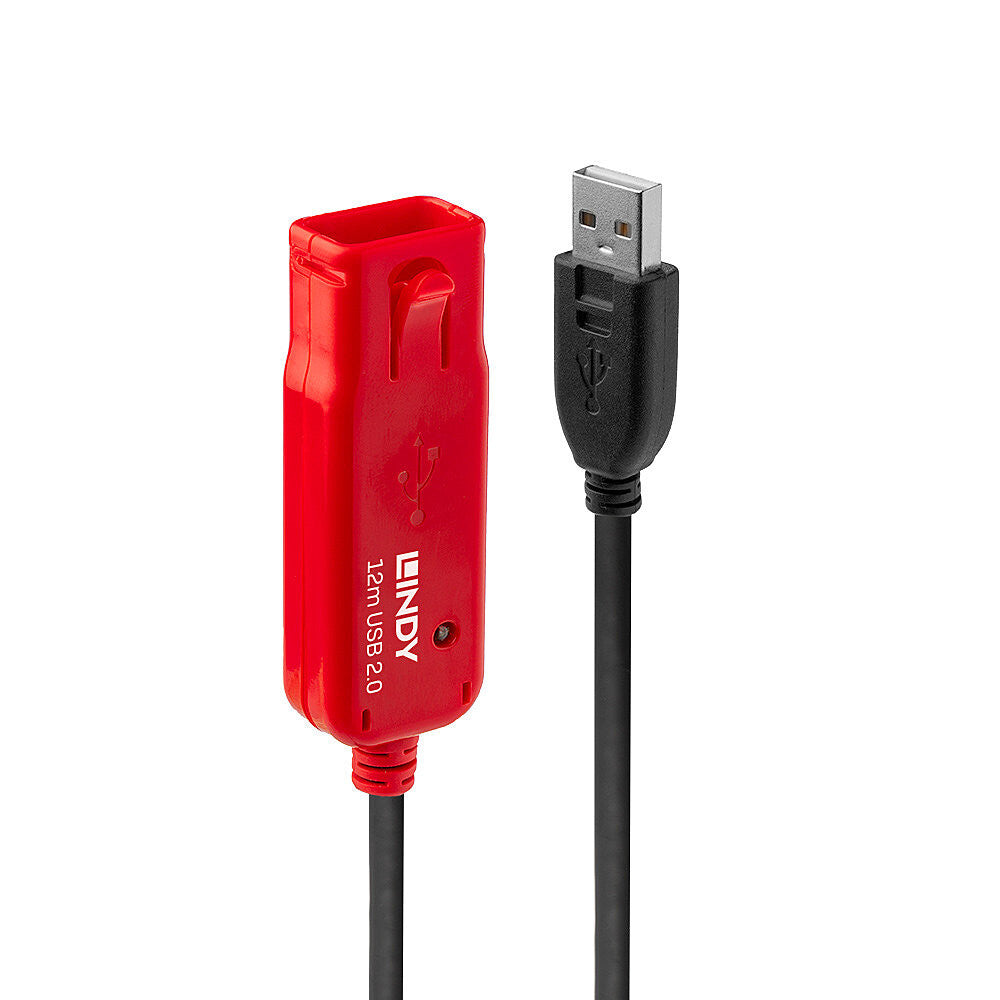

Lindy 12m USB 2.0 Active Extension Pro
Lindy 12m USB 2.0 Active Extension Pro
SKU:42782
60 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

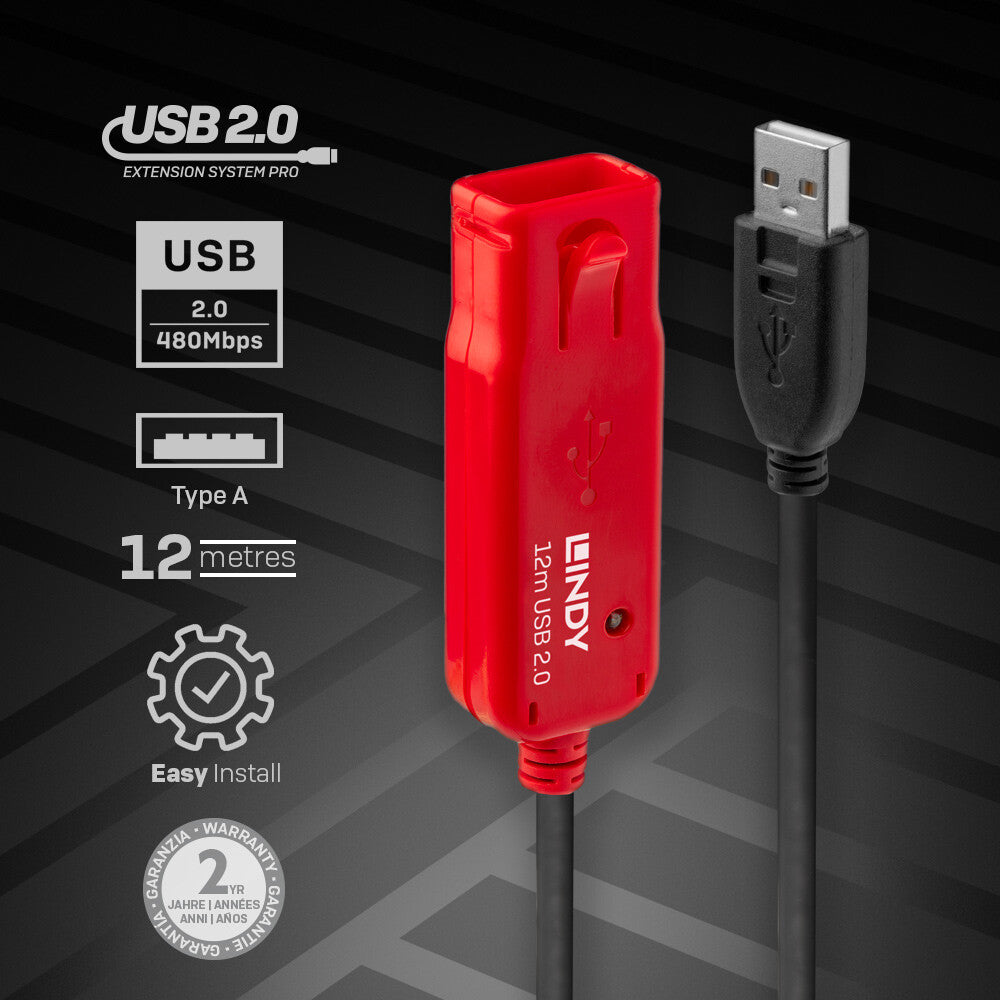

- High performance, active cable that provides an extended 12m connection between a computer and USB 2.0 device
- Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of up to 60m
- Supports USB 2.0 High Speed bandwidth for speeds of 480Mbps
- USB Type A Male to A Female connects to the deviceandrsquo;s existing USB cable (2m maximum)
- 2 year warranty
The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480Mbps this extension cable is perfect for transferring data volumes quickly and reliably.

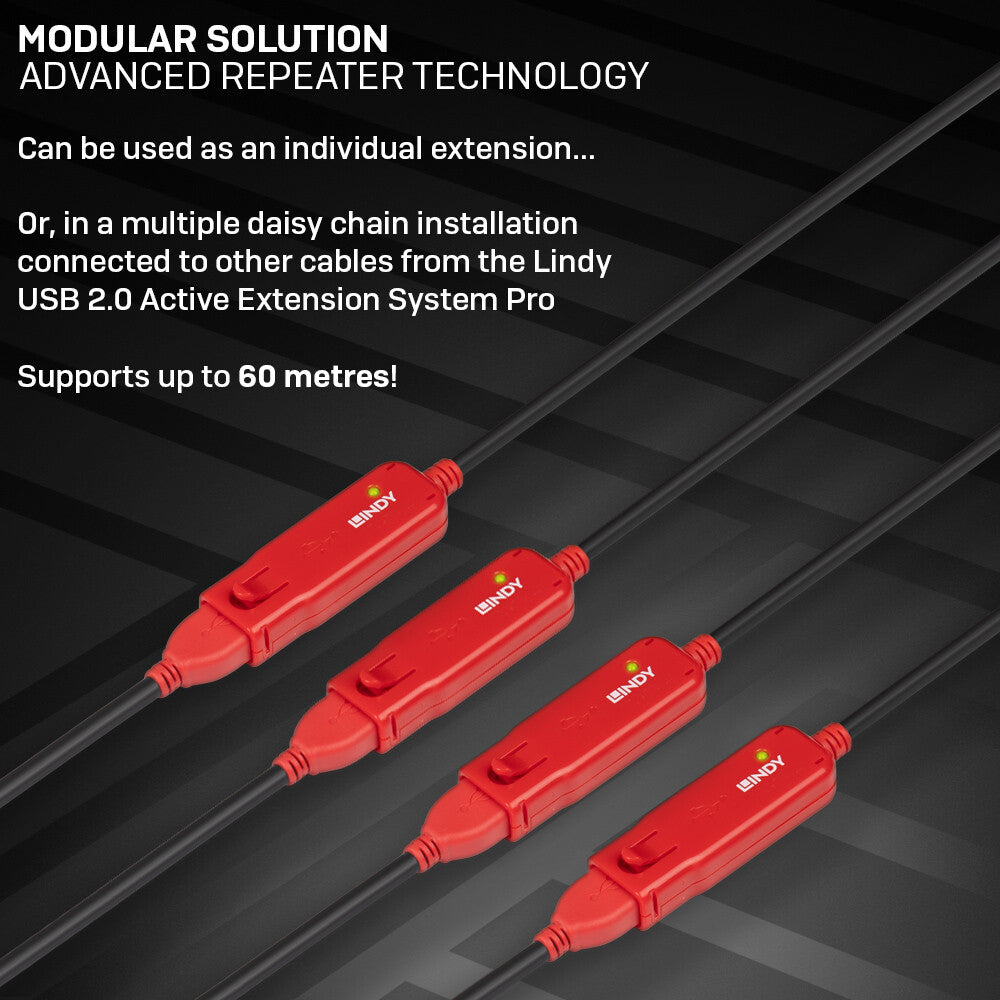

This 12m extension cable can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m.
The 8m and 12m cable, and the 8m and 12m hub, feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.

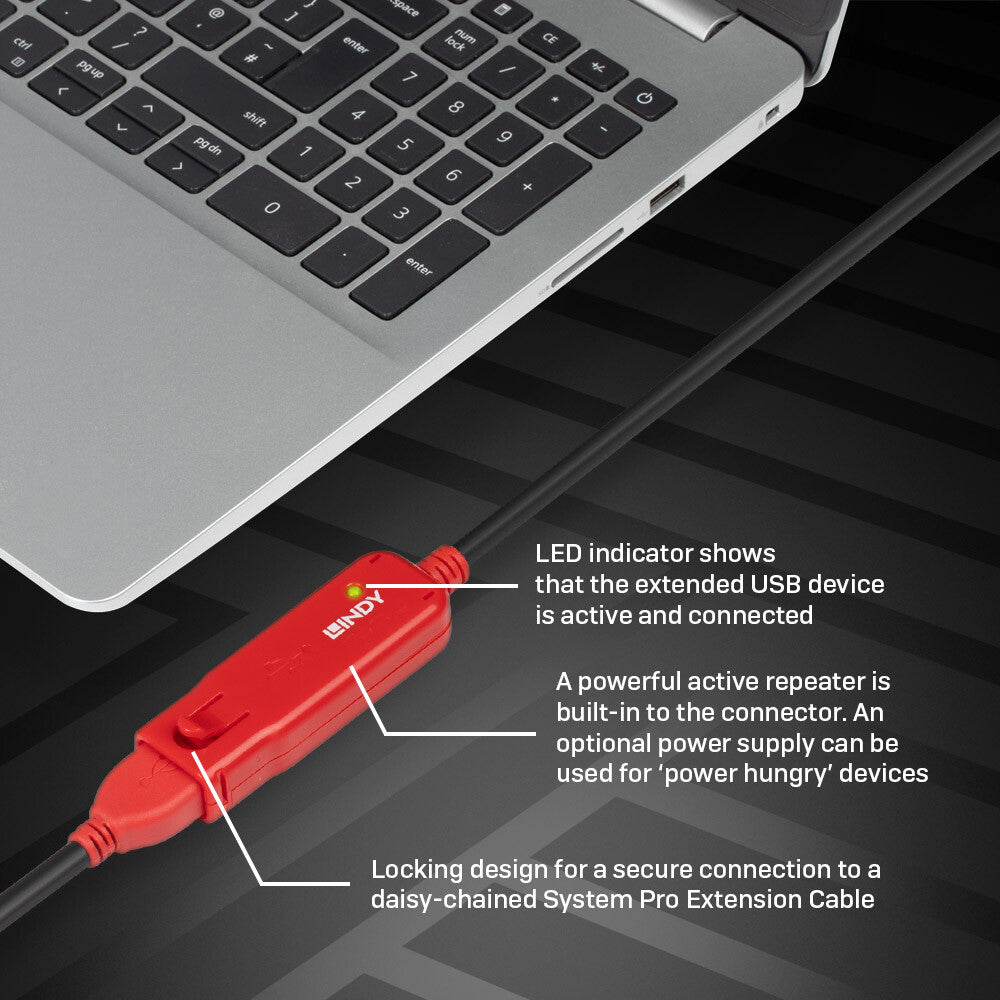

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
| Features | |
|---|---|
| USB version | USB 2.0 |
| Cable length | 12 m |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 26/20 |
| Connector material | Gold/Nickel |
| Contact material | Brass |
| Connector contacts plating | Gold |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Connector shield material | Aluminium |
| Conductor material | Tinned copper |
| Connector housing material | Plastic |
| Maximum data transfer rate | 0.48 Gbit/s |
| Cable type | Round cable |
| Product colour | Black |
| Transmission medium | Twisted pair |
| Nominal attenuation | 0.064 MHz, -0.08 dB0.256MHz, -0.11 dB0.512MHz, -0.13 dB0.772 MHz, -0.15 dB1 MHz, -0.2 dB4 MHz, -0.39 dB8 MHz, -0.57 dB12 MHz, -0.76 dB24 MHz, -0.95 dB48 MHz, -1.35dB96 MHz, -1.9 dB200 MHz, -3.2 dB400 MHz, -5.8 dB |
| Certification | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
| Weight & dimensions | |
|---|---|
| Bend radius (min) | 2.6 cm |
| Cable diameter | 5 mm |
| Connector 1 dimensions (WxDxH) | 15 x 43 x 8 mm |
| Connector 2 dimensions (WxDxH) | 20 x 64 x 13 mm |
| Weight | 420 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 238 mm |
| Package depth | 202 mm |
| Package height | 66 mm |
| Package weight | 597 g |
| Package type | Box |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Other features | |
|---|---|
| Compatible operating systems | Win ME, 2000, XP, VistaMac OSLinux |
