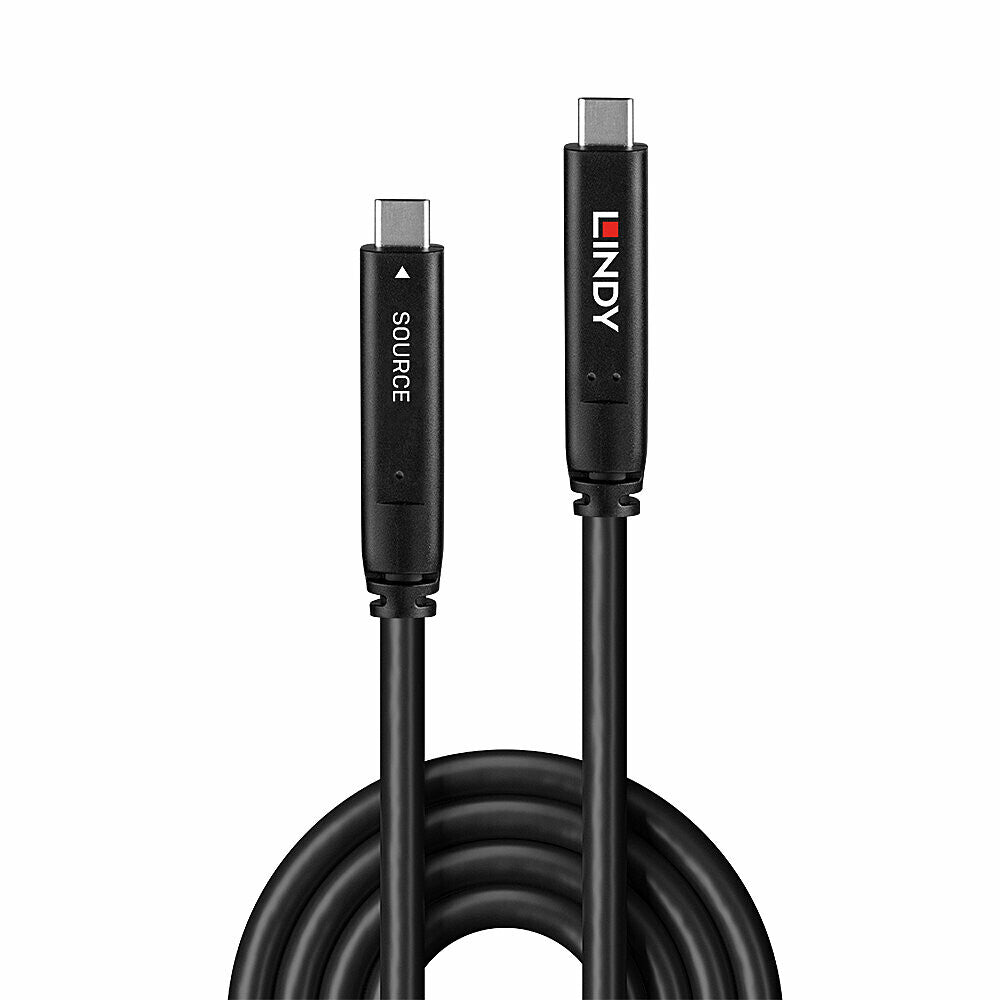

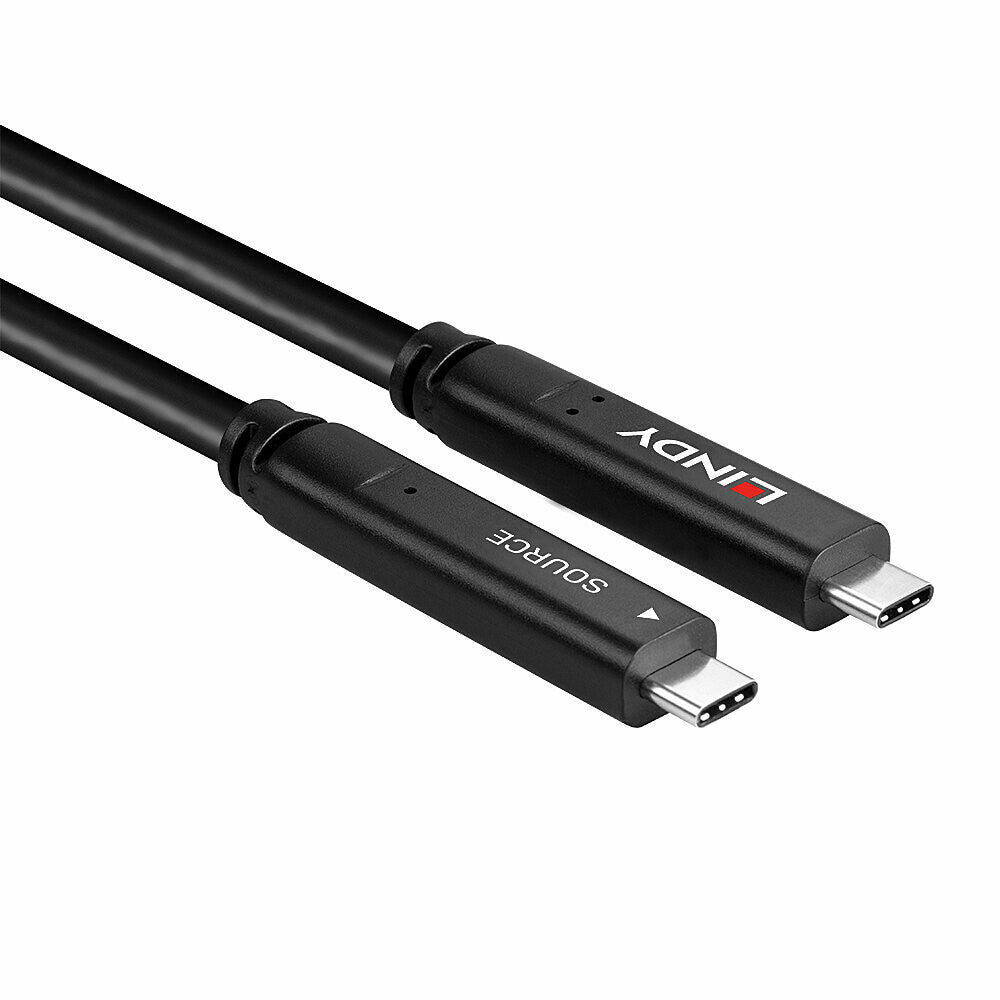

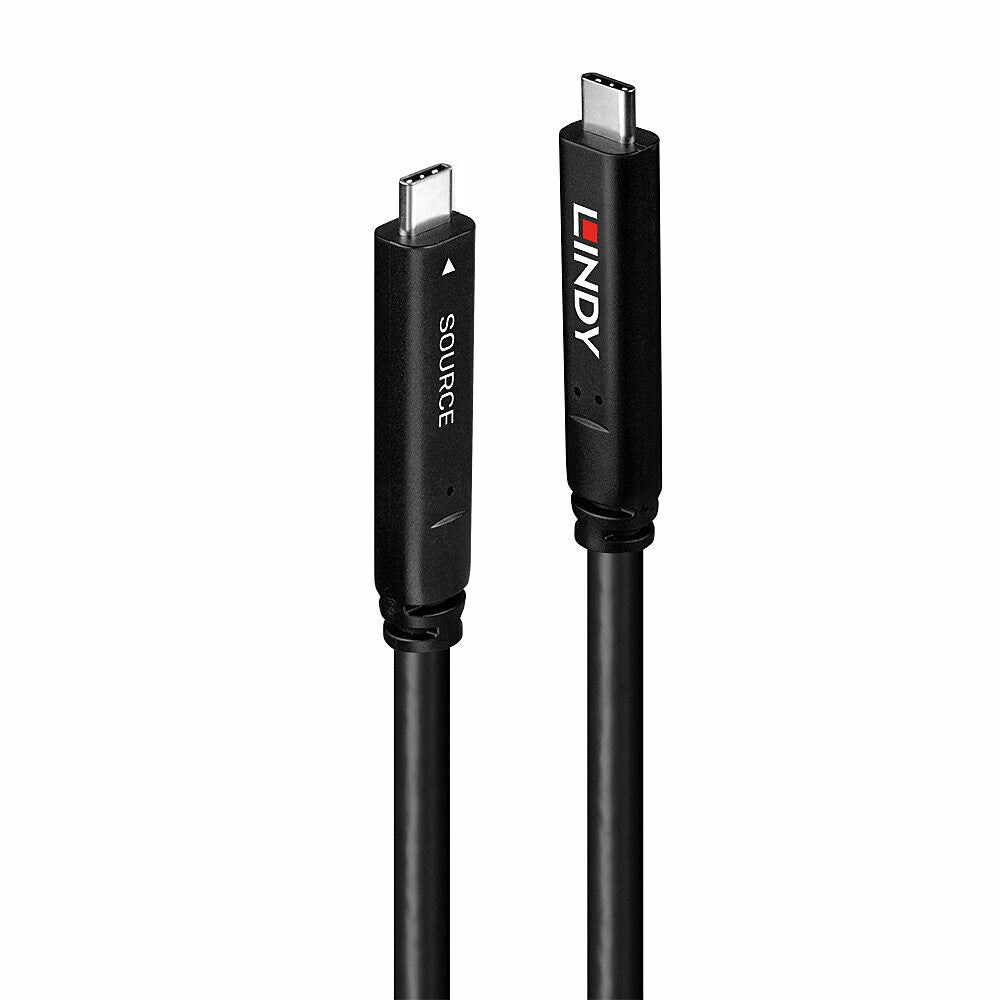

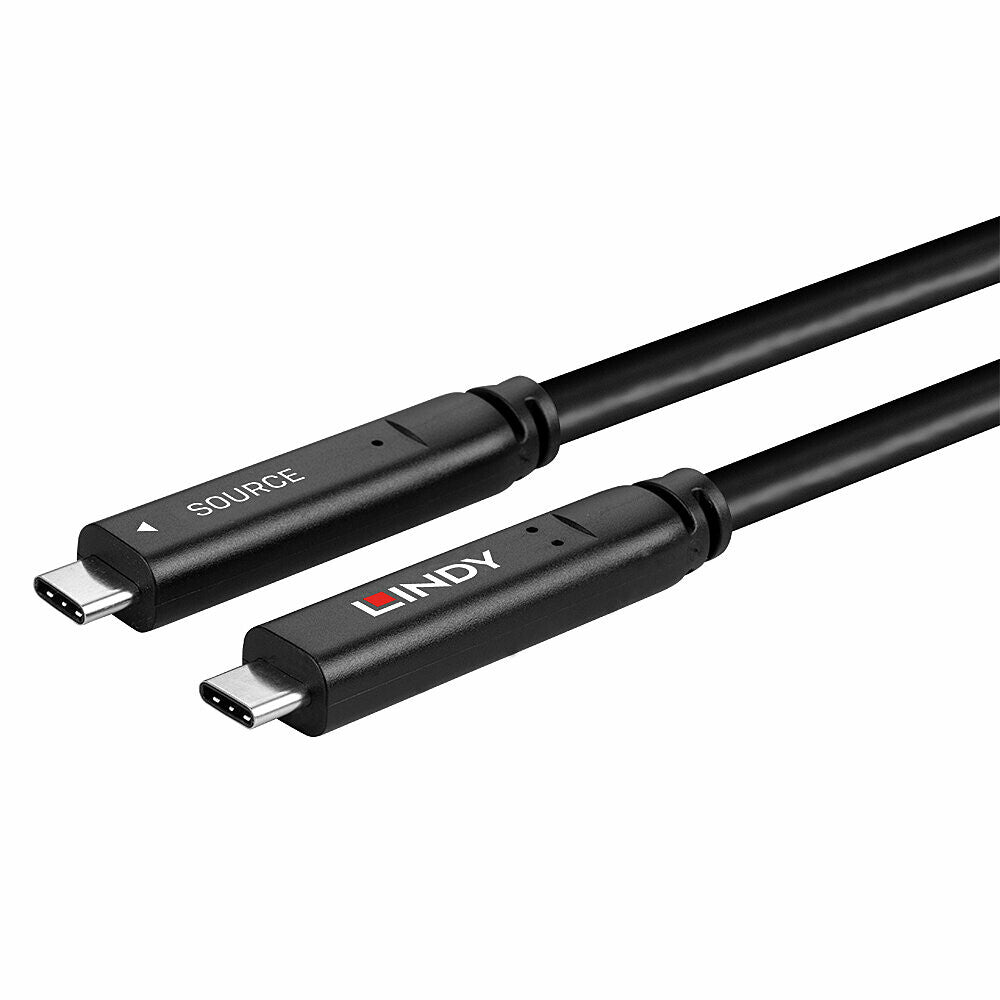

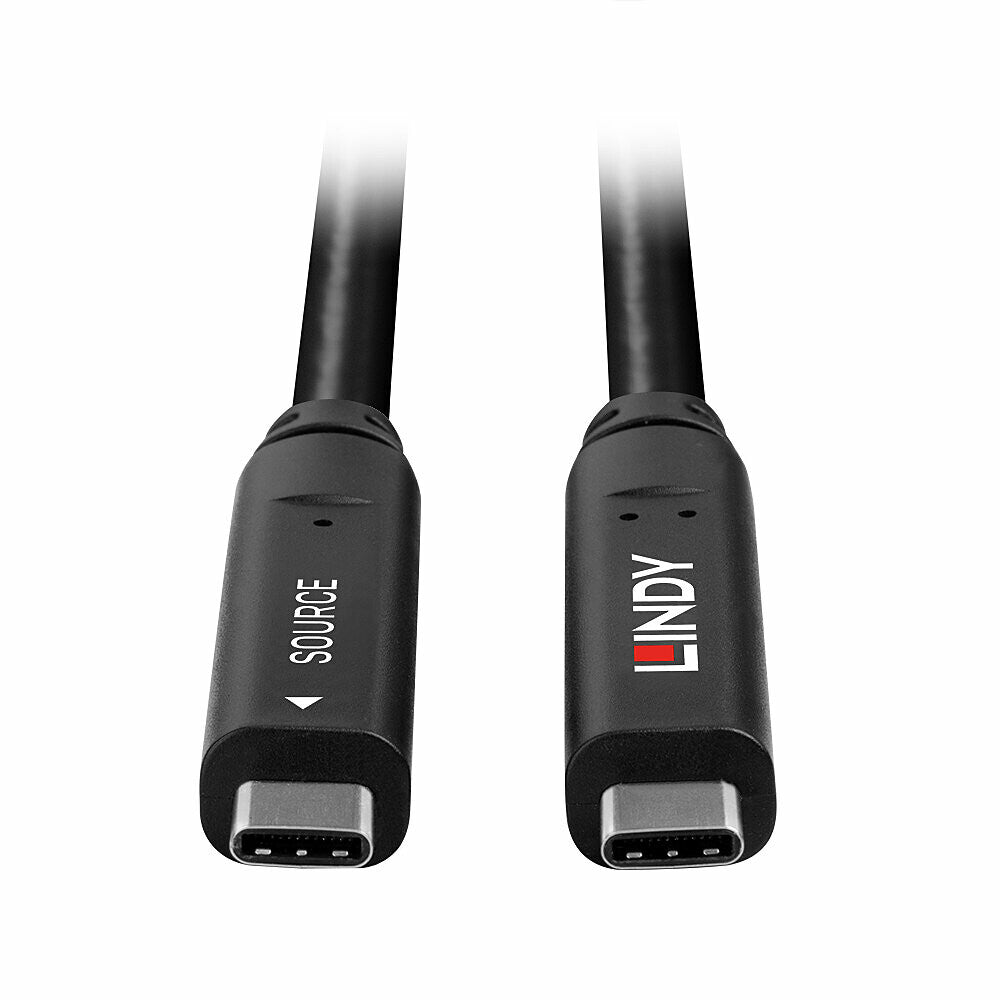

8m USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable for data and video extension
Data transfer rates up to 5Gbps
Supports DisplayPort Alternate Mode and DP 1.4 (2 lanes) with video resolutions up to 4K 3840x2160@30Hz
Supports Power Delivery up to 60W (20V 3A)
USB C - USB C, M/M, USB 3.2 Gen, DP 1.4, PD 60W, 10 m
The Lindy USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable is a unique solution, which uses optical fiber as high-speed transmission medium to perfectly transmit USB 3.2 as well as DP 1.4 data over a distance of 8m. It combines data, video and USB Power Delivery into a single, high performance cable which makes it a great solution for use in modern meeting rooms and classrooms when connecting LFDs and touchpanels. A more flexible construction makes this cable simple to install, with increased resistance to RFI/EMI ensures that the cable can be installed in sensitive environments.
The cable also supports Power Delivery up to 60W (20V / 3A). Compatible with USB 3.2 Type C and Thunderbolt 3/4 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss,
Features
Maximum resolution
3840 x 2160 pixels
DisplayPort version
1.4
USB Type-C DisplayPort Alternate Mode
Yes
USB Power Delivery up to
60 W
USB Power Delivery
Yes
Product colour
Black
Maximum data transfer rate
5 Gbit/s
Connector housing material
Plastic
Connector shielding
Yes
Connector shield material
Copper
Cable jacket material
Polyvinyl chloride (PVC)
AWG wire size
21
Connector 2 form factor
Straight
Connector 1 form factor
Straight
Connector 2 gender
Male
Connector 1 gender
Male
Connector 2
USB C
Connector 1
USB C
Cable length
10 m
USB version
USB 3.2 Gen 1 (3.1 Gen 1)
Power
Output voltage
20 V
Output current (max)
3 A
Weight & dimensions
Weight
610 g
Cable diameter
6.5 mm
Bend radius (min)
10 cm
Packaging data
Package type
Box
Package weight
770 g
Package height
65 mm
Package depth
240 mm
Package width
240 mm
Quantity per pack
1 pc(s)
Packaging content
Manual
Yes
Sustainability
Sustainability compliance
Yes
Operational conditions
Storage temperature (T-T)
-40 - 85 °C
Operating temperature (T-T)
-10 - 70 °C
Technical details
Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
