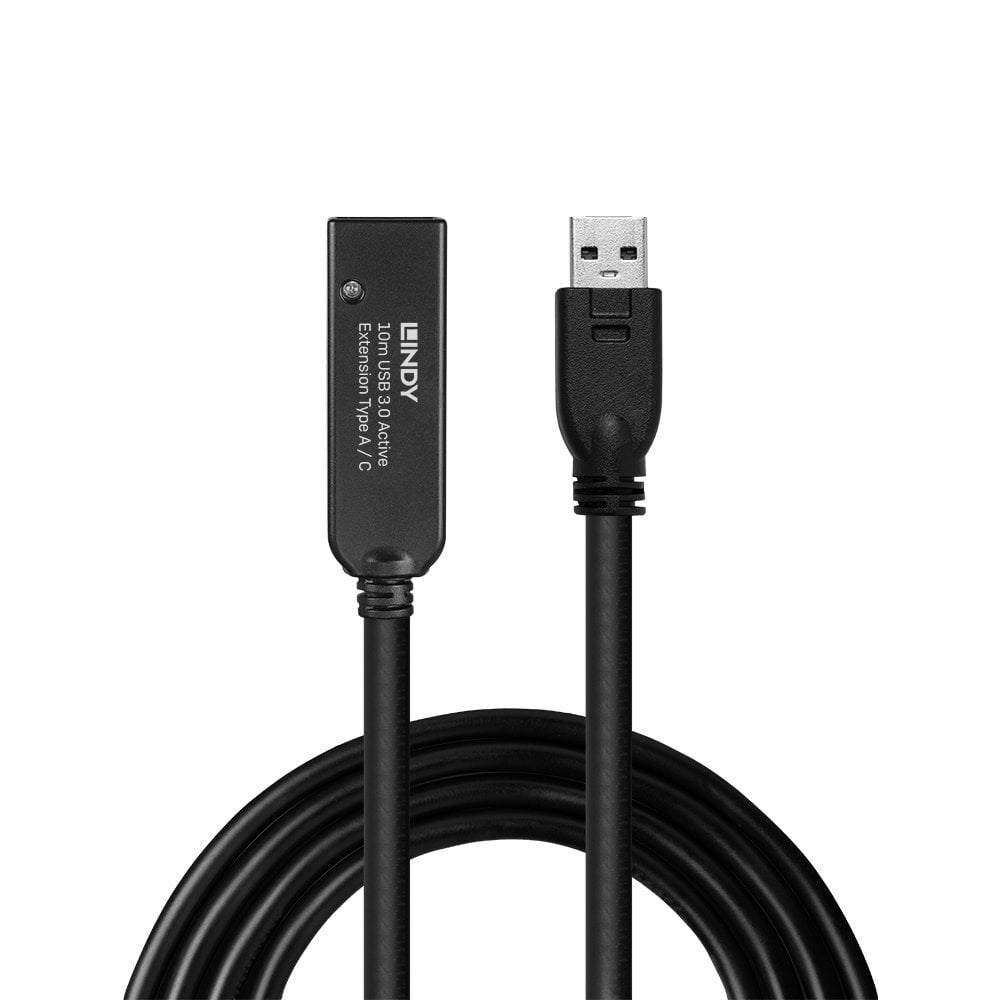

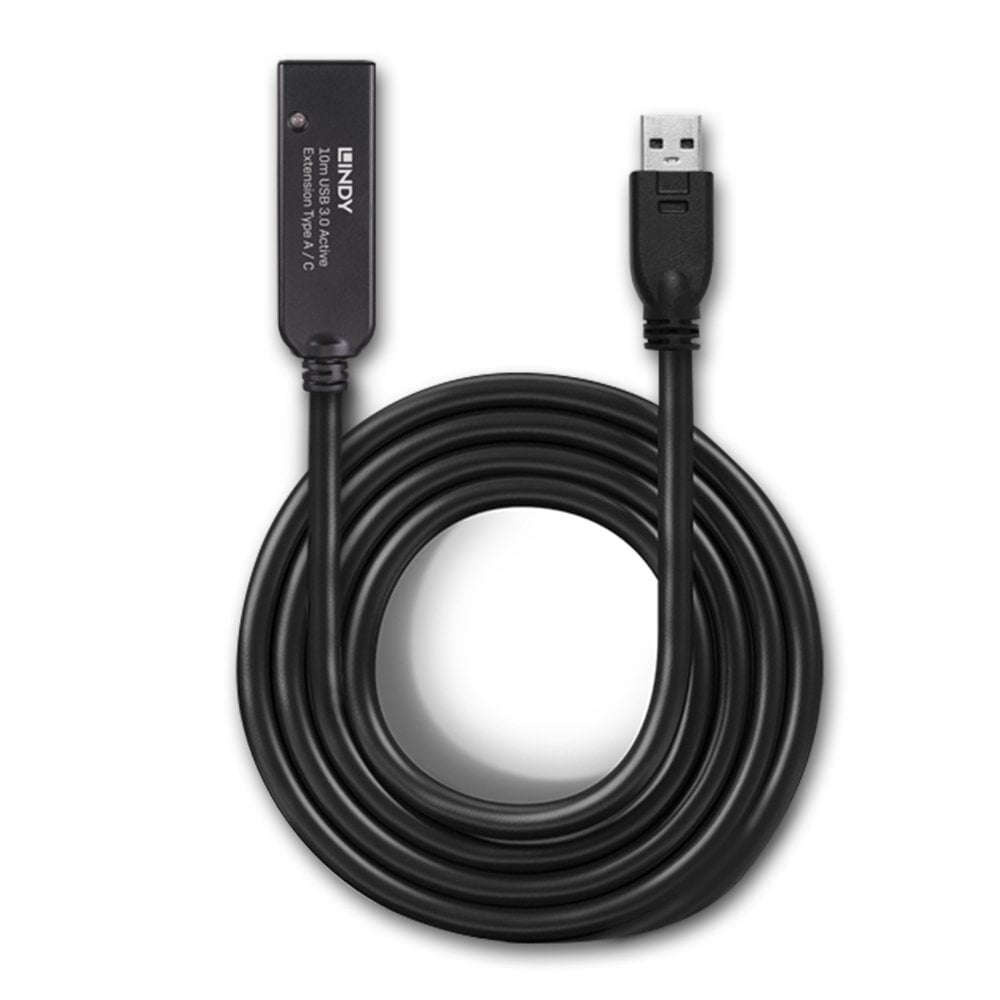

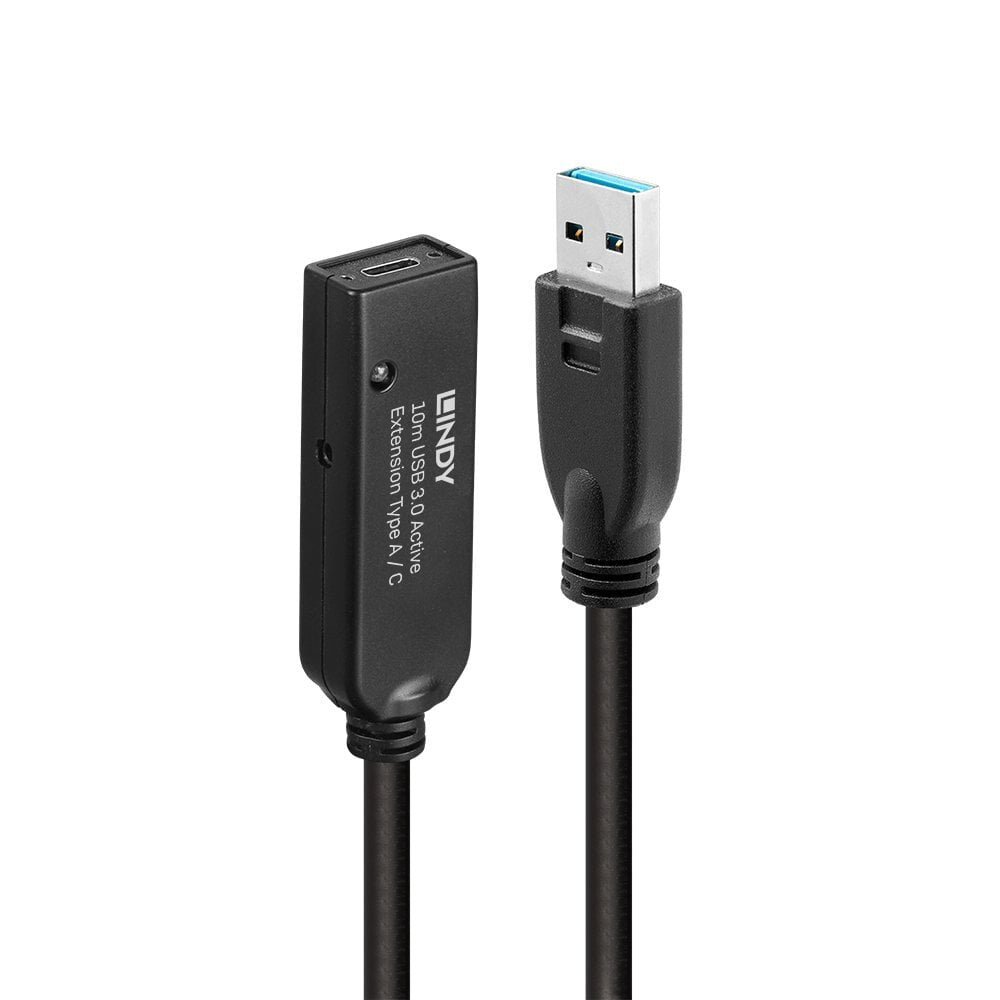

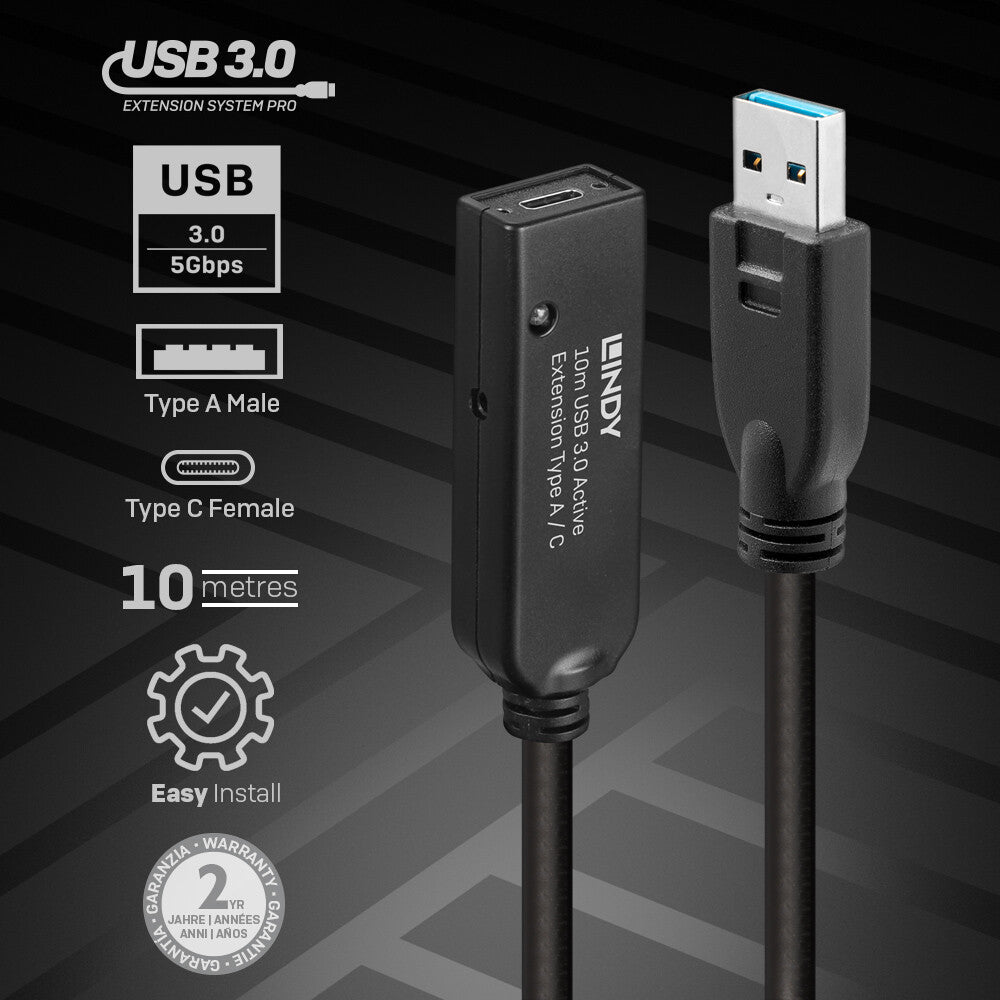

Lindy 10m USB 3.0 Active Extension Type A to C

Lindy 10m USB 3.0 Active Extension Type A to C

£98.33 GBP
£98.33 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

43376

Low stock: 3 left

  • High performance, active cable that provides an extended 10m connection between a computer with USB Type A port and a Type C device
  • Supports USB 3.2 / 3.1 Gen 1 / USB 3. 0 bandwidth for speeds of 5Gbps
  • Can be used standalone orandnbsp; - for even greater distances - as part of the Lindy USB 3.0 Active Extension System Pro (No. 43157, 43158, 43229 or 43361) up to a maximum distance of 38m
  • Industry-proven active technology and screw-lock connector
  • 2 year warranty
10m USB 3.0 Active Extension Type A to C

This Lindy 10m USB Active Extension Cable is a high performance active cable that allows access to USB Type C peripherals like webcams or storage devices over long distances. With support for data transfer speeds of up to 5Gbps this extension cable is perfect for transferring large data volumes quickly and reliably.

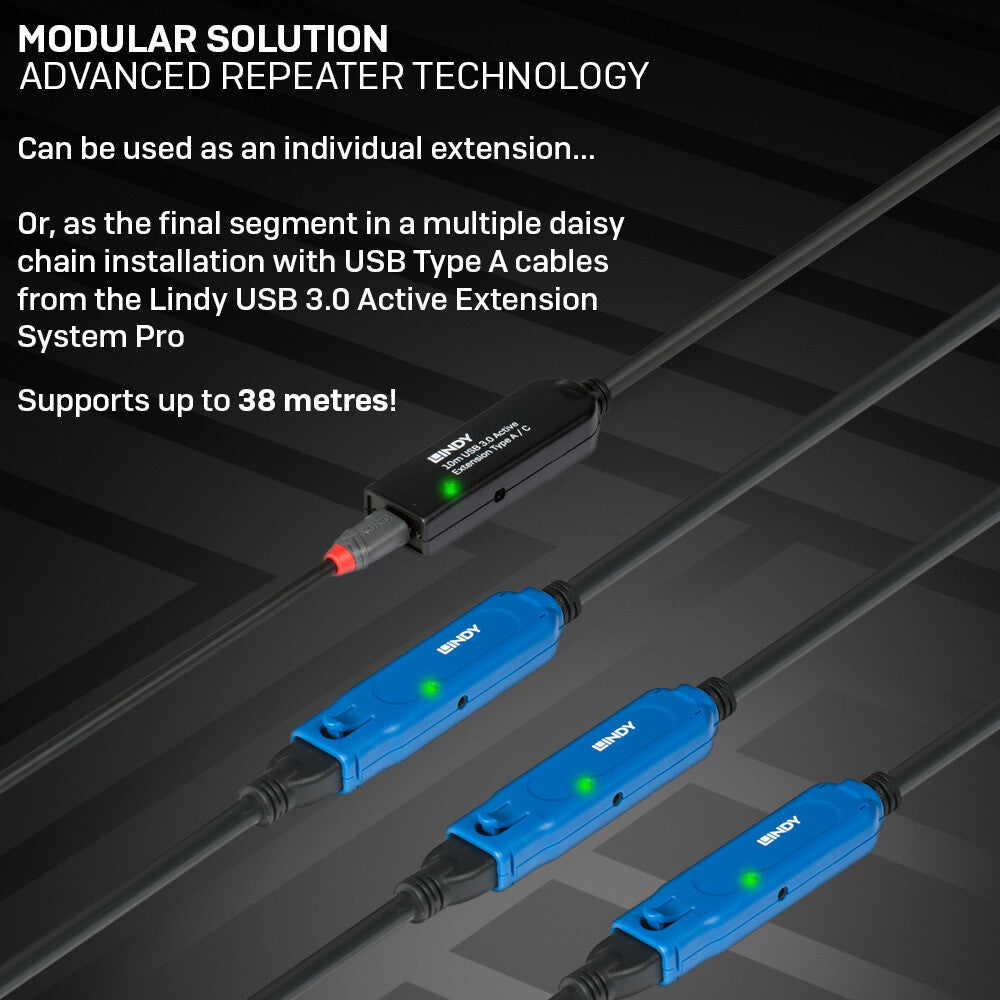

This 10m extension cable can be used standalone or - for distances up to 38m - as part of the Lindy USB 3.0 Active Extension System Pro (No. 43157, 43158, 43229 or 43361). Please note that only No. 43157, 43158, 43229 or 43361 (depending on the maximum required distance) can be connected directly to your computer as first unit. The final part of the extension shall always be the 10m USB Type A to C Active Extension No. 43376.

A USB to DC adapter cable for power supply is included. Usually a 5V 1A power supply of a smartphone is enough to drive the connected device.For USB devices with high power demands, such as a USB Hub or storage device, it may be necessary to connect a bigger power supply with an output voltage and amperage up to 5V 3A.

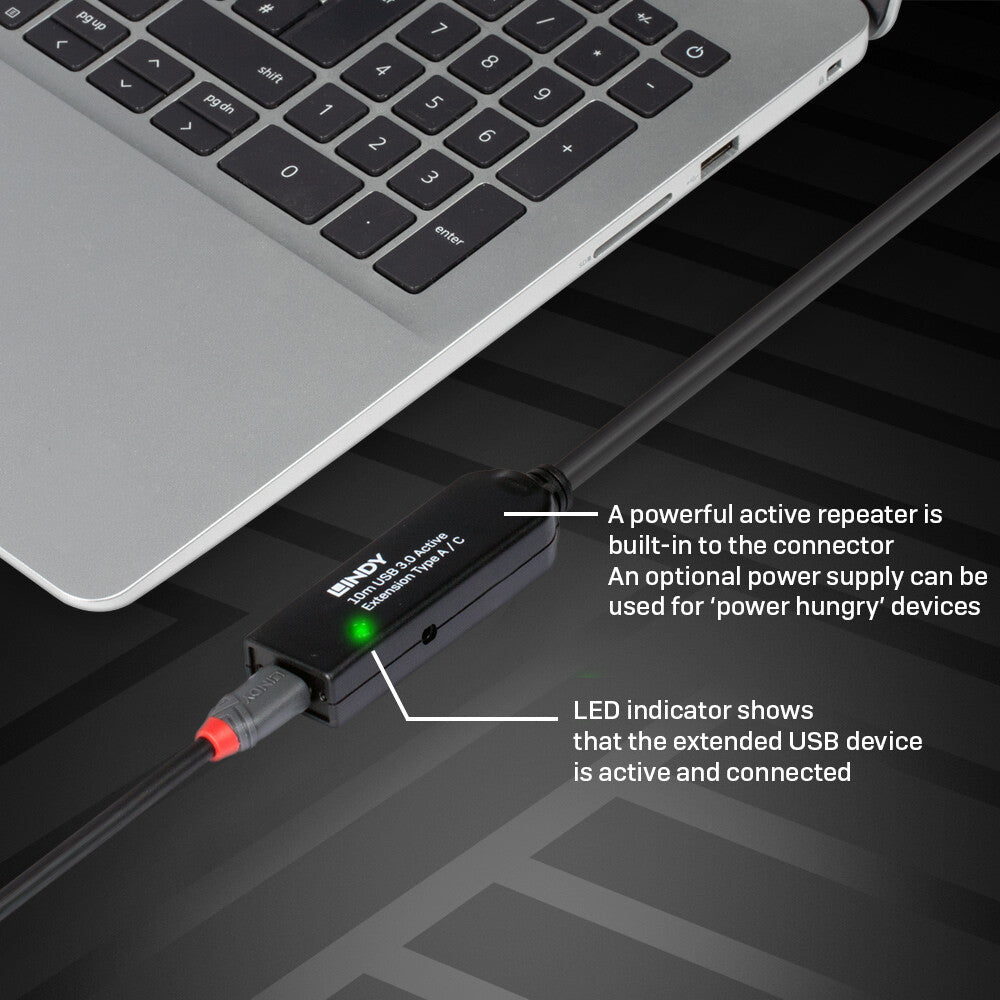

This cable features industry-proven active technology and screw-lock connectors to ensure full signal integrity in the most demanding environments.

Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.

USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Features
Certification California Proposition 65
Cable type Round cable
Product colour Black
Maximum data transfer rate 5 Gbit/s
Connector housing material Plastic
Conductor material Tinned copper
Connector shielding Yes
Cable jacket material Polyvinyl chloride (PVC)
Connector contacts plating Nickel
AWG wire size 24/24/20
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Female
Connector 1 gender Male
Connector 2 USB C
Connector 1 USB A
Cable length 10 m
USB version USB 3.2 Gen 1 (3.1 Gen 1)
Weight & dimensions
Weight 800 g
Connector 2 dimensions (WxDxH) 9.86 x 9.15 x 2.96 mm
Connector 1 dimensions (WxDxH) 15 x 49 x 8 mm
Cable diameter 7 mm
Packaging data
Package type Box
Package weight 1 kg
Package height 63 mm
Package depth 198 mm
Package width 230 mm
Quantity per pack 1 pc(s)
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 50 °C
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), REACH, RoHS
Warranty period 2 year(s)
