Lindy

Lindy 10m USB 3.0 Active Extension

Lindy 10m USB 3.0 Active Extension

Regular price £43.04 GBP
Regular price Sale price £43.04 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:43156

34 in stock

  • 10 metre USB 3.0 Active Extension Repeater Lead
  • Supports transfer rates up to 5Gbps
  • For even greater distances simply connect 2 cables in series
  • Plug and Play
  • 2 year warranty
10m USB 3.0 Active Extension

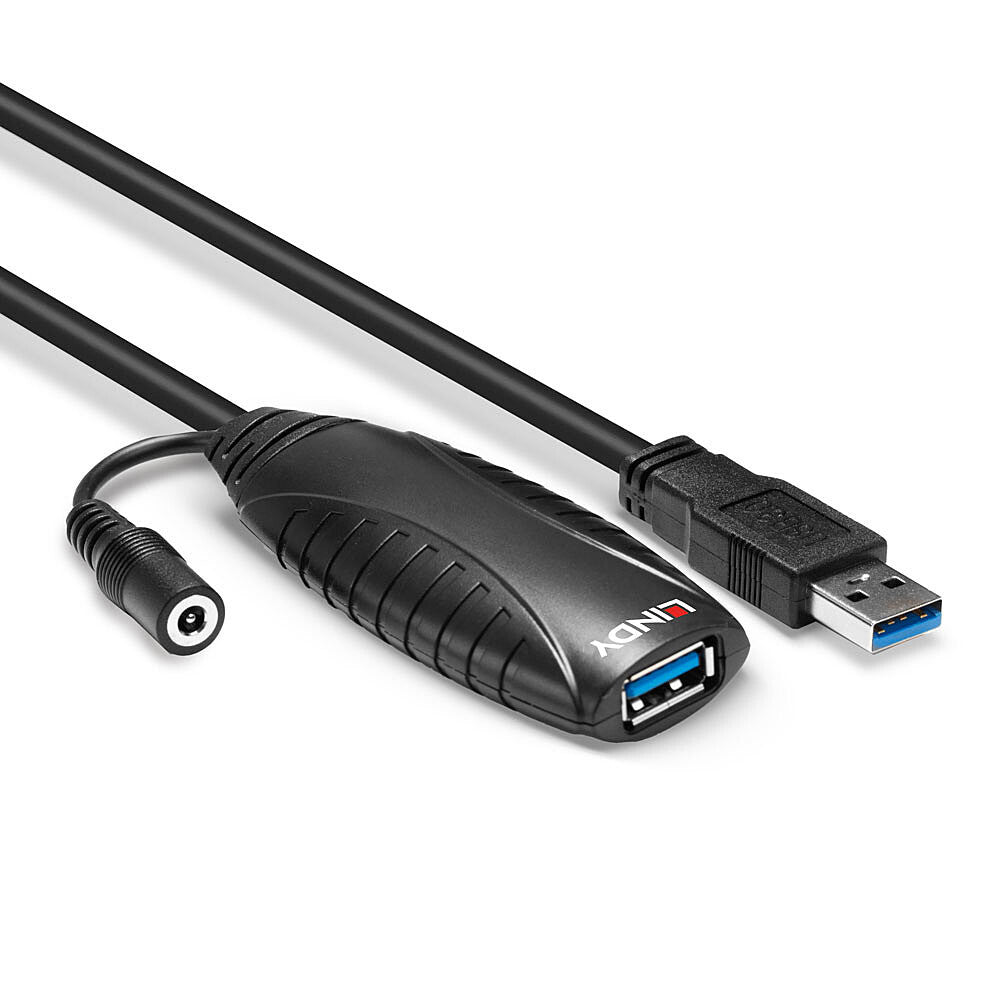

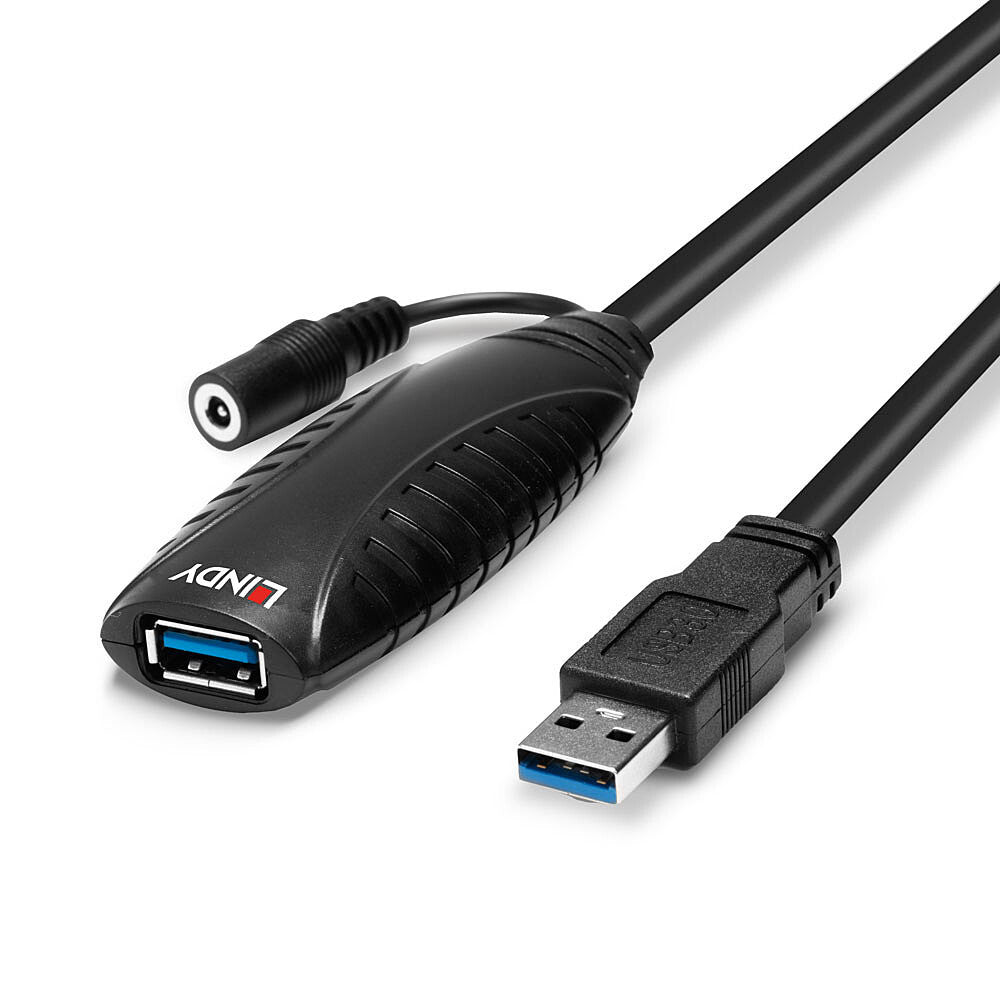

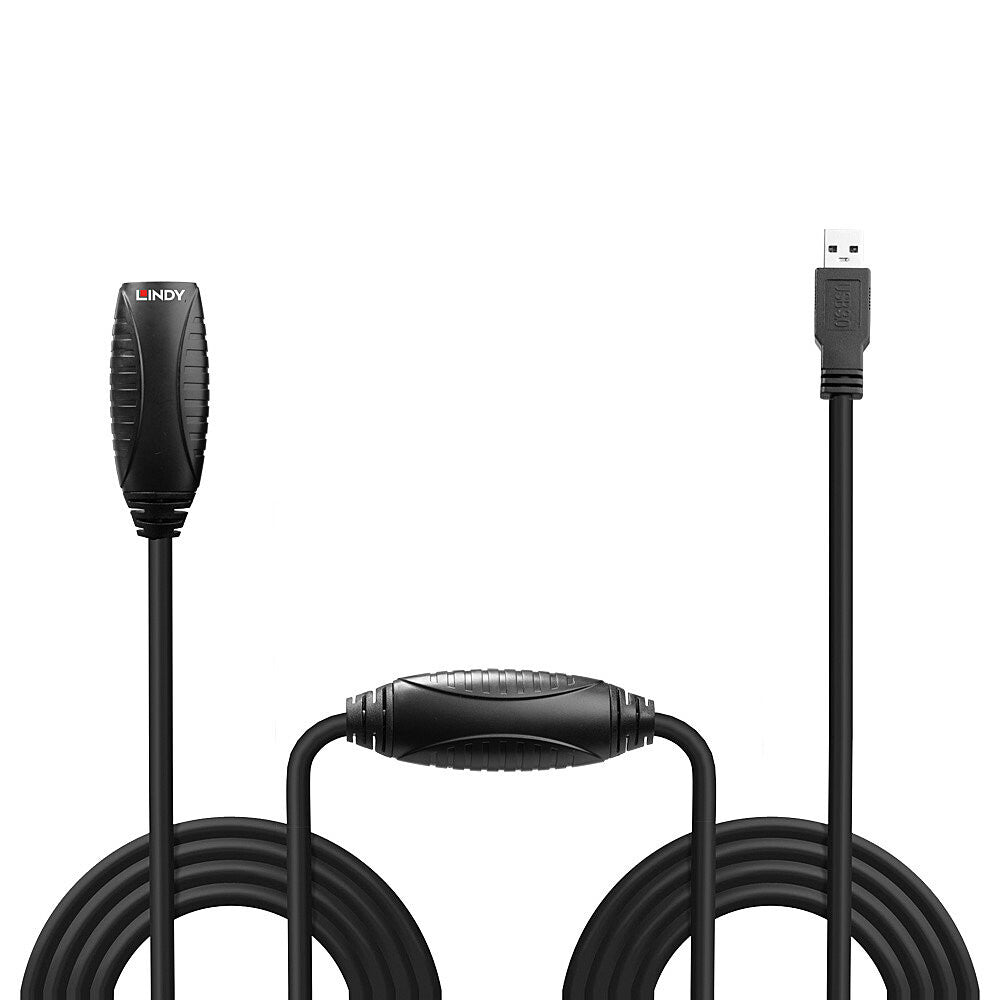

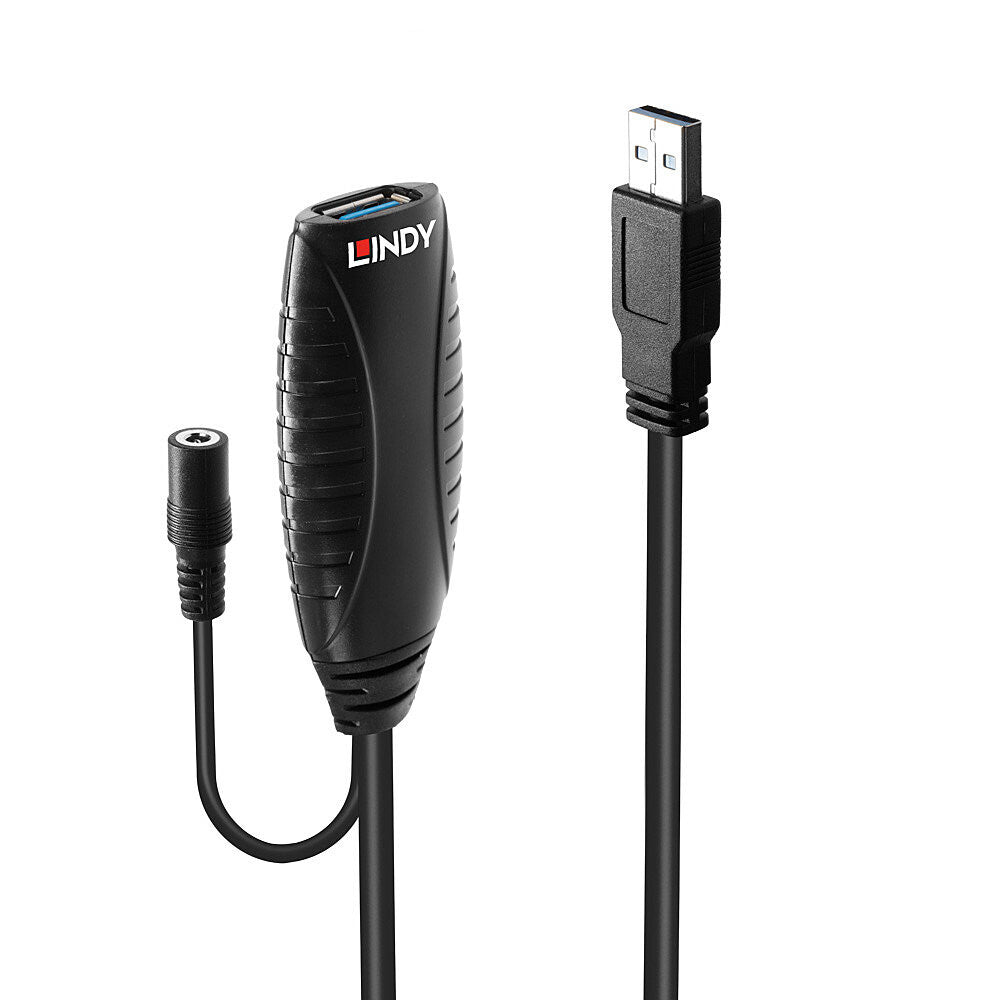

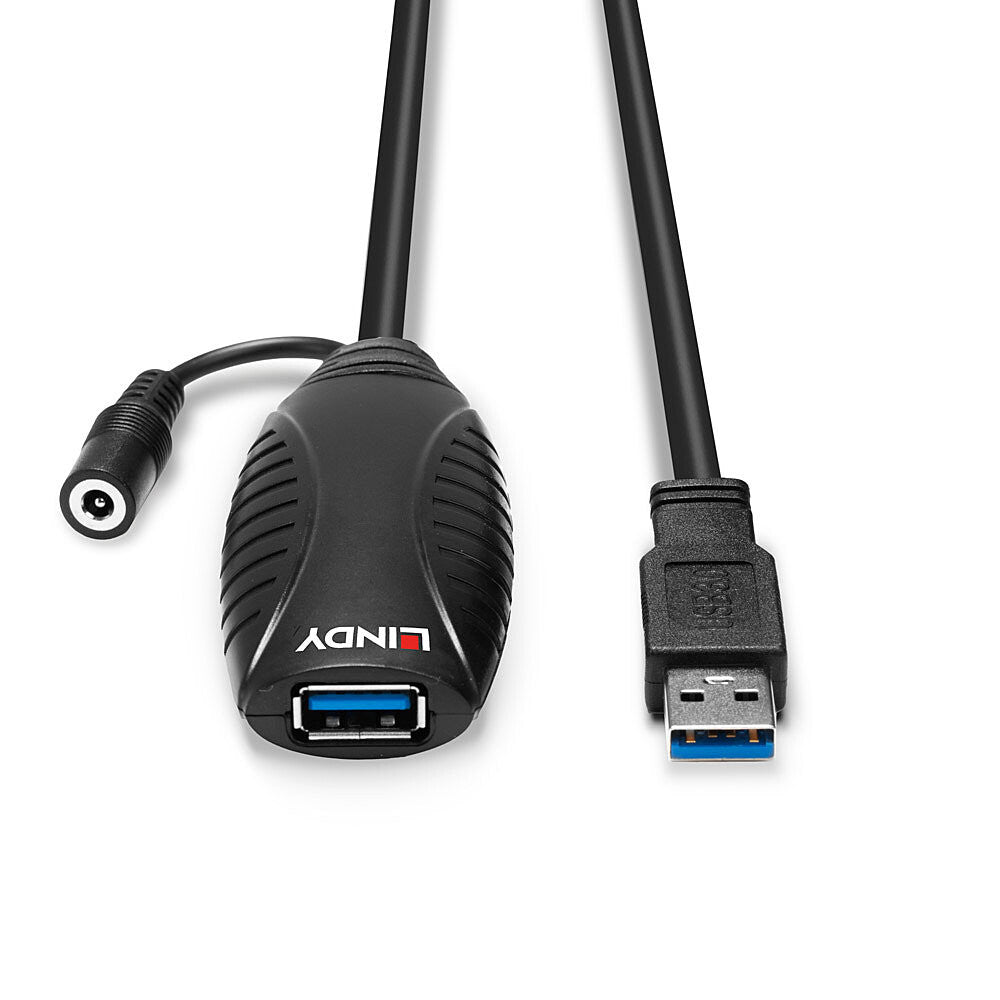

The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 10m whilst continuing to support data transfer rates of up to 5Gbps.

With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together to achieve a distance of 20m.

The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.

The USB active extension cable also features a DC socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements.Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Features
USB version USB 3.2 Gen 1 (3.1 Gen 1)
Cable length 10 m
Connector 1 USB A
Connector 2 USB A
Connector 1 gender Male
Connector 2 gender Female
Connector 1 form factor Straight
Connector 2 form factor Straight
AWG wire size 28/28/22
Connector material Nickel
Contact material Copper
Connector contacts plating Gold
Cable jacket material Polyvinyl chloride (PVC)
Connector shield material Aluminium
Connector shielding Yes
Conductor material Tinned copper
Connector housing material Plastic
Maximum data transfer rate 5 Gbit/s
Cable type Round cable
Product colour Black
Plug and Play Yes
Transmission medium Twisted pair
Nominal attenuation (100 MHz, -1.5 dB)(1.25 GHz, -5.0 dB)(2.5 GHz, -7.5 dB)(7.5 GHz, -25 dB)
Certification CE, UKCA, FCC, RoHS, REACH
Power
Power note 3.5/1.35mm DC
Weight & dimensions
Bend radius (min) 6 cm
Cable diameter 6 mm
Connector 1 dimensions (WxDxH) 16 x 37 x 9.8 mm
Connector 2 dimensions (WxDxH) 32 x 85 x 10 mm
Weight 515 g
Packaging data
Quantity per pack 1 pc(s)
Package width 140 mm
Package depth 90 mm
Package height 150 mm
Package weight 600 g
Package type Box
Operational conditions
Operating temperature (T-T) 0 - 55 °C
Storage temperature (T-T) -20 - 70 °C
Logistics data
Harmonized System (HS) code 84733080
