Extend 4 USB 3.2 Gen 1 ports up to 100m using Cat.6A network cable (not included)
Power over Cable requires a single power supply to be connected to the transmitter or receiver only
Supports USB 3.2 Gen 1 (USB 3.0) up to 5Gbps, USB 2.0/1.1 backwards compatibility, RS232 and FSYNC pass-through ports
Plug & Play installation

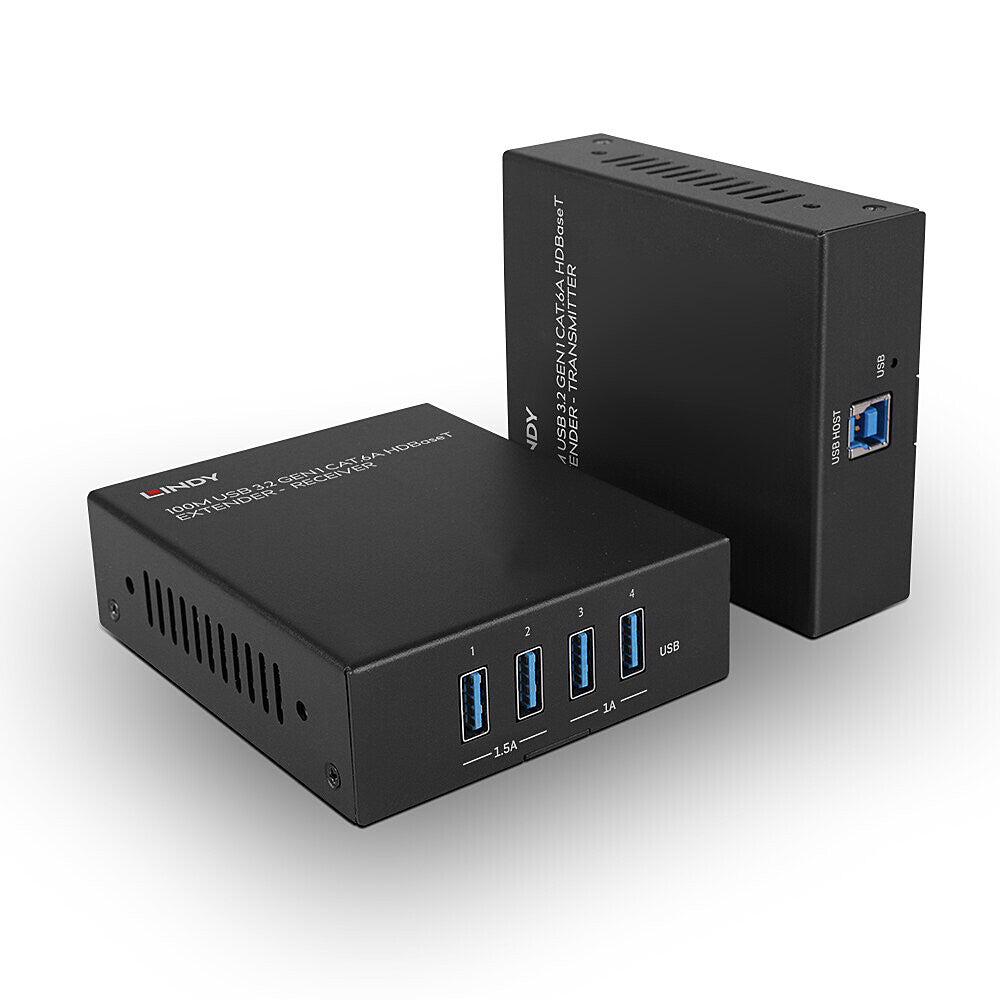

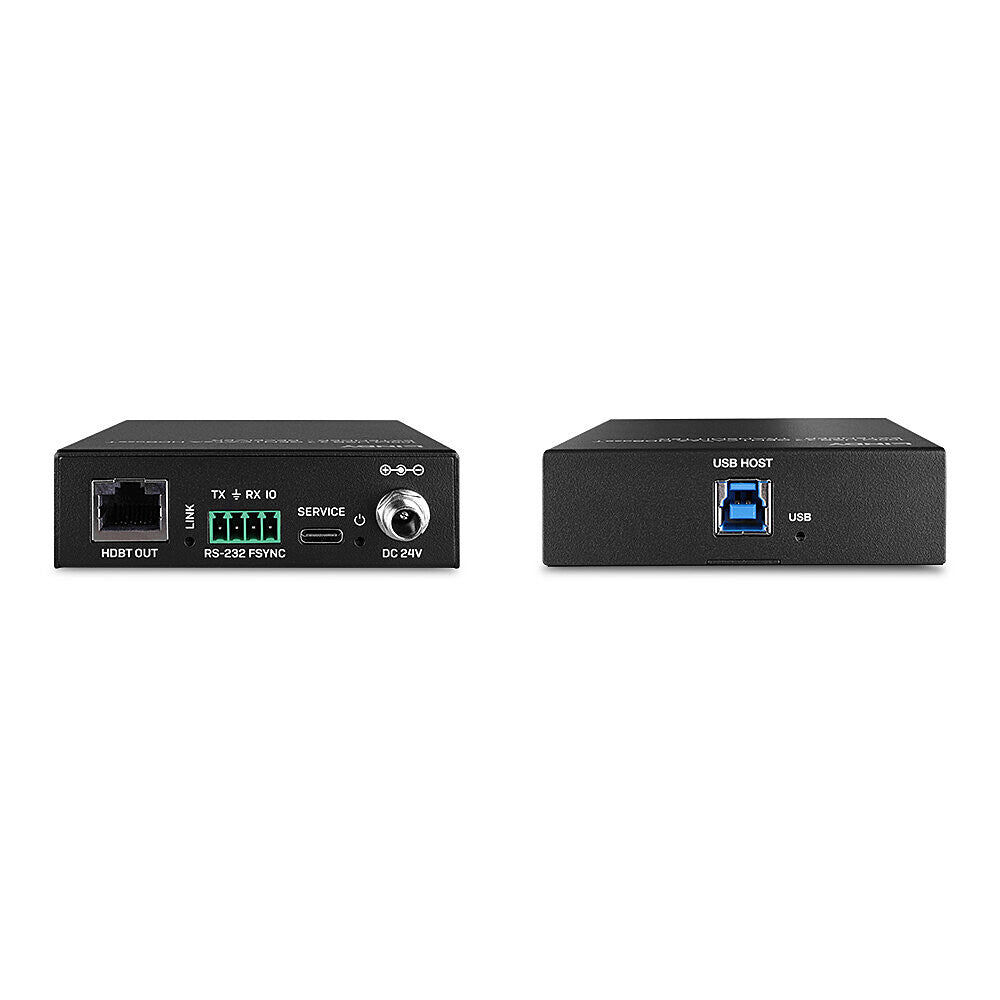

100m USB 3.2 Gen 1 Cat.6A HDBaseT Extender
This Lindy USB 3.2 Gen 1 Cat.6A Extender can be used to extend the distance between USB peripheral devices and the host computer by up to 100m. Supports multiple USB signals, control, bulk, interrupt and isochronous data transfer. A standard Cat.6A or above network cable* (not included) is used to bridge the connection between the transmitter and the receiver unit at the maximum supported distance of 100m (328.08ft). It's also possible to reach up to 40m using a Cat.6 cable.

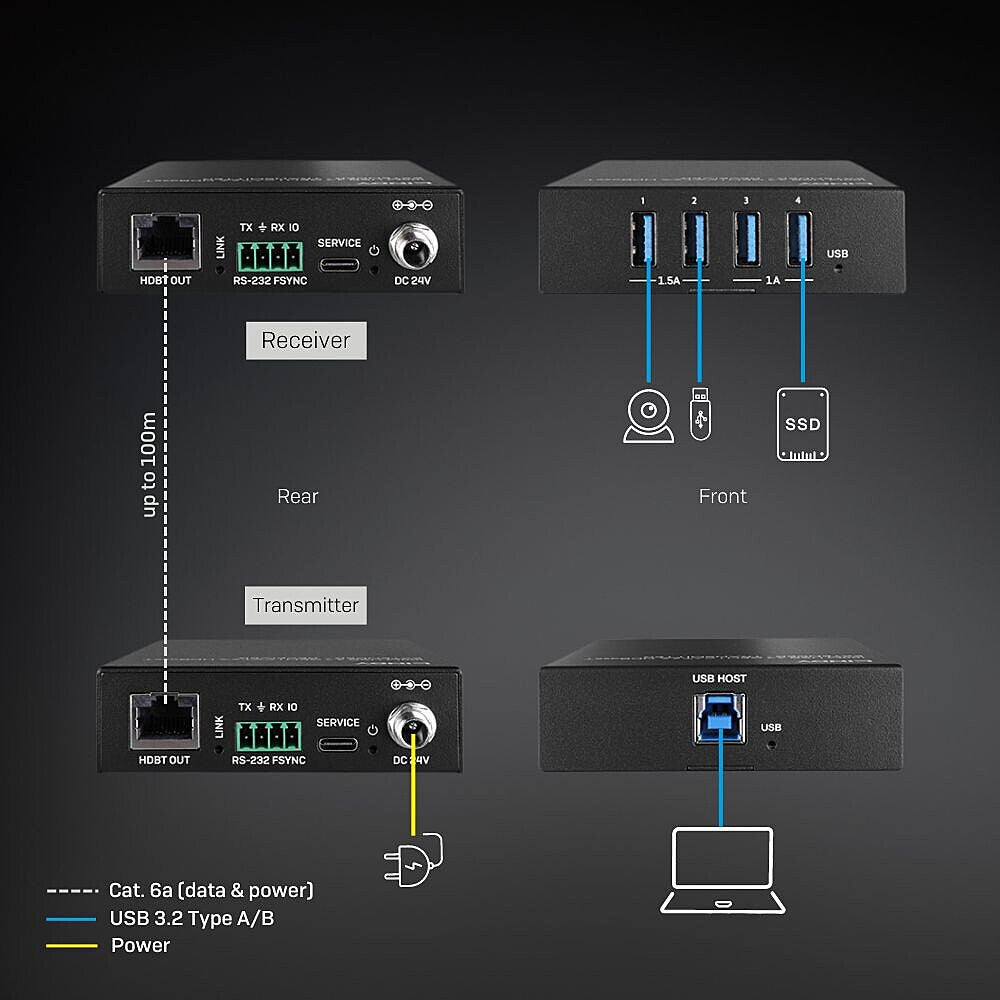

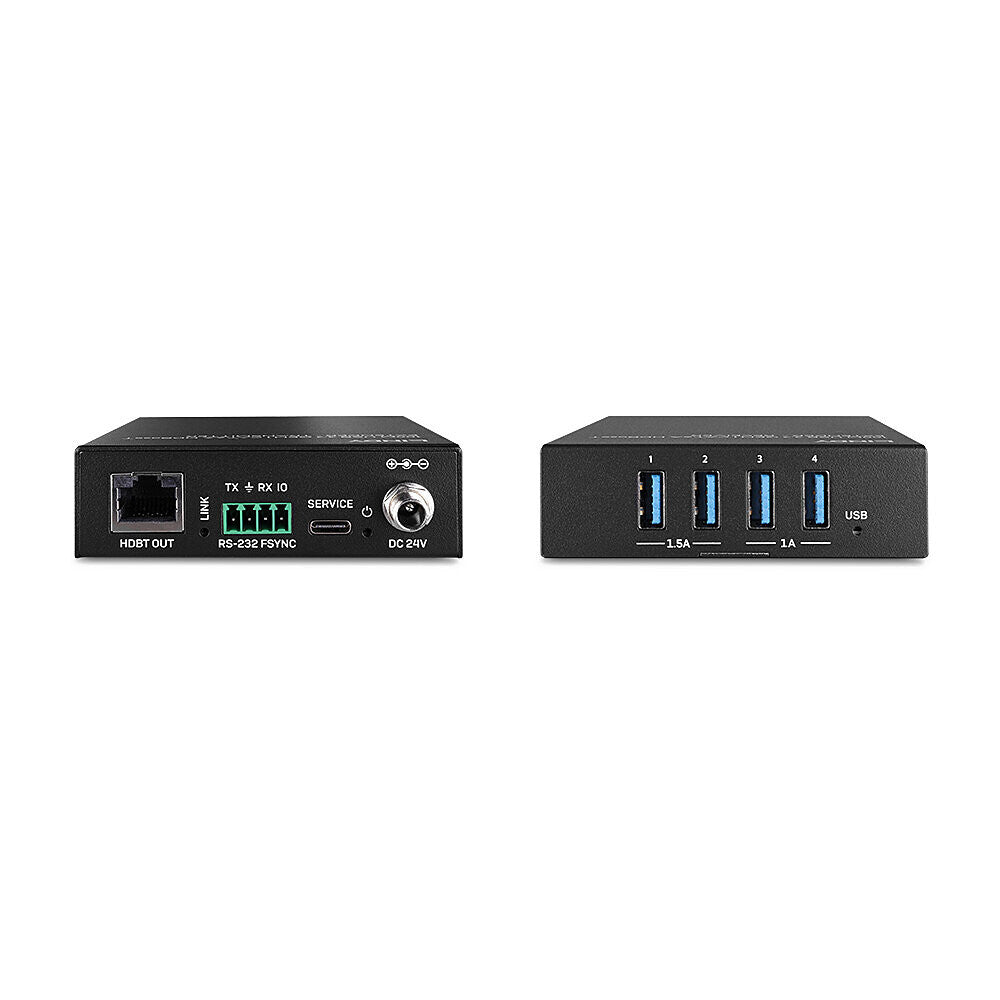

The Extender features Power over Cable, which requires a single power supply only to be connected either to the transmitter unit or to the receiver unit. The 4 Type A ports on the Receiver can provide 5V power as well to the connected devices; 2 ports support up to 1.5A each and 2 ports support up to 1A each.

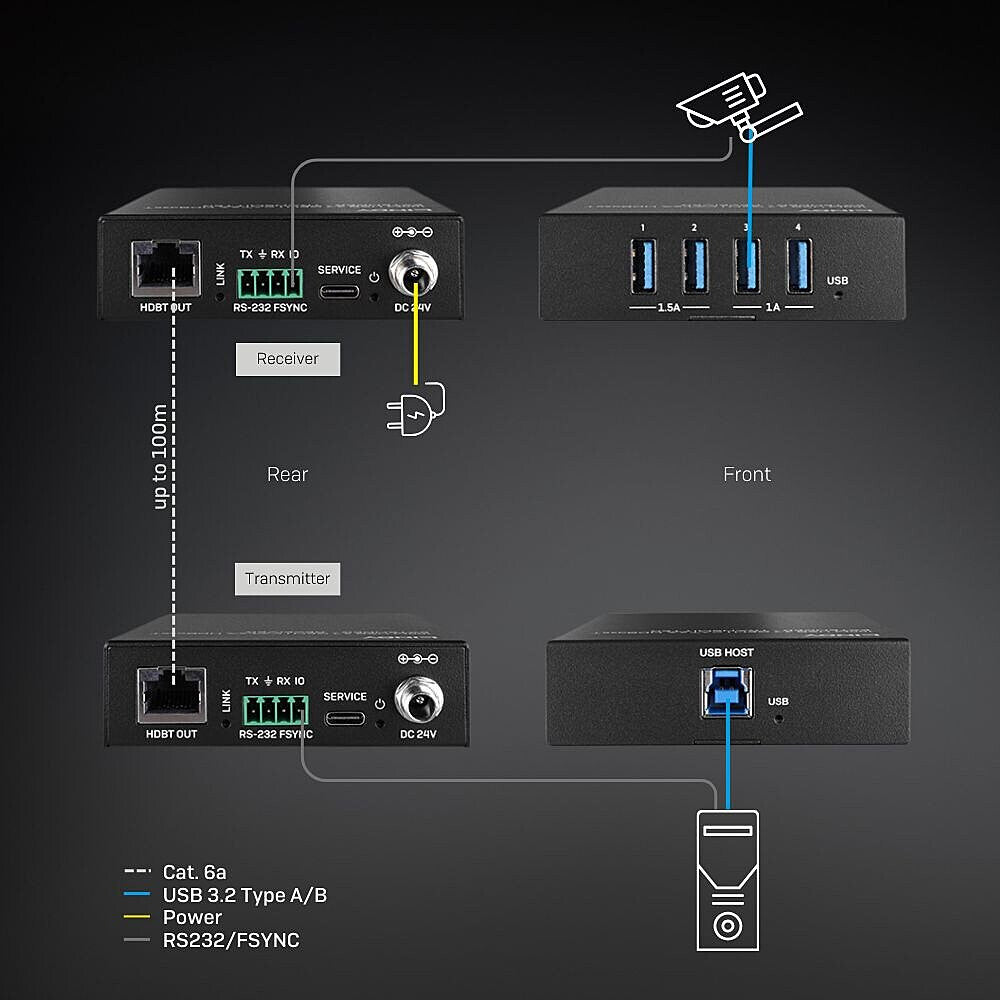

Status LEDs help the user to check power, link between Transmitter and Receiver and if data transfer is running while additional RS232 and FSYNC GPIO pass-though ports allow sending bi-directional commands also for industrial cameras.
With robust metal housing and mounting brackets, this Extender is the ideal solution for professional applications and industrial environments.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
*: To cover long distances close to the 100m limit, we recommend using HDBaseT-certified Cat.6A (or above) cables.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT Trade Mark and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances.
Features
Bandwidth
5 Gbit/s
LED indicators
Yes
Plug and Play
Yes
Material
Metal
Product colour
Black
Cable types supported
Cat6a
Maximum transfer distance
100 m
Connectivity technology
Wired
Type
Transmitter & receiver
Transmitter
RJ-45 ports quantity (transmitter)
1
Transmitter USB Type-B ports quantity
1
Transmitter local keyboard/mouse port type
USB
Receiver
RJ-45 ports quantity (receiver)
1
Receiver USB Type-A ports quantity
4
Power
DC-in jack
Yes
Input current
2 A
AC input voltage
24 V
Operational conditions
Storage relative humidity (H-H)
0 - 90%
Operating relative humidity (H-H)
0 - 90%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Receiver weight
500 g
Receiver height
3 cm
Receiver depth
8.5 cm
Receiver width
10 cm
Transmitter weight
500 g
Transmitter height
3 cm
Transmitter depth
8.5 cm
Transmitter width
10 cm
Ports & interfaces
RS-232 ports
4
USB port type
USB Type-A/USB Type-B
Packaging data
Package weight
900 g
Package height
80 mm
Package depth
150 mm
Package width
235 mm
Packaging content
Mounting bracket(s) included
Yes
Included power plug types
AU, EU, UK, US
Screws included
Yes
Manual
Yes
Cables included
USB Type-A
AC adapter included
Yes
Technical details
Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
