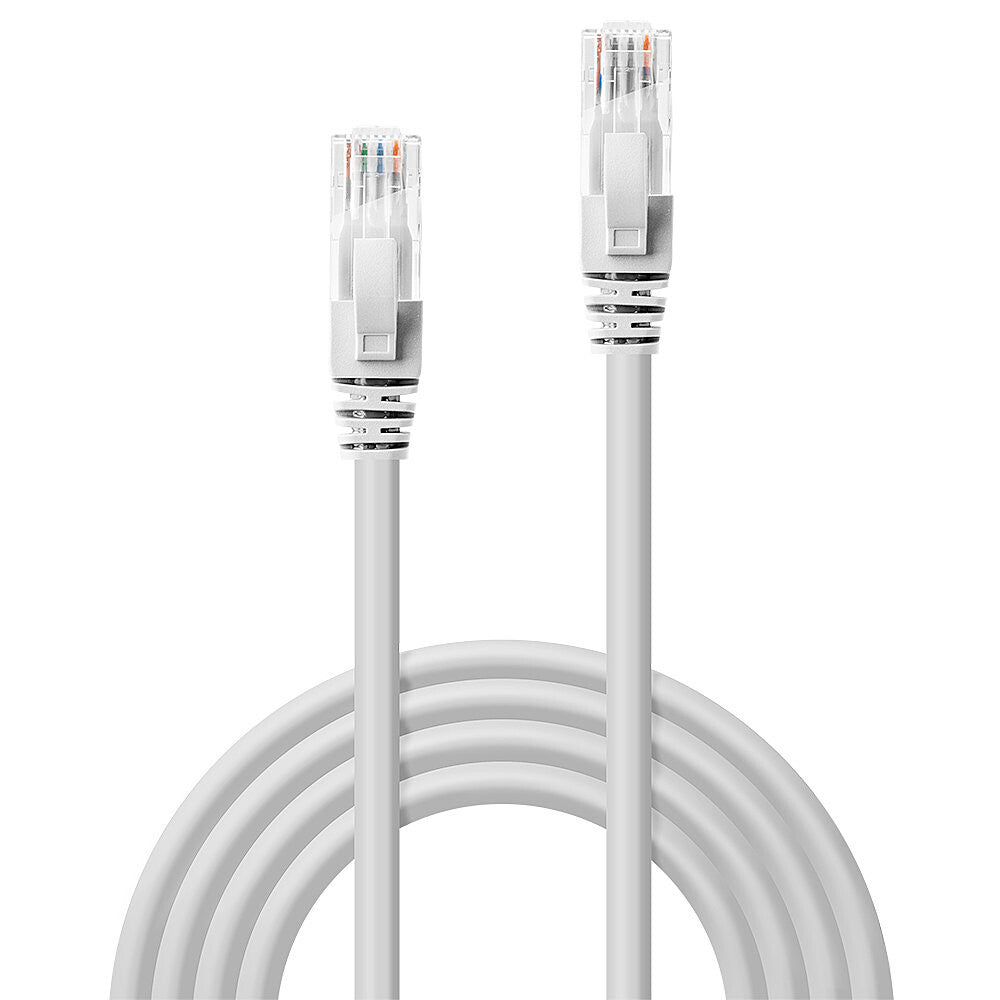

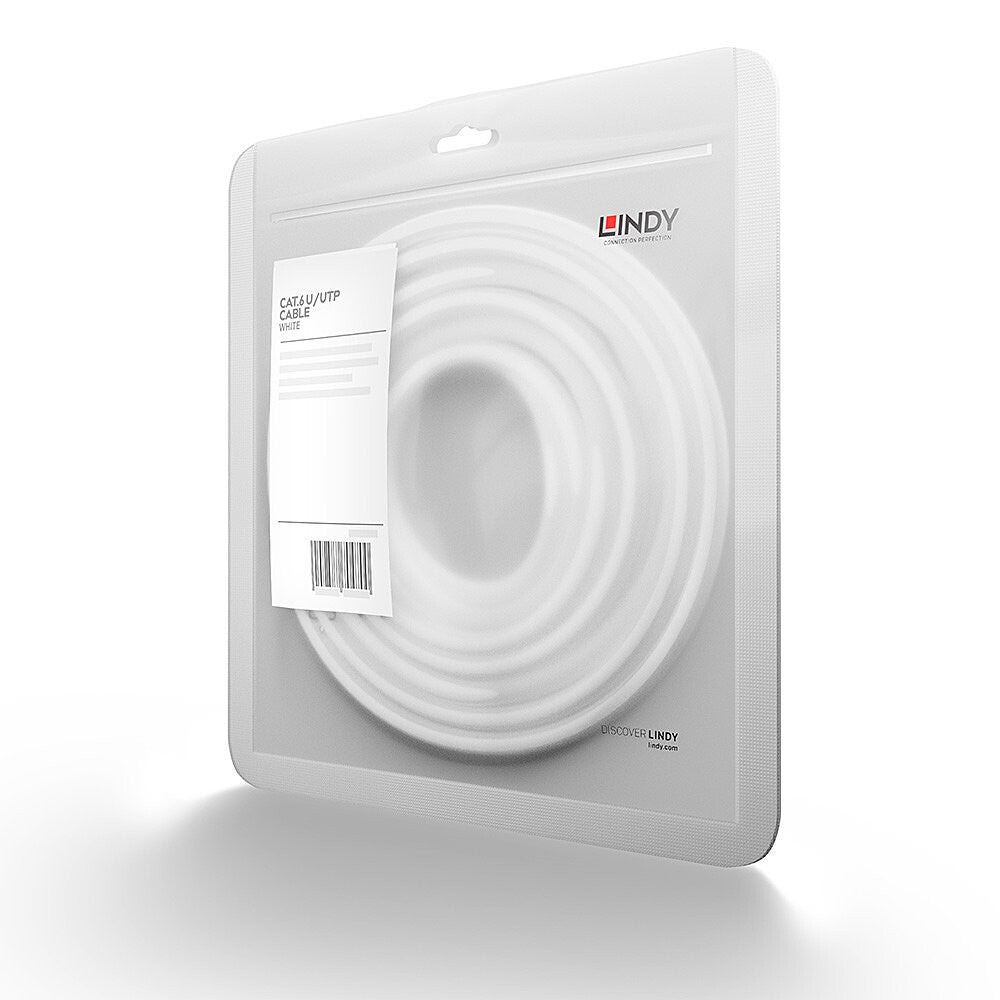

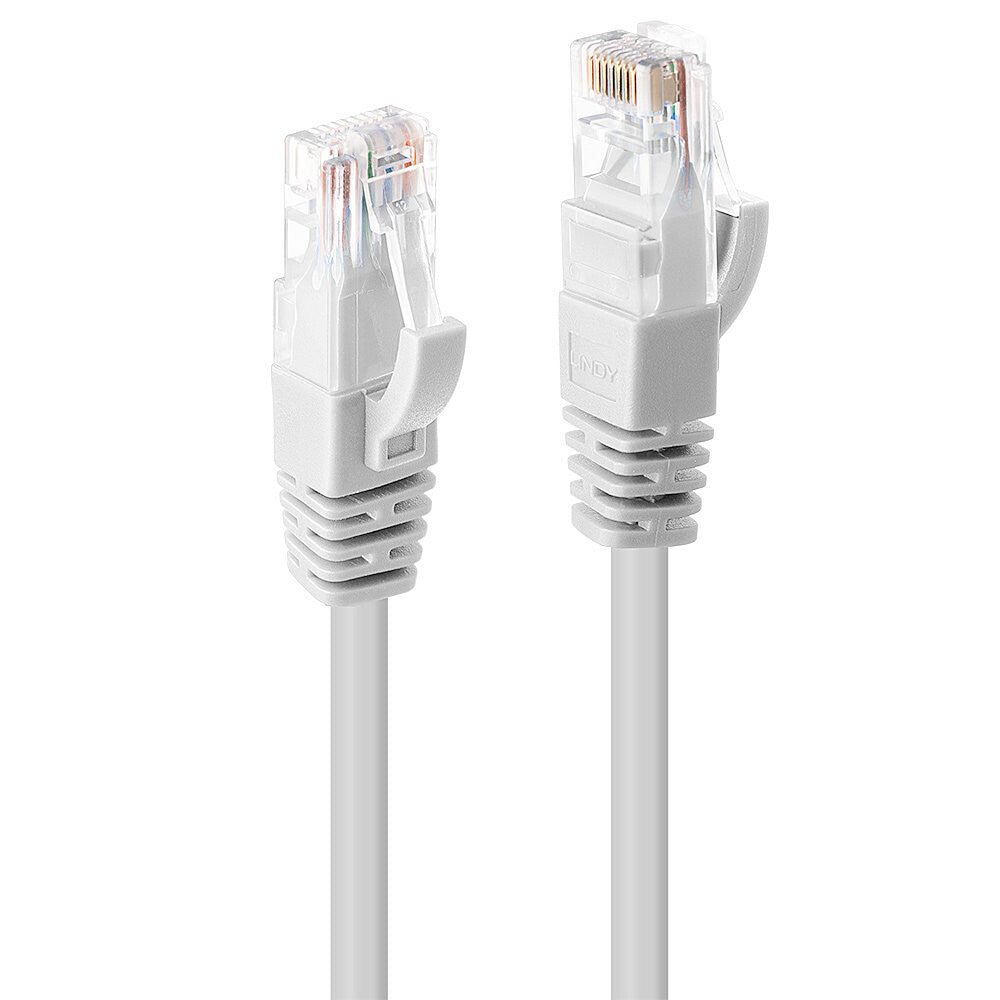

Lindy 0.3m Cat.6 U/UTP Network Cable, White

Lindy 0.3m Cat.6 U/UTP Network Cable, White

Regular price £1.60 GBP
Regular price Sale price £1.60 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:48090

100 in stock

  • Twisted Pair Patch Cable with RJ45 connectors
  • Cat.6 U/UTP, PVC
  • Integrated snagless connector for latch protection
  • Gold plated pins for better conductivity and elimination of signal loss
0.3m Cat.6 U/UTP Network Cable, White

Cat.6 U/UTP PVC network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Blue, Red, Green, Yellow, Black, White, Orange, Purple, Grey.

Features
Cable length 0.3 m
Cable standard Cat6
Cable shielding U/UTP (UTP)
Product colour White
Connector 1 RJ-45
Connector 2 RJ-45
Connector 2 gender Male
Connector 1 gender Male
Connector contacts plating Gold
Jacket material Polyvinyl chloride (PVC)
Conductor material Copper
Cabling technology 10/100Base-T(X)
AWG wire size 24
Frequency 250 MHz
Bend radius (min) 6.9 cm
Snagless cable boot Yes
Certification RoHS, REACH, UL, California Proposition 65
Operational conditions
Operating temperature (T-T) -10 - 60 °C
Storage temperature (T-T) -20 - 75 °C
Weight & dimensions
Outer diameter 5.8 mm
Connector 2 dimensions (WxDxH) 11.6 x 22.8 x 8.3 mm
Connector 1 dimensions (WxDxH) 11.6 x 22.8 x 8.3 mm
Packaging data
Package type Polybag
Logistics data
Harmonized System (HS) code 84733080
