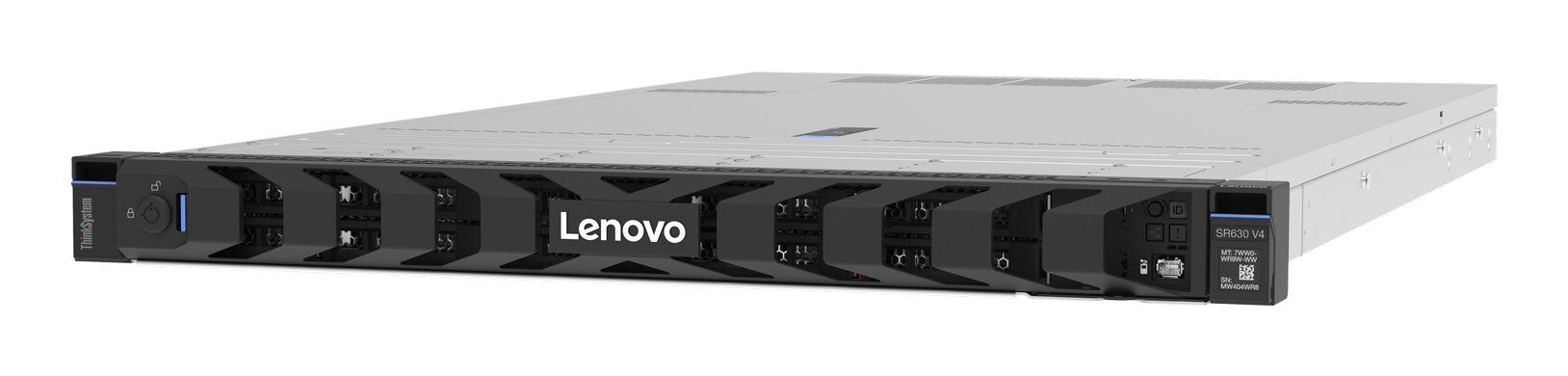

The Lenovo ThinkSystem SR630 V4 is an ideal 2-socket 1U rack server for customers that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. With two Intel Xeon 6700-series or 6500-series processors, the SR630 V4 is designed for high density and scale-out workloads in various customer segments.
This product guide provides essential pre-sales information to understand the ThinkSystem SR630 V4 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR630 V4 and consider its use in IT solutions.
Processor
Processor threads
32
Number of processors installed
1
Processor cache
72 MB
Processor cores
16
Processor boost frequency
3.8 GHz
Processor frequency
2.3 GHz
Processor model
6515P
Processor family
Intel Xeon 6
Processor manufacturer
Intel
Memory
Maximum internal memory
8 TB
Memory layout (slots x size)
1 x 32 GB
Memory slots
32x DIMM
ECC
Yes
Memory ranking
2
Internal memory type
DDR5-SDRAM
Internal memory
32 GB
Storage
Internal drive bays
8
Supported storage drive interfaces
SAS, Serial ATA
Optical drive type
No
Hot-swap
Yes
Supported RAID controllers
940-8i 4GB
RAID levels
0, 1, 5, 6, 10, 50, 60
RAID support
Yes
Graphics
Maximum graphics card memory
16 MB
On-board graphics card
Yes
Network
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Cabling technology
10/100/1000Base-T(X)
Ports & interfaces
VGA (D-Sub) ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Ethernet LAN (RJ-45) ports
1
Design
Rack mounting
Yes
Product colour
Black, Steel
Cooling type
Active
Chassis type
Rack (1U)
Performance
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Performance management
XClarity Controller Platinum
Software
Compatible operating systems
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server
Power
Number of main power supplies
2
Power supply
1300 W
Redundant power supply (RPS) support
Yes
general_information_attribute_container_name
attribute_product_family_name
ThinkSystem
Weight & dimensions
Depth
773 mm
Height
43 mm
Width
440 mm
Technical details
Supported storage drives form factor (internal)
2.5"
Compliance certificates
CCC, CE, CECP, Federal Communications Commission (FCC), RoHS, UKCA, UL
