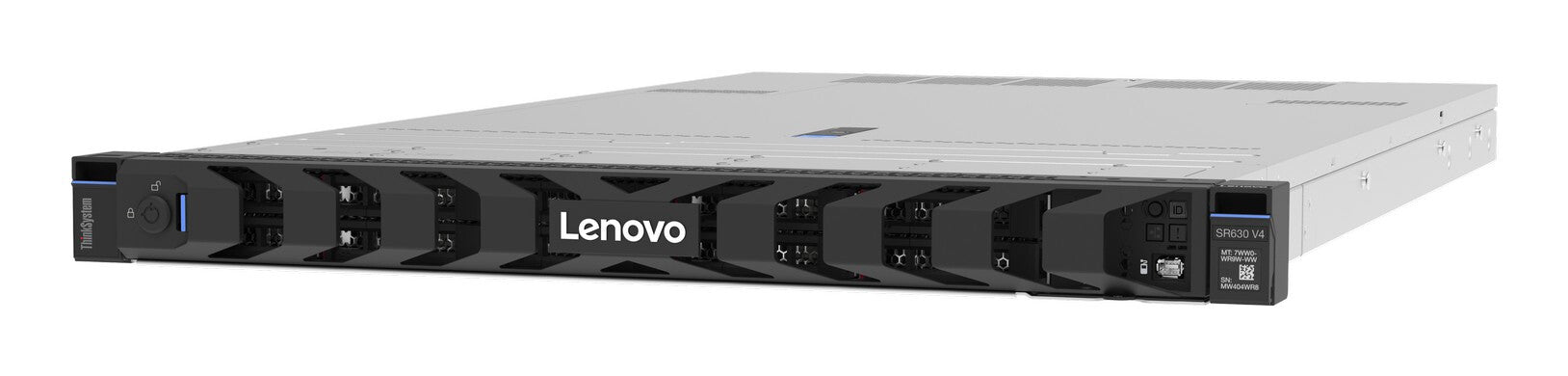

The Lenovo ThinkSystem SR630 V4 is an ideal 2-socket 1U rack server for customers that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. With two Intel Xeon 6700-series or 6500-series processors, the SR630 V4 is designed for high density and scale-out workloads in various customer segments.
This product guide provides essential pre-sales information to understand the ThinkSystem SR630 V4 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR630 V4 and consider its use in IT solutions.
Processor
Processor manufacturer
Intel
Processor family
Intel Xeon 6
Processor model
6505P
Processor frequency
2.2 GHz
Processor boost frequency
4.1 GHz
Processor cores
12
Processor cache
48 MB
Number of processors installed
1
Processor threads
32
Memory
Internal memory
32 GB
Internal memory type
DDR5-SDRAM
Memory ranking
2
Memory layout (slots x size)
1 x 32 GB
ECC
Yes
Memory slots
32x DIMM
Maximum internal memory
8 TB
Storage
Hot-swap
Yes
Optical drive type
No
Graphics
On-board graphics card
Yes
Maximum graphics card memory
16 MB
Network
Ethernet interface type
Gigabit Ethernet
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
VGA (D-Sub) ports quantity
1
Design
Chassis type
Rack (1U)
Cooling type
Active
Product colour
Black, Steel
Rack mounting
Yes
Performance
Performance management
XClarity Controller Platinum
Trusted Platform Module (TPM) version
2.0
Trusted Platform Module (TPM)
Yes
Software
Compatible operating systems
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server
Power
Redundant power supply (RPS) support
Yes
Power supply
1300 W
Number of main power supplies
2
general_information_attribute_container_name
attribute_product_family_name
ThinkSystem
Weight & dimensions
Width
440 mm
Height
43 mm
Depth
773 mm
Technical details
Compliance certificates
CCC, CE, CECP, Federal Communications Commission (FCC), RoHS, UKCA, UL
