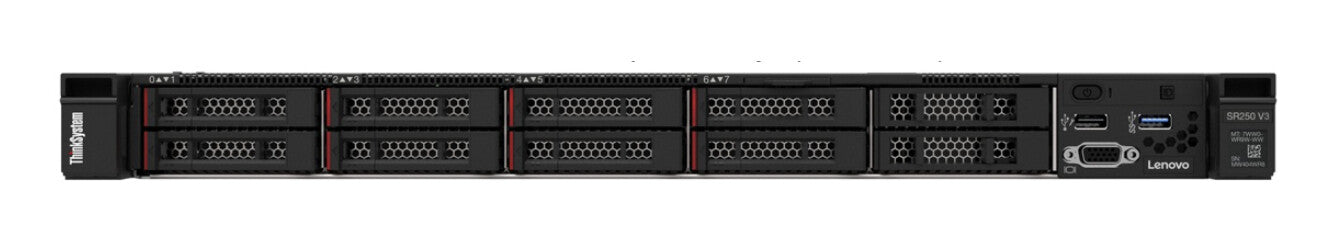

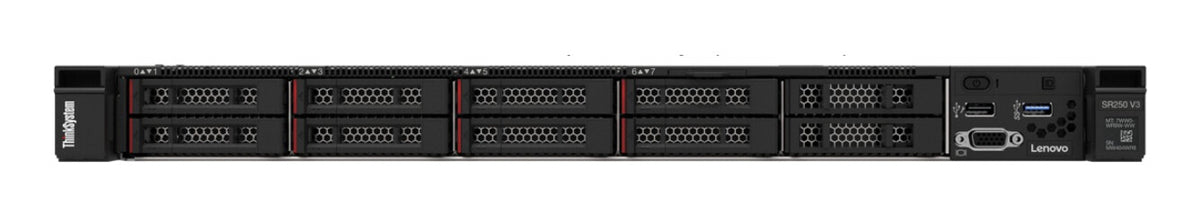

The Lenovo ThinkSystem SR250 V3 is a high-value single-socket 1U rack server for growing businesses that need optimized performance and flexibility for future growth, along with enterprise-class reliability, management, and security. The server supports the new Intel Xeon E-2400 Series processors, formerly codenamed "Raptor Lake-E".
This product guide provides essential presales information to understand the ThinkSystem SR250 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR250 V3 and consider its use in IT solutions.
Processor
Processor manufacturer
Intel
Processor family
Intel® Xeon®
Processor model
6353P
Processor frequency
2.7 GHz
Processor boost frequency
5.4 GHz
Performance cores
8
Processor cores
8
Processor cache
24 MB
Motherboard chipset
Intel C266
Number of processors installed
1
Memory
Internal memory
32 GB
Internal memory type
DDR5-SDRAM
Memory layout (slots x size)
1 x 32 GB
Memory clock speed
4800 MHz
ECC
Yes
Memory slots
4x DIMM
Maximum internal memory
128 GB
Storage
RAID support
Yes
Supported RAID controllers
545-8i
Internal drive bays
8
Supported storage drive interfaces
SAS, Serial ATA
Graphics
On-board graphics card
Yes
Maximum graphics card memory
16 MB
Network
LAN controller
Broadcom BCM5720
Ethernet interface type
Gigabit Ethernet
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
Serial ports quantity
1
VGA (D-Sub) ports quantity
1
Design
Chassis type
Rack (1U)
Product colour
Black, Silver
Performance
Performance management
XClarity Controller Platinum
Trusted Platform Module (TPM) version
2.0
Trusted Platform Module (TPM)
Yes
Software
Compatible operating systems
Microsoft Windows ServerRed Hat Enterprise LinuxSUSE Linux Enterprise ServerVMware ESXi
