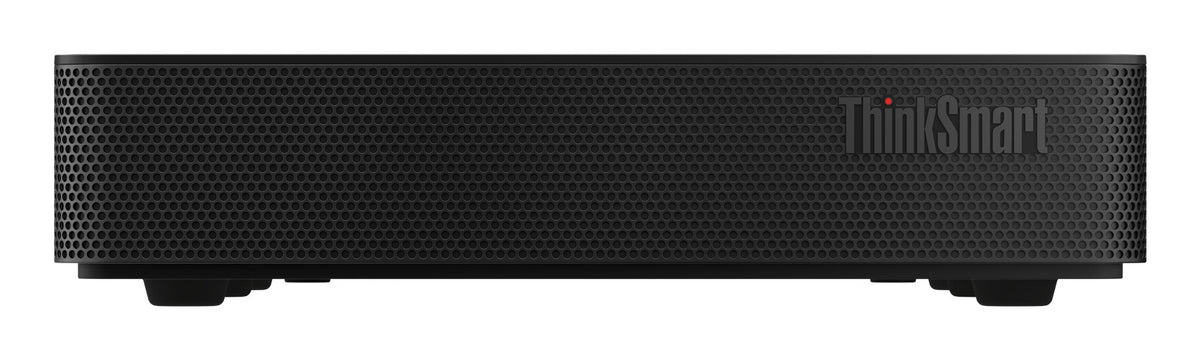

Lenovo ThinkSmart Core Gen 2+IPCTRL MTR video conferencing system Ethernet LAN

Intel Core Ultra 5 135H, 14C (4P + 8E + 2LPE), 2 x 8GB SO-DIMM DDR5-5600, 256GB SSD M.2 2280 PCIe 4.0, 10.1" Touch Controller, Intel Arc Graphics, Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3, Windows 11 IoT Enterprise for Collaboration GAC 64

Performance
Bluetooth	Yes
Bluetooth version	5.3
Product colour	Black

Memory
Internal memory type	DDR5
Internal memory	16384 MB
Storage media type	SSD
Total storage capacity	256 GB
Memory card slot(s)	No

Ports & interfaces
HDMI ports quantity	3
HDMI version	2.1
HDMI input ports quantity	1
HDMI output ports quantity	2
USB connector type	USB Type-A, USB Type-C
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes

Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6E (802.11ax)

Display
Display diagonal	25.6 cm (10.1")
Display resolution	1280 x 800 pixels
Contrast ratio (typical)	16:10
Touchscreen	Yes
Display brightness	340 cd/m²
Anti-glare screen	Yes

Computer system
Computer system type	Mini PC
Processor family	Intel Core Ultra 5
Processor model	135H
Operating system installed	Windows 11 IoT Enterprise GAC
Windows operating systems supported	Yes

Features
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes

Power
Power source type	AC
Power consumption (max)	170 W

Weight & dimensions
Width	185 mm
Depth	220 mm
Height	38 mm
Weight	1.01 kg

Packaging content
Packaging content	External Adapter Cage + Removable Cable Management Box + USB-C to USB-C 3M Active Optical Cable + VESA Mount Bracket
