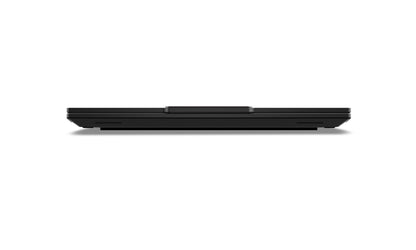

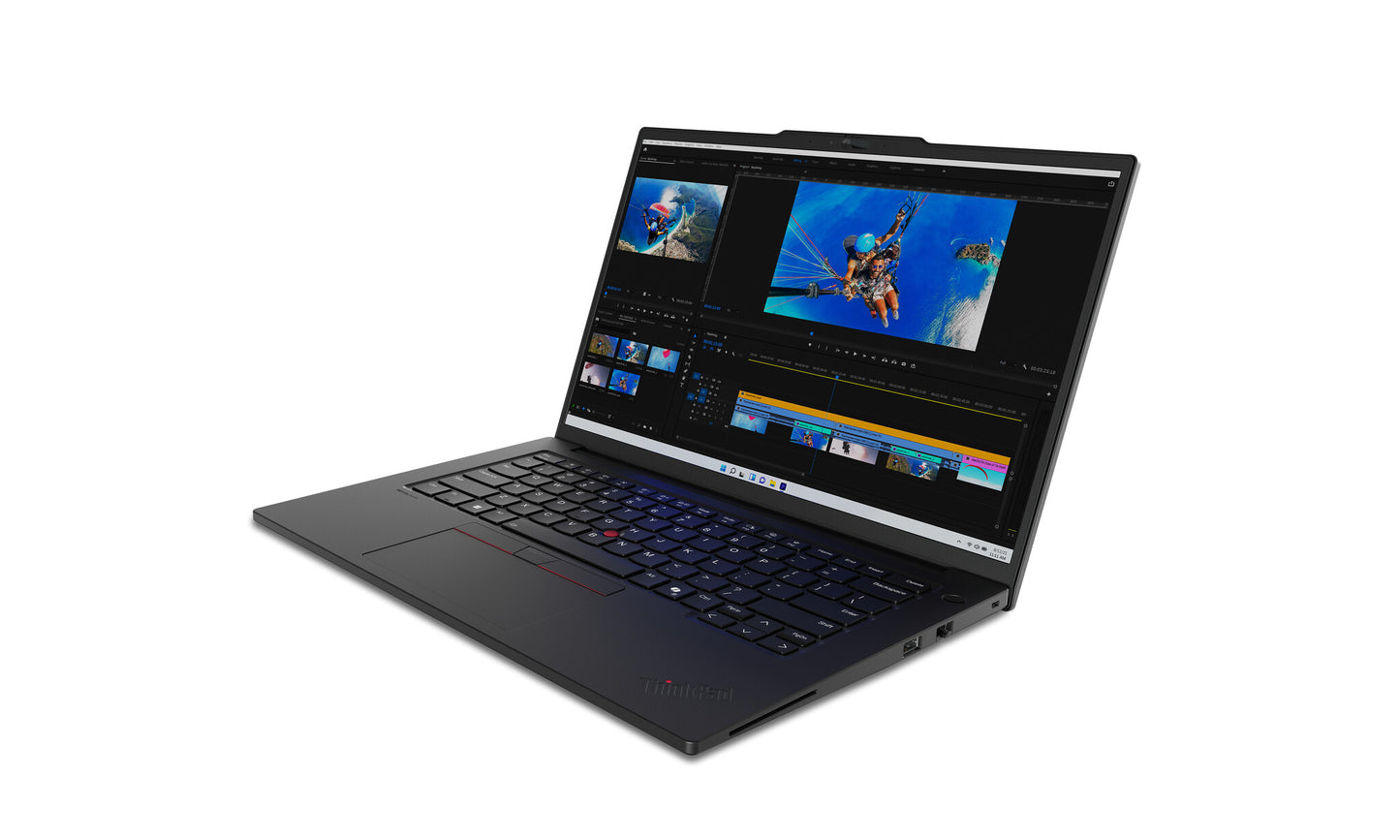

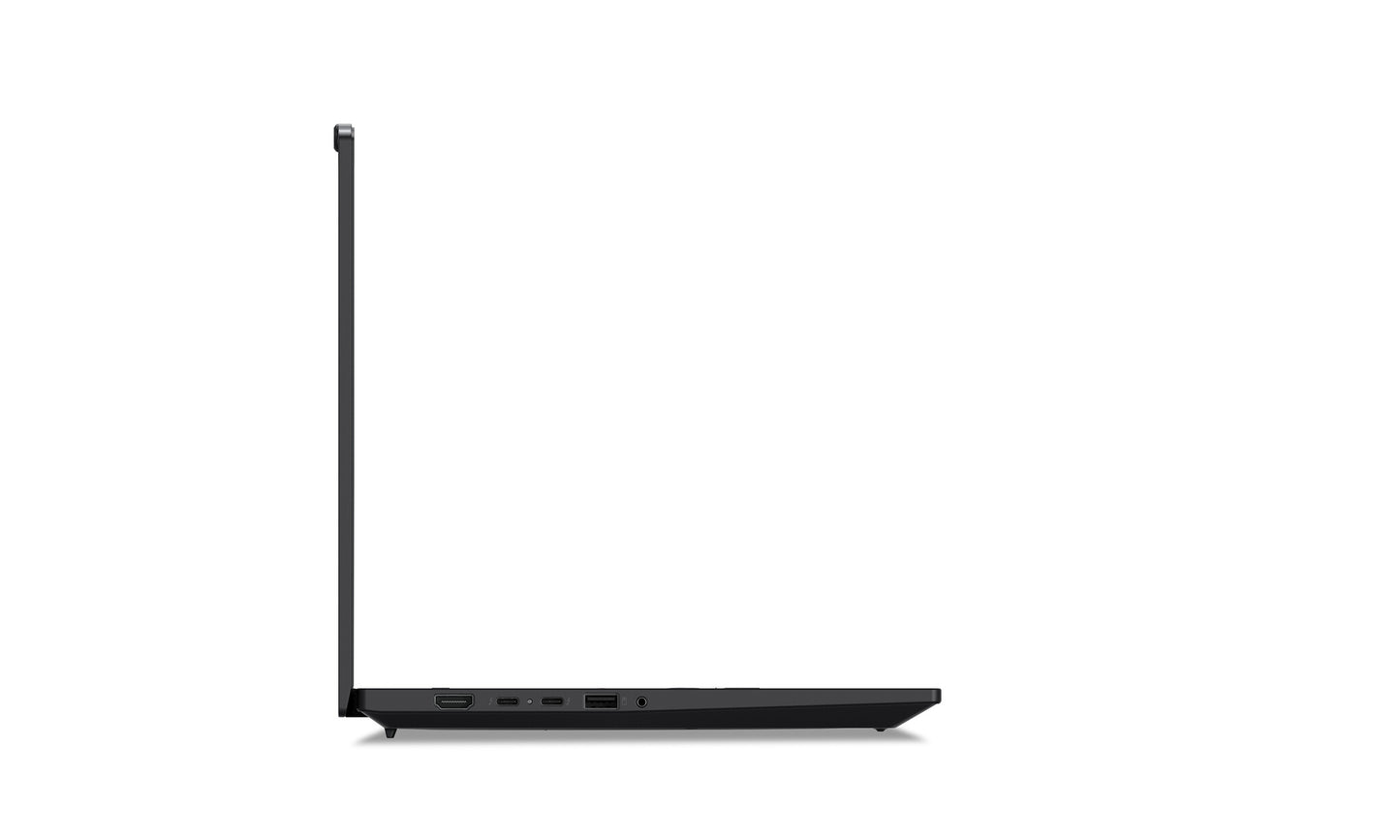

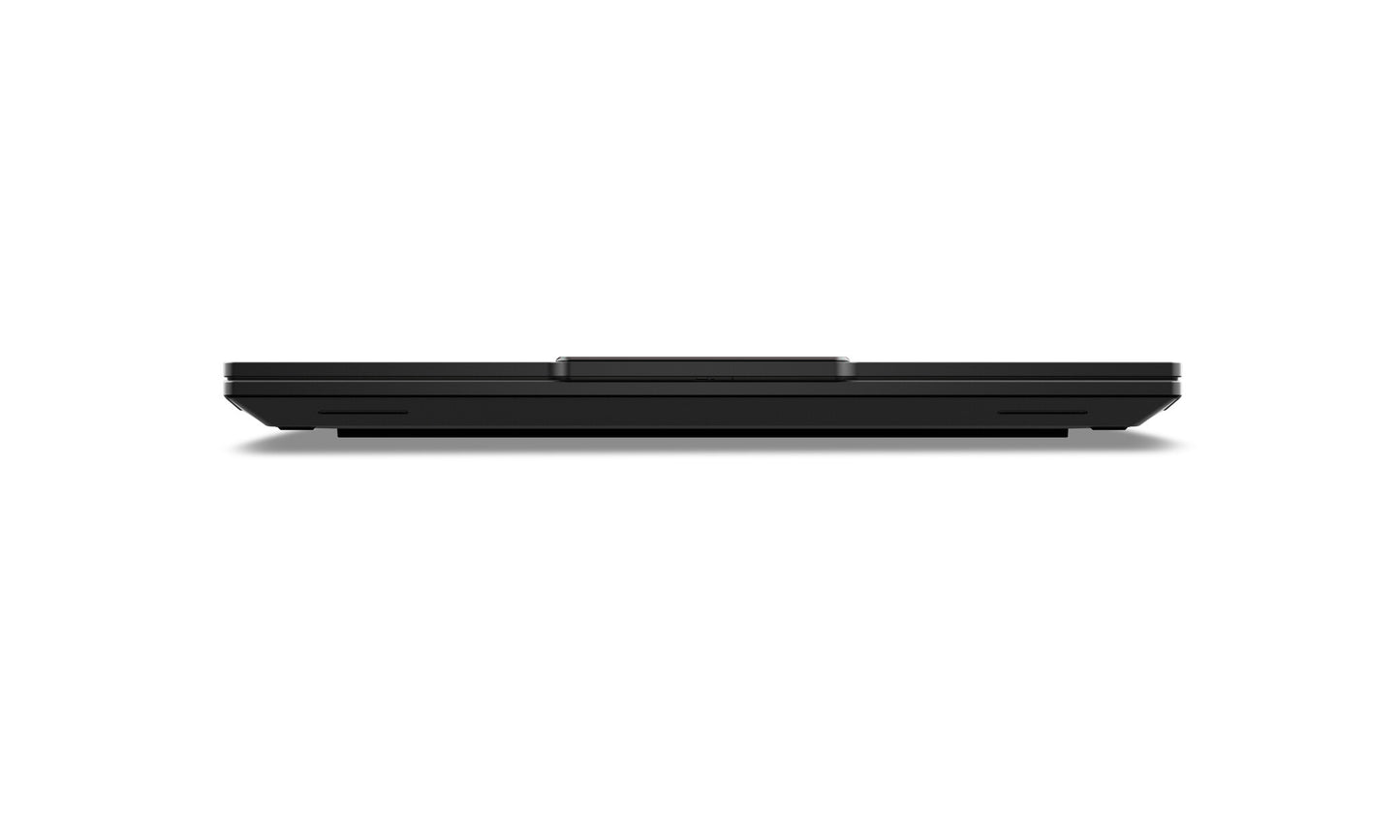

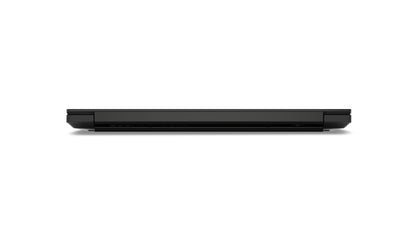

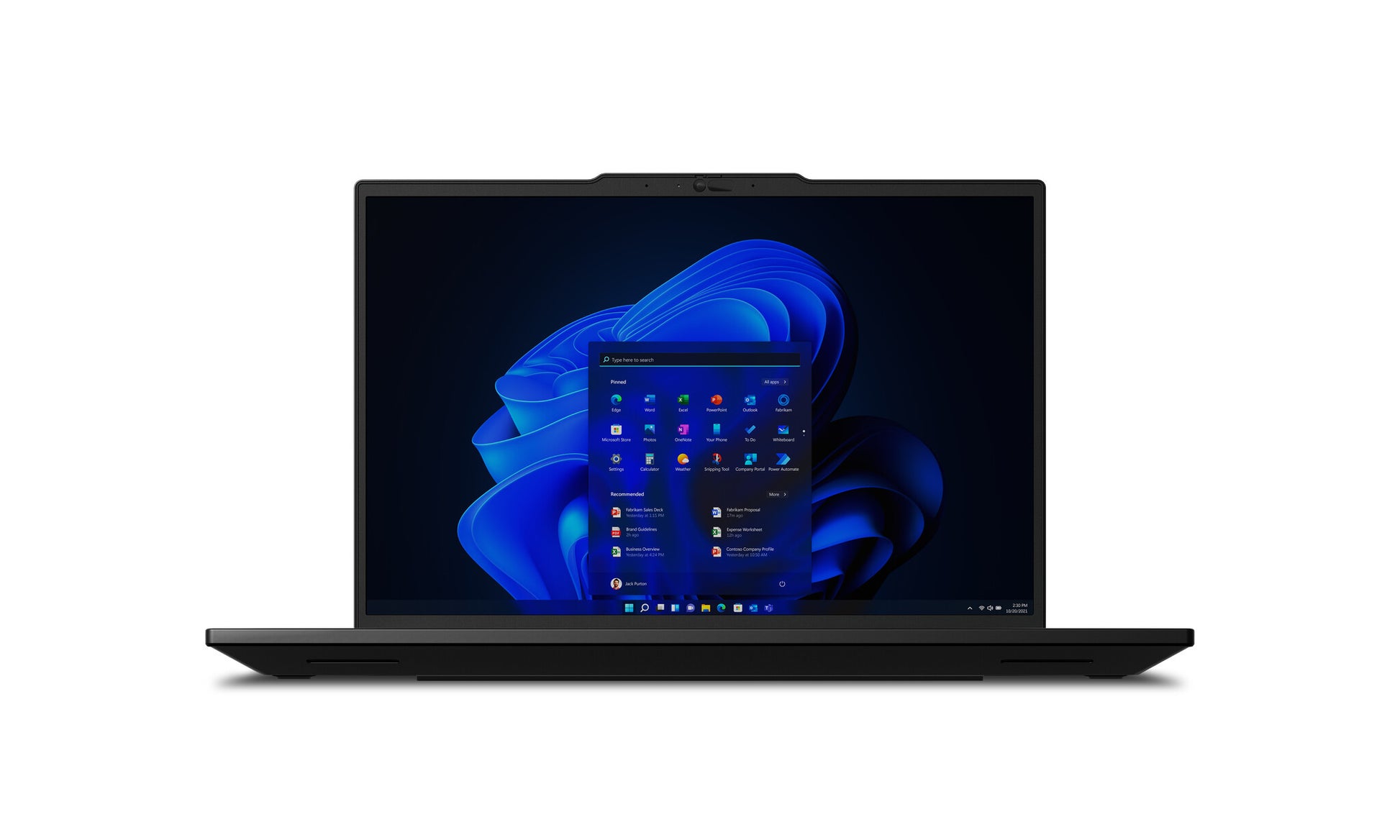

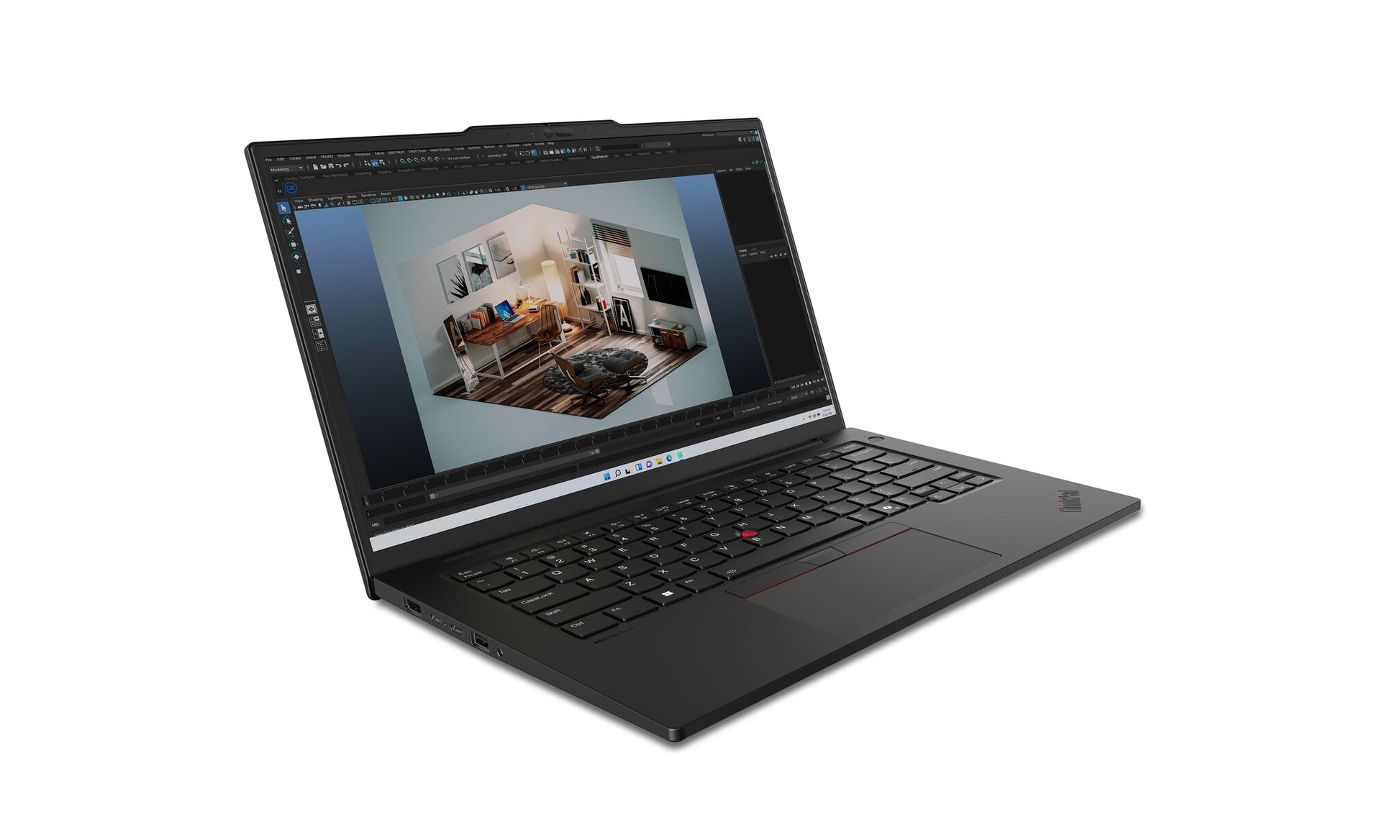

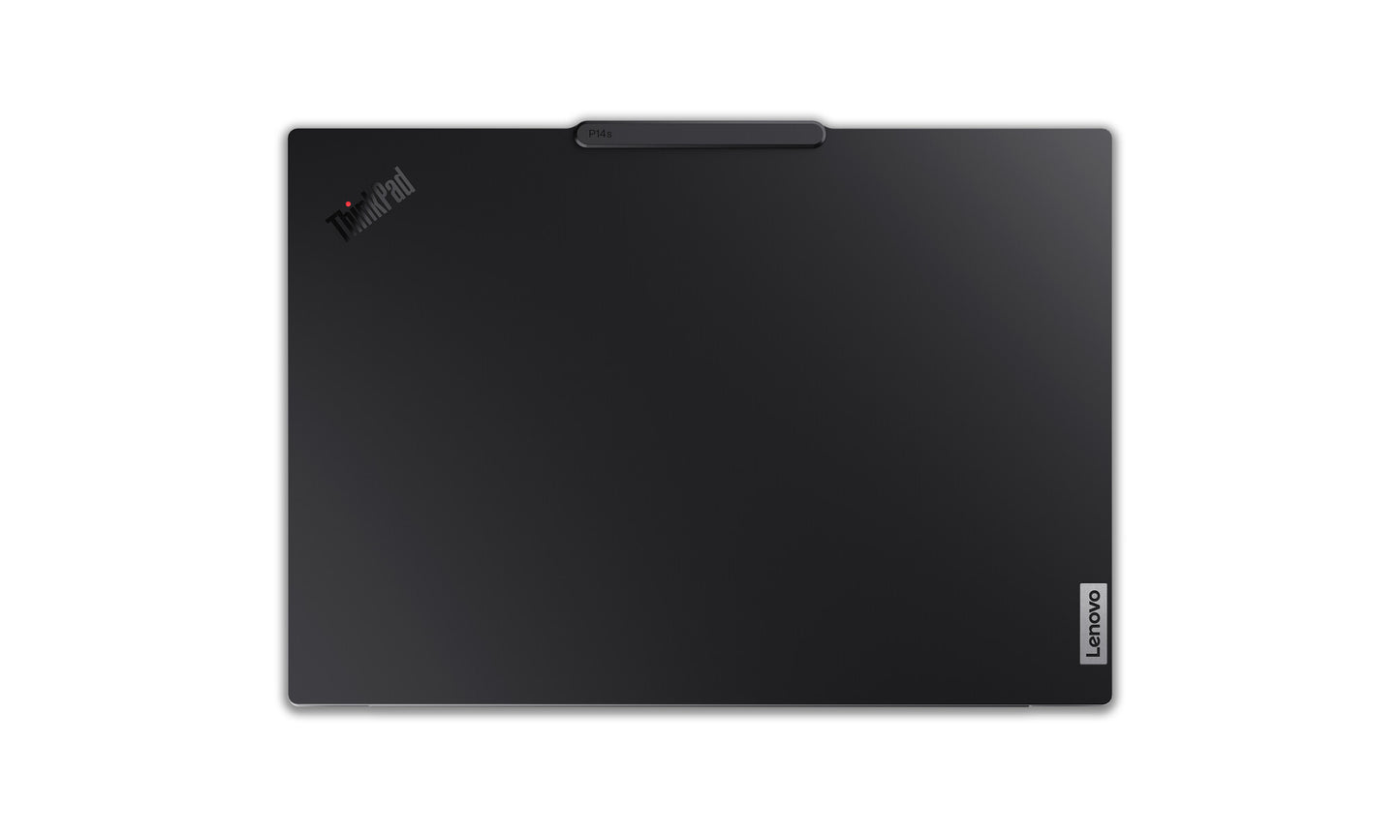

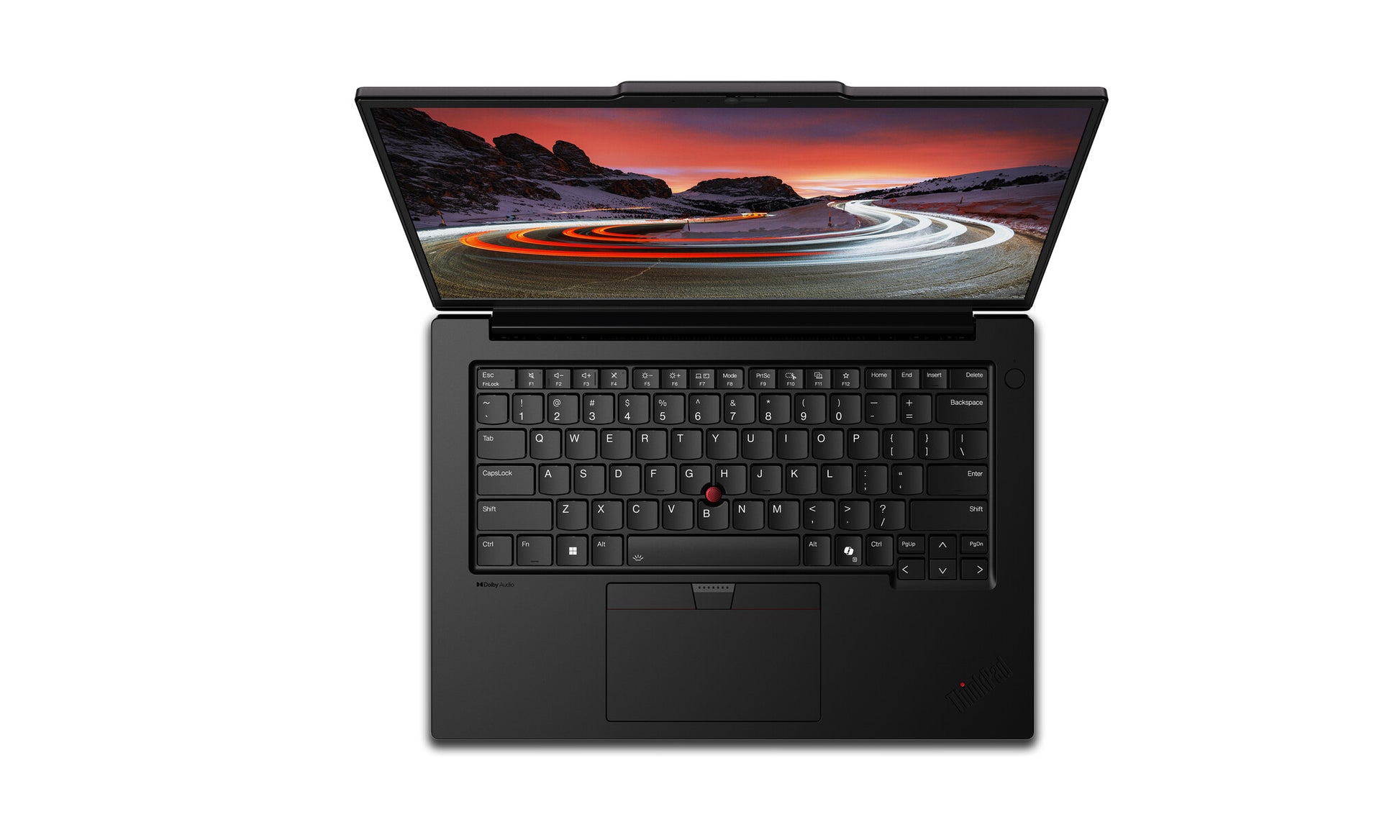

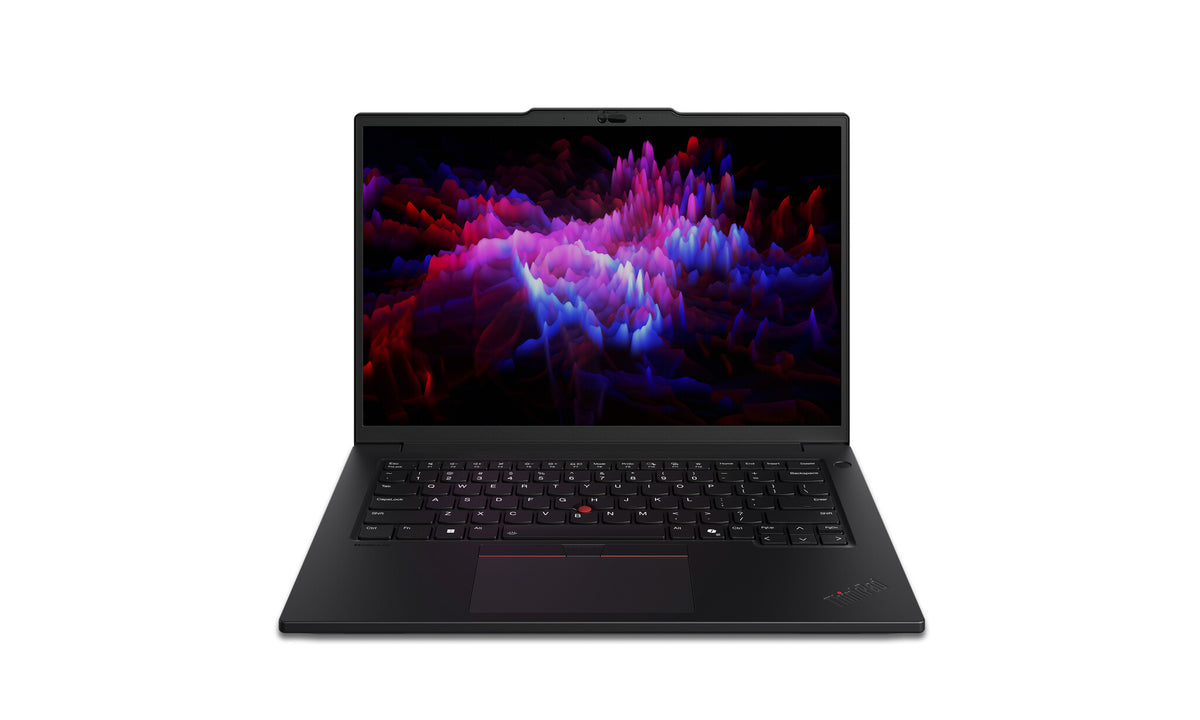

Lenovo ThinkPad P14s Gen 5 (Intel) Intel Core Ultra 7 155H Laptop 36.8 cm (14.5") WUXGA 16 GB DDR5-SDRAM 512 GB SSD NVIDIA RTX 500 Ada Wi-Fi 6E (802.11ax) Windows 11 Pro UK English Black
Intel Core Ultra 7 155H, 16C (6P + 8E + 2LPE)/22T, Max Turbo up to 4.8GHz, 24MB, 1x 16GB SO-DIMM DDR5-5600 Non-ECC, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, 14.5" WUXGA (1920x1200) IPS 300nits 45% NTSC 60Hz Eyesafe TÜV Low Blue Light, NVIDIA RTX 500 Ada Generation 4GB, Intel Wi-Fi 6E AX211 802.11ax 2x2 + BT5.3, 5.0MP + IR with Privacy Shutter and Human Presence Detection, Windows 11 Pro
Ultra Performance That Moves With You - 14.5” lightweight power-efficient laptop with Intel® Core™ Ultra performance - Responsive memory & smooth data transfers for effortless workflow management - AI-accelerated productivity for smooth multitasking & collaboration on the move - Independent software vendor (ISV) certifications like Altair®, ANSYS® , Barco®
Design
Product type
Laptop
Product colour
Black
Colour name
Black
Form factor
Clamshell
Housing material
Aluminium
Display
Display diagonal
36.8 cm (14.5")
Display resolution
1920 x 1200 pixels
Touchscreen
No
HD type
WUXGA
Panel type
IPS
Native aspect ratio
16:10
LED backlight
Yes
Anti-glare screen
Yes
Display brightness
300 cd/m²
Colour gamut
45%
RGB colour space
NTSC
Maximum refresh rate
60 Hz
Contrast ratio (typical)
800:1
Processor
Processor manufacturer
Intel
Processor family
Intel Core Ultra 7
Processor generation
Intel® Core™ Ultra (Series 1)
Processor model
155H
Processor cores
16
Processor threads
22
Processor boost frequency
4.8 GHz
Performance cores
6
Efficient cores
8
Low Power Efficient-cores
2
Performance-core Max Turbo Frequency
4.8 GHz
Efficient-core Max Turbo Frequency
3.8 GHz
Low Power Efficient-core Max Turbo Frequency
2.5 GHz
Performance-core base frequency
1.4 GHz
Efficient-core base frequency
0.9 GHz
Low Power Efficient-core Base Frequency
700 MHz
Processor cache
24 MB
Processor cache type
Smart Cache
Maximum turbo power
115 W
Processor base power
28 W
Neural processor unit (NPU)
Neural processor unit (NPU)
Intel AI Boost
Maximum frequency NPU
1.4 GHz
Sparsity support
Yes
Windows Studio effects support
Yes
AI datatype support on NPU
FP16, FP32, Int8
AI software frameworks supported by NPU
DirectML, ONNX RT, OpenVINO, Windows ML
Memory
Internal memory
16 GB
Internal memory type
DDR5-SDRAM
Memory form factor
SO-DIMM
Memory clock speed
5600 MHz
Memory layout (slots x size)
1 x 16 GB
Memory slots
2x SO-DIMM
Maximum internal memory
96 GB
Non-ECC
Yes
Storage
Total storage capacity
512 GB
Storage media
SSD
Total SSDs capacity
512 GB
Number of SSDs installed
1
SSD capacity
512 GB
NVMe
Yes
SSD interface
PCI Express 4.0
SSD form factor
M.2
Optical drive type
No
Card reader integrated
No
Graphics
On-board graphics card
Yes
Discrete graphics card
Yes
Discrete GPU manufacturer
NVIDIA
Discrete graphics card model
NVIDIA RTX 500 Ada
Discrete graphics card memory
4 GB
Discrete graphics memory type
GDDR6
On-board GPU manufacturer
Intel
On-board graphics card family
Intel Arc Graphics
On-board graphics card model
Intel Arc Graphics
Audio
Audio chip
Realtek ALC3287
Audio system
Dolby Audio
Number of built-in speakers
2
Speaker power
2 W
Number of microphones
2
Built-in microphone
Yes
Camera
Front camera
Yes
Front camera resolution (numeric)
5 MP
Infrared (IR) camera
Yes
Privacy camera
Yes
Privacy type
Privacy shutter
Network
Mobile network connection
No
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Antenna type
2x2
WLAN controller manufacturer
Intel
WLAN controller model
Intel Wi-Fi 6E AX211
Ethernet LAN
Yes
Ethernet LAN data rates
1000,100 Mbit/s
Bluetooth
Yes
Bluetooth version
5.3
Near Field Communication (NFC)
No
WWAN
Not installed
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.1
Thunderbolt 4 ports quantity
2
Intel® Thunderbolt 4
Yes
Combo headphone/mic port
Yes
USB Type-C DisplayPort Alternate Mode
Yes
USB Power Delivery
Yes
USB Sleep-and-Charge
Yes
USB Sleep-and-Charge ports
1
Performance
Motherboard chipset
Intel SoC
Keyboard
Pointing device
ThinkPad UltraNav
Keyboard language
UK English
Keyboard backlit
Yes
Numeric keypad
No
Spill-resistant keyboard
Yes
Software
Operating system installed
Windows 11 Pro
Operating system architecture
64-bit
Operating system language
English
Battery
Battery technology
Lithium Polymer (LiPo)
Battery capacity
57 Wh
Fast charging
Yes
Power
AC adapter power
135 W
AC adapter frequency
50/60 Hz
AC adapter input voltage
100 - 240 V
Security
Cable lock slot
Yes
Cable lock slot type
Kensington
Smart card reader
Yes
Fingerprint reader
Yes
Windows Hello
Yes
Trusted Platform Module (TPM) version
2.0
Trusted Platform Module (TPM)
Yes
Password protection
Yes
Password protection type
BIOS, Power on, SSD, Supervisor
Operational conditions
Operating temperature (T-T)
5 - 35 °C
Storage temperature (T-T)
5 - 43 °C
Operating relative humidity (H-H)
8 - 95%
Storage relative humidity (H-H)
5 - 95%
Maximum shipping altitude
3048 m
Certificates
Compliance certificates
RoHS
Certification
ENERGY STAR 8.0EPEAT Gold RegisteredRoHS compliantTCO Certified 9.0MIL-STD-810H military test passedEyesafe® Certified 2.0TÜV Rheinland® Low Blue Light
