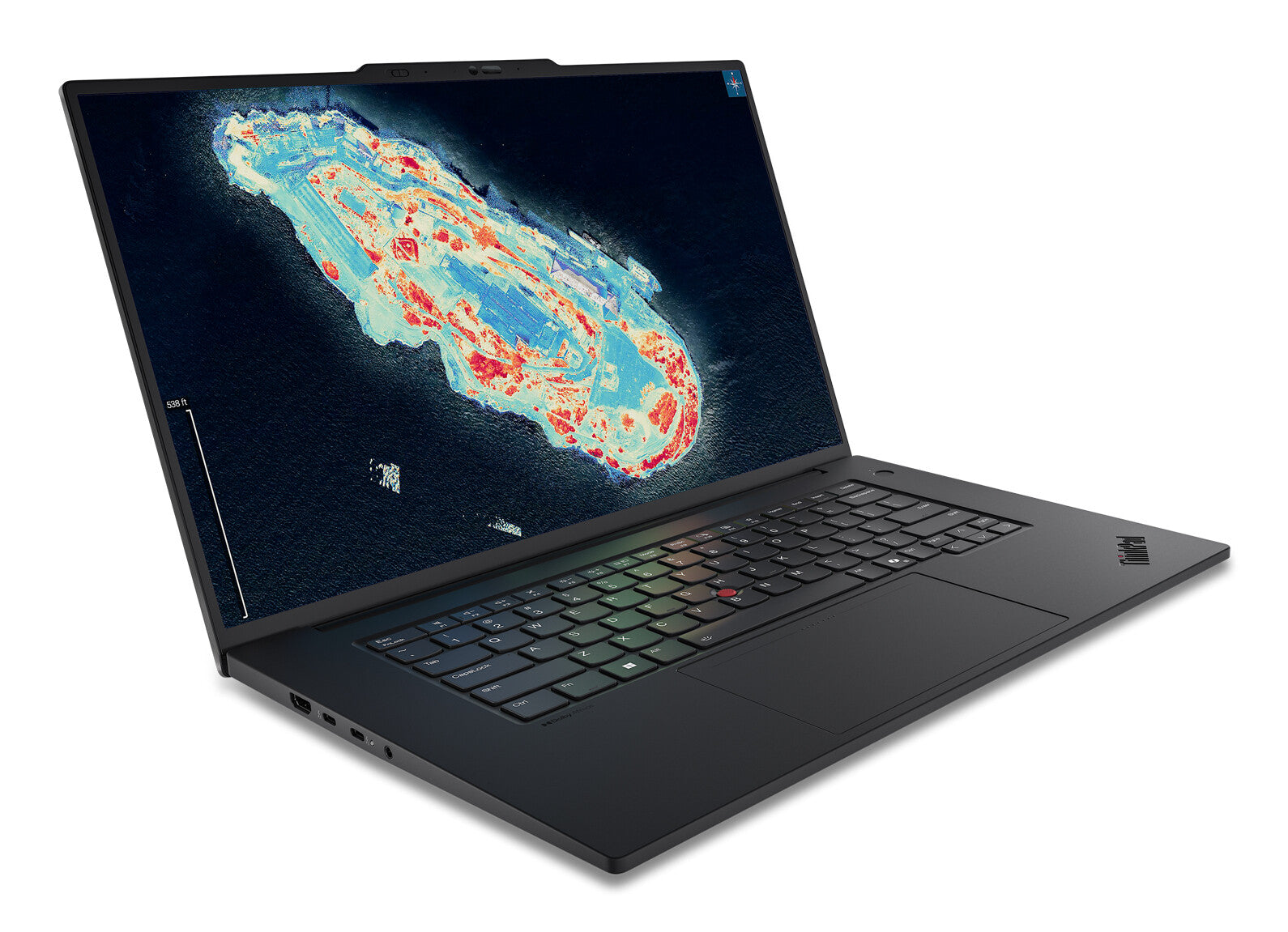

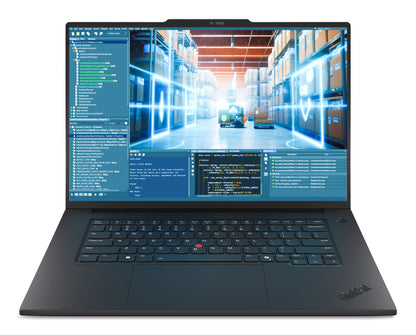

Lenovo ThinkPad P1 Gen 8 Intel Core Ultra 7 255H Mobile workstation 40.6 cm (16") WUXGA 32 GB LPDDR5x-SDRAM 1 TB SSD NVIDIA RTX PRO 1000 Blackwell Wi-Fi 7 (802.11be) Windows 11 Pro English Black
Intel Core Ultra 7 255H, 16C (6P + 8E + 2LPE)/16T, Max Turbo up to 5.1GHz, 24MB Intel Smart Cache
16" WUXGA (1920x1200) IPS 500nits 100% sRGB 60Hz Low Power Eyesafe TÜV Low Blue Light
32GB LPCAMM2 LPDDR5x-7467
1TB SSD M.2 2280 PCIe 5.0x4 NVMe Opal 2.0
NVIDIA RTX PRO 1000 Blackwell Generation 8GB GDDR7 Laptop GPU
Windows 11 Pro
Intel Core Ultra 7 255H, 16C (6P + 8E + 2LPE)/16T, Max Turbo up to 5.1GHz, 24MB Intel Smart Cache, 32GB LPCAMM2 LPDDR5x-7467, 1TB SSD M.2 2280 PCIe 5.0x4 NVMe Opal 2.0, 16" WUXGA (1920x1200) IPS 500nits 100% sRGB 60Hz Low Power Eyesafe TÜV Low Blue Light, NVIDIA RTX PRO 1000 Blackwell Generation 8GB GDDR7 Laptop GPU, Intel Wi-Fi 7 BE201 802.11be 2x2 + BT5.4, Windows 11 Pro
The Power You Need, The Machine You Want A powerful, AI-ready mobile workstation tailored for creatives & power users with demanding workloads.
- 16" mobile workstation with AI efficiency & Intel® Core™ Ultra (Series 2) processors - Superior computing & fast visual rendering via up to NVIDIA RTX PRO™ 2000 Blackwell graphics - Enterprise-grade performance, security & manageability with lntel vPro® option
Design
Product type
Mobile workstation
Product colour
Black
Form factor
Clamshell
Display back cover material
Aluminium
Housing material
Aluminium
Market positioning
High performance
Display
Display diagonal
40.6 cm (16")
Display resolution
1920 x 1200 pixels
Touchscreen
No
HD type
WUXGA
Panel type
IPS
Native aspect ratio
16:10
LED backlight
Yes
Anti-glare screen
Yes
Display brightness
500 cd/m²
Colour gamut
100%
RGB colour space
sRGB
Maximum refresh rate
60 Hz
Processor
Processor manufacturer
Intel
Processor family
Intel Core Ultra 7
Processor generation
Intel Core Ultra (Series 2)
Processor model
255H
Processor cores
16
Processor threads
16
Processor boost frequency
5.1 GHz
Performance cores
6
Efficient cores
8
Low Power Efficient-cores
2
Performance-core Max Turbo Frequency
5.1 GHz
Efficient-core Max Turbo Frequency
4.4 GHz
Low Power Efficient-core Max Turbo Frequency
2.5 GHz
Performance-core base frequency
2 GHz
Efficient-core base frequency
1.5 GHz
Low Power Efficient-core Base Frequency
700 MHz
Processor cache
24 MB
Maximum turbo power
115 W
Processor base power
28 W
Neural processor unit (NPU)
Neural processor unit (NPU)
Intel AI Boost
Sparsity support
Yes
Windows Studio effects support
Yes
AI software frameworks supported by NPU
DirectML, ONNX RT, OpenVINO, Windows ML
Total processor performance up to
96 TOPs
NPU performance up to
13 TOPs
GPU performance up to
74 TOPs
Memory
Internal memory
32 GB
Internal memory type
LPDDR5x-SDRAM
Memory clock speed
7467 MHz
Maximum internal memory
64 GB
Storage
Total storage capacity
1 TB
Storage media
SSD
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD capacity
1 TB
NVMe
Yes
SSD interface
PCI Express 5.0
SSD form factor
M.2
Optical drive type
No
Card reader integrated
Yes
Compatible memory cards
SD
Graphics
On-board graphics card
Yes
Discrete graphics card
Yes
Discrete graphics card model
NVIDIA RTX PRO 1000 Blackwell
Discrete graphics card memory
8 GB
Discrete graphics memory type
GDDR7
On-board GPU manufacturer
Intel
On-board graphics card family
Intel Arc Graphics
On-board graphics card model
Intel Arc 140T
Audio
Number of built-in speakers
2
Speaker power
2 W
Number of microphones
2
Built-in microphone
Yes
Camera
Front camera
Yes
Front camera resolution (numeric)
5 MP
Infrared (IR) camera
Yes
Privacy camera
Yes
Privacy type
Privacy shutter
Network
Mobile network connection
No
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Antenna type
2x2
WLAN controller manufacturer
Intel
Ethernet LAN
No
Bluetooth
Yes
Bluetooth version
5.4
Near Field Communication (NFC)
No
WWAN
Not installed
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
HDMI ports quantity
1
HDMI version
2.1
Thunderbolt 5 ports quantity
2
Thunderbolt 4 ports quantity
1
Intel® Thunderbolt 5
Yes
Intel® Thunderbolt 4
Yes
Combo headphone/mic port
Yes
USB Power Delivery
Yes
USB Sleep-and-Charge
Yes
Performance
Motherboard chipset
Intel SoC
Keyboard
Pointing device
ThinkPad UltraNav
Keyboard language
English
Keyboard backlit
Yes
Numeric keypad
No
Software
Operating system installed
Windows 11 Pro
Bundled software
Lenovo AI Now + Intel Connectivity Performance Suite
