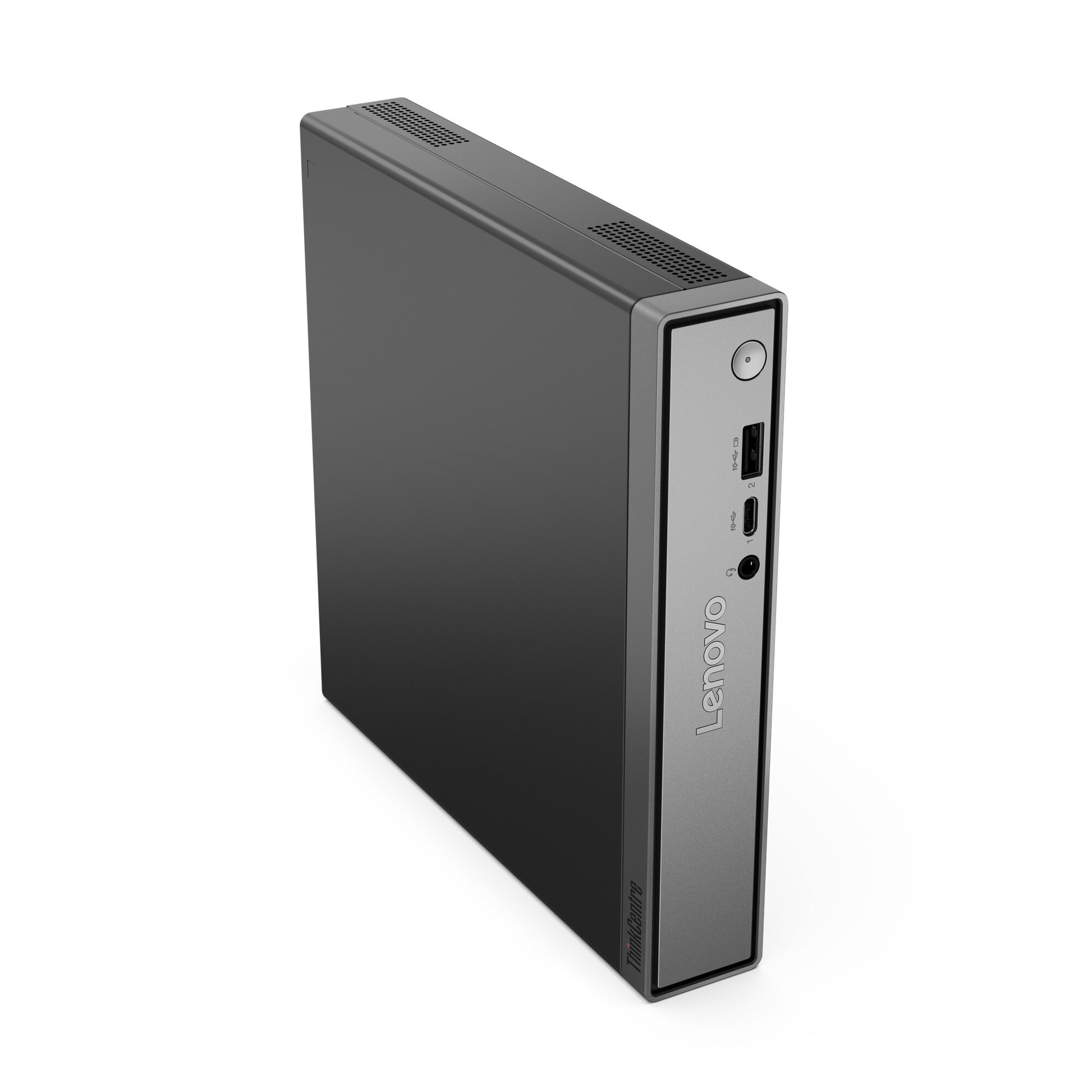

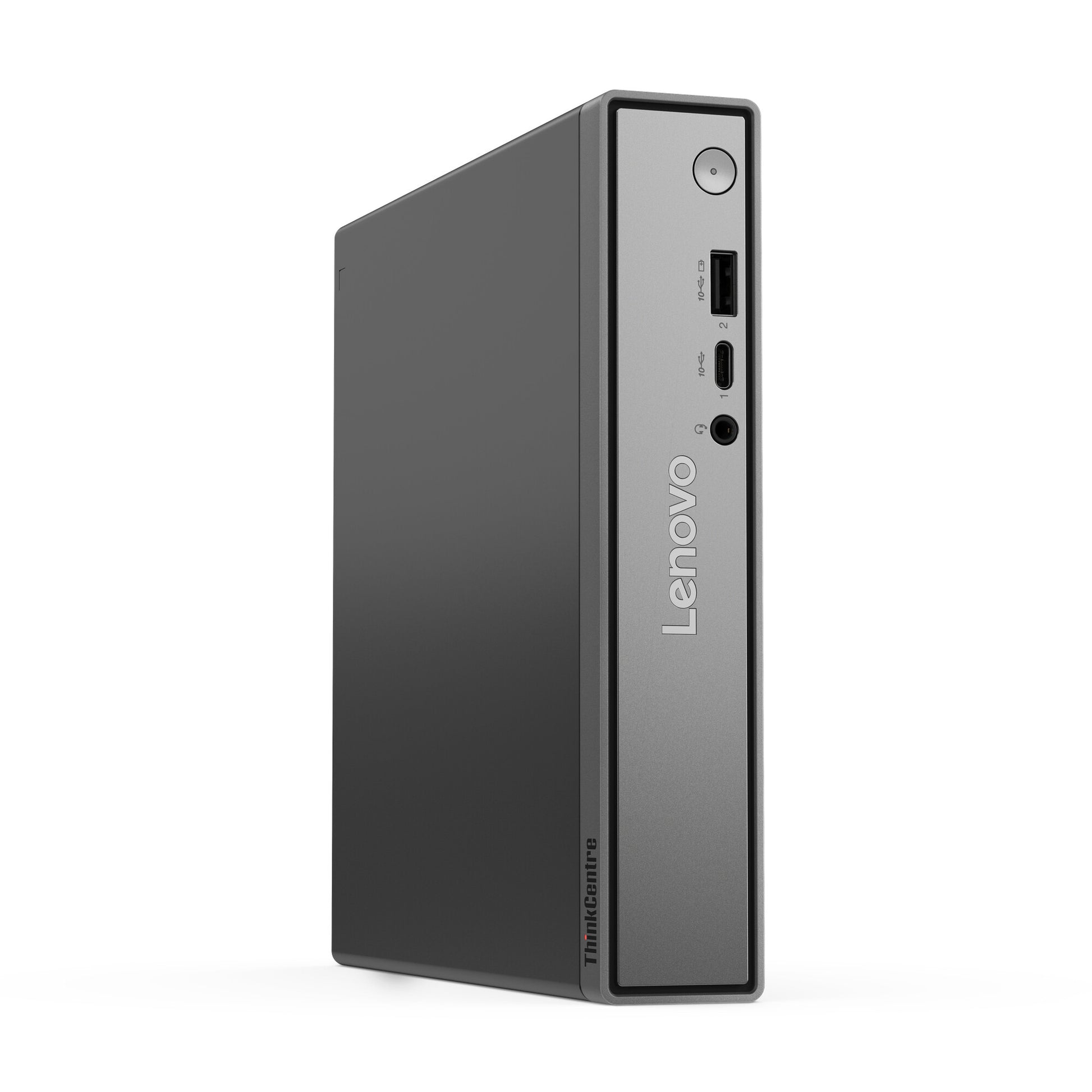

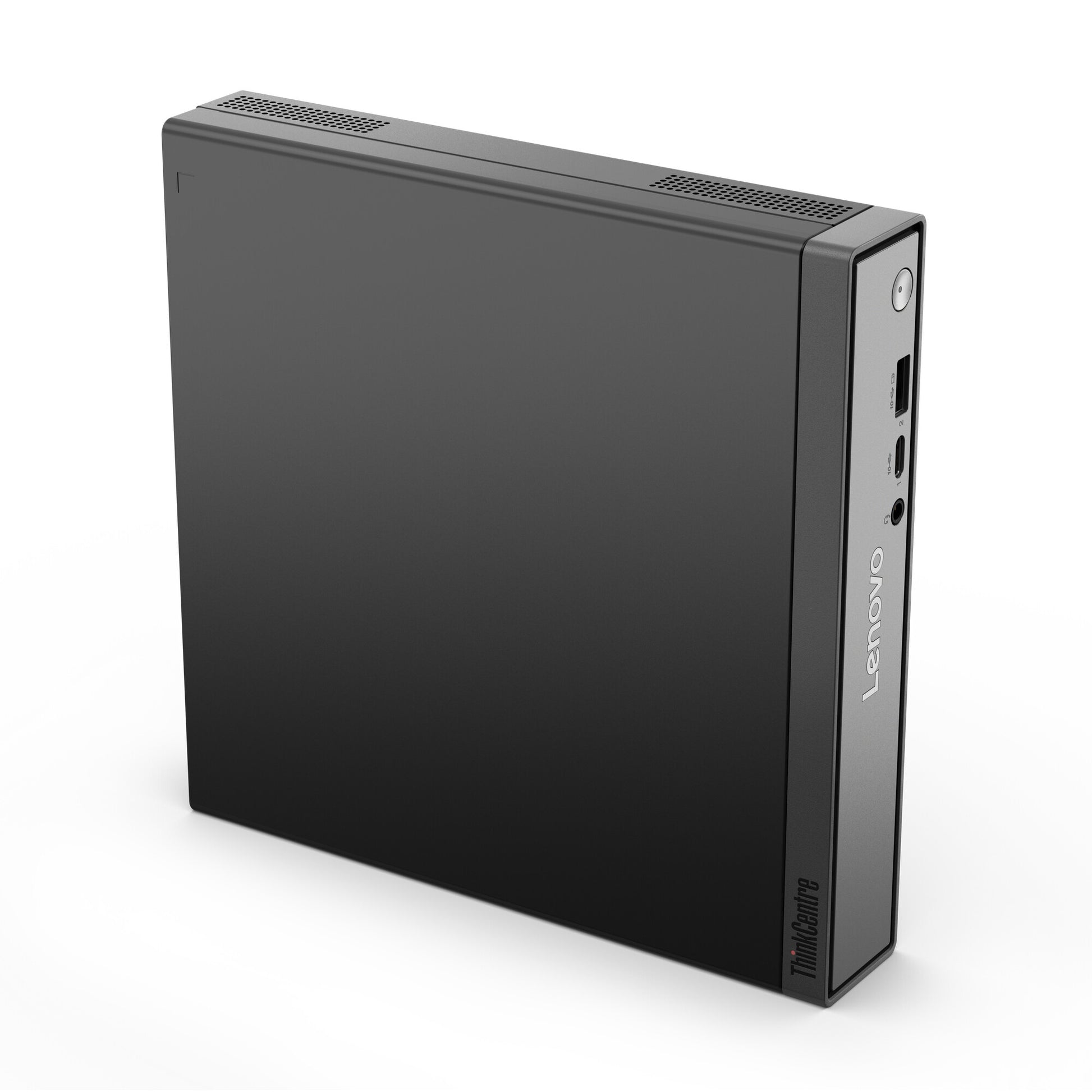

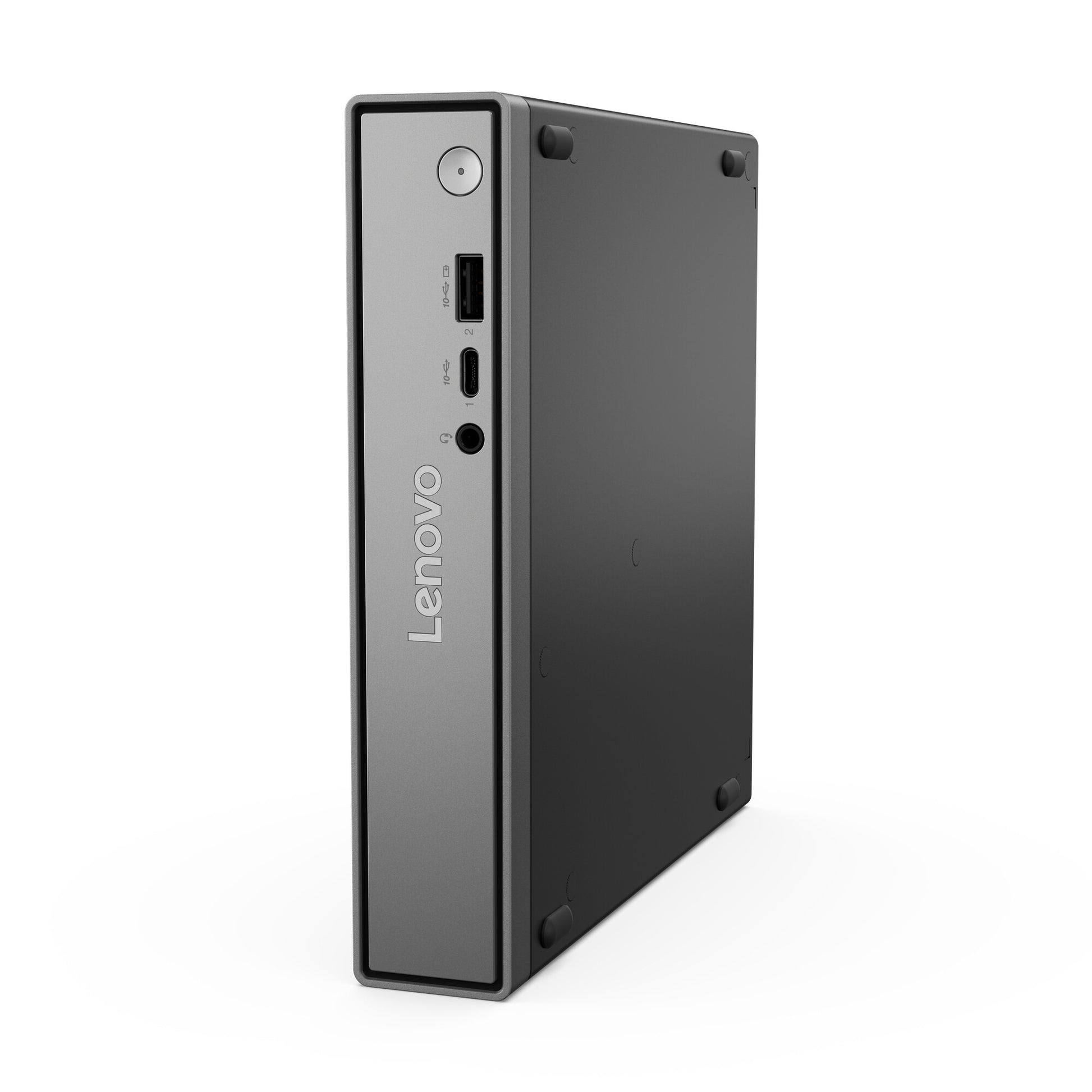

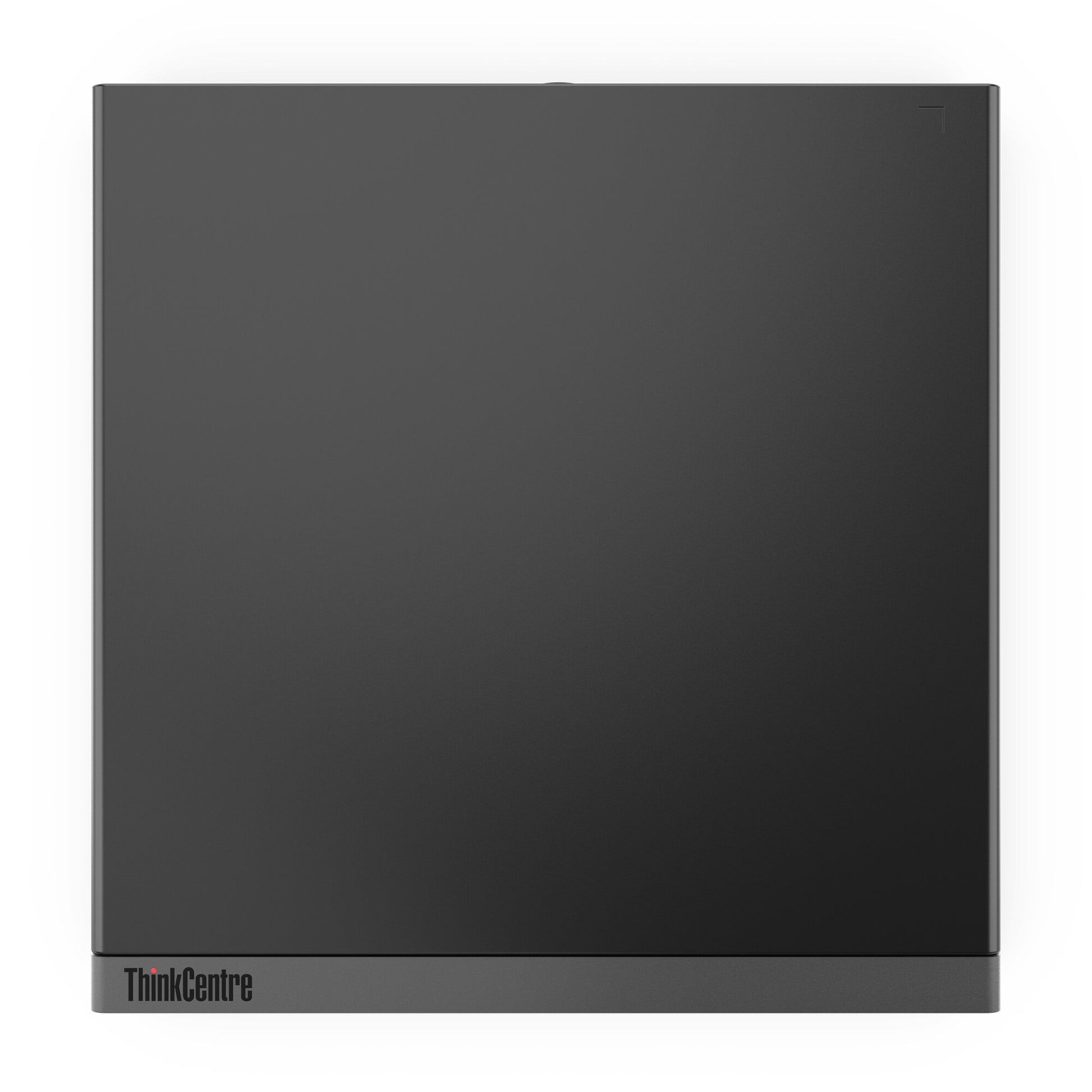

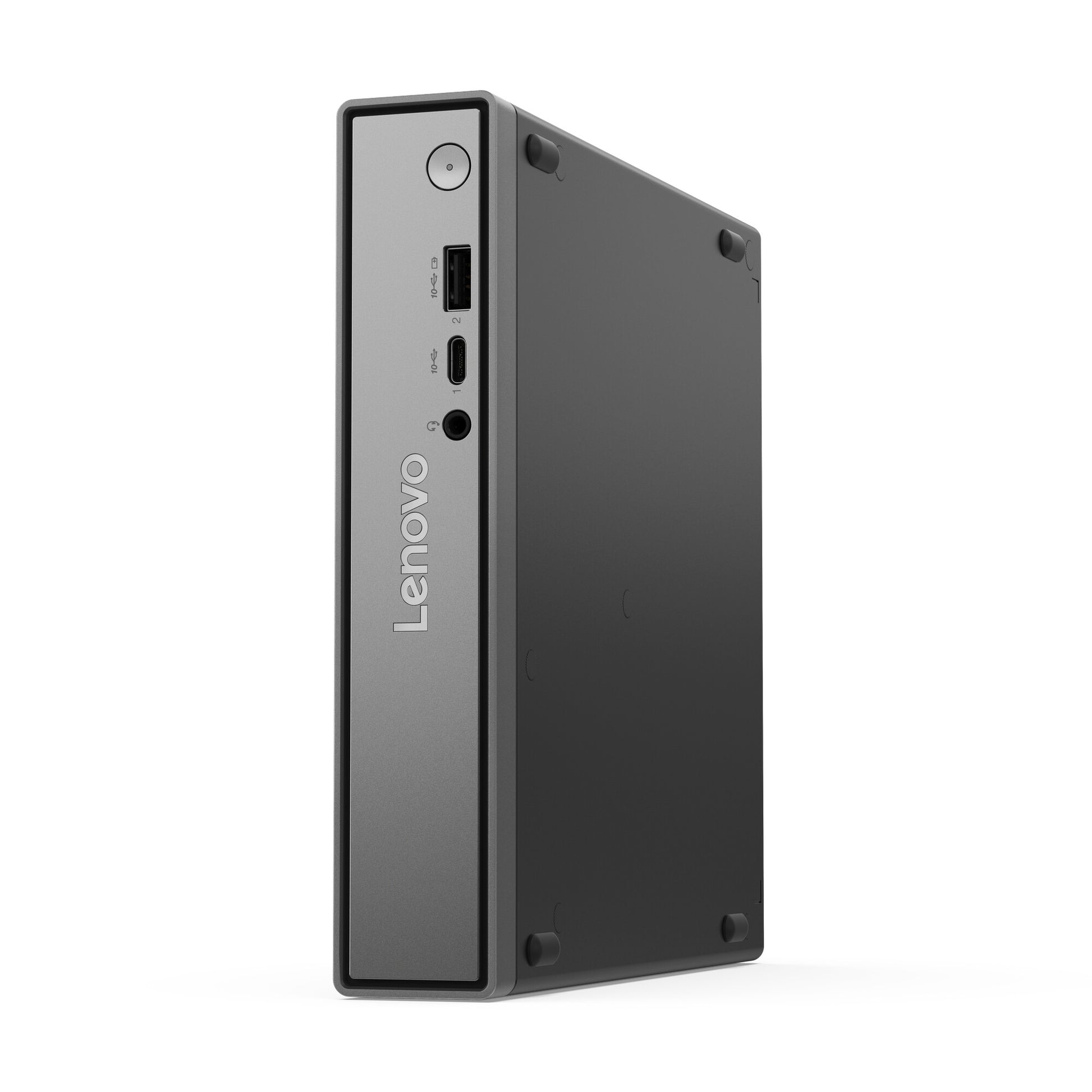

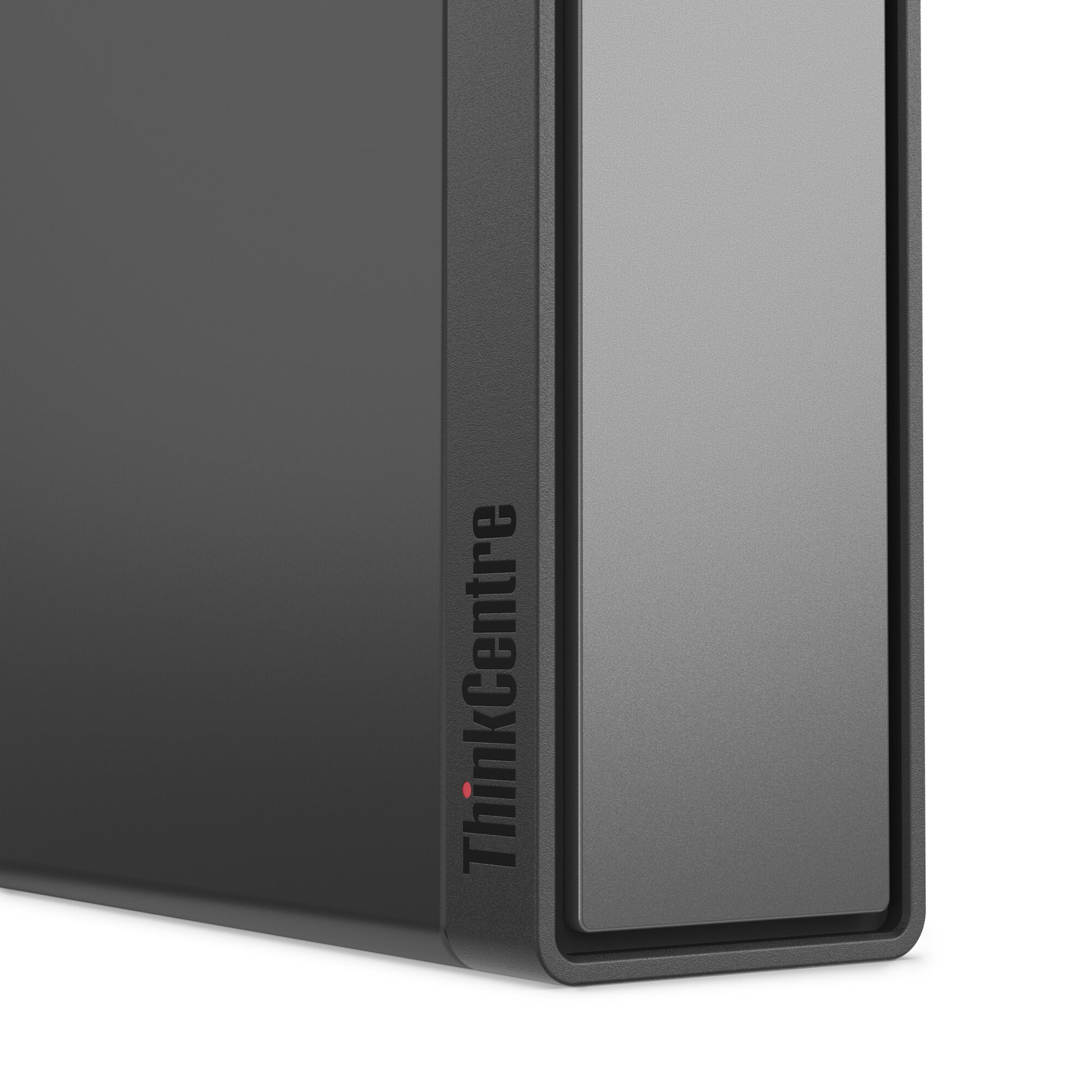

Tiny PC With Heavyweight Performance - 1L Tiny PC with Intel® Core™ processing power - ICE 7.0 for efficient device performance - Ample connectivity options for multitasking
Processor
Processor manufacturer
Intel
Processor family
Intel Core 5
Processor generation
Intel Core (Series 2)
Processor model
210H
Processor cores
8
Processor threads
12
Processor boost frequency
4.8 GHz
Performance cores
4
Efficient cores
4
Efficient-core Max Turbo Frequency
3.6 GHz
Performance-core base frequency
2.2 GHz
Efficient-core base frequency
1.6 GHz
Processor cache
12 MB
Processor cache type
Smart Cache
Number of processors installed
1
Maximum turbo power
115 W
Processor base power
45 W
Memory
Internal memory
8 GB
Maximum internal memory
64 GB
Internal memory type
DDR5-SDRAM
Memory layout (slots x size)
1 x 8 GB
Memory slots
2x SO-DIMM
Memory clock speed
5600 MHz
Memory channels
Dual-channel
Storage
Total storage capacity
256 GB
Optical drive type
No
Storage media
SSD
Total SSDs capacity
256 GB
Number of SSDs installed
1
SSD capacity
256 GB
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
M.2 SSD size
2280 (22 x 80 mm)
Card reader integrated
No
Graphics
Discrete graphics card
No
On-board graphics card
Yes
Discrete graphics card model
Not available
On-board GPU manufacturer
Intel
On-board graphics card family
Intel® Graphics
On-board graphics card model
Intel® Graphics
Network
Ethernet LAN
Yes
Ethernet LAN data rates
100,1000 Mbit/s
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
WLAN controller manufacturer
Realtek
Wi-Fi standards
Wi-Fi 7 (802.11be)
WLAN controller model
Realtek RTL8922AE
Antenna type
2x2
Bluetooth
Yes
Bluetooth version
5.4

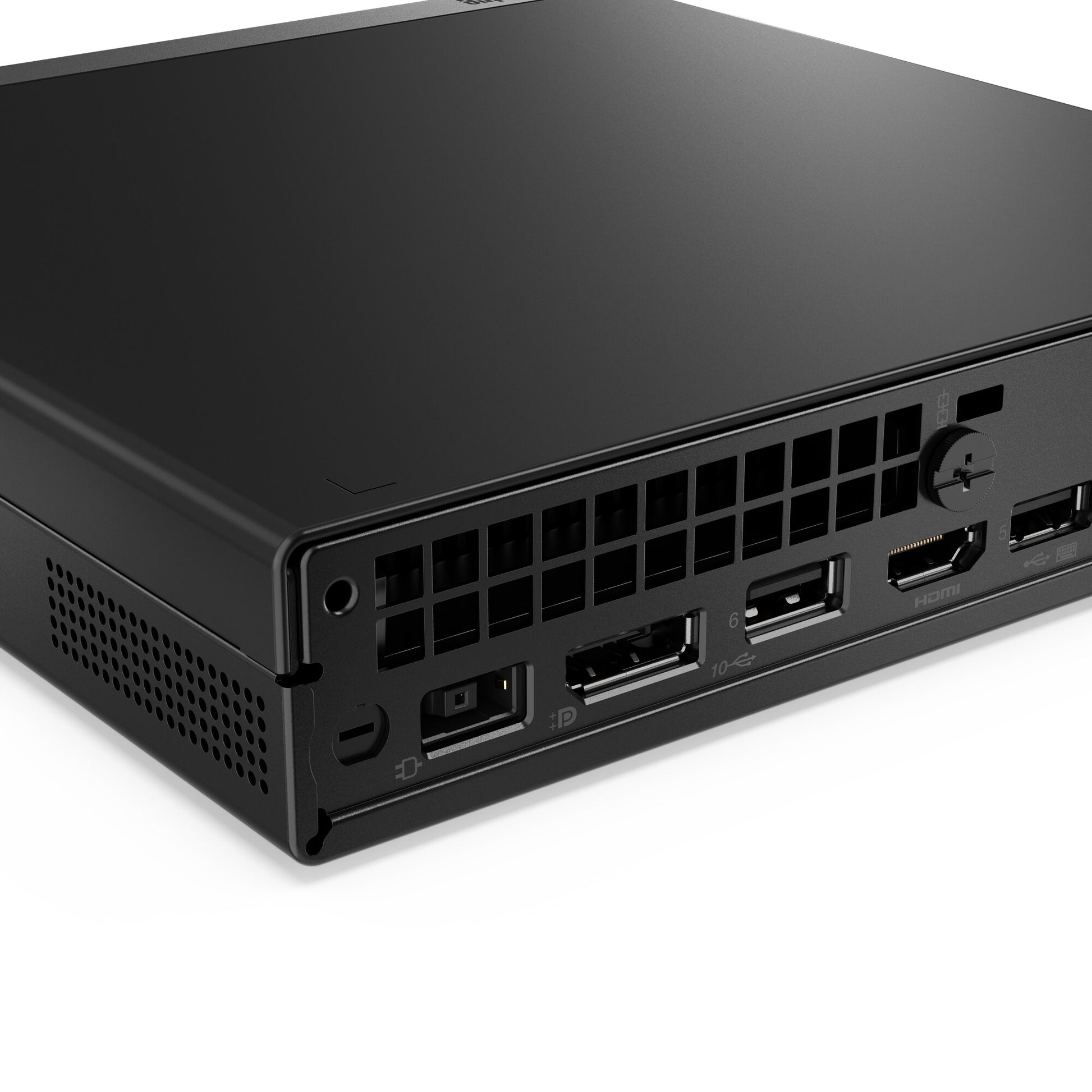

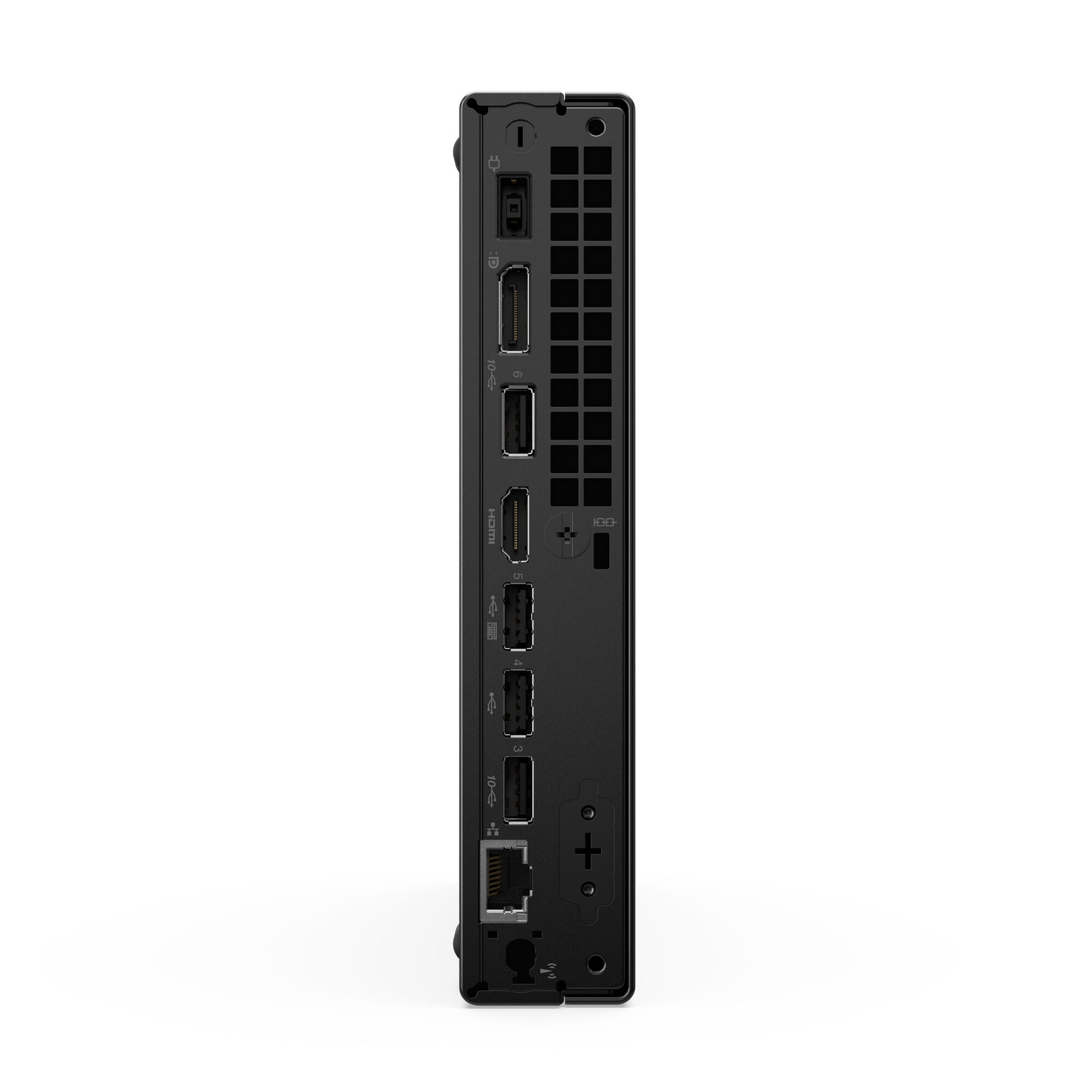

Ports & interfaces
USB 2.0 ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
HDMI ports quantity
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.4b
Ethernet LAN (RJ-45) ports
1
Combo headphone/mic port
Yes
Design
Chassis type
Mini PC
Volume
1 L
Placement supported
Vertical
Cable lock slot
Yes
Cable lock slot type
Kensington
Product colour
Black
Performance
Product type
Mini PC
Motherboard chipset
Intel SoC
Audio chip
Realtek ALC256
Audio system
High Definition Audio
Built-in speaker(s)
Yes
Number of speakers
1
Password protection
Yes
Password protection type
BIOS, HDD, Supervisor
Trusted Platform Module (TPM) version
2.0
Trusted Platform Module (TPM)
Yes
Software
Operating system installed
Windows 11 Pro
Operating system language
English
Power
Power supply
90 W
Power supply input voltage
100 - 240 V
Power supply input frequency
50/60 Hz
Operational conditions
Operating temperature (T-T)
5 - 35 °C
Storage temperature (T-T)
-40 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 90%
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 12192 m
Certificates
Certification
ENERGY STAR 9.0RoHS compliantTCO Certified, generation 10
