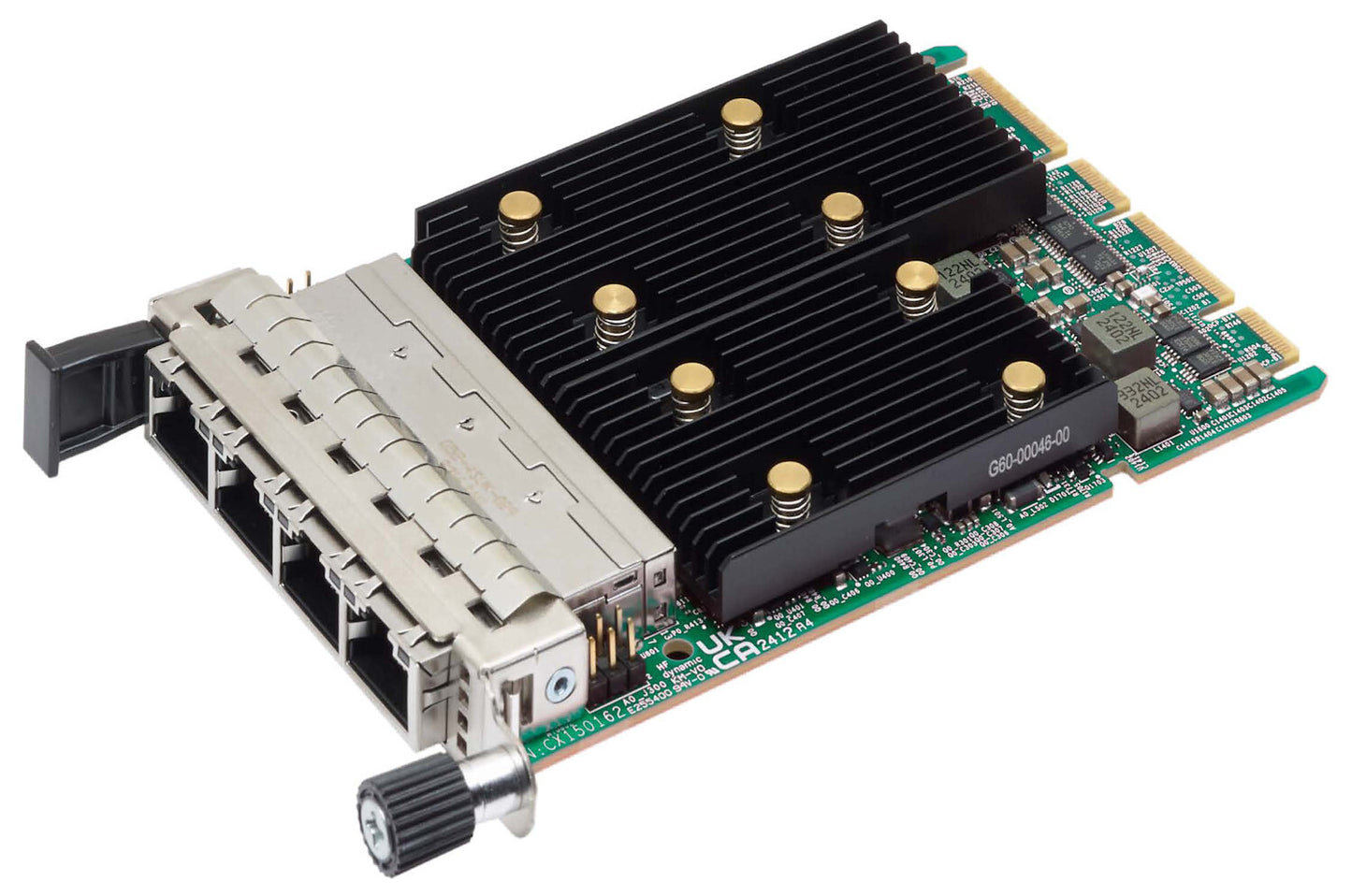

Lenovo 4XC7A95696 network card Internal Ethernet 10000 Mbit/s
Lenovo 4XC7A95696 network card Internal Ethernet 10000 Mbit/s
SKU:4XC7A95696
Low stock: 4 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Wired
- OCP 3.0 3.0 Ethernet
- 10 Gigabit Ethernet, Gigabit Ethernet 10000 Mbit/s 10GBase-T
- Internal Component for: Server
The ThinkSystem Broadcom 57412 10GBASE-T Ethernet Adapters are four port 10 Gb Ethernet adapters that supports 10GBASE-T and 1000BASE-T Ethernet on Category 6 twisted-pair cables. They support networking virtualization technologies such as SR-IOV, VXLAN, and NVGRE.
This product guide provides essential presales information to understand the 57412 10GBASE-T adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | OCP 3.0 |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 4 |
| PCI version | 3.0 |
| PCI Card form factor | Full-height (low-profile) |
| Network | |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Cabling technology | 10GBase-T |
| Jumbo frames | 9600 |
| Jumbo frames support | Yes |
| Link aggregation | Yes |
| Design | |
|---|---|
| Internal | Yes |
| Component for | Server |
| Product colour | Multicolour |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 168 mm |
| Height | 69 mm |
