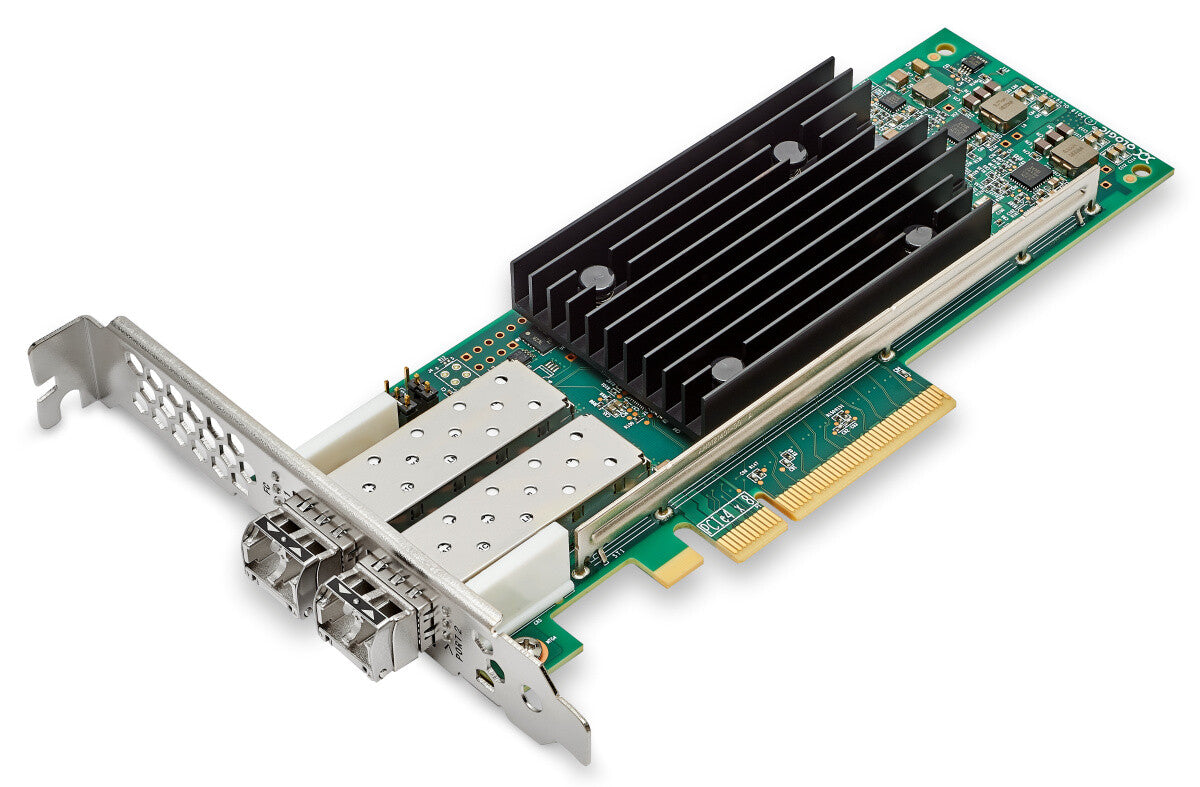

The QLogic 2770 Series 32 Gb Fibre Channel (FC) Host Bus Adapters (HBAs) are Generation 6 (Gen 6) FC adapters for Lenovo ThinkSystem servers. These adapters offer industry leading native FC performance with extremely low CPU usage with full hardware offloads. With performance of up to 1 million I/O operations per second (IOPS) per port, these adapters can be used to support all-flash arrays (AFAs) -- Fibre Channel storage systems comprised completely of high-speed solid-state drives.
This product guide describes the QLogic 2770 Series HBAs for Lenovo servers and provides essential pre-sales information to understand the products, their key features and specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the adapters and consider their use in IT solutions.
Ports & interfaces
PCI version
4.0
Fiber ports quantity
2
Fiber optic connector
SFP+
Interface
Fiber
Host interface
PCI Express
Connectivity technology
Wired
Network
Full duplex
Yes
Maximum data transfer rate
32000 Mbit/s
Design
Certification
UL 60950-1CSA C22.2TUV EN60950-1TUV IEC 60950-1CB Certified FCC Rules, CFR Title 47, Part 15, Subpart Class A Industry Canada, ICES-003: Class A EN55032 EN55024 EN61000-3-2 EN61000-3-3 Japan VCCI: Class A New Zealand and Australia AS/NZS: Class A Korea KC-RRA Class A Taiwan BSMI CNS 13438
