Lenovo
Lenovo 4XC7A08236 network card Internal Ethernet 10000 Mbit/s
Lenovo 4XC7A08236 network card Internal Ethernet 10000 Mbit/s
Regular price
£348.64 GBP
Regular price
Sale price
£348.64 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:4XC7A08236
Low stock: 1 left
- Wired
- PCI Express 3.0 Ethernet
- 10 Gigabit Ethernet 10000 Mbit/s 10/100/1000BaseT(X)
- Internal Component for: Server

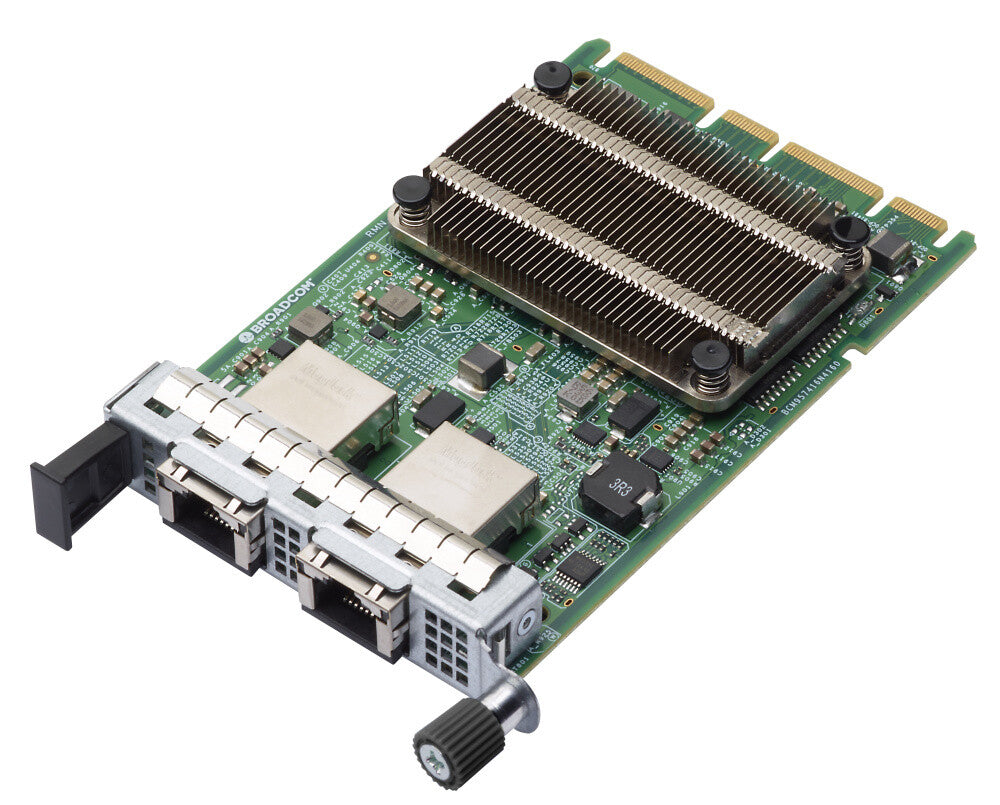

ThinkSystem Broadcom 57416 10GBASE-T 2-port OCP Ethernet Adapter
The Broadcom 57416 10Gb BASE-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring.
This product guide provides essential presales information to understand the Broadcom adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
| Ports & interfaces | |
|---|---|
| PCI version | 3.0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3an |
| Maximum data transfer rate | 10000 Mbit/s |
| Design | |
|---|---|
| Certification | CE/European Union EN60950-1 UL/USA UL60950-1 CTUVus UL Canada: CSA 22.2 No. 950 Taiwan: CNS14336 Class A EN55022:2010 + *AC:2011 Class A EN55024 Class A FCC CFR47, Part 15 Class A Canada: ICES-003 Class A Australia, New Zealand: EN 5022:2010 + *AC:2011 Taiwan: BSMI CNS13438 Class A South Korea: MIC RRL KN22 Class A South Korea: KN24 (ESD) Japan: VCCI V-3 04/2014 EN55024:2010 Air/Direct discharge |
| Form factor | OCP 3.0 |
| Antenna | No |
| Component for | Server |
| Internal | Yes |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 65 °C |
| Weight & dimensions | |
|---|---|
| Depth | 115 mm |
| Width | 76 mm |
