Lenovo
Lenovo 40AN0135SA laptop dock/port replicator Wired Thunderbolt 3 Black
Lenovo 40AN0135SA laptop dock/port replicator Wired Thunderbolt 3 Black
SKU:40AN0135SA
Low stock: 2 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

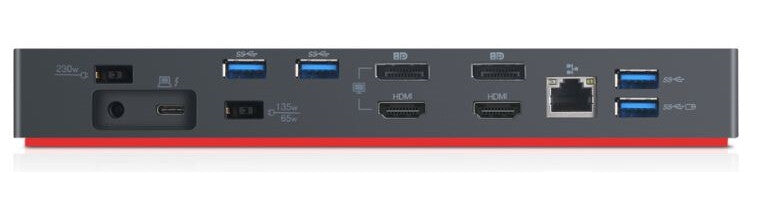

- Ports: 2x HDMI; 2x DisplayPort; 1x ThunderBolt 3 Gen 2
- Ports: 1x USB-C (Thunderbolt 3 compatible); 4x USB 3.1 Gen 2; 1x USB 3.1 Gen 2 with Always-on charging
- 1x RJ-45 Ethernet 10Base-T/100Base-TX/1000Base-T; 1x Audio Connector (3.5mm). 1x Security-lock slot (lock sold separately
- The dock is supported on the following operating systems: Microsoft Windows 7; Microsoft Windows 10
- In the Box: Dock; 135W Power Adapter and Power Cord; Thunderbolt 3 cable; Documentation
Maximize Your Productivity with a Thunderbolt 3 Dock. Powerful, versatile and incredibly fast! This Intel Thunderbolt™ Chipset powered Thunderbolt Dock Gen 2 invented to boost productivity with extended compatibility on both USB-C and Thunderbolt enabled laptop. Expand your horizons with multiple 4K displays, and transfer files at record speed.It’s everything you need to enhance your creativity and efficiency today.
Expand compatibility on USB-C and Thunderbolt systems: Dual UHD Displays provide the best video experience. Enhanced performance with professional video solutions and exclusive network manageability. The ThinkPad Thunderbolt 3 Dock Gen 2 is supported on the following Lenovo systems: ThinkPad X1 Yoga 2nd Gen (Machine Types: 20JD, 20JE, 20JF, 20JG); ThinkPad X1 Yoga 3rd Gen (Machine Types: 20LD, 20LE); ThinkPad T570 (Machine Types: 20H9, 20HA, 20JW, 20JX); ThinkPad P51s (Machine Types: 20HB, 20HC, 20JY, 20K0); ThinkPad T580 (Machine Types: 20L9, 20LA); ThinkPad P52s (Machine Types: 20LB, 20LC).
| Performance | |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Maximum digital resolution | 3840 x 2160 pixels |
| Cable lock slot | Yes |
| LED indicators | Yes |
| Charging function | Yes |
| Plug and Play | Yes |
| Brand compatibility | Lenovo |
| Compatibility | ThinkPad X1 Yoga 2nd Gen, ThinkPad X1 Yoga 3rd Gen, Thinkpad T570 (20H9,20HA), Thinkpad T570 (20JW,20JX), Thinkpad P51s (20HB,20HC), Thinkpad P51s (20JY,20K0), Thinkpad T580 (20L9,20LA), ThinkPad P52s (20LB,20LC) |
| Power | |
|---|---|
| Power supply | 135 W |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 220 mm |
| Depth | 80 mm |
| Height | 30 mm |
| Weight | 525 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 270 mm |
| Package depth | 164 mm |
| Package height | 75 mm |
| Package weight | 1.4 kg |
| Packaging content | |
|---|---|
| Manual | Yes |
| Cables included | Thunderbolt |
| AC adapter included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
