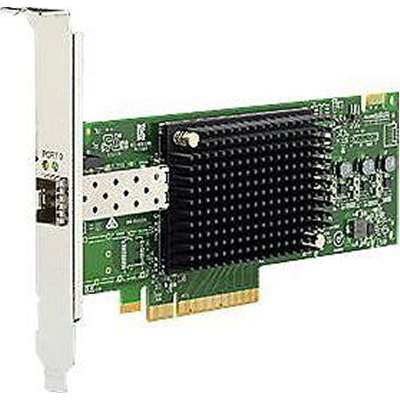

Emulex 16Gbps Gen 6 FC Single-Port HBA Adaper for Lenovo System X Servers
The Emulex 16 Gb (Generation 6) Fibre Channel (FC) host bus adapters (HBAs) are an ideal solution for all Lenovo System x servers requiring high-speed data transfer in storage connectivity for virtualized environments, data backup, and mission-critical applications. They are designed to meet the needs of modern networked storage systems that utilize high performance and low latency solid state storage drives for caching and persistent storage as well as hard disk drive arrays.
The Emulex 16 Gb Gen 6 FC HBAs feature ExpressLane™, which prioritizes mission-critical traffic in congested networks ensuring maximum application performance on flash storage arrays. They also seamlessly support Brocade ClearLink™ diagnostics through Emulex OneCommand® Manager, ensuring the reliability and management of storage network when connected to Brocade Gen 5 FC SAN fabrics.
Ports & interfaces
PCI version
3.0
Fiber ports quantity
1
Fiber optic connector
FC, SFP+
Interface
Fiber
Host interface
PCIe
Connectivity technology
Wired
Network
Maximum operating distance
150 m
Full duplex
Yes
Web-based management
Yes
Maximum data transfer rate
16000 Mbit/s
Design
Compatible products
System x3500 M5 Type 5464System x3550 M5 Type 5463System x3550 M5 Type 8869System x3650 M5 Type 5462System x3650 M5 Type 8871System x3750 M4 Type 8753System x3850 X6 Type 6241 (E7 v2, E7 v3, and E7 v4)System x3950 X6 Type 6241 (E7 v2, E7 v3, and E7 v4)NeXtScale nx360 M5 Type 5465 (E5-2600 v3 and E5-2600 v4)
Certification
AS/NZS CISPR22:2009+A1, Class AAustralian EMC Framework (RCM)cUR recognized to CSA 22.2, No. 60950-1-07EN55022:2010, Class AEN55024:2010EN55032:2012EU (CE Mark)FCC Rules, Part 15, Class AIndustry Canada, ICES-003, Class AJapan VCCI, Class AKorea MSIP, Class ARoHS Compliant (Directive 2011/65/EU)TUV certified to EN60950-1+A11+A1+A12+A2Taiwan BSMI, Class AUL recognized to UL60950-1 2nd Edition
Mean time between failures (MTBF)
10000000 h
LED indicators
Yes
Hot-swap
Yes
Hot-Plug support
Yes
Rack mounting
Yes
Rack capacity
2U
Product colour
Black, Green, Silver
Component for
Server
Internal
Yes
System requirements
Server operating systems supported
Windows Server 2012, Windows Server 2012 R2
Other operating systems supported
VMware vSphere ESXi
Linux operating systems supported
RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 11, SuSE Linux 12.0
