Lanview

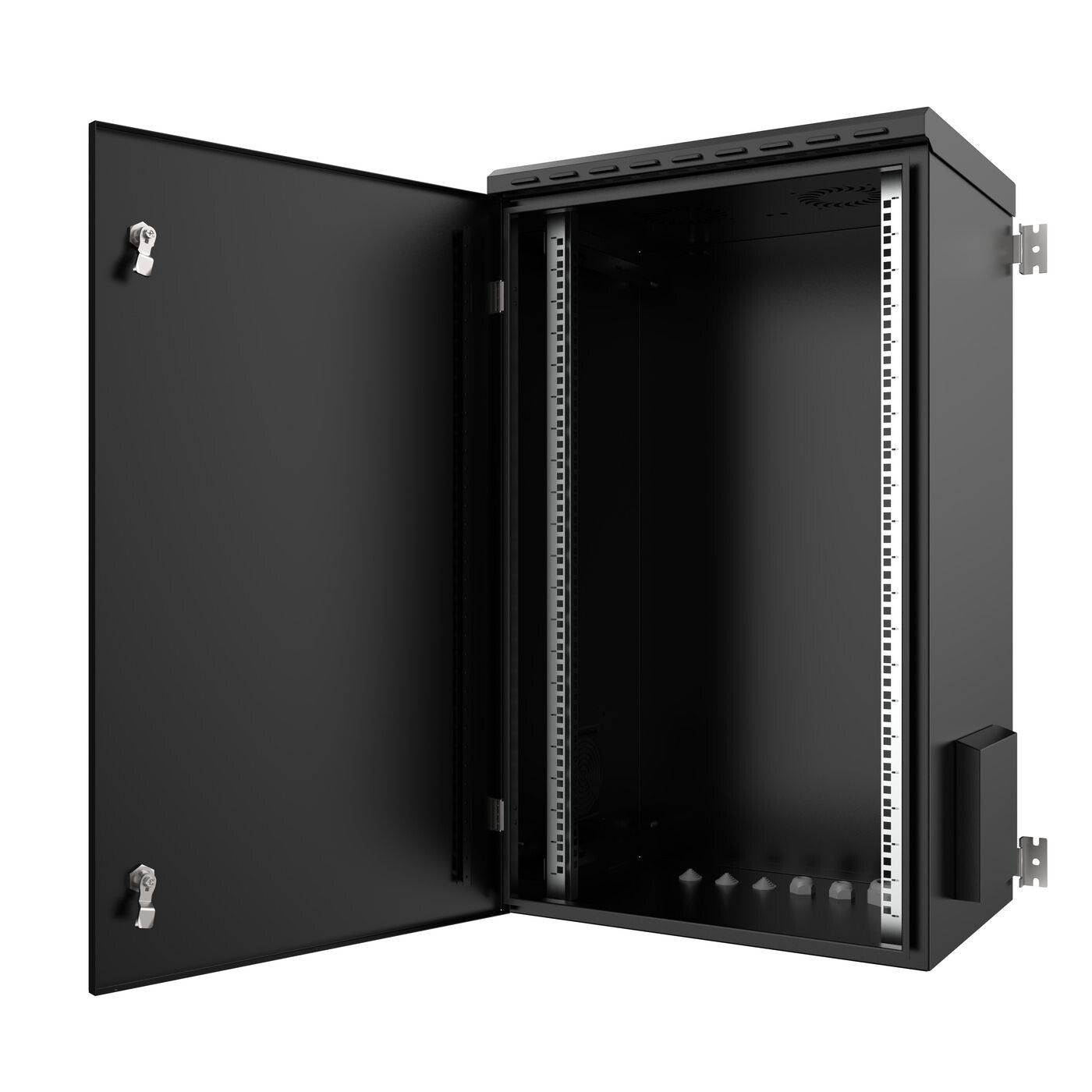

Lanview RWMIP55W20U45B rack cabinet 20U Black
Lanview RWMIP55W20U45B rack cabinet 20U Black
Couldn't load pickup availability
SKU:RWMIP55W20U45B
Low stock: 1 left
- Steel Door
- Wallmount
- IP55
- RAL9005
Product Dimensions: 600 x 450 x 1000mm
All kinds of 19” devices and equipment can be connected to the device uprights. 2 device mounting rails are used in 600×450 cabinets
Thanks to its hinged cover system, it offers easy intervention to the fan modules from the top.
and with the 125×125 dust filter on the right and left of the cabinet, it provides passive ventilation, while the louvers on its roof allow the hot air to be thrown out.
the IP 55 rack comes with dense cable entries from the bottom thanks to 1 PG48 IP gland, 2 PG21 IP glands and 3 28mm diameter PVC blind plugs located at the base of the cabinet. The bottom closure is completely detachable if desired
| Features | |
|---|---|
| International Protection (IP) code | IP55 |
| Mounting hole shape | Round |
| Cooling type | Passive |
| Front door construction | Steel |
| Frame type | Closed |
| Material | Steel |
| Product colour | Black |
| Rack capacity | 20U |
| Weight & dimensions | |
|---|---|
| Weight | 42 kg |
| Height | 1032 mm |
| Depth | 450 mm |
| Width | 600 mm |
| Size (imperial) | 48.3 cm (19") |
| Packaging data | |
|---|---|
| Package weight | 42.5 kg |
| Package height | 1050 mm |
| Package depth | 520 mm |
| Package width | 660 mm |
