Lanview

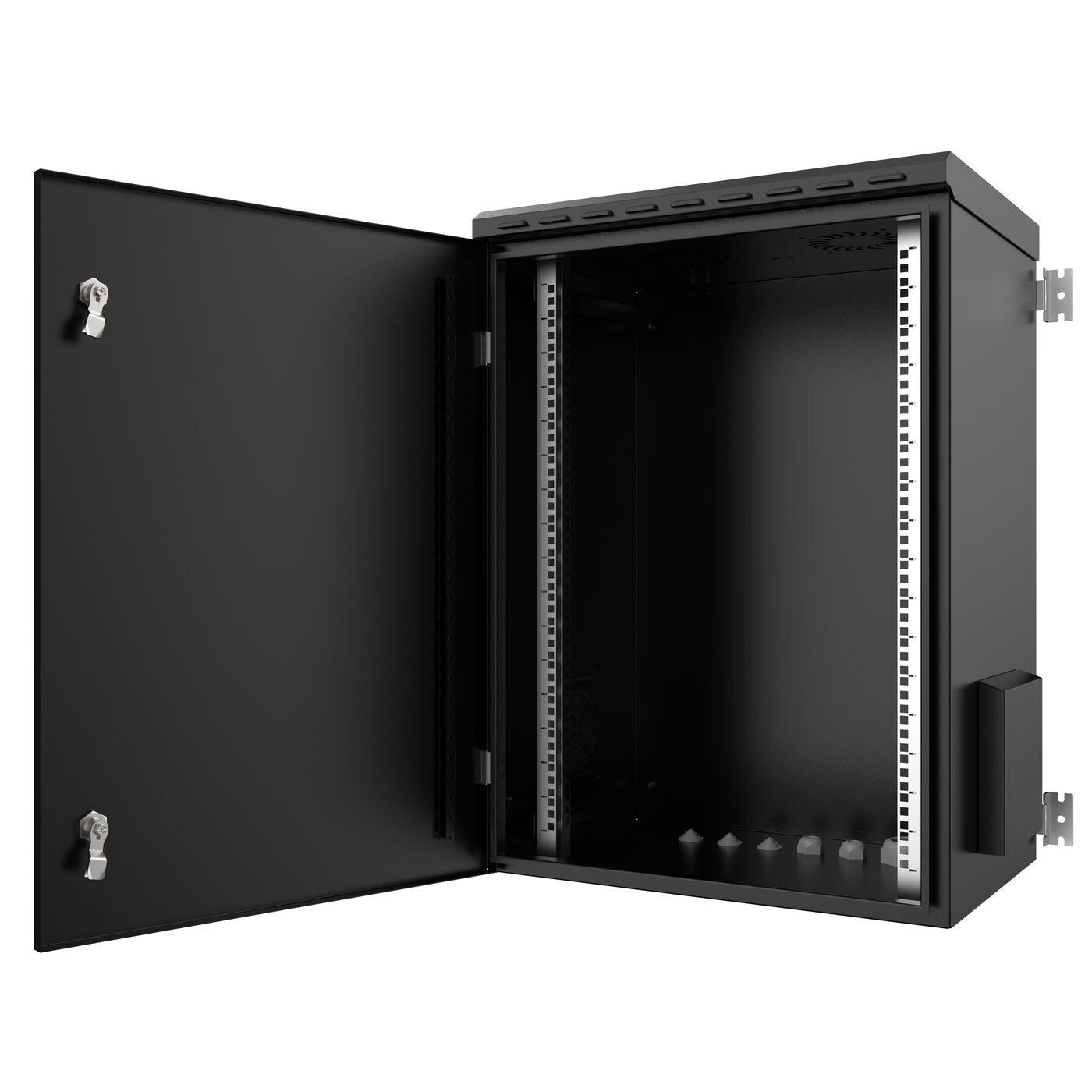

Lanview RWMIP55W16U45B rack cabinet 16U Black
Lanview RWMIP55W16U45B rack cabinet 16U Black
SKU:RWMIP55W16U45B
Low stock: 1 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Steel Door
- Wallmount
- IP55
- RAL9005
- Cage nuts can be bought separate
Product Dimensions: 600 x 450 x 810mm
All kinds of 19” devices and equipment can be connected to the device uprights. 2 device mounting rails are used in 600×450 cabinets
Thanks to its hinged cover system, it offers easy intervention to the fan modules from the top.
and with the 125×125 dust filter on the right and left of the cabinet, it provides passive ventilation, while the louvers on its roof allow the hot air to be thrown out.
the IP 55 rack comes with dense cable entries from the bottom thanks to 1 PG48 IP gland, 2 PG21 IP glands and 3 28mm diameter PVC blind plugs located at the base of the cabinet. The bottom closure is completely detachable if desired
| Features | |
|---|---|
| Rack capacity | 16U |
| Product colour | Black |
| Material | Steel |
| Frame type | Closed |
| Front door construction | Steel |
| Removable back door | No |
| Key lock | Yes |
| Rack rails | Yes |
| Cooling type | Passive |
| Soundproof | No |
| Mounting hole shape | Round |
| Castor wheels | No |
| International Protection (IP) code | IP55 |
| Preassembled | Yes |
| Cable entry point | Yes |
| Weight & dimensions | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 660 mm |
| Depth | 520 mm |
| Height | 850 mm |
| Weight | 38 kg |
| Packaging data | |
|---|---|
| Package width | 660 mm |
| Package depth | 520 mm |
| Package height | 850 mm |
| Package weight | 38.5 kg |
| Other features | |
|---|---|
| Dimensions (WxDxH) | 600 x 450 x 810 mm |
