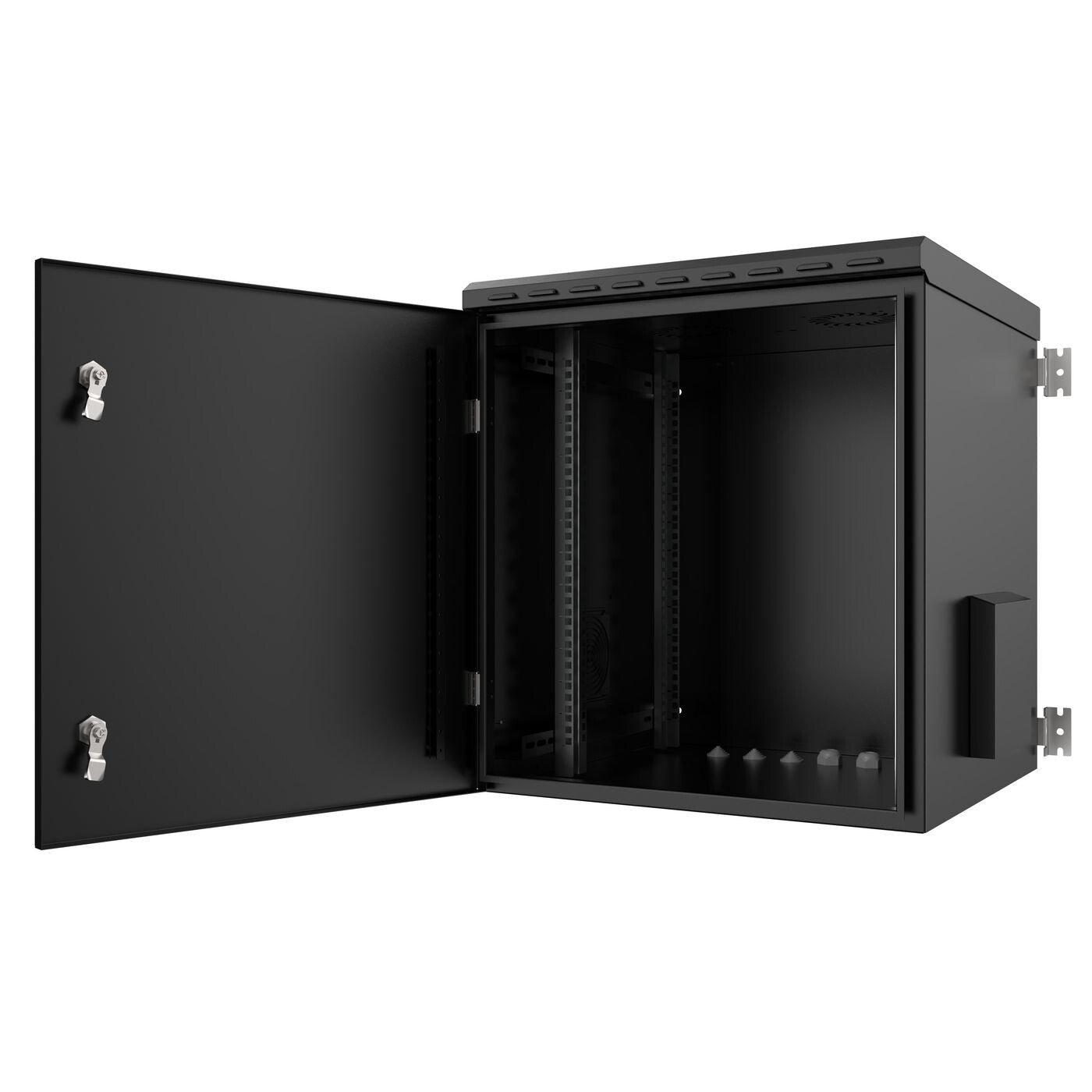

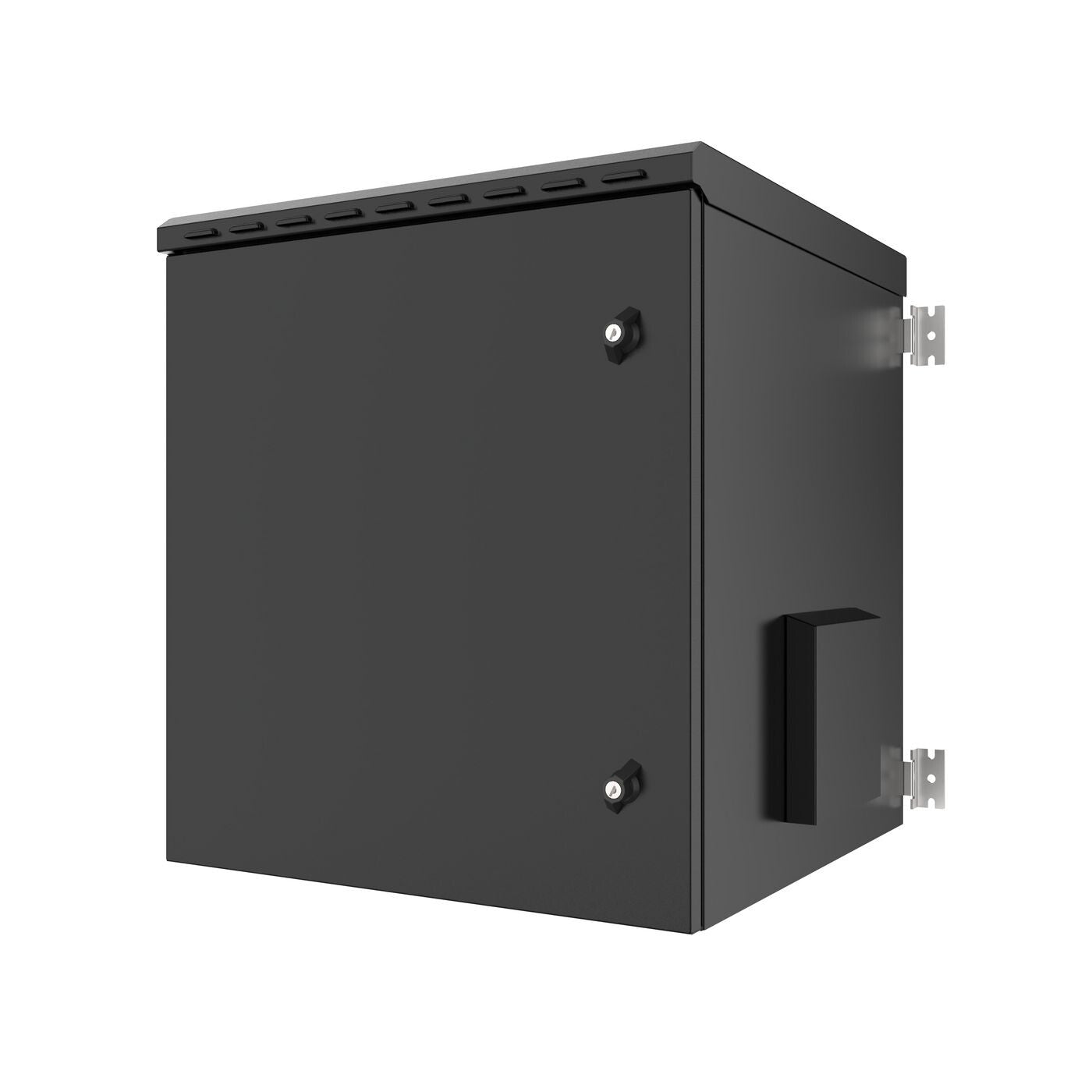

Lanview RWMIP55W12U60B rack cabinet 12U Black
Lanview RWMIP55W12U60B rack cabinet 12U Black
Couldn't load pickup availability
SKU:RWMIP55W12U60B
26 in stock
- Steel Door
- Wallmount
- IP55
- RAL9005
- Cage nuts can be bought separate
Product Dimensions: 600 x 600 x 630mm
All kinds of 19” devices and equipment can be connected to the device uprights. 4 device mounting rails are used in 600×600 cabinets
Thanks to its hinged cover system, it offers easy intervention to the fan modules from the top.
and with the 125×125 dust filter on the right and left of the cabinet, it provides passive ventilation, while the louvers on its roof allow the hot air to be thrown out.
the IP 55 rack comes with dense cable entries from the bottom thanks to 1 PG48 IP gland, 2 PG21 IP glands and 3 28mm diameter PVC blind plugs located at the base of the cabinet. The bottom closure is completely detachable if desired
| Features | |
|---|---|
| Cable entry point | Yes |
| Preassembled | Yes |
| International Protection (IP) code | IP55 |
| Castor wheels | No |
| Mounting hole shape | Round |
| Soundproof | No |
| Cooling type | Passive |
| Rack rails | Yes |
| Key lock | Yes |
| Removable back door | No |
| Front door construction | Steel |
| Frame type | Closed |
| Material | Steel |
| Product colour | Black |
| Maximum weight capacity | 100 kg |
| Rack capacity | 12U |
| Weight & dimensions | |
|---|---|
| Weight | 41 kg |
| Height | 630 mm |
| Depth | 600 mm |
| Width | 600 mm |
| Size (imperial) | 48.3 cm (19") |
| Packaging data | |
|---|---|
| Package weight | 41.5 kg |
| Package height | 650 mm |
| Package depth | 660 mm |
| Package width | 660 mm |
| Other features | |
|---|---|
| Dimensions (WxDxH) | 600 x 600 x 630 mm |
