Lanview

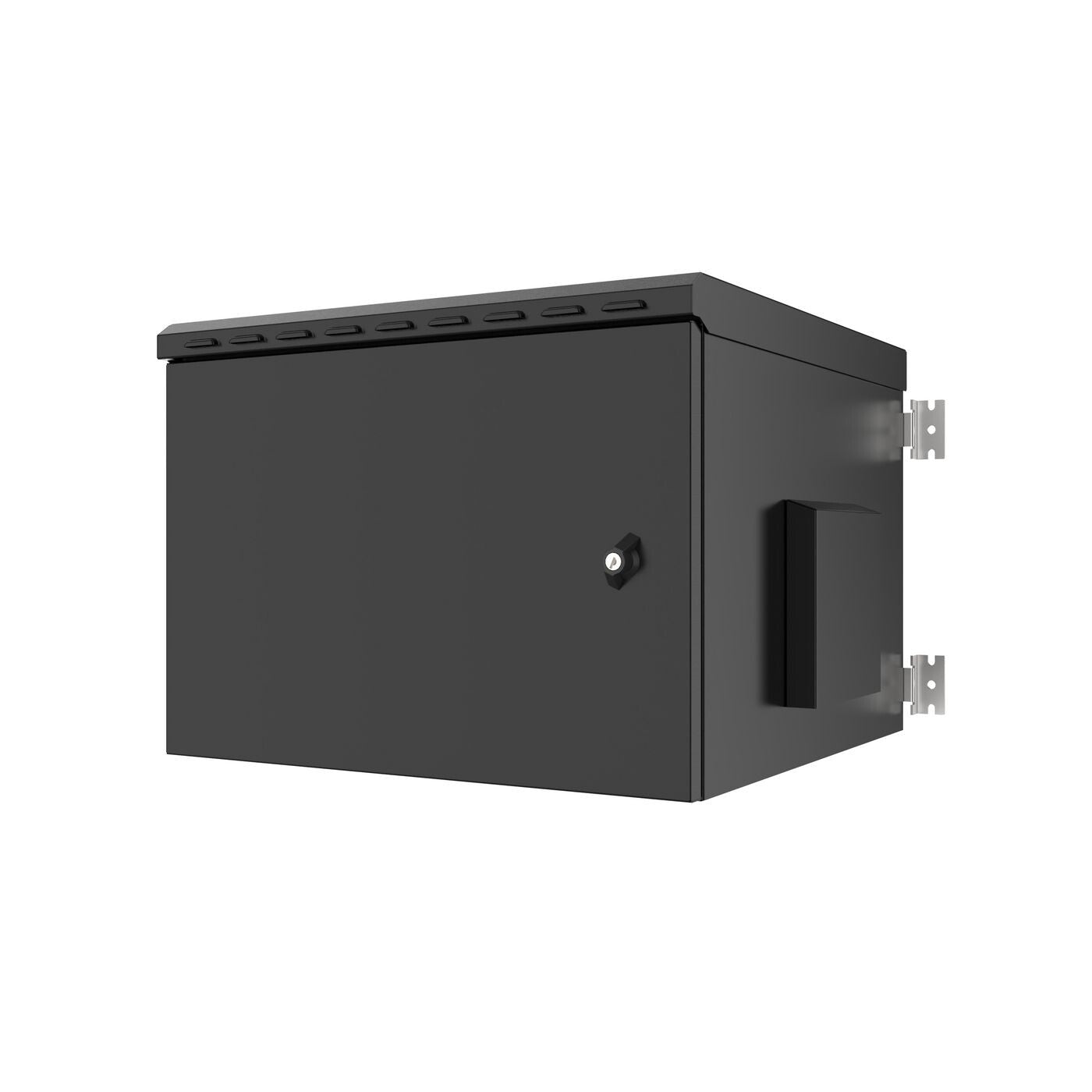

Lanview RWMIP55W07U60B rack cabinet 7U Black
Lanview RWMIP55W07U60B rack cabinet 7U Black
Couldn't load pickup availability
SKU:RWMIP55W07U60B
Low stock: 1 left
- Steel Door
- Wallmount
- IP55
- RAL9005
- Cage nuts can be bought separate
Product Dimensions: 600 x 600 x 410mm

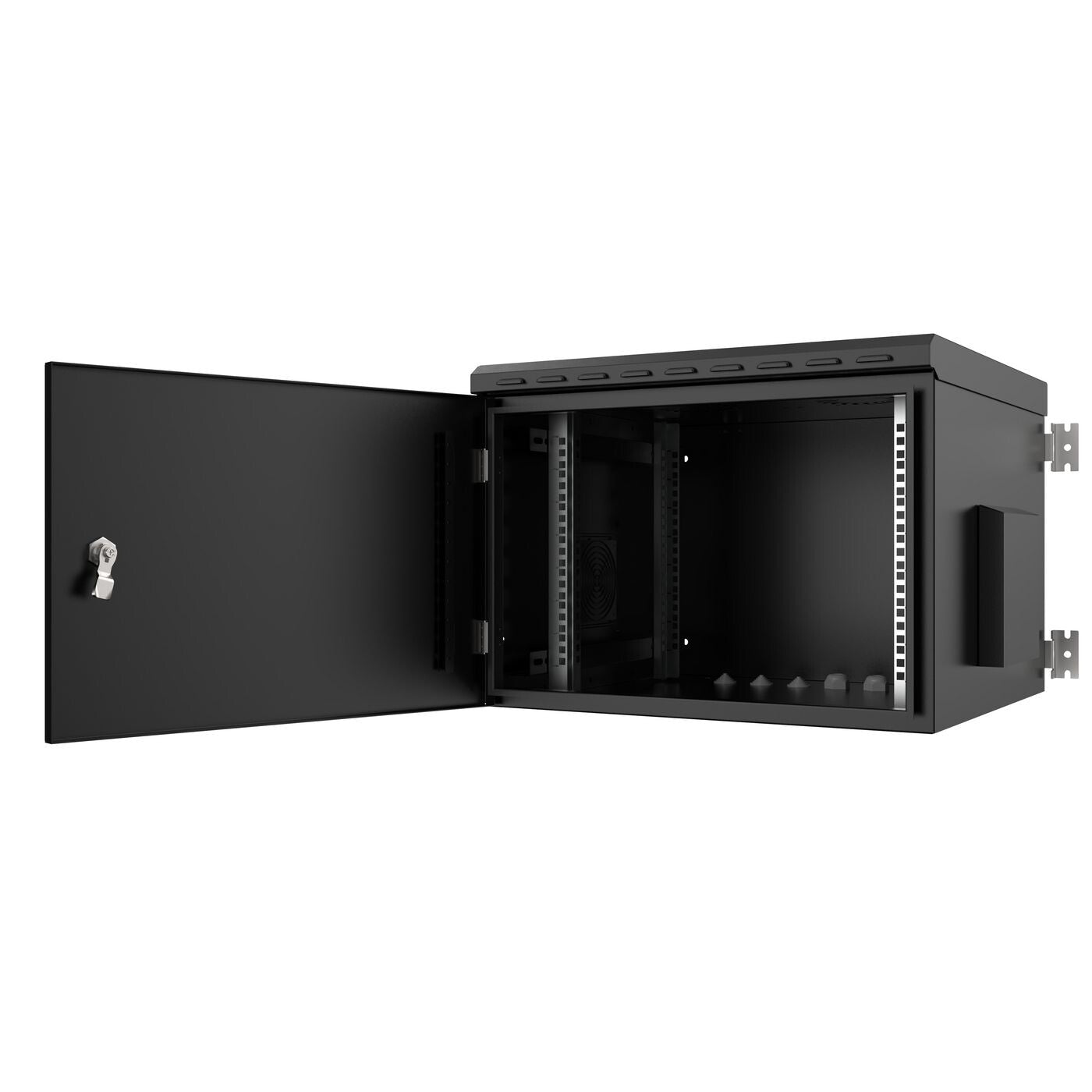

All kinds of 19” devices and equipment can be connected to the device uprights. 4 device mounting rails are used in 600×600 cabinets
Thanks to its hinged cover system, it offers easy intervention to the fan modules from the top.
and with the 125×125 dust filter on the right and left of the cabinet, it provides passive ventilation, while the louvers on its roof allow the hot air to be thrown out.
the IP 55 rack comes with dense cable entries from the bottom thanks to 1 PG48 IP gland, 2 PG21 IP glands and 3 28mm diameter PVC blind plugs located at the base of the cabinet. The bottom closure is completely detachable if desired
| Features | |
|---|---|
| Rack capacity | 7U |
| Product colour | Black |
| Material | Steel |
| Frame type | Closed |
| Front door construction | Steel |
| Removable back door | No |
| Key lock | Yes |
| Rack rails | Yes |
| Cooling type | Passive |
| Soundproof | No |
| Mounting hole shape | Round |
| Castor wheels | No |
| International Protection (IP) code | IP55 |
| Preassembled | Yes |
| Cable entry point | Yes |
| Weight & dimensions | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 600 mm |
| Depth | 600 mm |
| Height | 410 mm |
| Weight | 33 kg |
| Packaging data | |
|---|---|
| Package width | 660 mm |
| Package depth | 660 mm |
| Package height | 450 mm |
| Package weight | 33.5 kg |
| Other features | |
|---|---|
| Dimensions (WxDxH) | 600 x 600 x 410 mm |
