Lanview

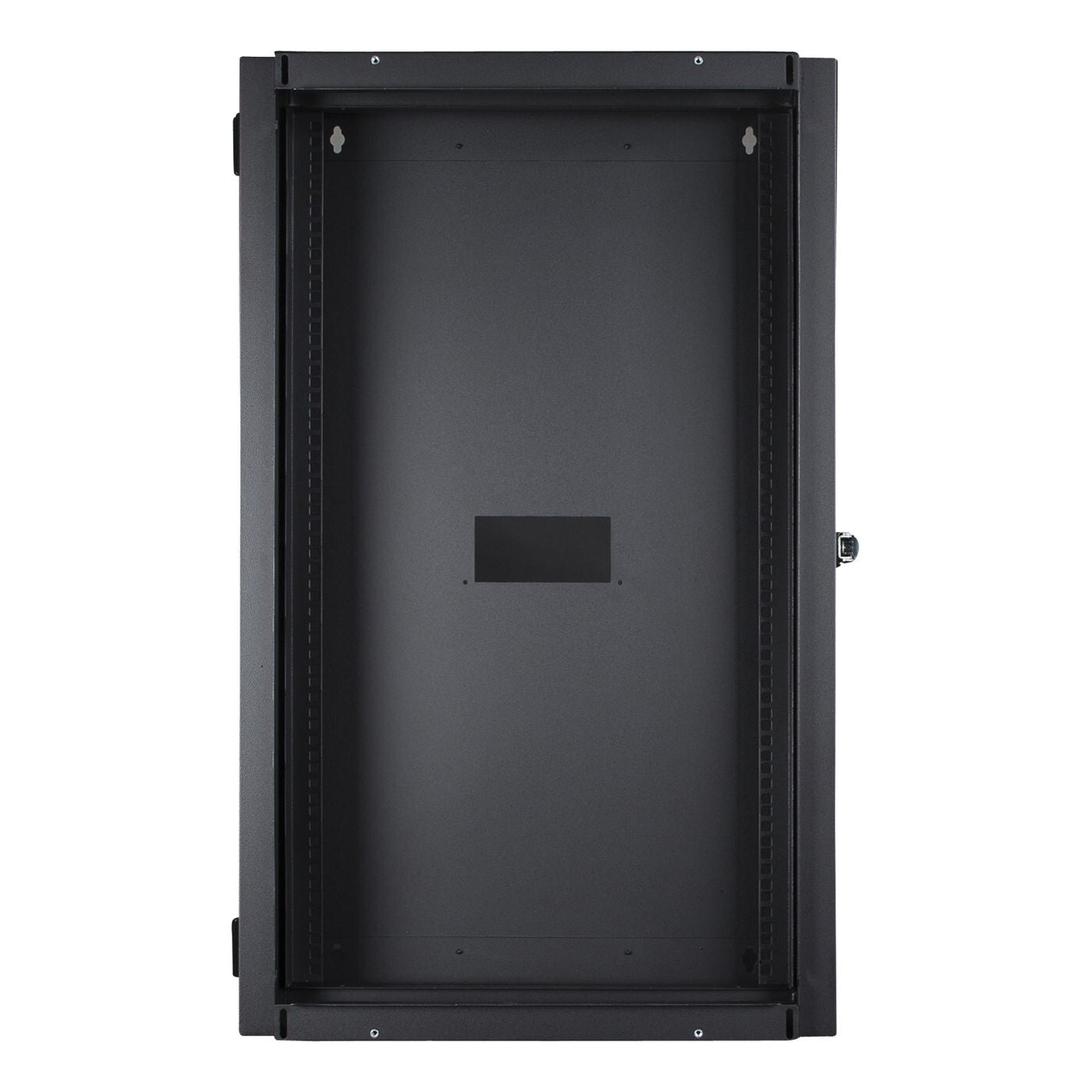

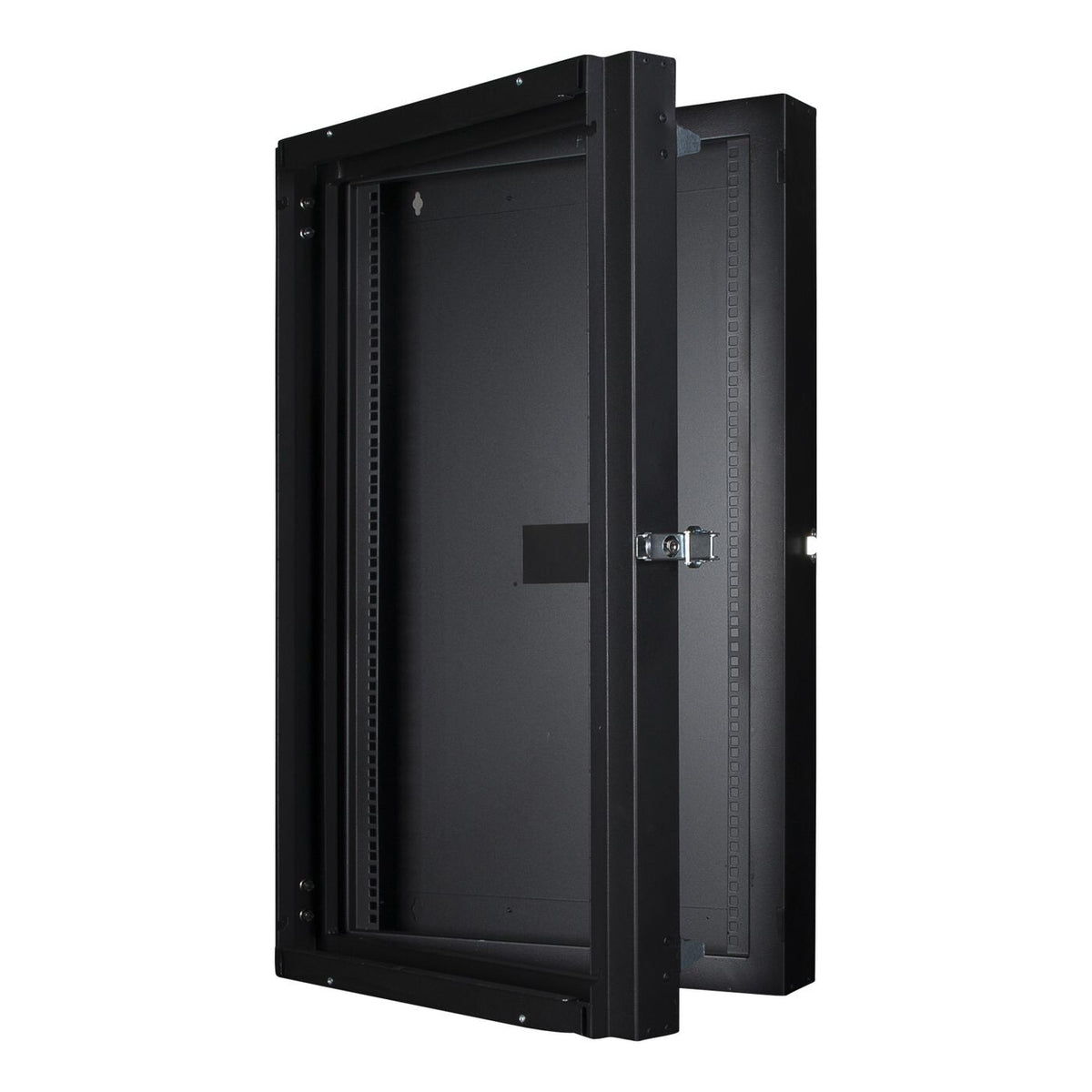

Lanview RWMD20UBL rack cabinet Black
Lanview RWMD20UBL rack cabinet Black
Couldn't load pickup availability
SKU:RWMD20UBL
Low stock: 1 left
- 80 kg
- Frame type: Closed
- Black
LOGON PROFESSIONAL DOUBLE SECTION FOR RWM CABINET 20U
Weight(kg): 22
Product dimensions WxDxH(mm): 600x150x986
Ah Wall mounting hole gaps(mm): 700
RAL: 9005
Additional depth capacity 150mm provided by the Network Series Wall Type Cabinets allows housing of cable harness.
Equipments, conforming with 19" installation and of 70mm depth, may be attached inside.
By means of 2 brushed cable entry modules of W=145mm x D=70 mm found on the top and bottom, and 1 cable inlet hole of W=145mm x D=70mm found at the back, it allows multi directional cable inlet.

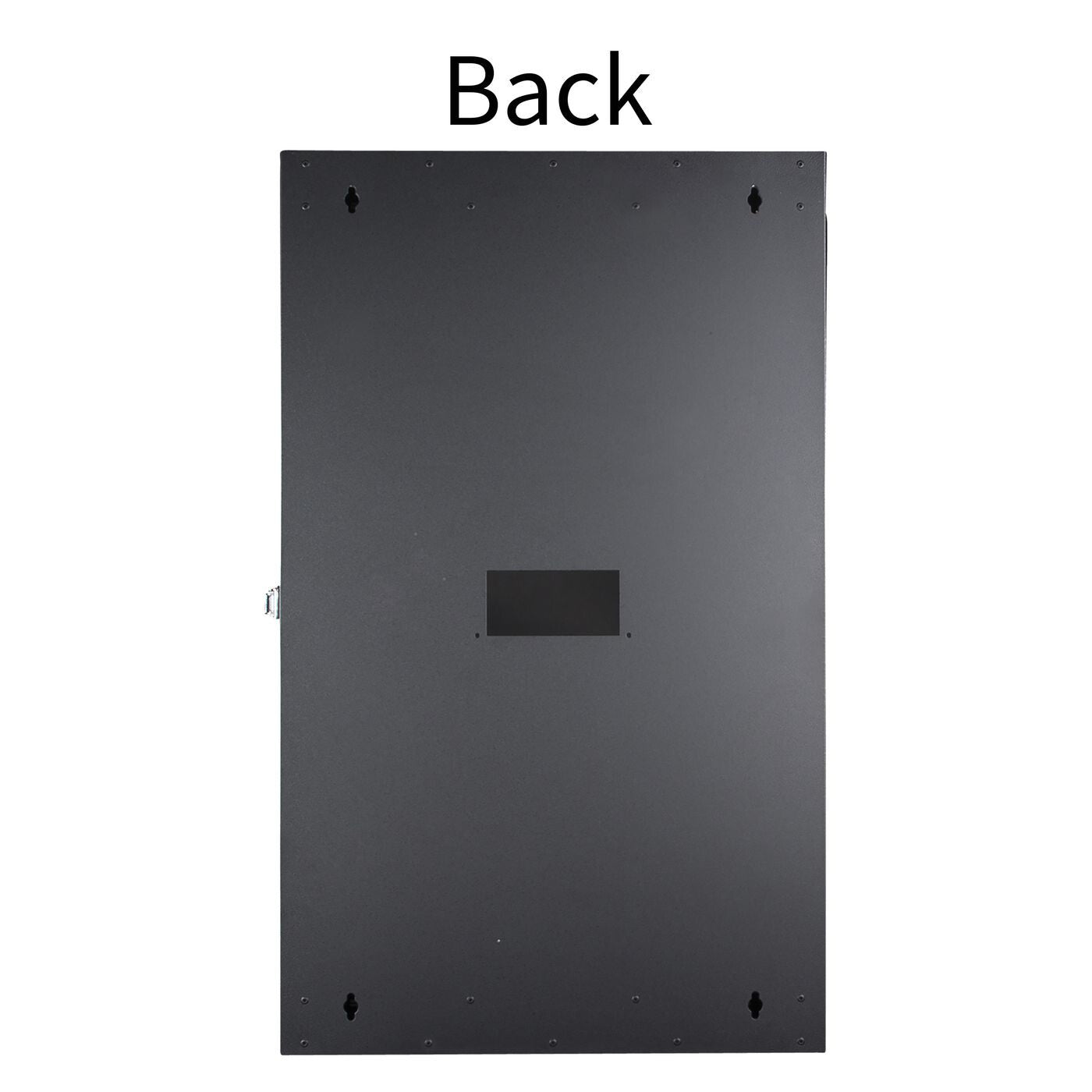

While Network Wall Type Cabinets provide access from the front and sides at its standard use, Additional Compartment applications provide 4 directional access by an extra access point at theback.
By this means ease of installation and maintenance is provided.
Package dimensions(mm): 655x200x835
| Features | |
|---|---|
| Maximum weight capacity | 80 kg |
| Product colour | Black |
| Frame type | Closed |
| Mounting hole shape | Round |
| Castor wheels | No |
| International Protection (IP) code | IP20 |
| Preassembled | Yes |
| Weight & dimensions | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 1100 mm |
| Depth | 750 mm |
| Height | 150 mm |
| Weight | 22 kg |
| Packaging data | |
|---|---|
| Package width | 1100 mm |
| Package depth | 750 mm |
| Package height | 150 mm |
| Package weight | 22.5 kg |
| Other features | |
|---|---|
| Dimensions (WxDxH) | 600 x 150 x 986 mm |
