Lanview

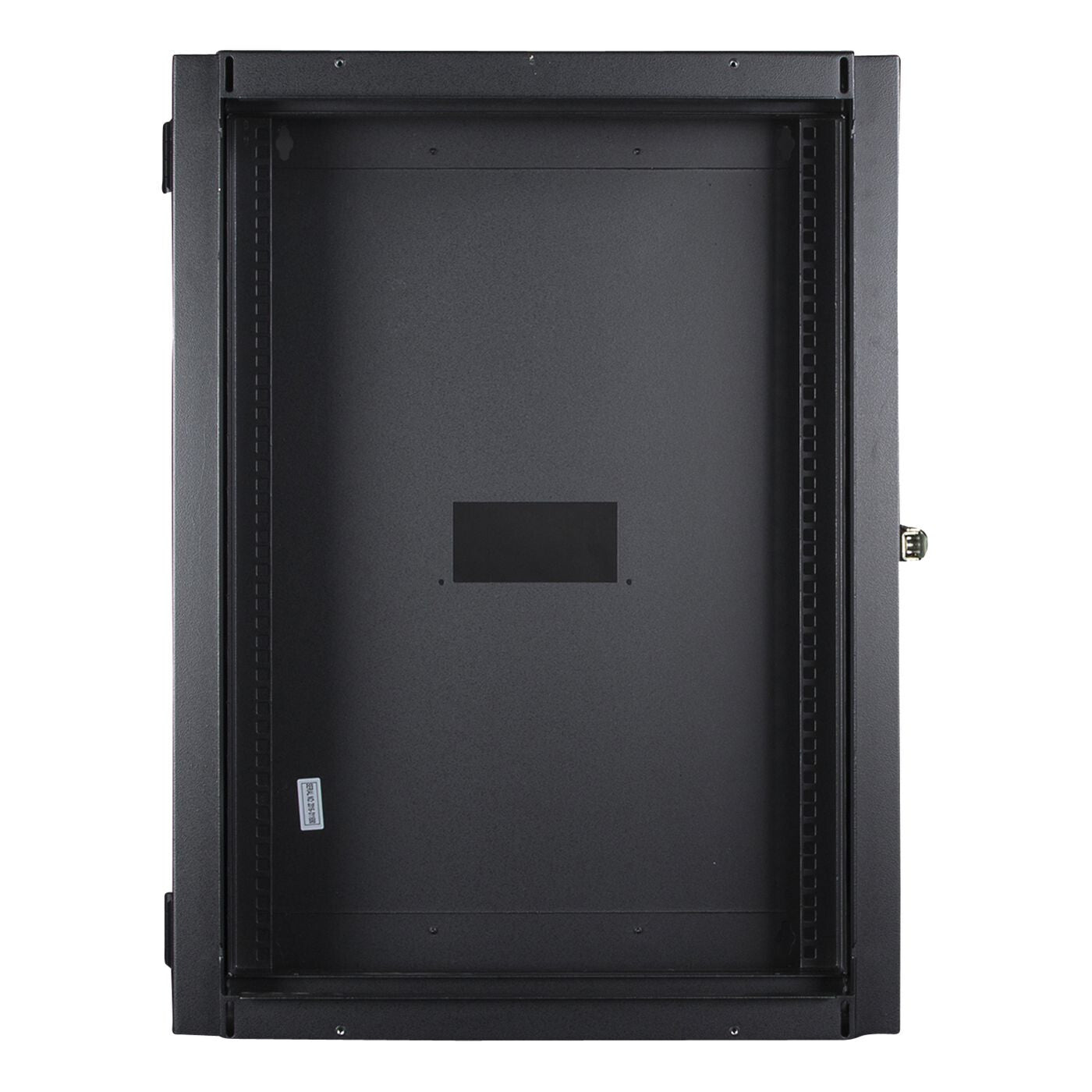

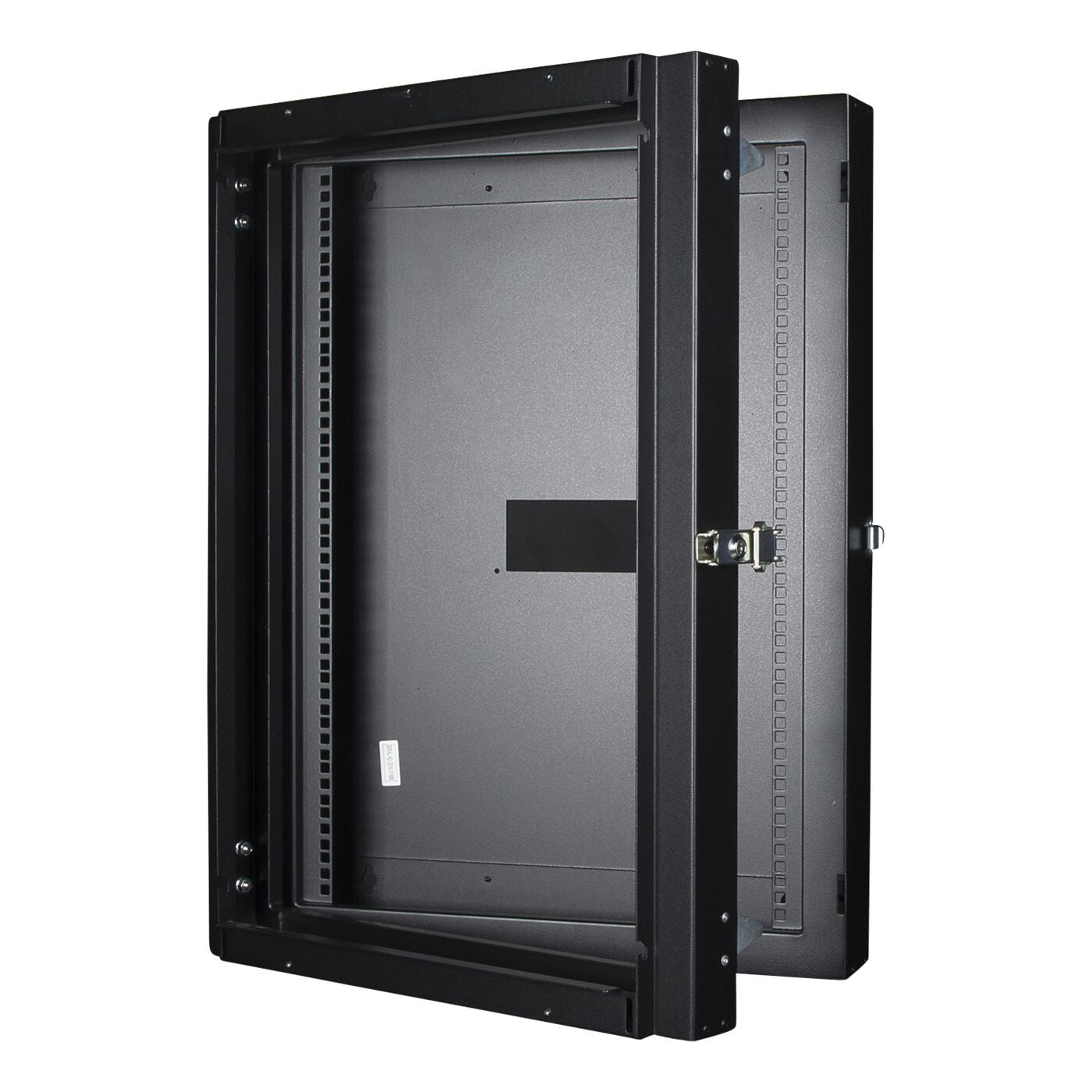

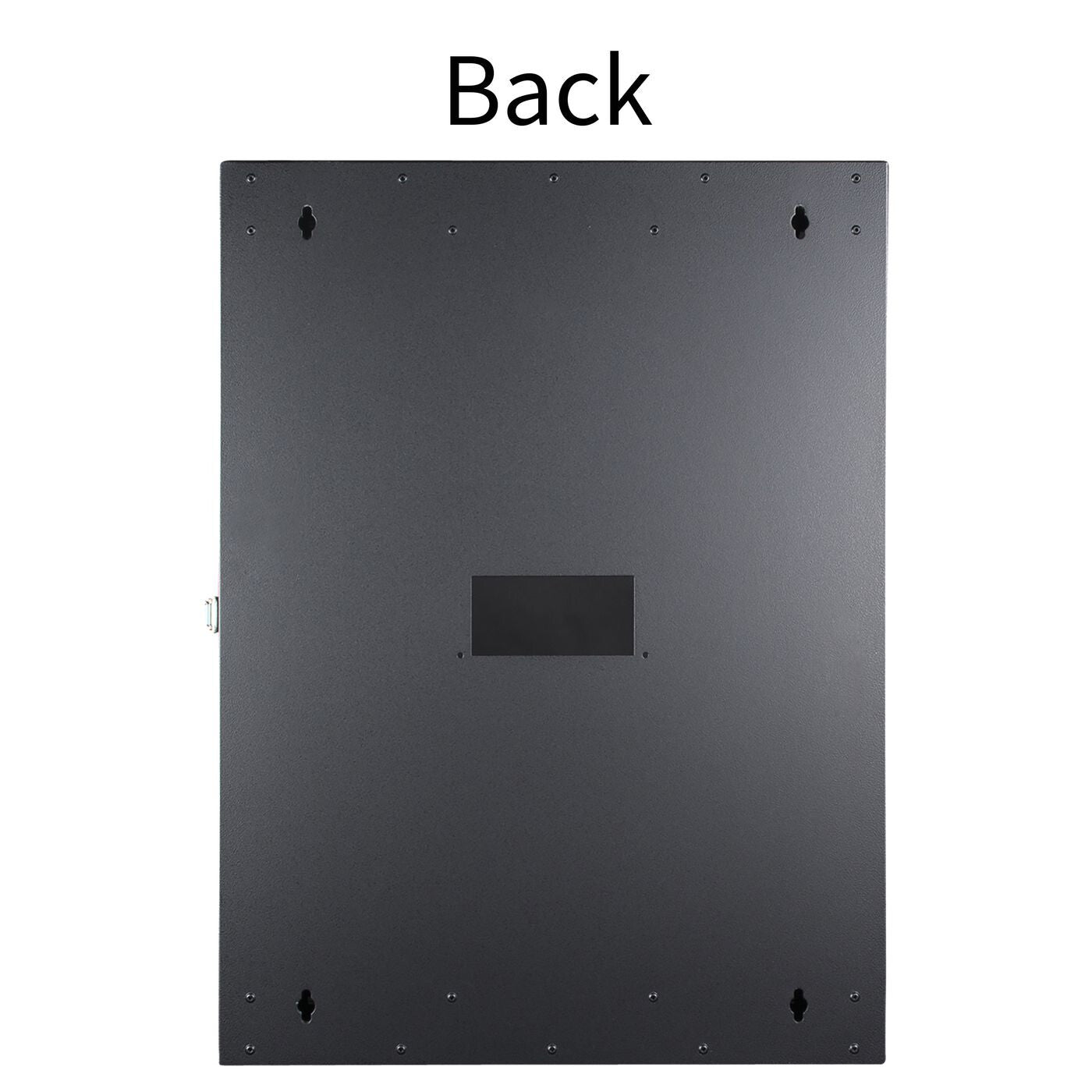

Lanview RWMD16UBL rack cabinet Black
Lanview RWMD16UBL rack cabinet Black
SKU:RWMD16UBL
Low stock: 8 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 80 kg
- Frame type: Closed
- Black
LOGON PROFESSIONAL DOUBLE SECTION FOR RWM CABINET 16U
Weight(kg): 19
Product dimensions WxDxH(mm): 600x150x809
Ah Wall mounting hole gaps(mm): 700
RAL: 9005
Additional depth capacity 150mm provided by the Network Series Wall Type Cabinets allows housing of cable harness.
Equipments, conforming with 19" installation and of 70mm depth, may be attached inside.
By means of 2 brushed cable entry modules of W=145mm x D=70 mm found on the top and bottom, and 1 cable inlet hole of W=145mm x D=70mm found at the back, it allows multi directional cable inlet.
While Network Wall Type Cabinets provide access from the front and sides at its standard use, Additional Compartment applications provide 4 directional access by an extra access point at theback.
By this means ease of installation and maintenance is provided.
Package dimensions(mm): 655x200x835
| Features | |
|---|---|
| Maximum weight capacity | 80 kg |
| Product colour | Black |
| Frame type | Closed |
| Mounting hole shape | Round |
| Castor wheels | No |
| International Protection (IP) code | IP20 |
| Preassembled | Yes |
| Weight & dimensions | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 640 mm |
| Depth | 150 mm |
| Height | 890 mm |
| Weight | 19 kg |
| Packaging data | |
|---|---|
| Package width | 640 mm |
| Package depth | 150 mm |
| Package height | 890 mm |
| Package weight | 19.5 kg |
| Other features | |
|---|---|
| Dimensions (WxDxH) | 600 x 150 x 809 mm |
